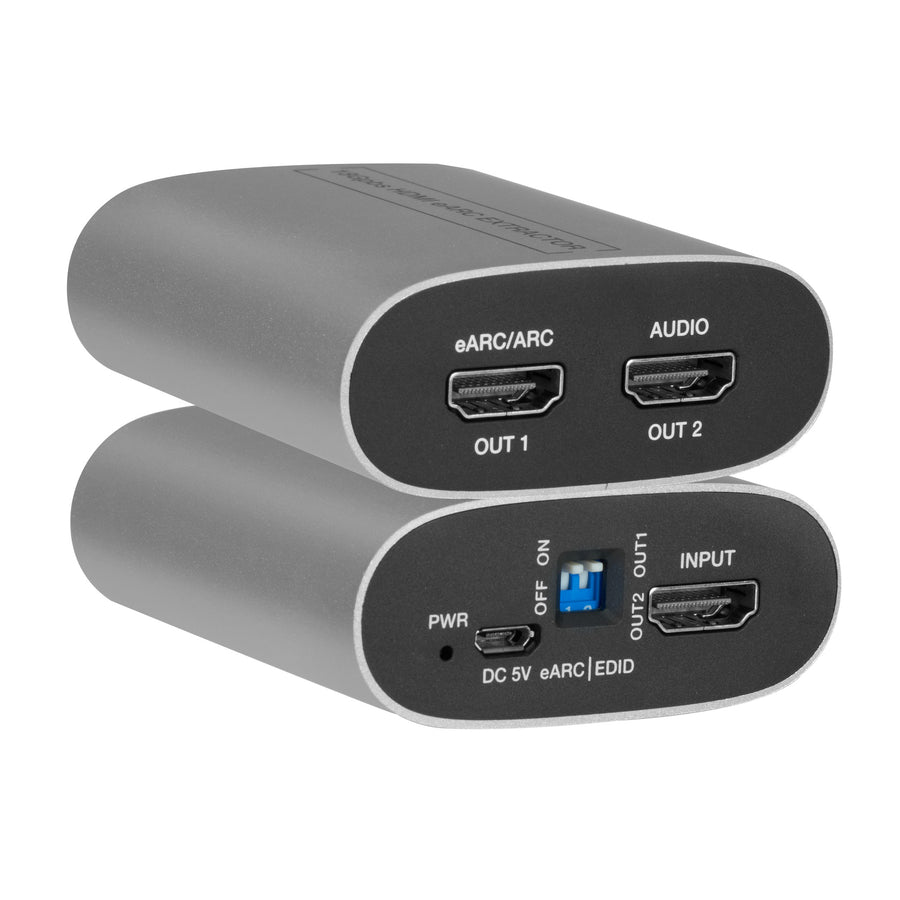

4K HDMI eARC/ARC Audio Extractor
Extract High-Quality eARC/ARC Audio from Any TV — Full 4K60 HDR Video Pass-Through
The KanexPro AUD-DEBEDEARC-4K extracts eARC and ARC audio from any compatible TV and routes high-quality Dolby Atmos, DTS:X, TrueHD, and up to 7.1-channel surround to your amplifier or AV receiver via a dedicated HDMI audio output — no need to upgrade your existing audio equipment. Video passes through at full 4K60 4:4:4 with HDR, HDR10, HDR10+, and Dolby Vision completely intact. Built-in signal equalization, retiming, and advanced EDID management ensure rock-solid performance, while CEC pass-through lets a single TV remote control the entire chain. USB-powered and compact, it installs in seconds behind any screen.
- Extracts eARC/ARC audio from TV and outputs via dedicated HDMI audio port (720p black screen) to any AVR
- Supports Dolby Atmos, TrueHD, DD+, DTS:X, DTS-HD Master, DTS ES 6.1, LPCM 7.1, and PCM 2.0
- Transparent 4K60 4:4:4 video pass-through at 18 Gbps — zero signal degradation to your display
- Full HDR pass-through: HDR, HDR10, HDR10+, and Dolby Vision preserved end-to-end
- Built-in equalizer, retiming, and driver for stable, reliable HDMI signal delivery
- Advanced EDID management & CEC pass-through — one remote controls the entire system
- VESA support up to QSXGA @ 60 Hz — compact aluminium enclosure, USB-powered
| HDMI / HDCP | HDMI 2.0b • HDCP 2.3 / 1.x |
| Video Resolution | Up to 4K2K @ 60 Hz 4:4:4 • VESA up to QSXGA @ 60 Hz |
| Color Depth | 8/10/12-bit (1080p60) • 8-bit (4K60 4:4:4) • 8/10/12-bit (4K60 4:2:2/4:2:0) |
| HDR Formats | HDR • HDR10 • HDR10+ • Dolby Vision |
| Audio Formats | PCM 2.0, LPCM 5.1/7.1, DD, DD+, TrueHD, Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS-HD MA, DTS:X |
| HDMI Ports | 1× HDMI In • 1× HDMI eARC/ARC Out • 1× HDMI Audio Out |
| ESD Protection | ±8 kV air-gap • ±4 kV contact (Human Body Model) |
| Enclosure | Aluminium • Silver • 65 × 70 × 27 mm • 83 g |
| Power | USB 5 V / 500 mA • 1.75 W max |
| Environment | 32–104 °F (0–40 °C) • 20–90% RH (no condensation) |
