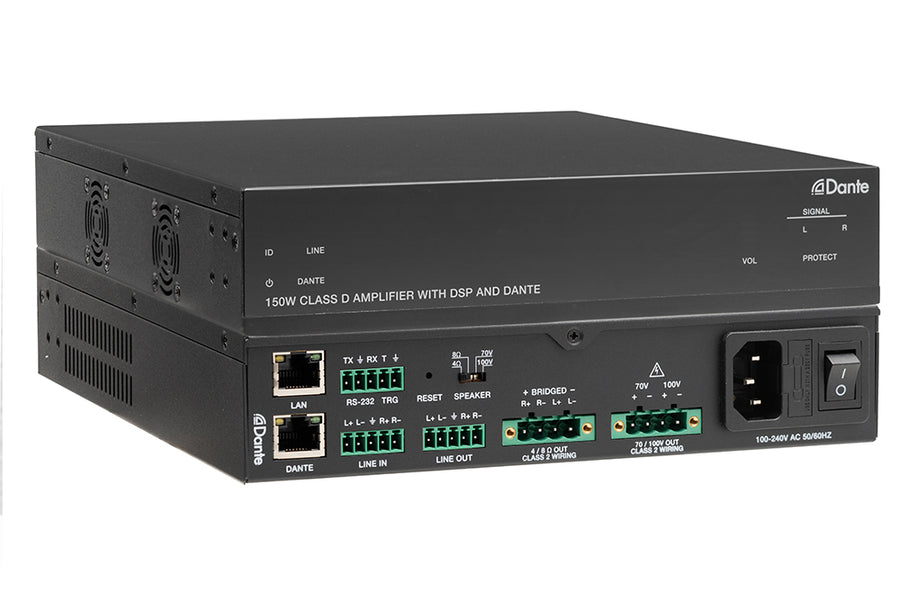

150W Class D Amplifier with DSP and Dante®
Dante® Networked 2-Channel Amplifier with DSP and Lo-Z/Hi-Z Output Modes
Resellers, installers, schools and businesses. Approval is usually the same working day.
Deliver network audio directly to speakers with a compact, DSP-equipped Class D amplifier featuring Dante 2-channel digital I/O. The KanexPro AUD-DTE-2CHAMP is a 150W Class D amplifier that decodes Dante network audio and drives low-impedance (4Ω/8Ω) stereo speakers or constant-voltage (70V/100V) distributed speaker lines — with balanced analog line-level I/O for legacy integration.
Built-in DSP provides 31-band graphic EQ, per-output delay (0–50ms), independent input gain and volume control, and five recallable presets. The amplifier accepts Dante PCM 2-channel audio at up to 96KHz/24-bit alongside balanced stereo line input. A rear-panel speaker impedance switch selects Lo-Z stereo (2×75W @ 4Ω/8Ω), bridged mono (1×150W @ 8Ω), or Hi-Z constant voltage (1×150W @ 70V/100V). Control via RS-232, LAN, and Web GUI. 5–12V trigger input and auto standby for energy-efficient installations. Half-rack/full-rack mountable.
- Dante 2-channel digital audio input and output (PCM, 44.1K–96KHz, 16/24-bit) for seamless networked audio distribution
- Balanced or unbalanced stereo line-level analog input and output (max 2Vrms) for integration with legacy analog sources and processors
- Class D amplifier delivers 2×75W @ 4Ω/8Ω stereo, 1×150W @ 8Ω bridged mono, or 1×150W @ 70V/100V constant voltage
- Rear-panel speaker impedance switch selects Lo-Z (4Ω/8Ω) or Hi-Z (70V/100V) output mode without reconfiguration
- Built-in DSP with 31-band graphic EQ (−10 to +10dB), per-output delay (0–50ms), independent input gain and master volume control
- Five recallable presets store complete audio configuration for rapid scene switching in multi-use spaces
- 5–12V trigger input for external mute control; auto standby (0–120 min) for energy-efficient operation
- Control via RS-232 (115200 baud), LAN (Web GUI), and TCP/IP (port 8000) — half-rack/full-rack mountable
| Technical | |
|---|---|
| Amplifier Type | Class D, 150W max |
| Output Power | 2×75W @ 4Ω/8Ω; 1×150W @ 8Ω bridged; 1×150W @ 70V/100V |
| Input Sensitivity | Full power @ 0.775V (0dBu) |
| Max Voltage Gain | 27–30dB SE / 39–42dB BTL |
| Frequency Response | 20Hz–20kHz @ ±3dB |
| Signal to Noise Ratio | 87dB, 20Hz–10kHz |
| THD+N | 0.04% (1kHz @ 1W) |
| Audio Format | LINE IN: Analog, Balanced 2CH, Max 2Vrms; LINE OUT: Analog, Balanced 2CH, Max 2Vrms; DANTE: Digital 2×2 in/out, PCM 2CH 44.1K–96kHz 16/24-bit; AMP OUT: Analog, Balanced 2CH, Max 24.5Vrms; 70V/100V AMP OUT: Analog, Unbalanced 1CH |
| Control | RS-232, Web GUI, LAN (TCP/IP) |
| ESD Protection | ±8kV (air-gap) / ±4kV (contact) — Human-body Model |
| Connection | |
| Input | 1× LINE IN (5-pin 3.81mm Phoenix); 1× DANTE (RJ45) |
| Output | 1× LINE OUT (5-pin 3.81mm Phoenix); 1× 4/8Ω AMP OUT (4-pin 5.08mm locking Phoenix); 1× 70V/100V AMP OUT (4-pin 5.08mm locking Phoenix) |
| Control | 1× RS-232/TRG (5-pin 3.81mm Phoenix); 1× LAN (RJ45) |
| Mechanical | |
| Housing | Front: Aluminum; Rear: Metal Enclosure, Black |
| Dimensions | 9.45" (W) × 8.27" (D) × 1.73" (H) |
| Weight | 4.14 lbs |
| Power | |
| Power Supply | AC 100–240V 50/60Hz |
| Power Consumption | 240W (Max) |
| Environmental | |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | −4–140°F / −20–60°C |
| Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| 1× 150W Class D Amplifier | |
| 3× 5-pin 3.81mm Phoenix Connectors (male) | |
| 2× 4-pin 5.08mm Phoenix Connectors (male) | |
| 6× Mounting Ears | |
| 24× Machine Screws | |
| 1× AC Power Cord (100–240V, 1.5m) | |
| 1× Product Manual | |
