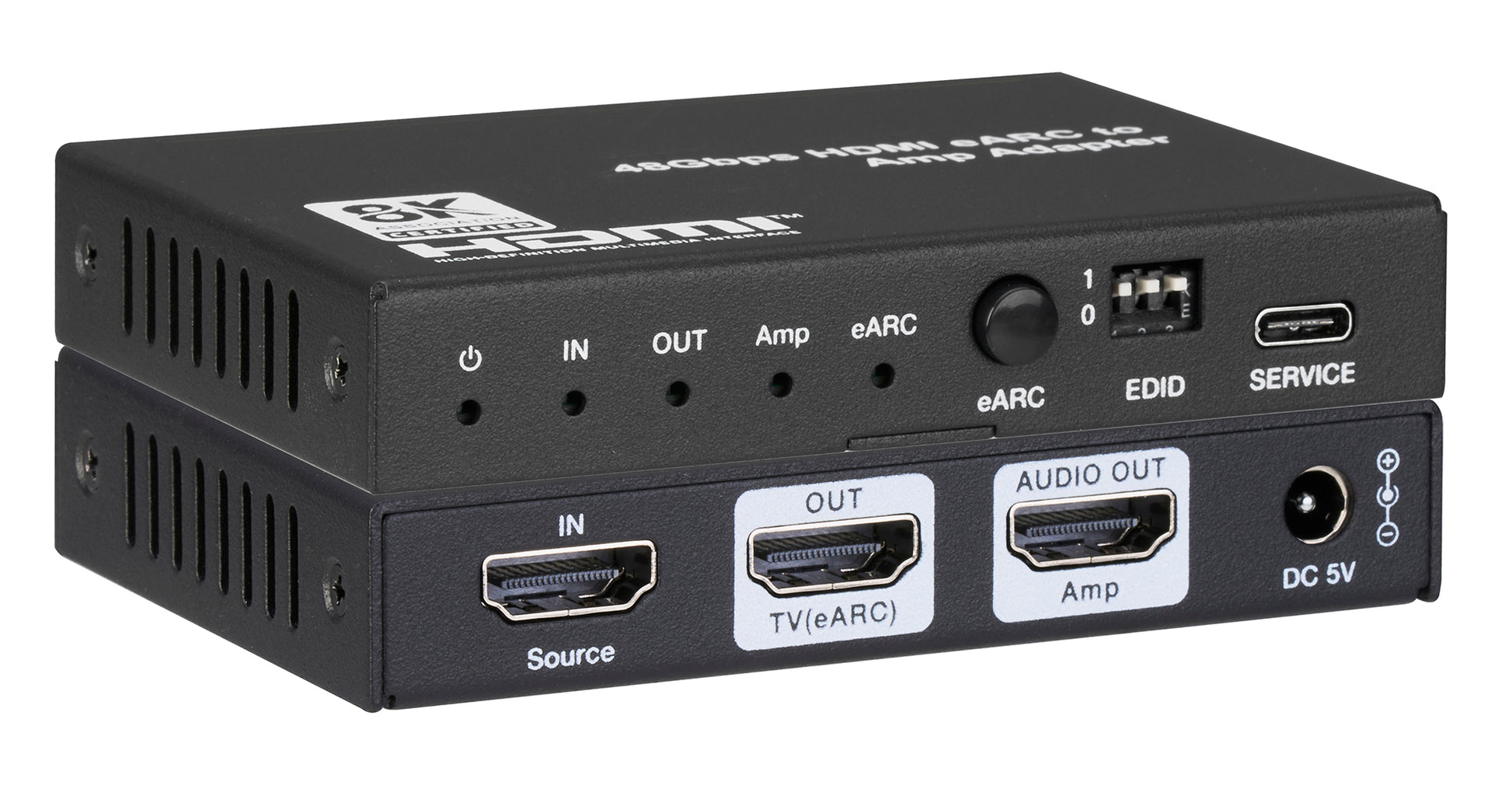

8K HDMI 2.1 eARC Audio to Amplifier Adapter

Name: 8K HDMI 2.1 eARC Audio to Amplifier Adapter
Brand: KanexPro
SKU: AUD-AMP-8K

De-embed ARC/eARC Audio to Any AVR — HDMI 2.1 Video Passes Through at Full 48Gbps

1 1

KanexPro

SKU: AUD-AMP-8K

UPC: 813982023543

$119.96 $149.95 Save 20%

View full details

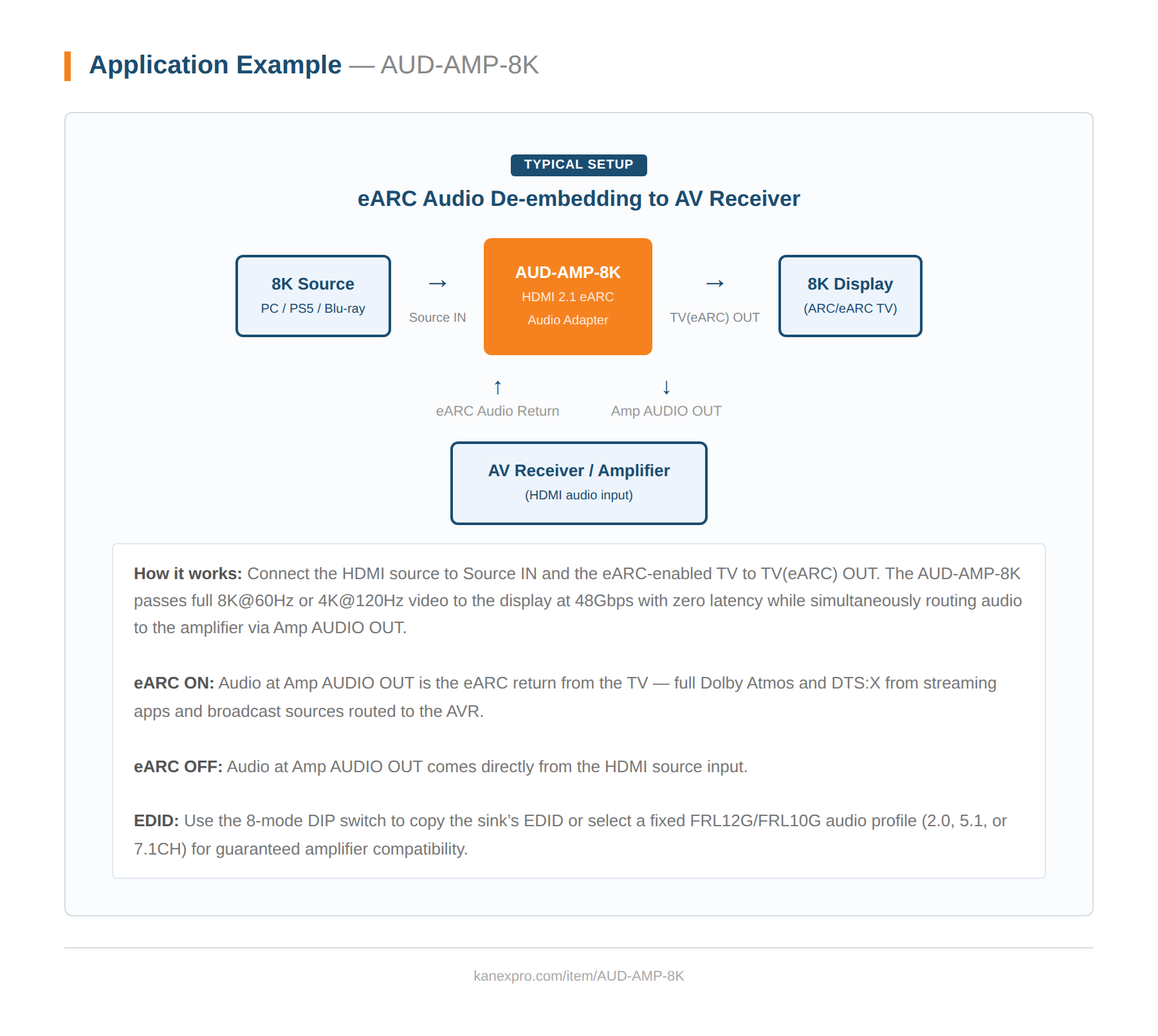

Bridges the gap between HDMI 2.1 eARC displays and legacy AV receivers by de-embedding ARC/eARC audio from any 8K-capable TV or HDMI source and routing it via HDMI directly to the amplifier — no AVR replacement required. Fully compliant with HDMI 2.1 and HDCP 2.3, supporting data rates up to 48Gbps FRL with zero video and audio latency.

Designed for CEDIA integrators specifying retrofit and new-build installations, the AUD-AMP-8K handles video resolutions up to 8K@60Hz and 4K@120Hz with full HDR pass-through (HDR10, HDR10+, Dolby Vision, HLG) and HDMI 2.1 protocols including VRR, ALLM, QMS, QFT, and SBTM. Eight DIP-switch EDID modes, CEC volume control, and a USB-C firmware update port ensure long-term serviceability in the field.

HDMI 2.1 and HDCP 2.3 compliant with 48Gbps FRL and 18Gbps TMDS video bandwidth
Supports video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit)

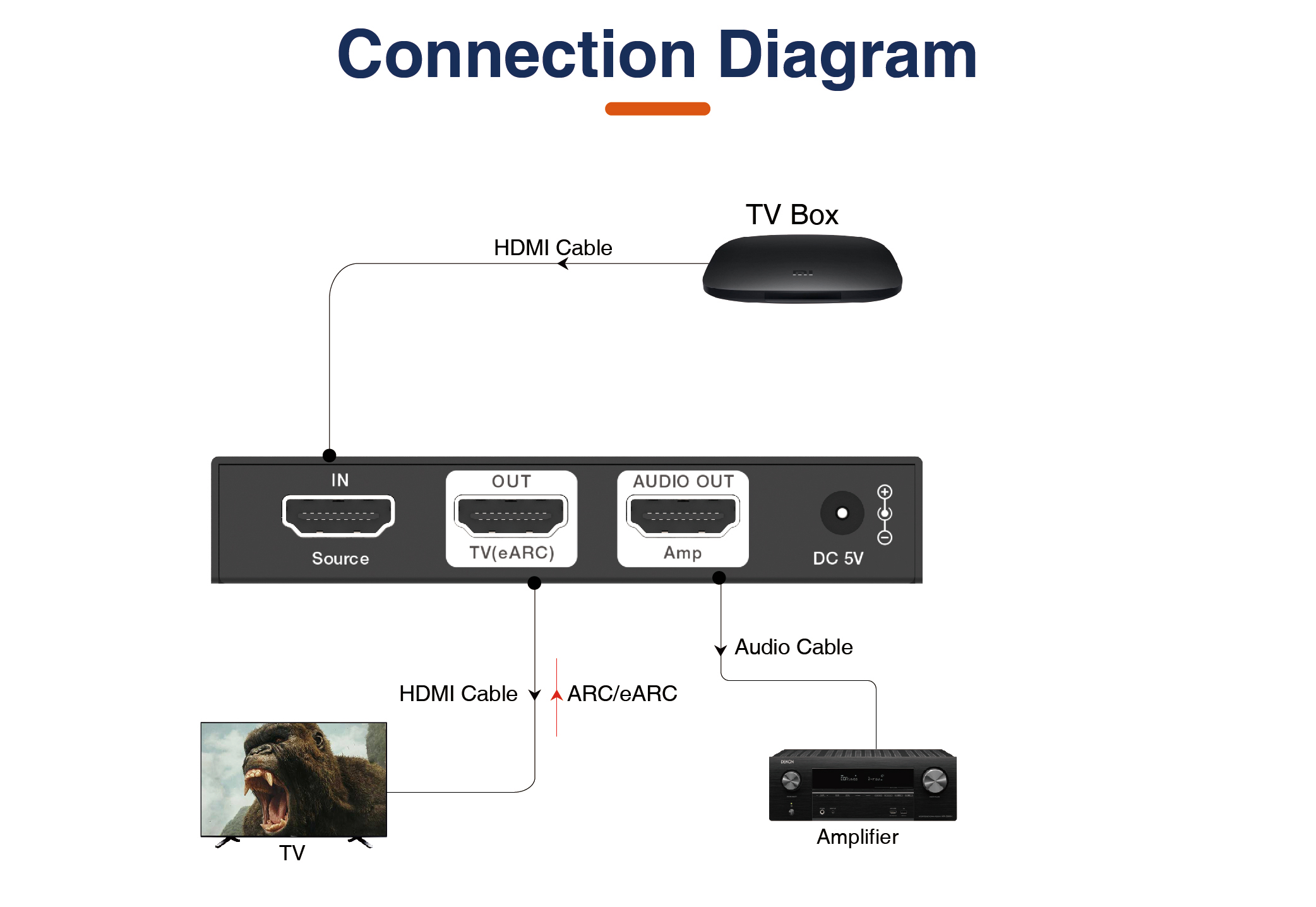

De-embeds ARC/eARC audio from HDMI source input or TV ARC/eARC port to dedicated Amp AUDIO OUT
Full audio pass-through: LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
HDR pass-through: HDR10, HDR10+, Dolby Vision, HLG; HDMI 2.1 protocols VRR, ALLM, QMS, QFT, SBTM

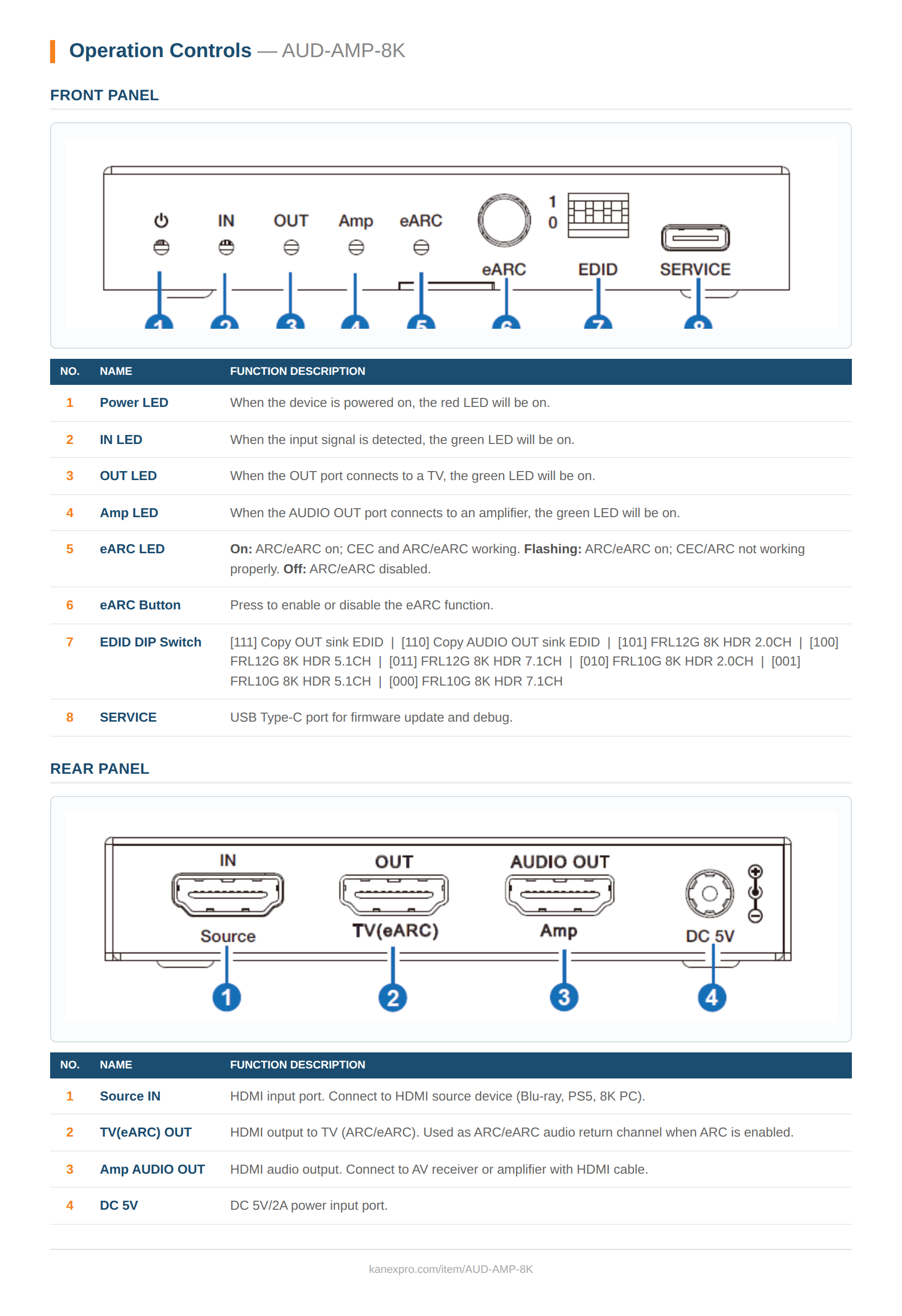

Advanced EDID management via 8-mode DIP switch — copy sink EDID or select fixed FRL12G/FRL10G profiles at 2.0, 5.1, or 7.1CH
CEC control and CEC volume control from TV to source and amplifier
USB-C SERVICE port for field firmware updates and debug
CE/FCC/UL certified 5V/2A multinational power supply included

Specification	Value
Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz (4:2:0, 12-bit) / 4K@120Hz (4:4:4, 12-bit)
Audio Latency	No Latency
Video Latency	No Latency
Color Depth	8/10/12-bit
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR	HDR10, HDR10+, Dolby Vision, HLG
HDMI 2.1 Protocols	VRR, ALLM, QMS, QFT, SBTM
Audio Formats (IN/OUT)	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap) / ±4kV (Contact)
Connection

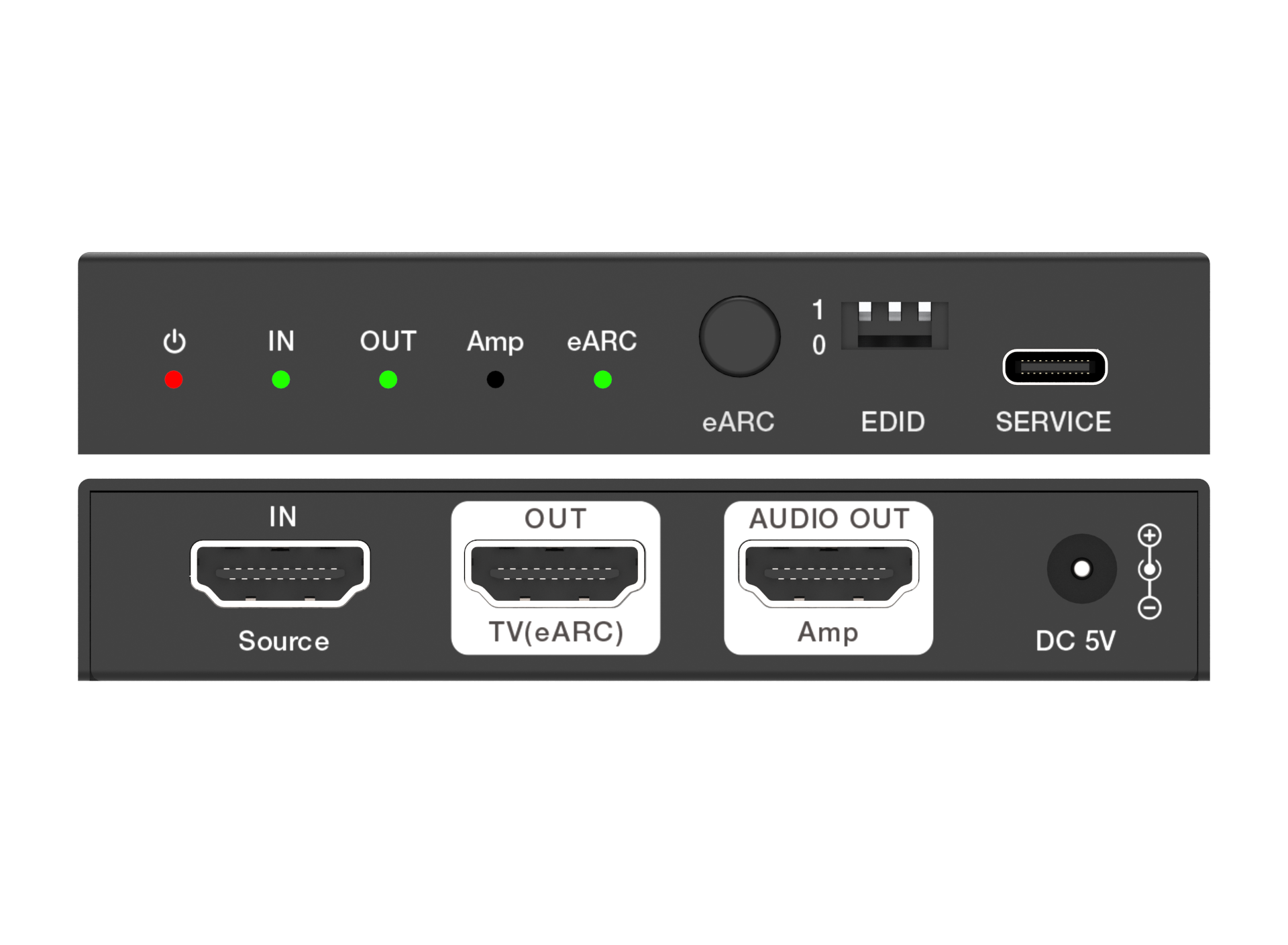

Input	1 × Source IN [HDMI Type A, 19-pin female]
Output	1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female]
Control / Service	1 × SERVICE [USB Type-C — firmware update & debug]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	95mm (W) × 68mm (D) × 18mm (H)
Weight	178g
Power Supply	Input: AC 100–240V 50/60Hz \| Output: DC 5V/2A (CE/FCC/UL certified)
Power Consumption	4.5W (Max)
Operating Temperature	0°C – 40°C / 32°F – 104°F
Storage Temperature	−20°C – 60°C / −4°F – 140°F
Relative Humidity	20–90% RH (non-condensing)
Recommended HDMI Cable Length (HDMI IN / OUT)
8K@60Hz	2m/6.6ft – 3m/10ft (Ultra HDMI 2.1)
4K@60Hz	5m/16ft
4K@30Hz	10m/33ft
1080p	15m/49ft
Certifications
Power Supply	CE / FCC / UL
Package Contents
1 ×	AUD-AMP-8K 48Gbps HDMI eARC Audio to Amplifier Adapter
1 ×	5V/2A Multinational Power Supply (CE/FCC/UL certified)
1 ×	User Manual
