1080P60 H.265/H.264 AV over IP Encoder/Decoder New

A compact, low-power 1080P60 H.265/H.264 AV over IP encoder/decoder pair that distributes full-HD content to any number of displays over a standard 1G managed network. At 120×95×21.5mm and under 3 watts per unit, the AVO-IP265-HD installs in tight spaces — rack-mounting up to 12 units in 4U or 8 units in 1U — making it the right choice for digital signage, education, retail, and corporate AV distribution where simplicity and density matter more than 4K or KVM.

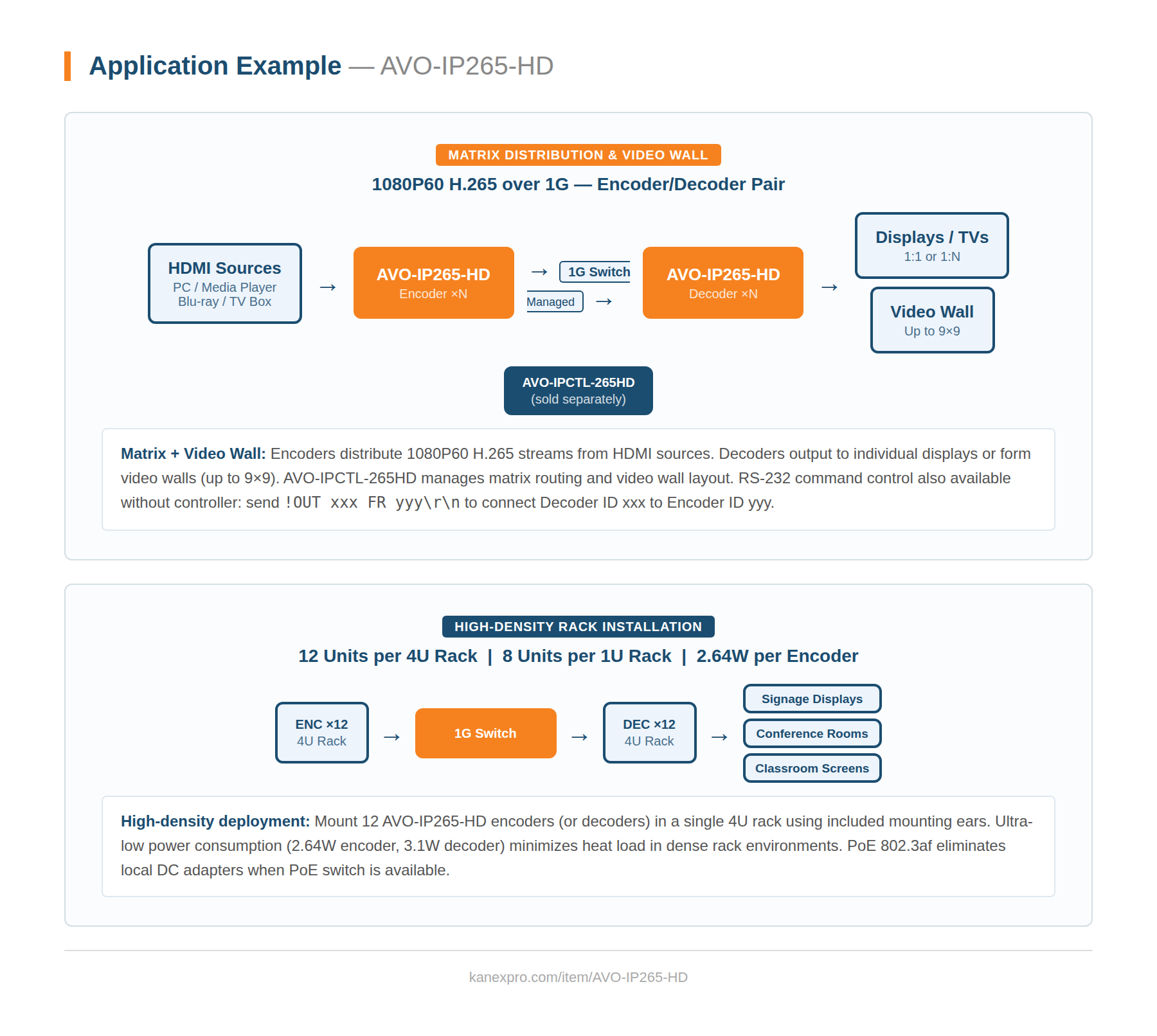

Supports matrix switching, video wall up to 9×9, unicast and multicast distribution, analog audio embedding and extracting, RS-232 pass-through, and configurable video settings via web GUI. RTSP sub-streams allow VLC and third-party app preview. Managed by the AVO-IPCTL-265HD controller. Encoder and decoder sold separately.

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4
• Compact form factor: 4.72″ × 3.74″ × 0.85″ (120 × 95 × 21.5mm) — 0.65 lbs (294g)
• 4U rack mounting (up to 12 units) or 1U rack mounting (up to 8 units)
• Matrix switching, video wall up to 9×9, unicast and multicast distribution over 1G
• Seamless switching — no black screen, jitter, or tearing between source changes
• Analog audio embedding (encoder) and extracting (decoder) — LPCM 2.0CH
• Configurable main stream (H.265/264, 8Mb/s default) and sub stream (640×360, 1Mb/s default)
• RTSP sub-streams for VLC and third-party application preview
• RS-232 pass-through and guest mode control
• Web GUI for video configuration, EDID management, picture settings, firmware updates
• PoE 802.3af Class 3 PD or DC 12V/1A — ultra-low power: Encoder 2.64W / Decoder 3.1W
• Works with AVO-IPCTL-265HD (CTL100H) controller
