4K60 JPEG2000 AV over IP Encoder/Decoder — Slim New

Delivers cost-effective 4K60 4:4:4 JPEG2000 AV over IP distribution over standard 1G copper networks — with visually lossless video quality, HDR10/Dolby Vision/HLG, and optional Dante AV-A audio networking. The AVO-IPJP2KS Slim encoder/decoder pair transmits uncompromised 4K video, analog audio, bidirectional IR, and RS-232 over CAT6/6A/7 up to 100m, supporting unicast, multicast, matrix, and 9×9 video wall.

Where AVO-IPJP2K adds USB KVM, fiber, ARC/eARC, S/PDIF, and digital I/O for maximum feature density, AVO-IPJP2KS delivers the core JPEG2000 video distribution experience in a slimmer, more cost-effective form factor — copper-only, 1G, with HDMI loop output on the encoder, analog audio IN/OUT, and full IR/RS-232 pass-through. Works with AVO-IPCTL-JP2K for full matrix and video wall management. Compatible with AVO-IPJP2K in mixed deployments.

• 4K60 4:4:4 JPEG2000 visually lossless video distribution over 1G copper network
• HDR10, Dolby Vision, HLG — HDMI 2.0b, HDCP 2.2 compliant

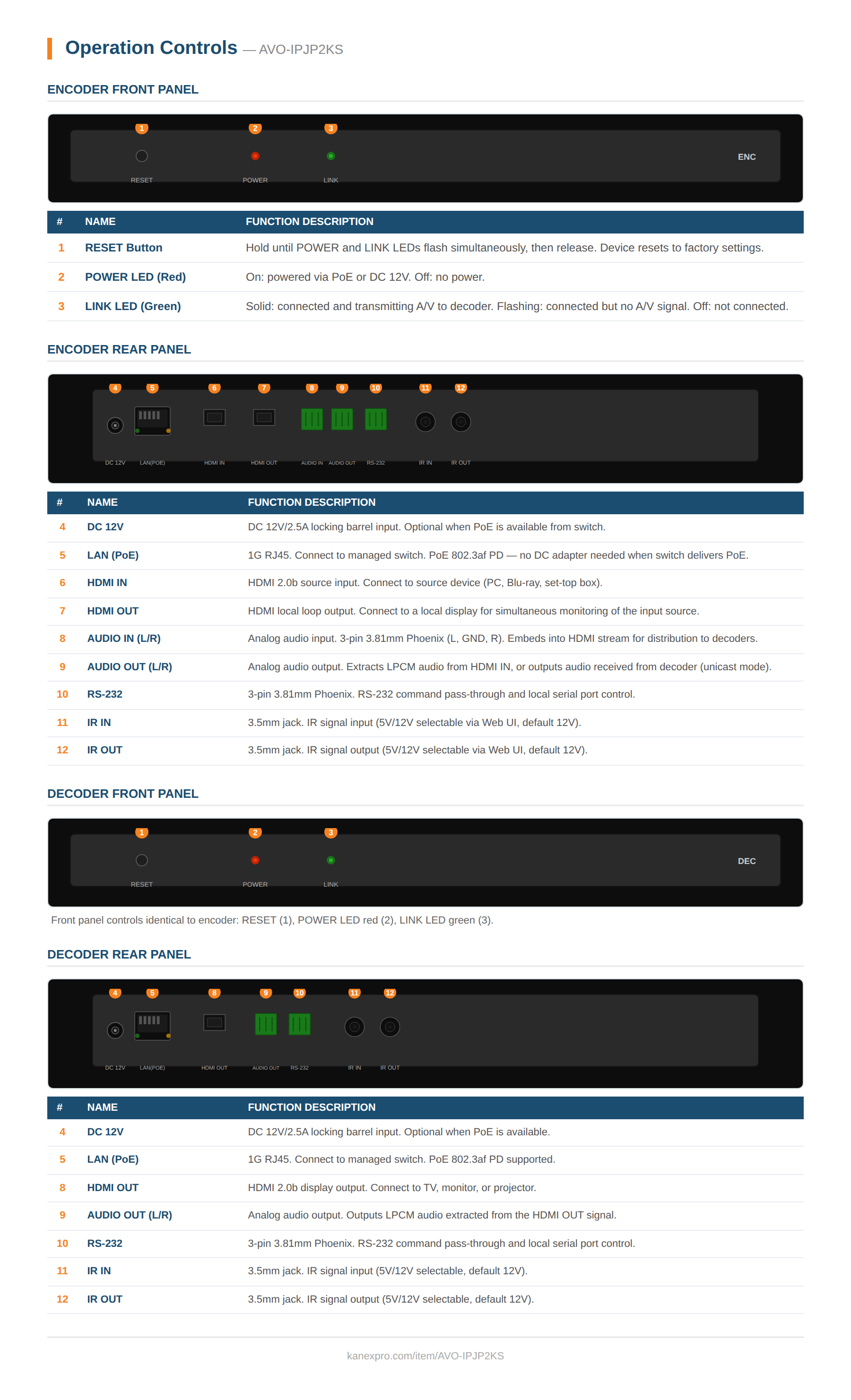

• Encoder HDMI loop output for local display monitoring
• Analog audio IN/OUT (L/R 3-pin Phoenix) — LPCM 2.0 at 192kHz
• Bidirectional IR pass-through (5V/12V selectable) + RS-232 command relay

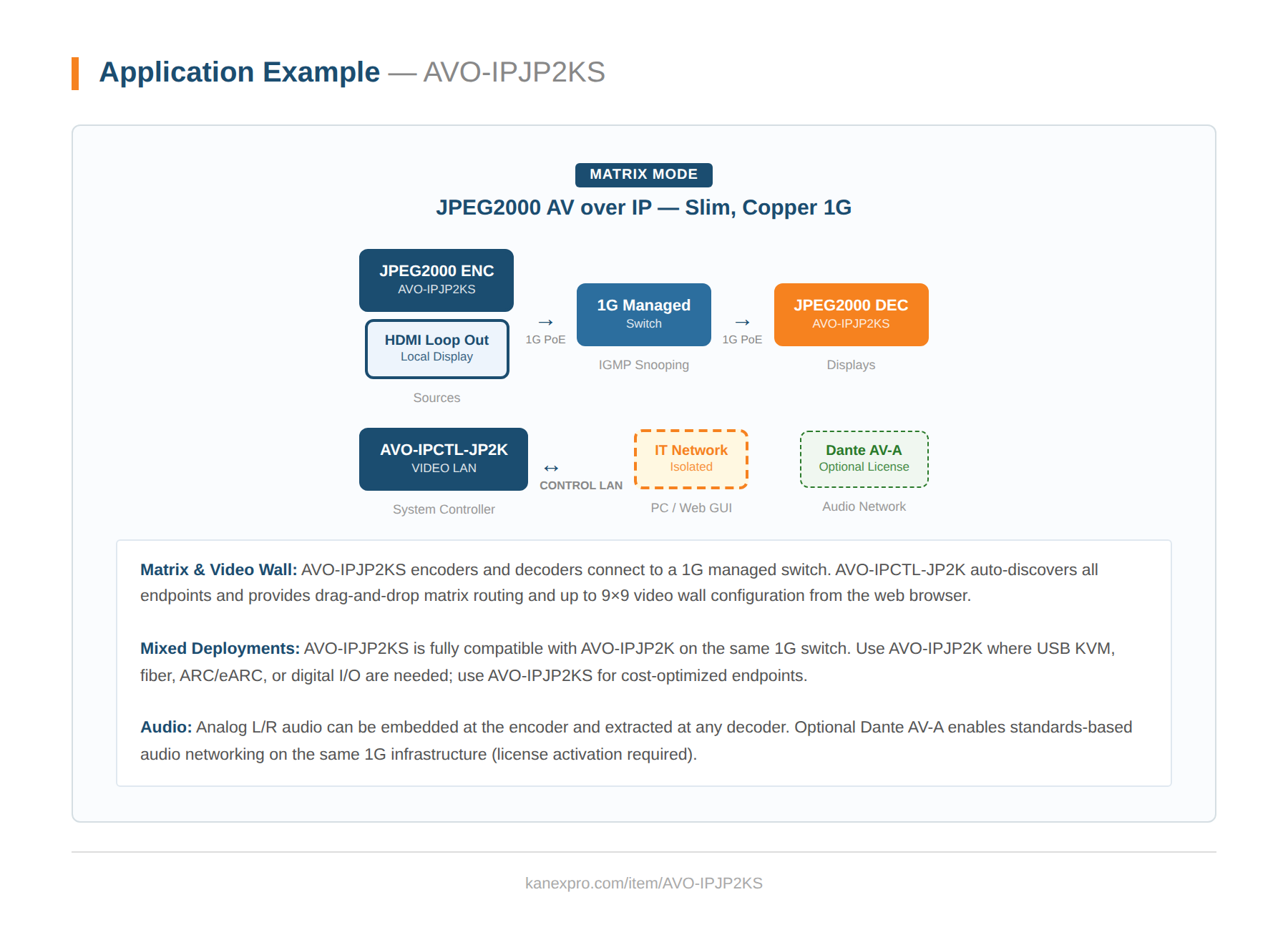

• Unicast and multicast — point-to-point, matrix, and 9×9 video wall
• MJPEG substream for real-time video preview on portable devices
• Optional Dante AV-A audio networking (license activation)
• PoE 802.3af PD — DC 12V/2.5A adapter optional
• Works with AVO-IPCTL-JP2K — compatible with AVO-IPJP2K in mixed deployments
