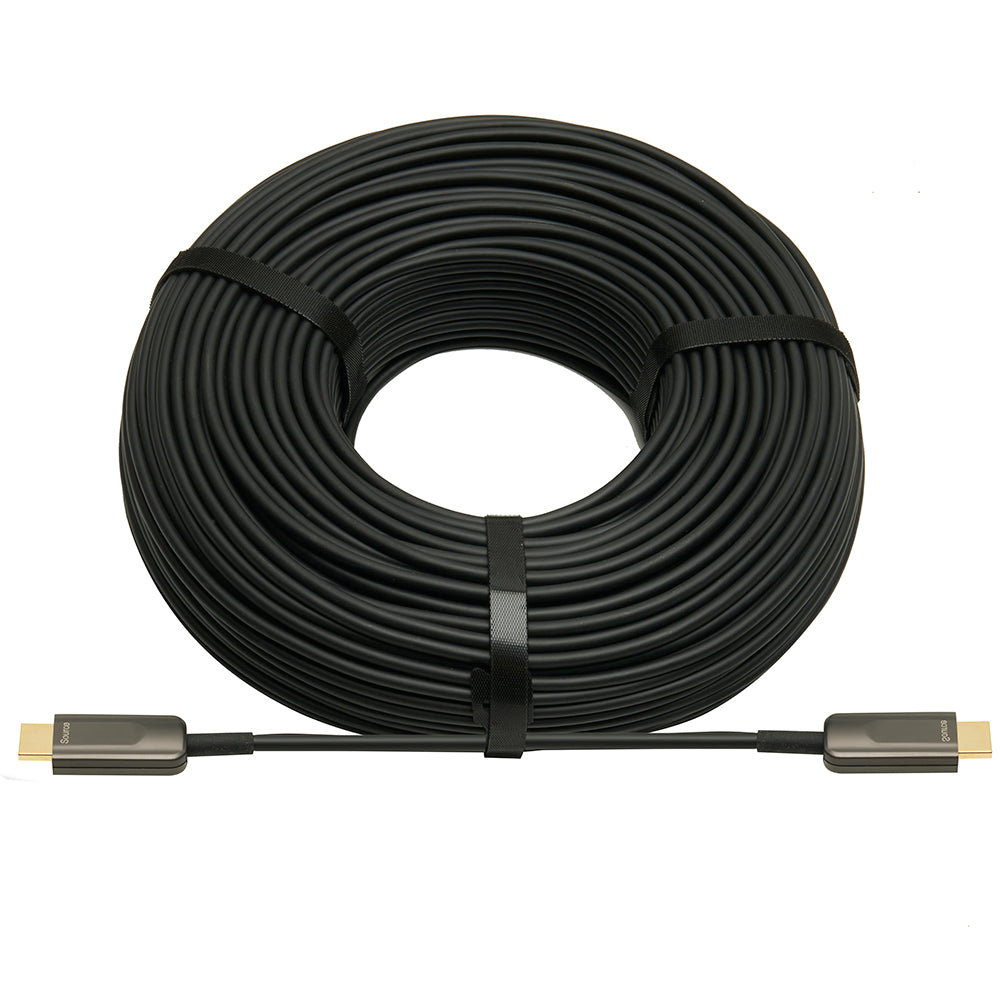

Delivering 48Gbps of bandwidth
KanexPro
SKU: CBL-AOCHDMI8K-90M
UPC: 813982023482
Couldn't load pickup availability
KanexPro Active Fiber (AOC) High Speed HDMI 2.1 Cables let you connect an HDMI source, distribution amplifier, extender or computer to an HDMI enabled display. These rated cables are available in the right lengths ideal for running through walls, between floors, and top performance is a must.
Next generation active fiber HDMI cables are designed for next generation 8K content. The KanexPro active fiber HDMI cable delivers uncompressed full bandwidth 48Gbps HDMI content up to 294ft using the latest transmission technology whilst supporting additional HDMI features such as eARC. Delivering 48Gbps of bandwidth means that these cables are guaranteed to work with modern 8K equipment. Active Fiber HDMI Cables make sure that the signal reaches its destination and should be your only choice for all your 8K and High Speed HDMI display needs. Backed by KanexPro’s 3 Year warranty, rest assured that this cable will provide years of flawless 8K performance.
| HDCP& DDC | HDCP 2 . 2 Full support on bi-directional EDID and HDCP communication |
| Video Bandwidth | 1 2 Gbps/ x4 Channel |
| Supported Resolution & Distance | 480p, 720p, 1080p and 1080p deep color, 4K @ 50/60/100/120 Hz and 8K @ 50/ 60 Hz |
| OE Converter | 4-channel 850nm VCSEL array |
| Connector Type | HDMI type A |
| Cable Type | Hybrid type with OM3 fiber and copper wire |
| Cable Length | 90M |
| Cable Outer Diameter | 4.5mm |
| Cable Color TBD | Cable Color Black |
| Differential Input | 100 ohm ( typ) |
| Power Consumption | 250mW ( max) |
| Power Supply | Non external power required |
| Operating Temperature | 0°C to +50°C |
No diagram available.
No panel image available.
