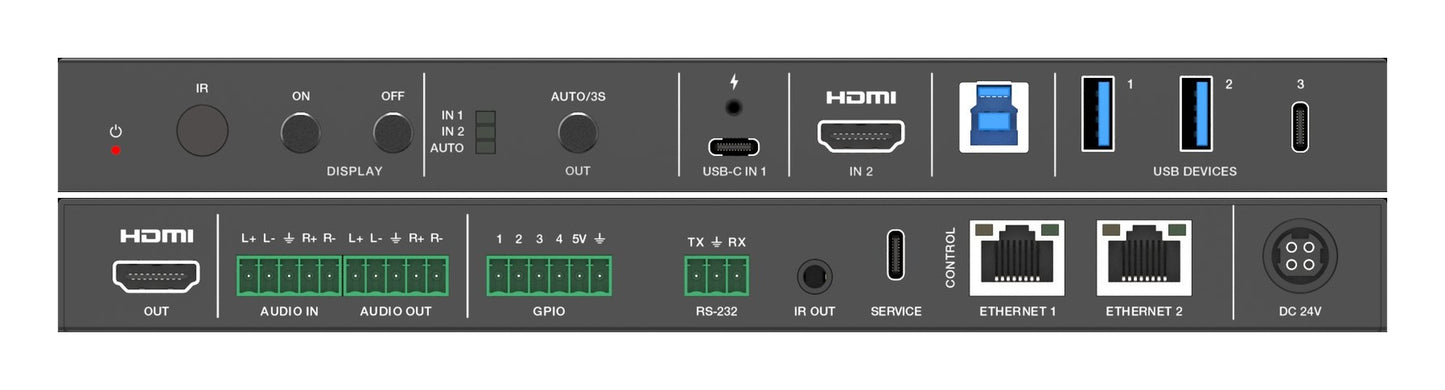

2×1 HDMI & USB-C Huddle Room Switcher with USB 3.2 KVM New

4K60 4:4:4, 100W USB-C PD, Balanced Audio I/O, Dual 1G Ethernet with 802.1x — Designed for Corporate BYOD Rooms

  • 2×1 HDMI & USB-C Huddle Room Switcher with USB 3.2 KVM
1 1

KanexPro

SKU: COL-HUD-21

UPC:

View full details

The COL-HUD-21 eliminates the multi-adapter problem in corporate huddle rooms by combining HDMI and USB-C source switching, USB 3.2 Gen 1 KVM, and 100W laptop charging into a single compact unit. With 4K60 4:4:4 output, balanced analog audio I/O, and dual 1G Ethernet ports with 802.1x/VLAN support, it delivers enterprise-grade BYOD connectivity that IT departments can spec with confidence.

Designed for Teams and Zoom environments, the COL-HUD-21 routes video, USB peripherals, and network access from any connected laptop through one HDMI cable to the room display — no docking stations, no adapters, no IT headaches. Auto and manual switching, CEC/IR/RS-232/GPIO display control, and a Web GUI make it simple to install, manage, and integrate into any control system.

  • HDCP 2.3 and DP 1.4a compliant
  • 2×1 huddle room switcher — USB-C and HDMI inputs, HDMI output
  • USB-C input with DP Alt mode up to 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet, and 100W charging
  • HDMI input up to 4K60 4:4:4 as specified in HDMI 2.0b
  • Fast switching with auto and manual switching modes
  • Auto switching with signal detection and 5V source detection
  • USB 3.2 Gen 1 (5Gbps) host and local hub
  • USB 3.2 Gen 1 (5Gbps) device port with 5V/1.5A power output
  • Balanced/unbalanced analog audio embedding to USB or HDMI audio
  • Balanced/unbalanced analog audio de-embedding from USB or HDMI audio
  • Advanced EDID management — 18 presets plus 2 user-defined profiles
  • User-defined welcome screen and no-signal display image
  • Dual 1G Ethernet ports with 802.1x and VLAN support
  • IR eye for IR learning and control
  • Auto display on/off control
  • External device control via CEC, IR, RS-232, LAN, and GPIO
  • 5 preset scenes for fast room configuration recall
  • Internal pattern generator — 12 patterns at up to 4K60
  • Control via front panel buttons, RS-232, TCP/IP, and Web GUI
Specification Value
Technical
HDMI Compliance HDMI 2.0b
HDCP HDCP 2.3
DP Compliance DP 1.4a (USB-C input)
USB Compliance USB 3.2 Gen 1 (5Gbps)
Video Bandwidth 18Gbps
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8/10/12-bit (8-bit at 4K60 4:4:4)
Audio (Digital) LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio (Analog) LPCM 2CH, 32–192kHz
Audio S/N Ratio >90dB
Audio THD+N <0.01% at +4dBu 1kHz
IR Frequency 20kHz–60kHz
ESD Protection IEC 61000-4-2: ±8kV air / ±4kV contact
Connection
Input 1× USB-C IN1 (24-pin), 1× HDMI IN2 (Type A), 1× USB Host (Type B)
Output 1× HDMI OUT (Type A), 1× USB Device (Type C), 2× USB Device (Type A)
Audio In 1× L/R Balanced/Unbalanced (5-pin 3.5mm phoenix)
Audio Out 1× L/R Balanced/Unbalanced (5-pin 3.5mm phoenix)
Control 1× RS-232 (3-pin), 1× IR Out (3.5mm), 2× Ethernet (RJ45), 1× GPIO (6-pin), 1× Service (USB-C)
Physical
Dimensions (W×D×H) 9.06? × 5.12? × 0.91? (230 × 130 × 23mm)
Net Weight 1.75 lbs (0.796kg)
Housing Metal, Black
Power Supply DC 24V/7.5A (AC 100–240V, 50/60Hz)
Power Consumption 37W (idle) / 145W (with 100W USB-C charging)
Operating Temperature 32°F–104°F (0°C–40°C)
Storage Temperature -4°F–140°F (-20°C–60°C)
Operating Humidity 20–80% RH non-condensing
Certifications
Regulatory CE, FCC, UL
Package Contents
1× 2×1 HDMI & USB-C Huddle Room Switcher
1× 24V/7.5A Power Supply
1× IR Blaster Cable (1.5m)
1× 3-pin Phoenix Connector (male)
2× 5-pin Phoenix Connector (male)
1× 6-pin Phoenix Connector (male)
4× Rubber Foot
2× Mounting Ear
1× User Manual

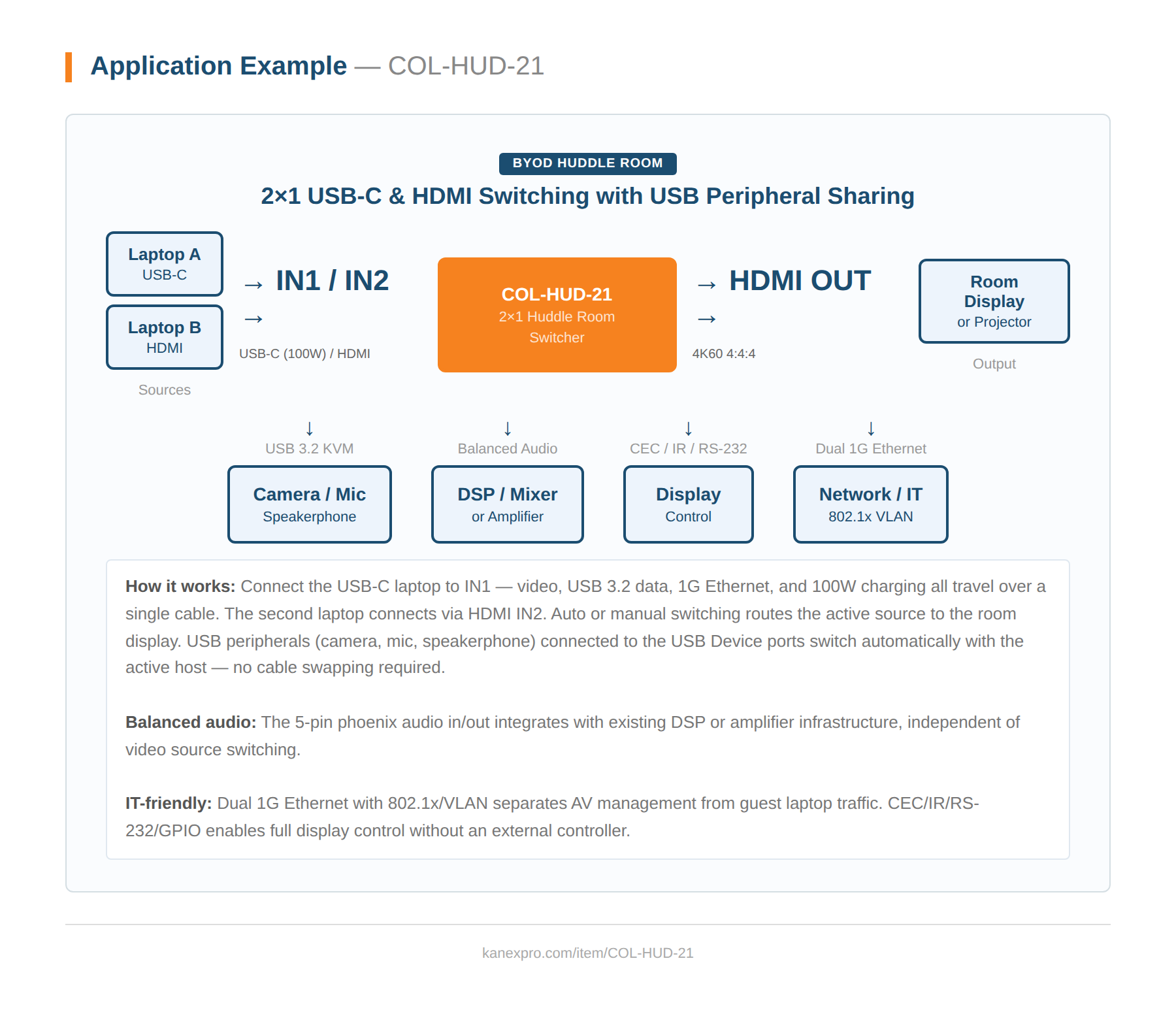

Product Diagram

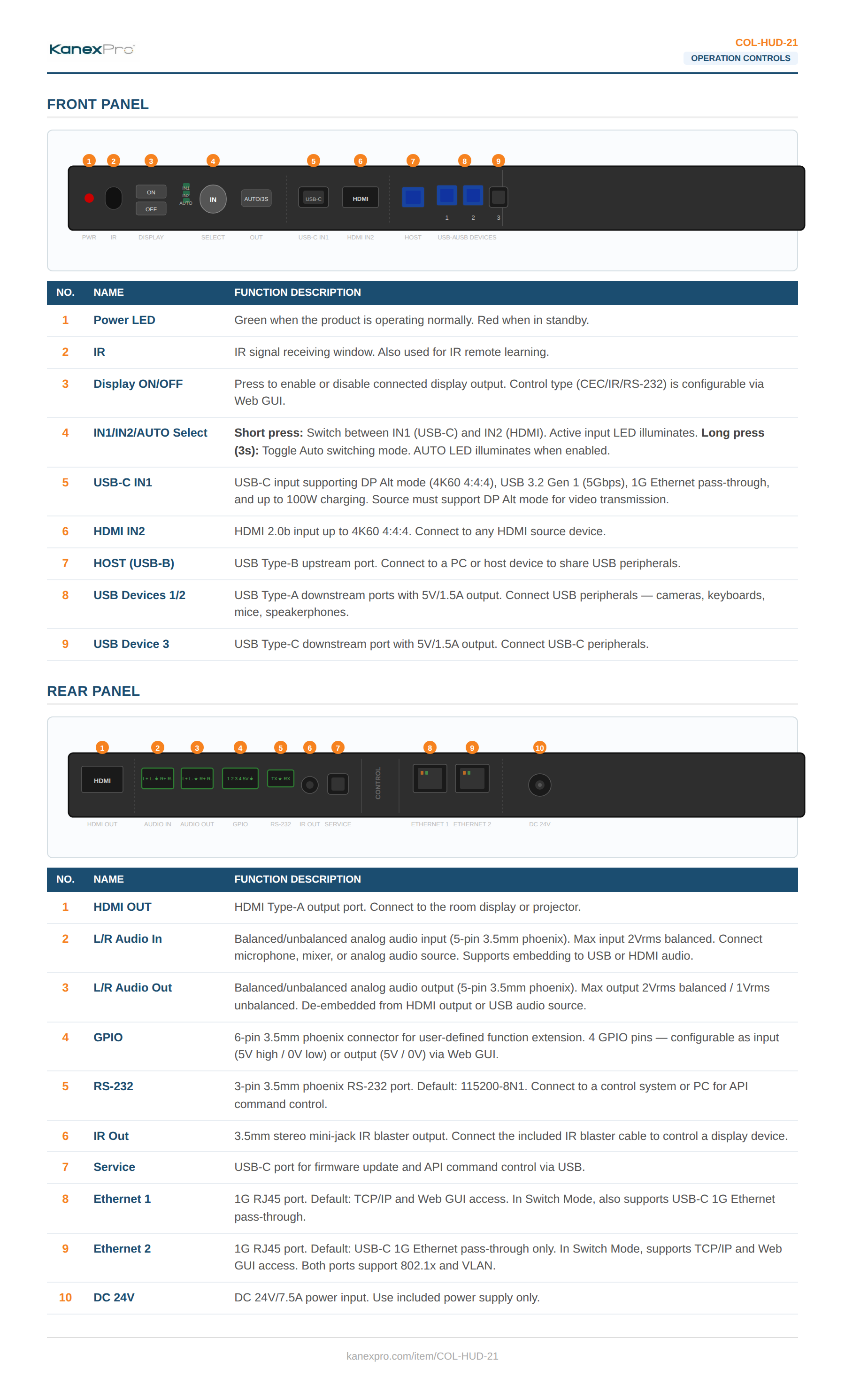

Product Panel
