18Gbps USB-C HDBaseT 3.0 Extender with 100W PD (4K60 to 40m, 4K30 to 70m)

Single-Cable USB-C Video and USB 2.0 Extension over CAT6A/7, with 100W Laptop Charging and 4 USB Device Ports

EXT-USBCPD4K-70MUPC 813982024144

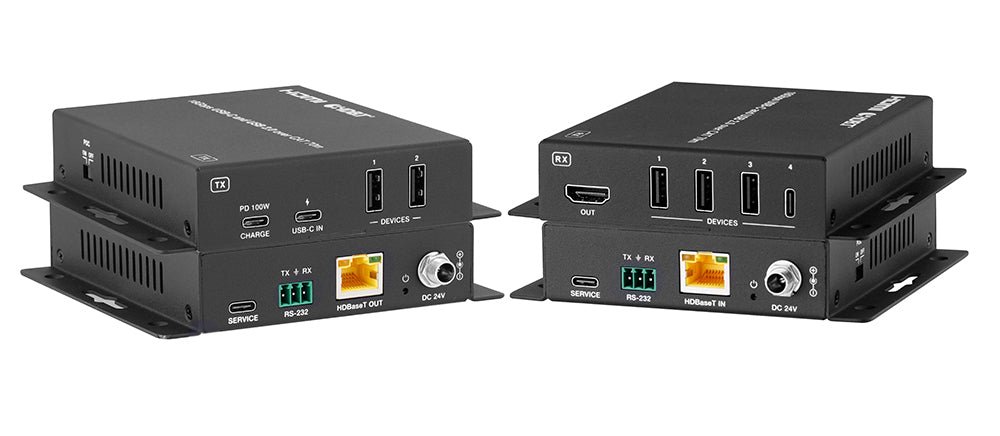

18Gbps USB-C 4K60 HDBaseT 3.0 Extender with 100W PD (70m)
Available through our B2B portal
This part is sold to approved trade accounts.

Resellers, installers, schools and businesses. Approval is usually the same working day.

Overview

The KanexPro EXT-USBCPD4K-70M bridges USB-C laptops and remote displays over a single CAT6A/7 cable, delivering 4K60 4:4:4 video, USB 2.0 peripheral access, and up to 100W device charging — all via HDBaseT 3.0. Purpose-built for BYOD conference rooms, classrooms, and collaboration spaces, this extender eliminates the cable clutter and adapter chains that plague USB-C-to-display installations by converging video, data, and power into one HDBaseT link up to 70 meters.

The transmitter accepts a USB-C source with DP Alt Mode (v1.2a) and passes uncompressed 4K60 4:4:4 video at 18Gbps, along with HDR, HDR10+, Dolby Vision, and HLG. A dedicated CHARGE port enables 100W USB-C PD to keep laptops powered during extended sessions. The receiver outputs HDMI 2.0b to the display and provides four USB 2.0 device ports for cameras, keyboards, mice, and storage. RS-232 pass-through and bidirectional 24V PoC simplify system integration and installation.

Key features
  • HDBaseT 3.0 extender with USB-C input supporting DP Alt Mode (v1.2a) for video, USB 2.0 data, and power delivery
  • 18Gbps video bandwidth with uncompressed 4K60 4:4:4 (8-bit) up to 40m and 4K30 4:4:4 (8-bit) up to 70m over CAT6A/7
  • USB-C Power Delivery up to 100W to the laptop through USB-C IN when an external USB-C PD charger (not included) is connected to the transmitter's CHARGE port
  • HDMI 2.0b output on receiver with HDCP 2.3 compliance for secure content playback
  • HDR, HDR10+, Dolby Vision, and HLG pass-through for full dynamic range support
  • Four USB 2.0 device ports on the receiver (3× USB-A, 1× USB-C) with 5V/1A per port
  • RS-232 signal pass-through and API command control via SERVICE port for room automation
  • Bidirectional 24V PoC — power either TX or RX, the other unit powers over the CAT cable
Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3
Video Bandwidth18 Gbps
Video ResolutionUp to 4K@60Hz (4:4:4 8bit)
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit
HDR FormatsHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsLPCM 2.0/5.1/7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
USB ComplianceUSB 2.0
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)
Transmission Distance4K60Hz (4:4:4 8bit): up to 130ft/40m • 4K30Hz (4:4:4 8bit): up to 230ft/70m • USB 2.0: up to 230ft/70m (CAT6A/7)
Connection — Transmitter
Front Panel1× CHARGE [USB-C] • 1× USB-C IN [USB-C] • 2× USB 2.0 DEVICES [USB-A]
Rear Panel1× SERVICE [USB-C] • 1× RS-232 [3-pin phoenix] • 1× HDBaseT OUT [RJ45, 24V PoC] • 1× DC 24V
Side Panel1× PoC ON/OFF [DIP switch]
Connection — Receiver
Front Panel1× HDMI OUT [HDMI Type A] • 1× USB 2.0 DEVICES [USB-C] • 3× USB 2.0 DEVICES [USB-A]
Rear Panel1× SERVICE [USB-C] • 1× RS-232 [3-pin phoenix] • 1× HDBaseT IN [RJ45, 24V PoC] • 1× DC 24V
Side Panel1× PoC ON/OFF [DIP switch]
Mechanical
HousingMetal Enclosure, Black
DimensionsTX/RX: 120mm (W) × 113mm (D) × 25.5mm (H)
WeightTX: 353g • RX: 352g
Power SupplyAC 100–240V 50/60Hz → DC 24V/2.7A
Power ConsumptionTX/RX with full USB devices: 51.36W • Without USB devices: 10.08W
Operating Temp32–104°F / 0–40°C
Storage Temp−4–140°F / −20–60°C
Operating Humidity20–80% RH (non-condensing)
Storage Humidity10–90% RH (non-condensing)
Package Contents
1×Transmitter (TX)
1×Receiver (RX)
2×3-pin 3.5mm Phoenix Connector (male)
1×24V/2.7A Desktop Power Supply
1×User Manual
18Gbps USB-C HDBaseT 3.0 Extender with 100W PD (4K60 to 40m, 4K30 to 70m) panel drawing
18Gbps USB-C HDBaseT 3.0 Extender with 100W PD (4K60 to 40m, 4K30 to 70m) system diagram
18Gbps USB-C HDBaseT 3.0 Extender with 100W PD (4K60 to 40m, 4K30 to 70m) applications
