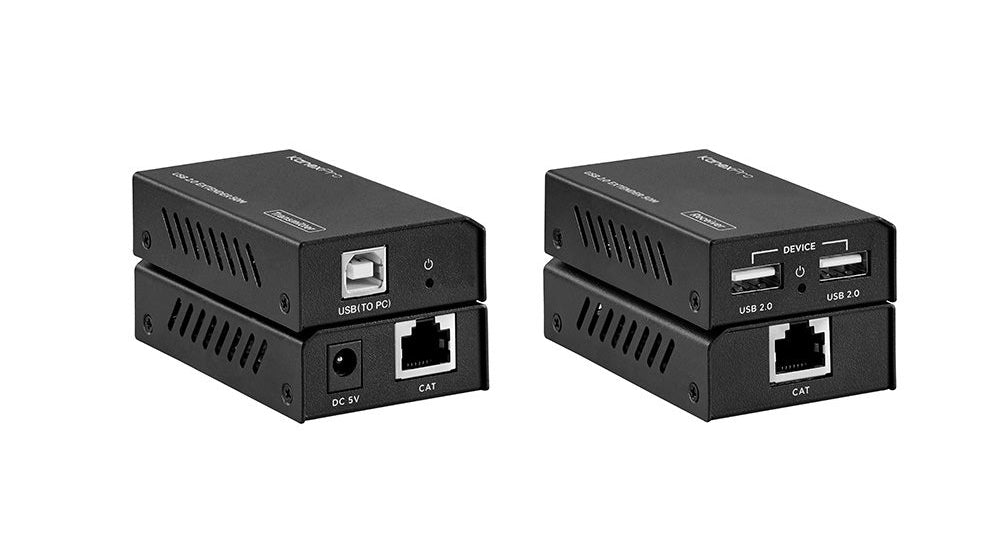

USB 2.0 Extender over Cat5e/6 to 100m (328ft) with 2-Port USB-A Receiver

480Mbps Plug-and-Play Extension to 328ft for Webcams, Printers & HID Devices — No Drivers Required

EXT-USB2100MUPC 813982022379
USB 2.0 Extender over Cat6 100 Meters
$199.95
In stock

Limited time: 20% off your order. Use FREE20 — apply it in the cart.

Overview

The KanexPro EXT-USB2100M extends USB 2.0 at 480Mbps up to 100 meters (328ft) over a single Cat5e/6 cable — delivering two USB-A ports at the remote end for webcams, touch screens, printers, HID devices, and USB hubs. Completely plug-and-play with no driver installation required, the EXT-USB2100M is the straightforward USB extension solution for AV integrators and IT managers who need reliable peripheral reach without 5Gbps overhead.

Designed for conference rooms, classrooms, digital signage, and healthcare environments, the EXT-USB2100M connects a USB-B transmitter to a compact dual-port receiver over existing Cat5e or Cat6 infrastructure. Backward compatible with USB 1.1, it works with the broadest range of USB peripherals and is backed by KanexPro’s 3-year parts and labor warranty.

Key features
  • Ultra slim USB 2.0 extender, up to 328ft (100m) over Cat5e/6
  • Simple plug and play, no drivers or settings to install
  • Supports USB 2.0, transmission rate up to 480Mbps
  • Transmitter: one USB-B input
  • Receiver: two USB 2.0 (USB-A) outputs
  • Power over Cable (PoC) — one 12V/1A adapter at either the transmitter or the receiver powers both units
  • ESD protection: ±8kV air-gap discharge, ±4kV contact discharge
  • Compact design for easy and flexible installation
  • Backed by KanexPro 3-Year Parts and Labor Warranty
Technical
USB ProtocolUSB 2.0
Transmission RateUp to 480Mbps
Transmission Distance100m / 328ft over Cat5e/6
ESD Protection±8kV Air-gap discharge, ±4kV Contact discharge
Connections — Transmitter
Input1× USB [USB-B, Female]
Output1× CAT [RJ45, Female]
Connections — Receiver
Input1× CAT [RJ45, Female]
Output2× USB [USB-A, Female]
Mechanical
HousingMetal Enclosure · Black
DimensionsTX / RX: 82mm (W) × 49mm (D) × 20mm (H)
WeightTX / RX: 100g each
Power & Environment
Power SupplyInput: AC 100–240V 50/60Hz · Output: DC 12V/1A
Power ConsumptionTransmitter: 1.3W · Receiver: 2.3W
Operating Temp0°C – 40°C / 32°F – 104°F
Storage Temp-20°C – 60°C / -4°F – 140°F
Relative Humidity20–90% RH (non-condensing)
Package Contents
1×USB 2.0 Extender (Transmitter)
1×USB 2.0 Extender (Receiver)
1×USB Cable (USB-B Male to USB-A Male, 1m)
1×12V/1A Locking Power Adapter
1×User Manual

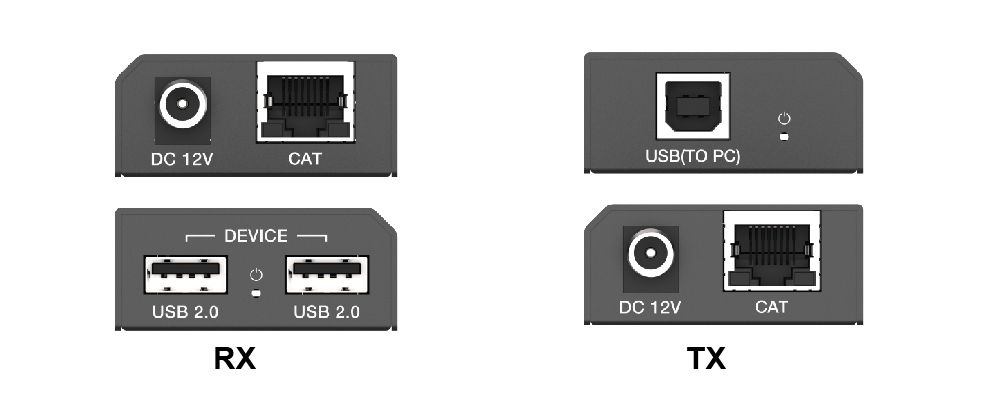

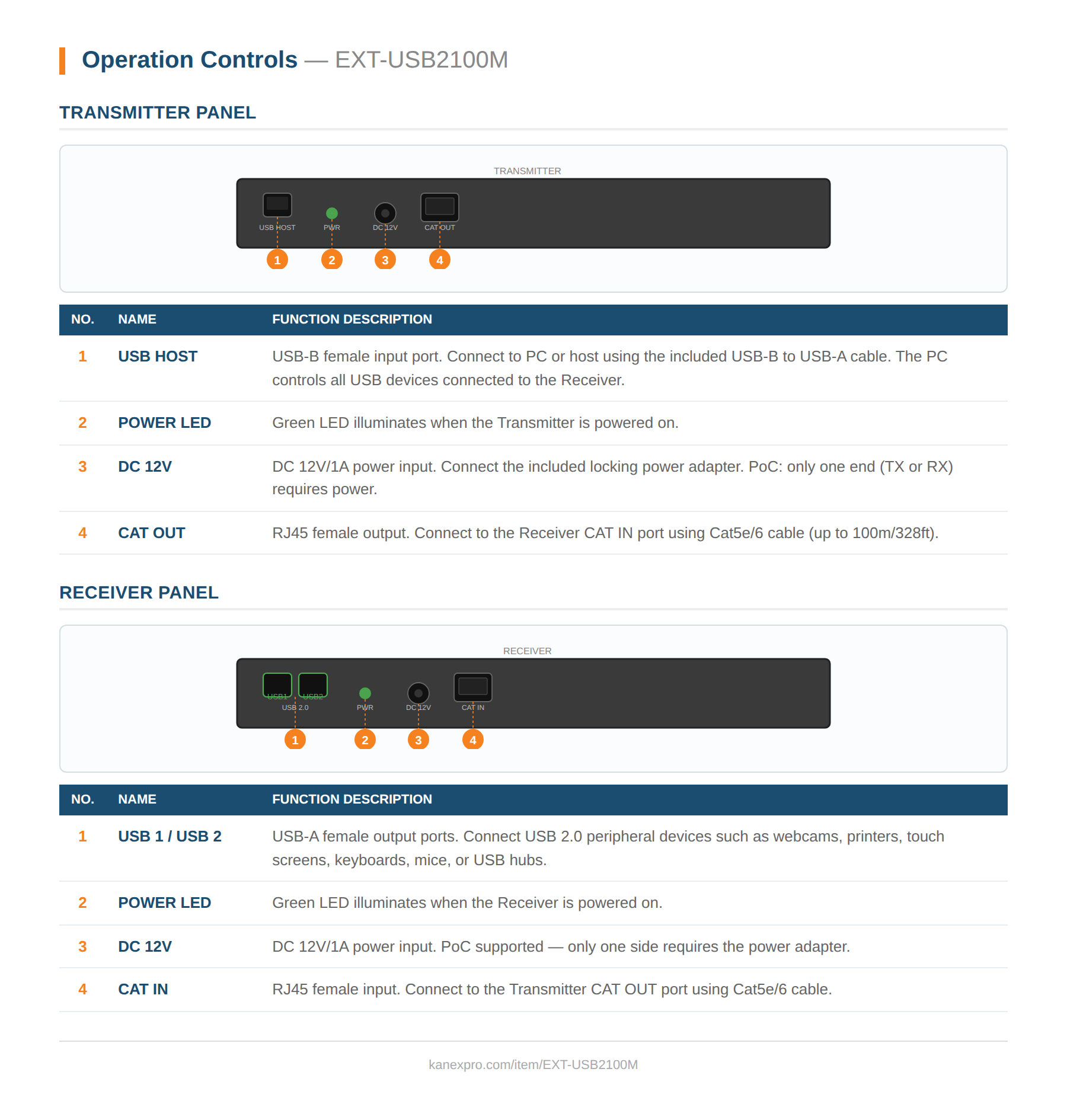

USB 2.0 Extender over Cat5e/6 to 100m (328ft) with 2-Port USB-A Receiver panel drawing

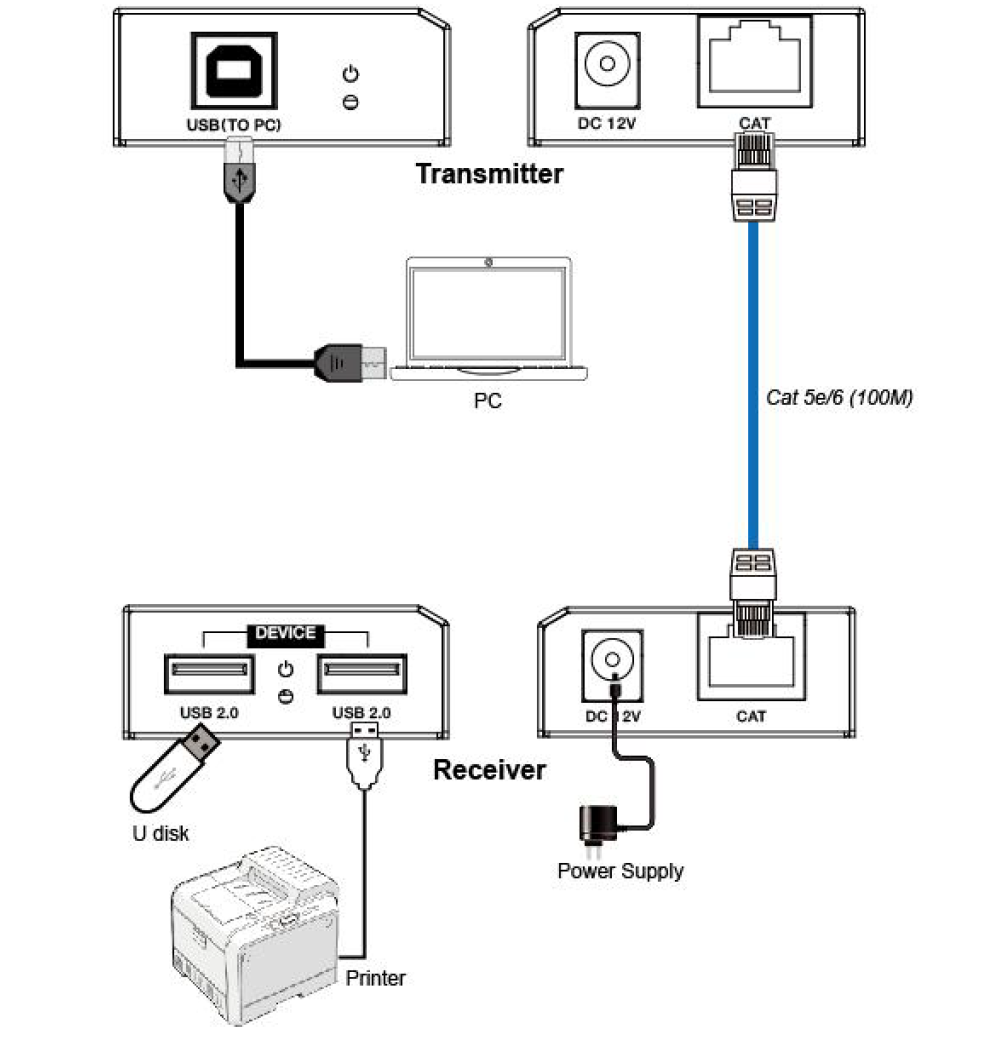

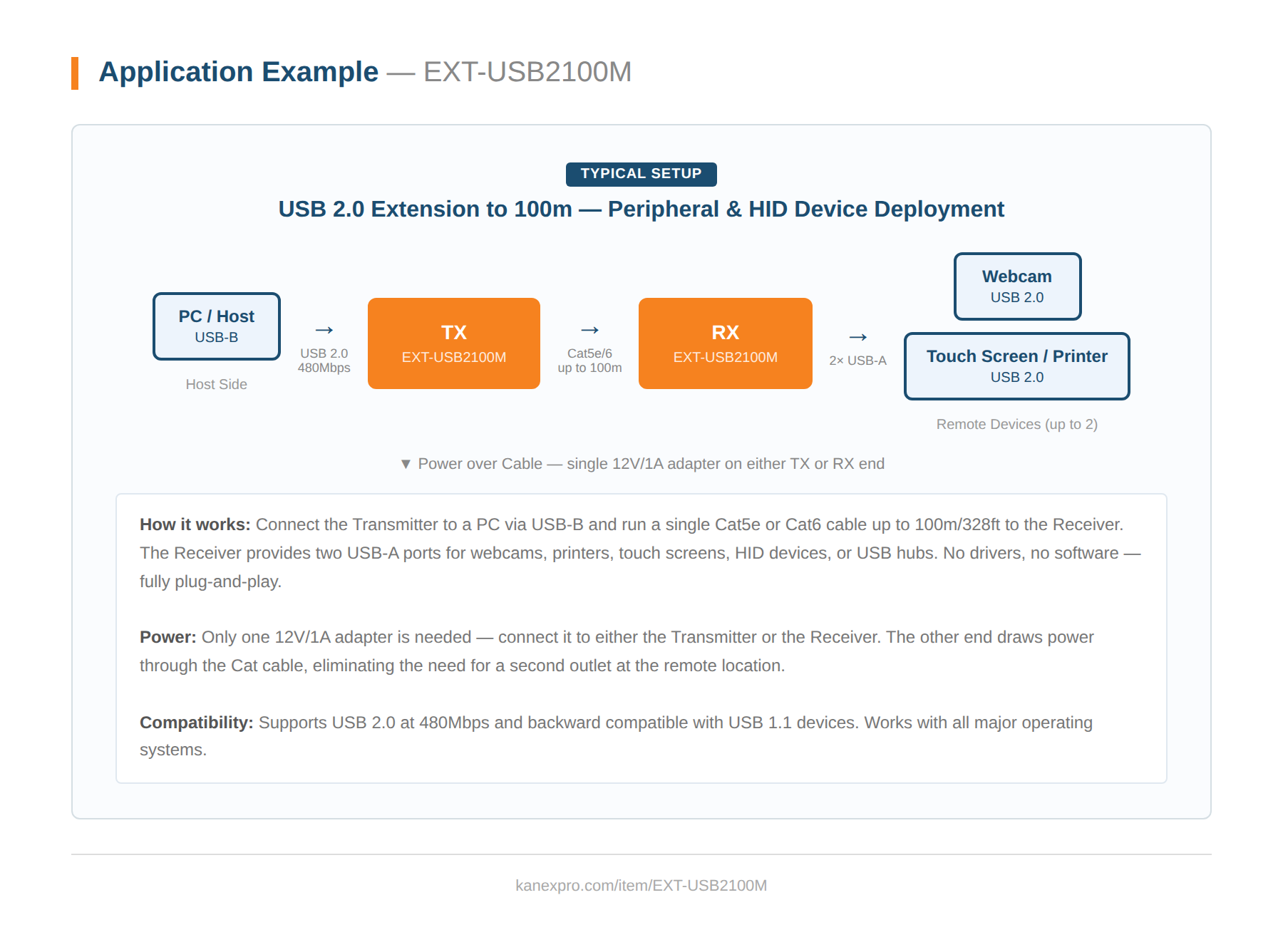

USB 2.0 Extender over Cat5e/6 to 100m (328ft) with 2-Port USB-A Receiver system diagram
USB 2.0 Extender over Cat5e/6 to 100m (328ft) with 2-Port USB-A Receiver applications
