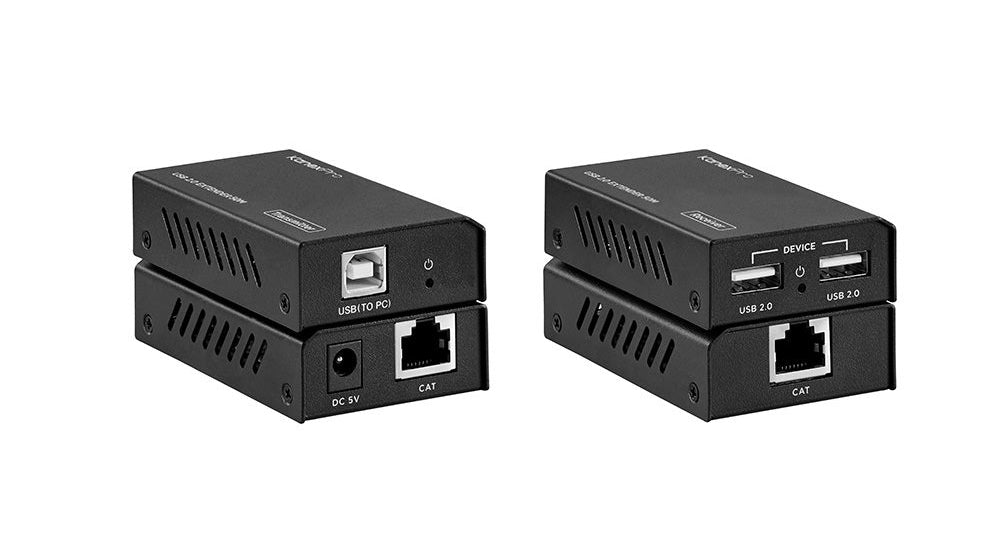

USB 2.0 Extender over Cat6 50 Meters

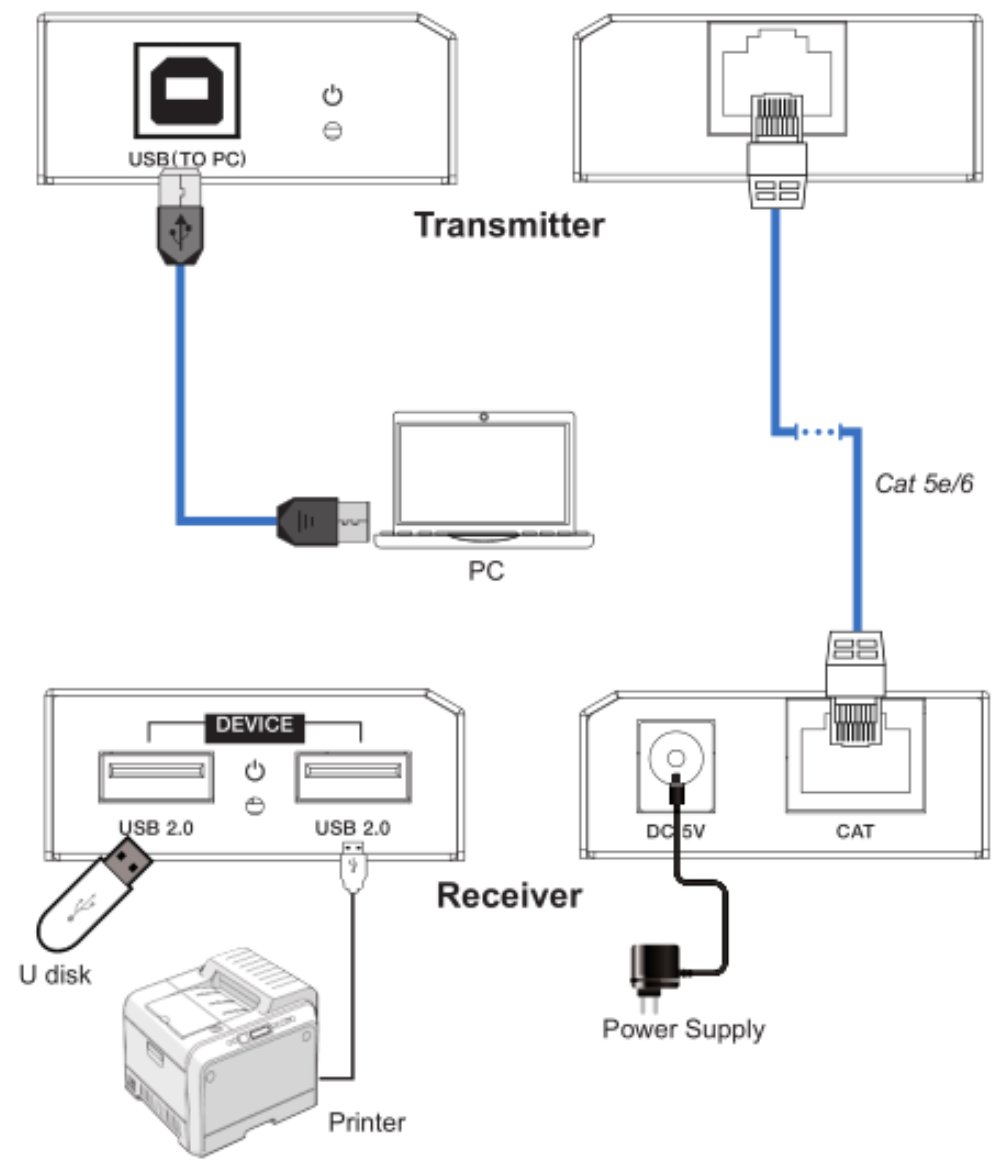

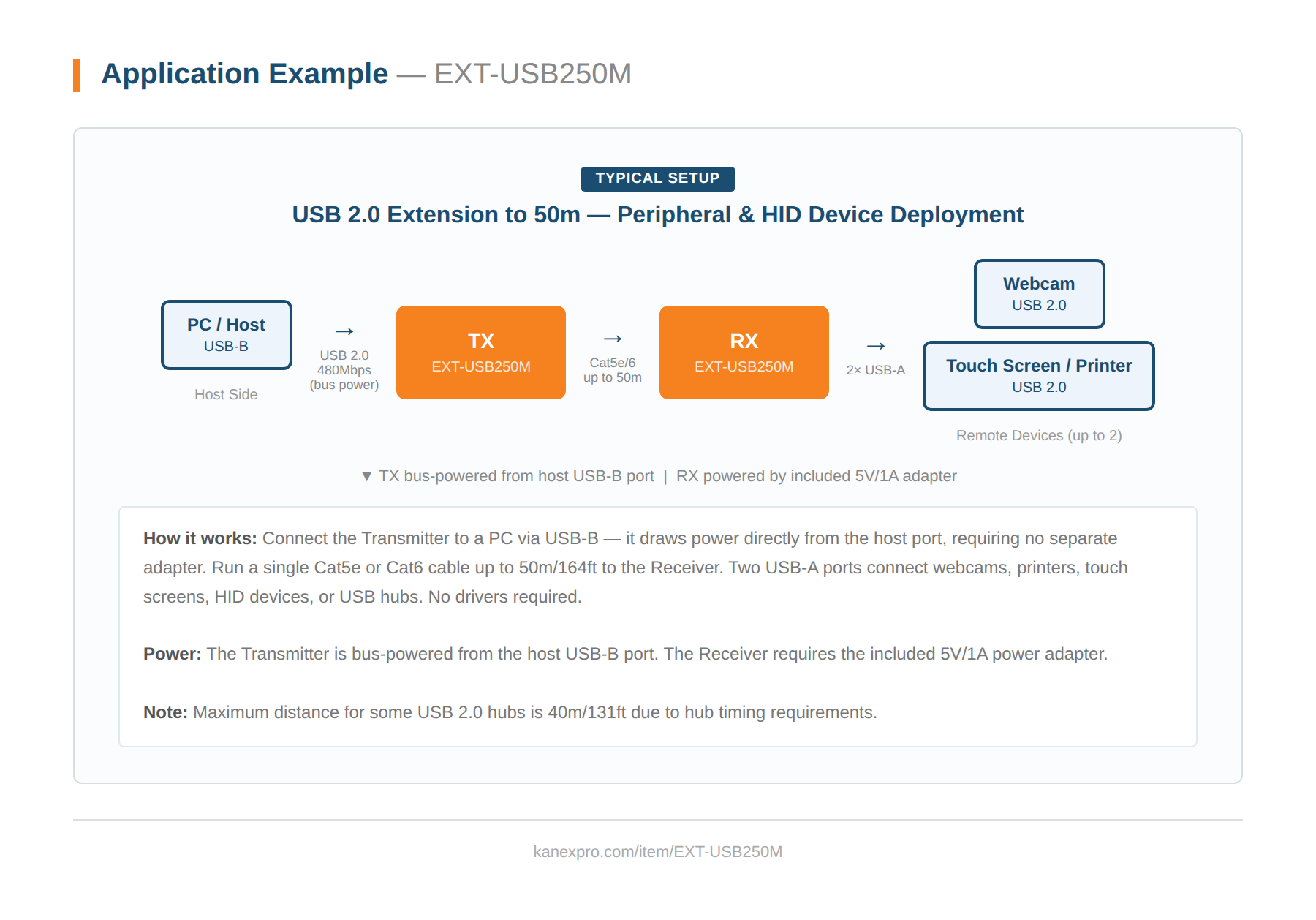

The KanexPro EXT-USB250M extends USB 2.0 at 480Mbps up to 50 meters (164ft) over a single Cat5e/6 cable — delivering two USB-A ports at the remote end for webcams, touch screens, printers, HID devices, and USB hubs. The Transmitter draws power directly from the host USB-B port, while the Receiver uses a compact 5V/1A adapter. Completely plug-and-play with no driver installation required.

Designed for smaller conference rooms, classrooms, and digital signage environments where 164ft of USB reach is sufficient, the EXT-USB250M is the compact, cost-effective entry point in the KanexPro USB extender range. Backward compatible with USB 1.1 and backed by KanexPro’s 3-year parts and labor warranty.

• Ultra Slim 165ft. (50m) USB 2.0 extender
• Simple plug and play, no driver or setting installation required
• Supports USB 2.0 protocol, transmission rate up to 480Mbps

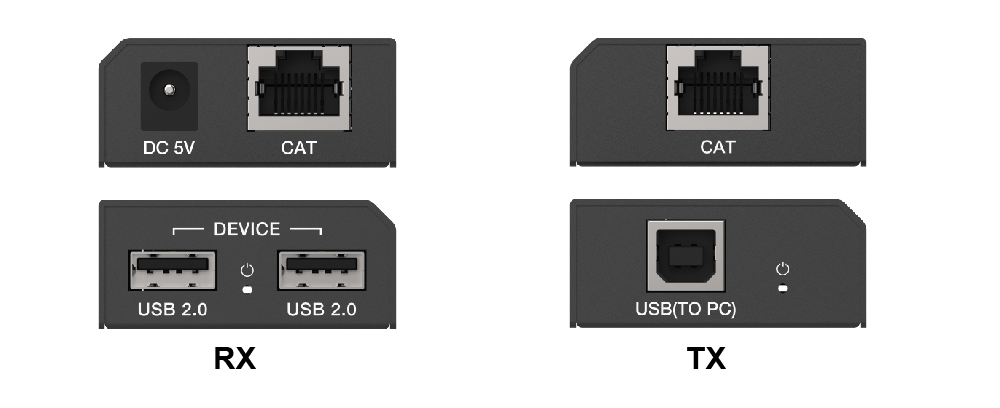

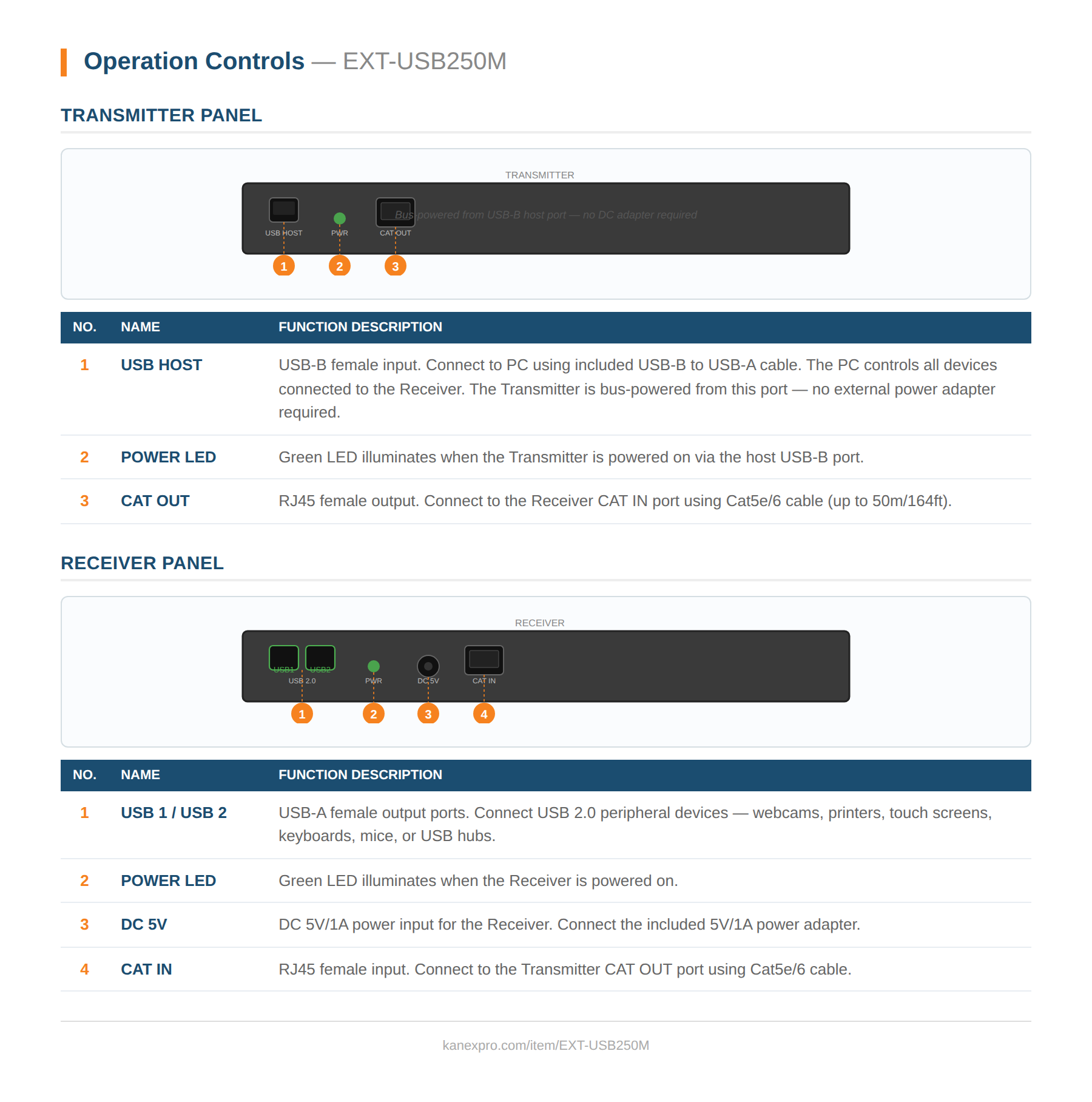

• Features one USB-B port input in transmitter
• Features two USB 2.0 ports outputs on the receiver
• Transmitter bus-powered from host USB-B port — no external power adapter required at TX end
• Receiver powered by included 5V/1A adapter
• Note: transmission distance up to 40m for some USB 2.0 hubs
• ESD protection: ±8kV Air-gap discharge, ±4kV Contact discharge
• Compact design for easy and flexible installation
• Backed by KanexPro 3-Year Parts and Labor Warranty
