CATx Output Card for FLEX Modular Matrix

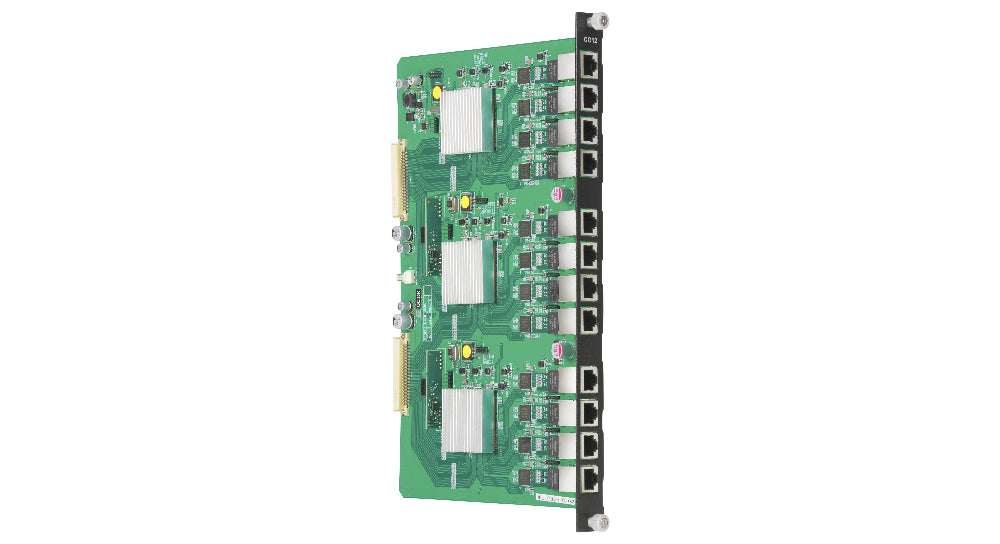

Extend AV signals over standard CAT5e/6/6A cabling to displays up to 70m away from a single FLEX-CAT12OUT card slot. The FLEX-CAT12OUT is a hot-swappable CATx output card that transmits 12 independent HDMI video streams over cost-effective CAT cabling, eliminating the expense and inflexibility of long HDMI runs. Each of the 12 outputs supports 4K 3840x2160 @60Hz 4:4:4 with full HDR pass-through and Power-Over-Cable (PoC) to power remote receivers without separate power supplies.

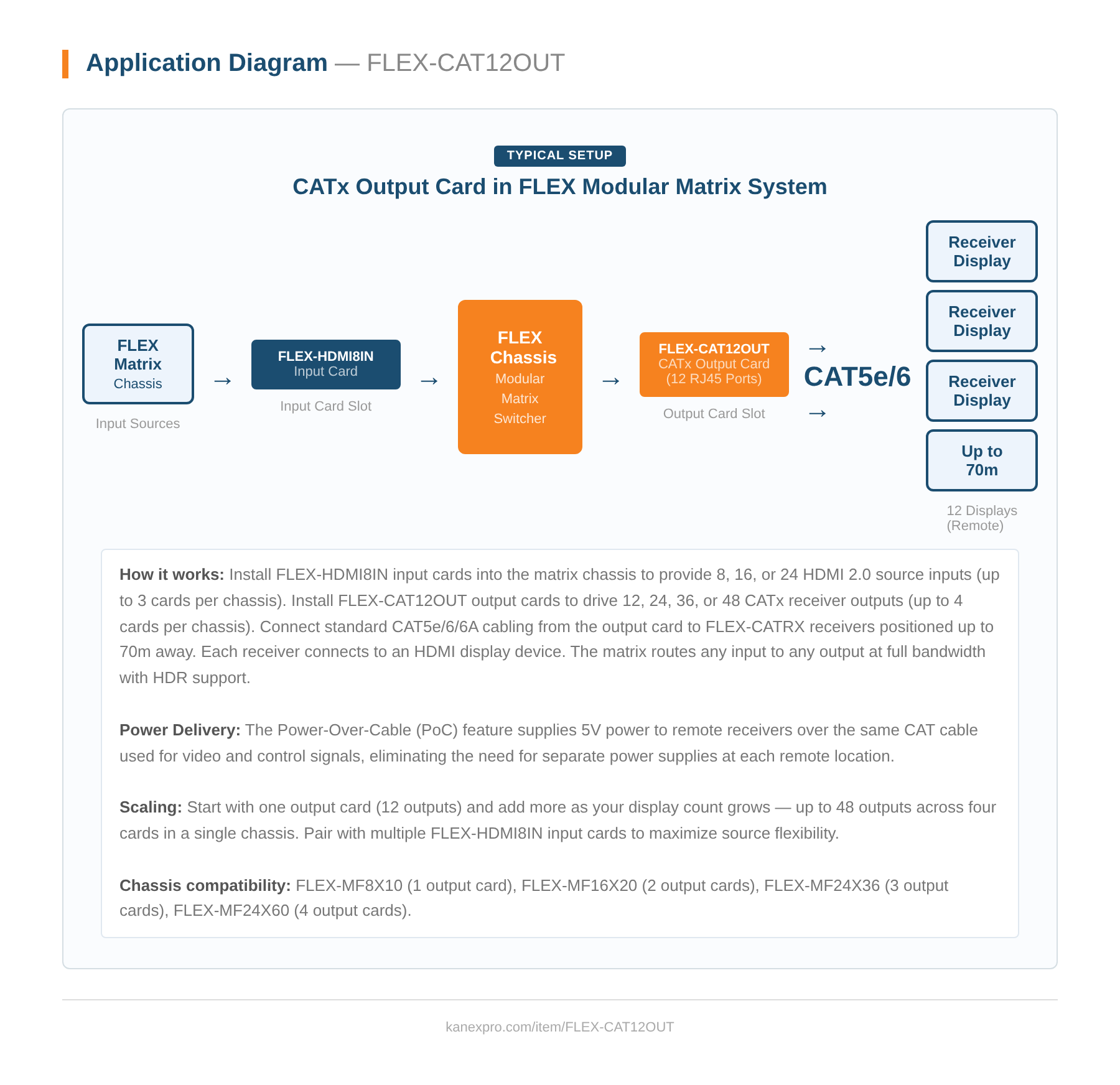

Designed for hospitality, corporate campuses, education facilities, broadcast studios, security operations, and commercial AV environments where signal distribution across buildings or large venues requires flexible, reliable cabling infrastructure. The card handles the full range of video formats including deep color (8/10/12-bit) and wide chroma sampling (RGB, YCbCr 4:4:4/4:2:2/4:2:0). Install multiple output cards across the FLEX-MF8X10, FLEX-MF16X20, FLEX-MF24X36, and FLEX-MF24X60 chassis platforms to scale display capacity while reducing the total cost of ownership for long-distance AV distribution.

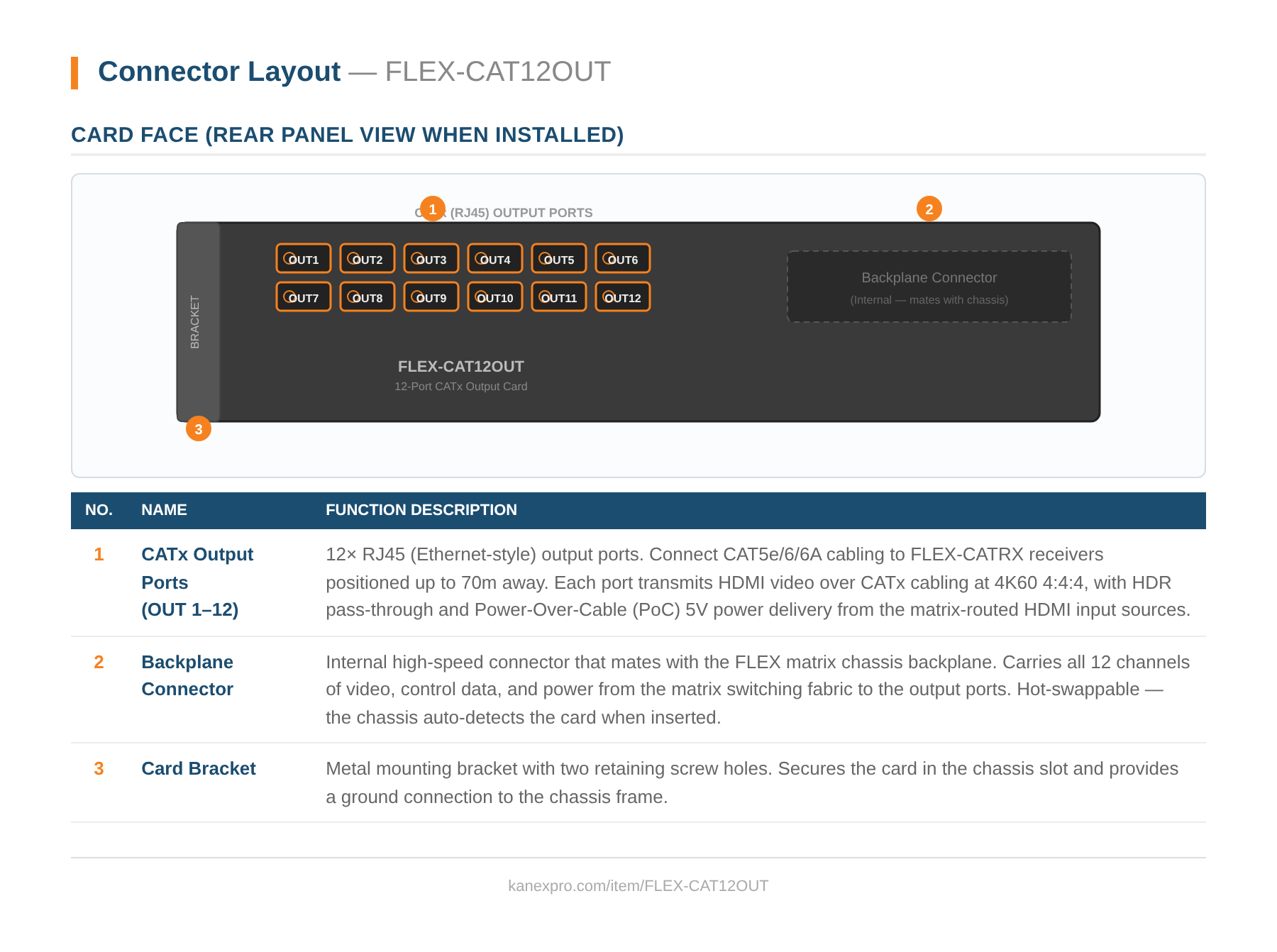

• 12x CATx (RJ45) outputs per card with HDMI signal transmission over CAT5e/6/6A cabling
• Long-distance signal extension up to 70m typical transmission distance
• Supports 4K 3840x2160 @60Hz 4:4:4 (8-bit) full Ultra HD resolution
• HDR pass-through preserves high dynamic range metadata
• Power-Over-Cable (PoC) supplies 5V power to remote receivers
• Deep color support at 8, 10, and 12 bits per color
• 12 independent outputs per card highest density CATx output card
• Cost-effective cabling with standard CAT5e/6/6A cables
• Modular hot-swappable design slides into any FLEX chassis
