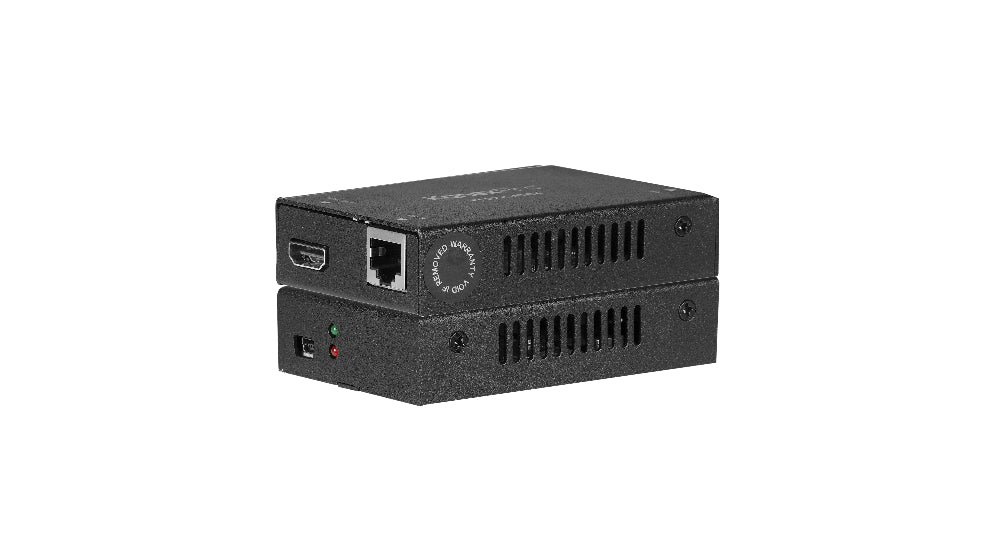

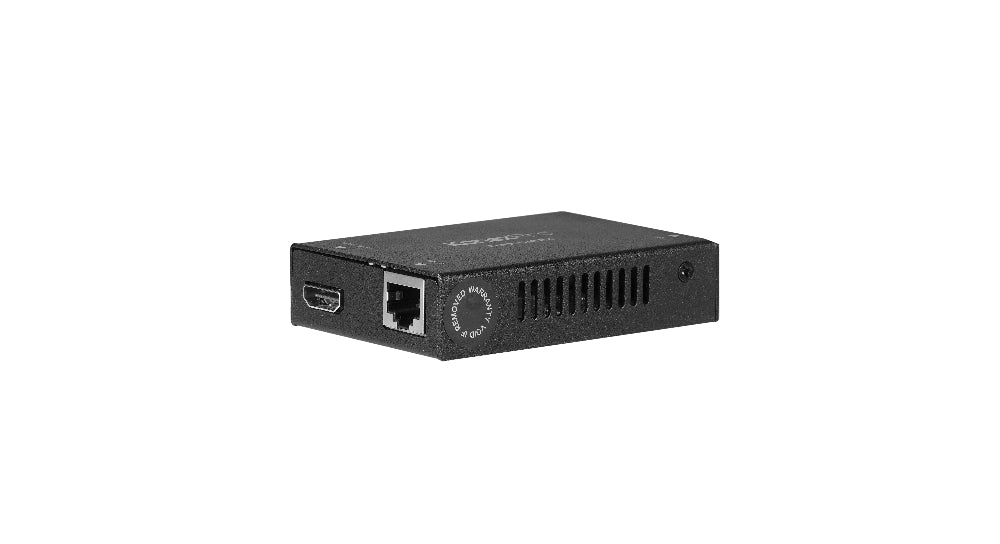

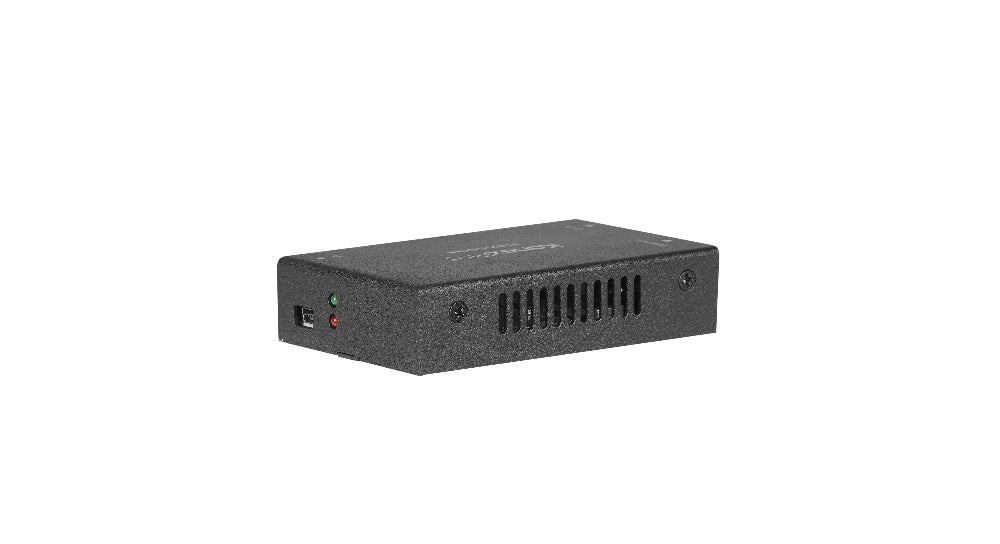

FLEX Series 4K60 HDBaseT CAT Receiver

Eliminates power runs to every display endpoint in your FLEX matrix installation. The KanexPro FLEX-CATRX is a Power-over-Cable HDBaseT receiver that extends 4K60 4:4:4 video up to 165 feet (50m) over a single CAT cable — with no external power supply required at the display side. Designed as the companion receiver for the FLEX-CAT12OUT output card, it delivers full 18Gbps HDMI 2.0 signal quality to remote displays throughout bars, restaurants, and hospitality venues.

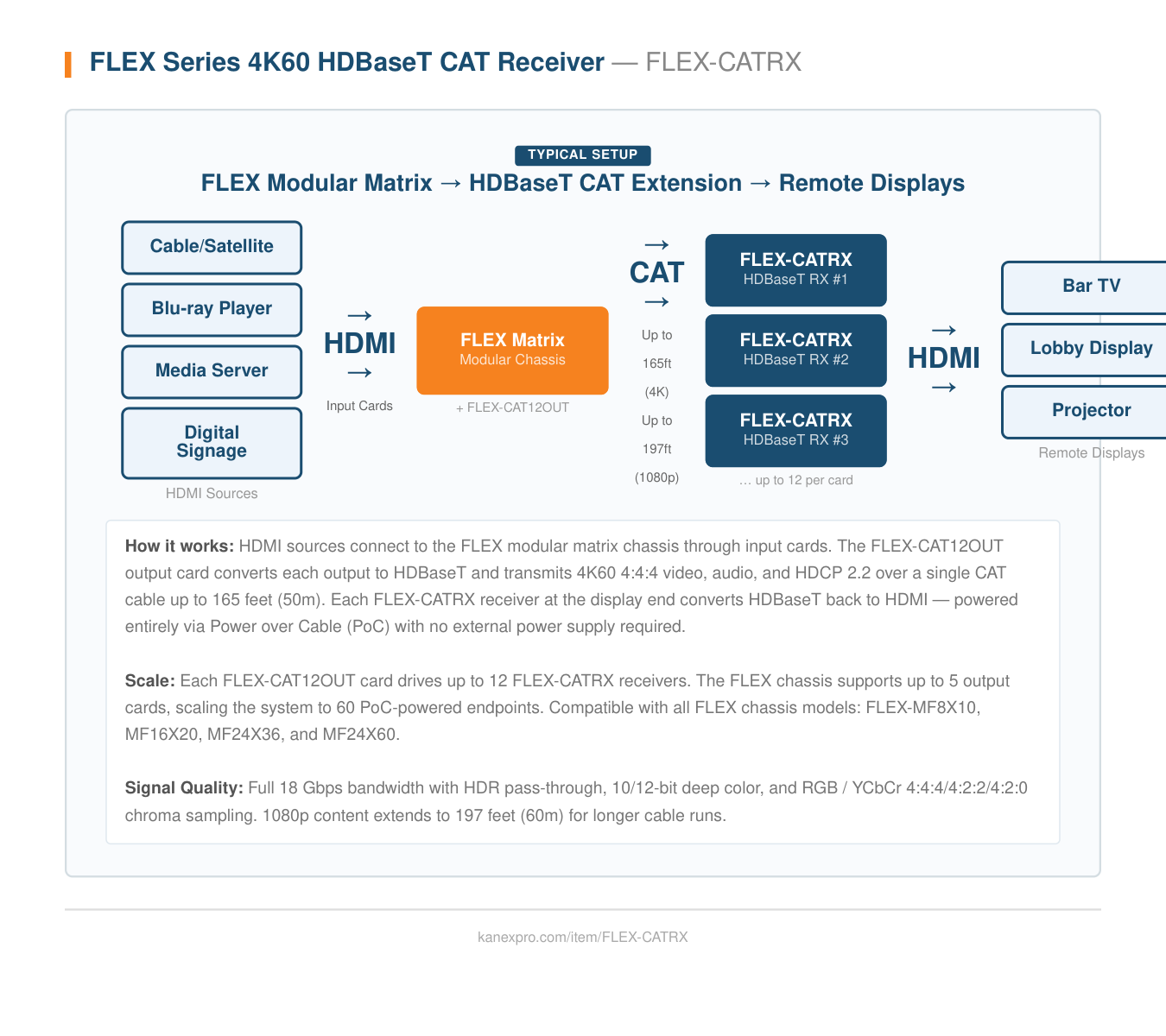

Supporting HDCP 2.2, HDR, and 10/12-bit deep color, the FLEX-CATRX maintains signal integrity across the full FLEX chassis family — from the 8x10 up to the 24x60 configuration. Each FLEX-CAT12OUT card drives up to 12 receivers, and the chassis accepts up to 5 output cards, scaling the system to 60 endpoints without additional power infrastructure at the display side. 1080p content extends to 197 feet (60m), covering even large venue floor plans.

• Extends 4K60 4:4:4 video up to 165 feet (50m) over CAT cable from FLEX matrix chassis
• Power over Cable (PoC) — receiver requires no external power supply
• HDMI 2.0 with 18Gbps bandwidth and HDCP 2.2 content protection
• HDR pass-through with 8, 10, and 12-bit deep color support
• 1080p signal extension up to 197 feet (60m) for longer cable runs
• Compatible with all FLEX chassis models: FLEX-MF8X10, MF16X20, MF24X36, MF24X60
• 12 receivers per FLEX-CAT12OUT output card, up to 5 cards per chassis (60 endpoints max)
• RGB and YCbCr 4:4:4/4:2:2/4:2:0 chroma sampling for full color fidelity
