Flex Matrix HDMI Output card 12-Port

TAA Compliant

1 1

KanexPro

SKU: FLEX-HDMI12OUT

UPC: 813982023192

View full details

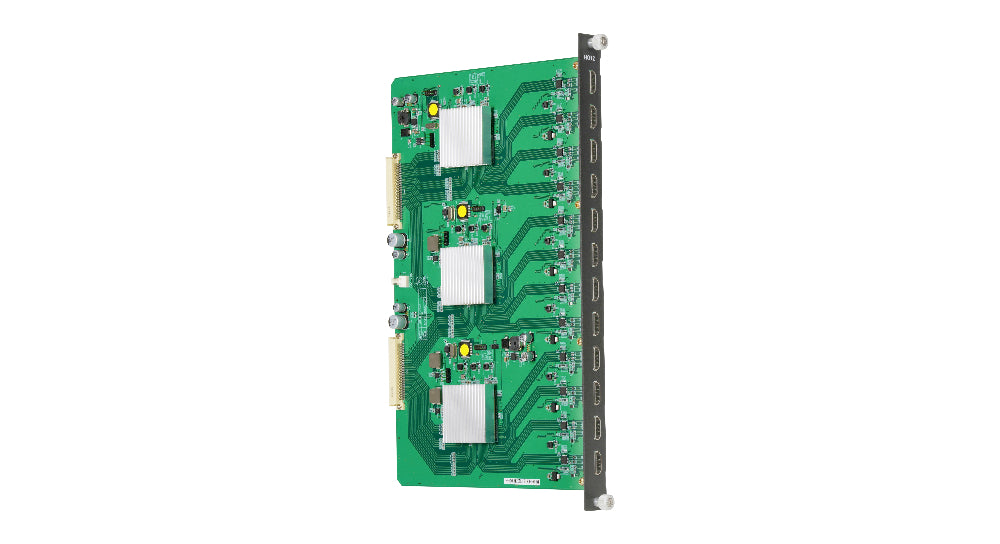

The KanexPro FLEX-HDMI12OUT Output Card is designed for use with the KanexProFLEX modular matrix switcher system. This output card allows for 12 HDMI outputconnections and enables users to route HDMI video and audio signals from a central matrix to multiple display devices (such as monitors, projectors, or TVs) simultaneously.



TheKanexPro FLEX-HDMI12OUTOutput Cardis a powerful and flexible solution fordistributing HDMI video and audio signalsto12 different displays. Itshigh-quality video support, HDR, andHDCP compliancemake it suitable for a range of professional applications, including digital signage, control rooms, corporate AV systems, and more. The card is part of a modular system that allows for scalability and customization, and itshot-swappable designensures minimal downtime during system upgrades or maintenance.

Please note: FLEX-MF24X36 is a chassis only. Input and output cards are required and sold separately. Available options include FLEX-CAT12OUT, FLEX-CATRX, FLEX-HDMI12OUT, and FLEX-HDMI8IN. Contact us to discuss your application and determine the right card configuration for your needs.

  • Output Ports: 12 x HDMI Type A (19-pin female)
  • 4K/UHD HDMI Video
  • HDMI 2.0 and HDCP 2.2 support
  • Modular & Scalable Design
  • Hot Swappable
  • HDR Supported
  • Supports Up to 18 Gbps Data rate

Technical

OutputCard ports

12 x HDMI Type A (19-pin female)

HDMI:

2.0, 18Gbps, HDCP 2.2 support

Standards:

HDMI 2.0, HDCP 1.x, HDCP 2.2

HDR:

Supported

Maximum data rate:

18 Gbps

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Chroma sampling:

Up to 3840x2160 RGB and YCbCr 4:4:4, YCbCr 4:2:2:/4:2:0 4:4:4 (8bit)

Colour bit depth:

8, 10, 12 bits per colour



No diagram available.

No panel image available.
