Flex Matrix HDMI Input card 8-Port

TAA Compliant

1 1

KanexPro

SKU: FLEX-HDMI8IN

UPC: 813982023185

View full details

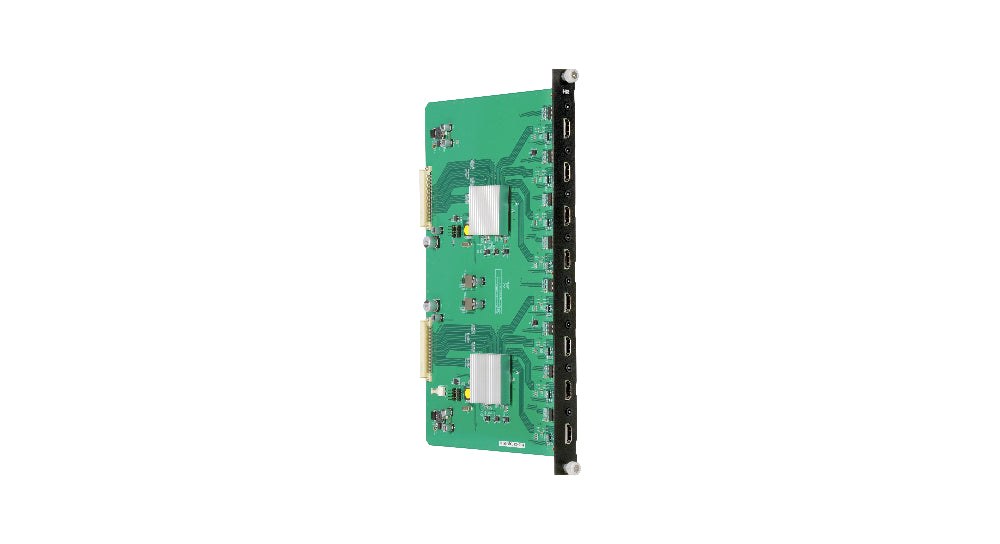

The KanexPro Flex-HDMI8INInput Card is an 8-input HDMI card designed to work with KanexPro modular matrix switchers. It is part of their flexible, scalable switching systems where users can add or remove input/output cards based on the specific needs of their AV installation.

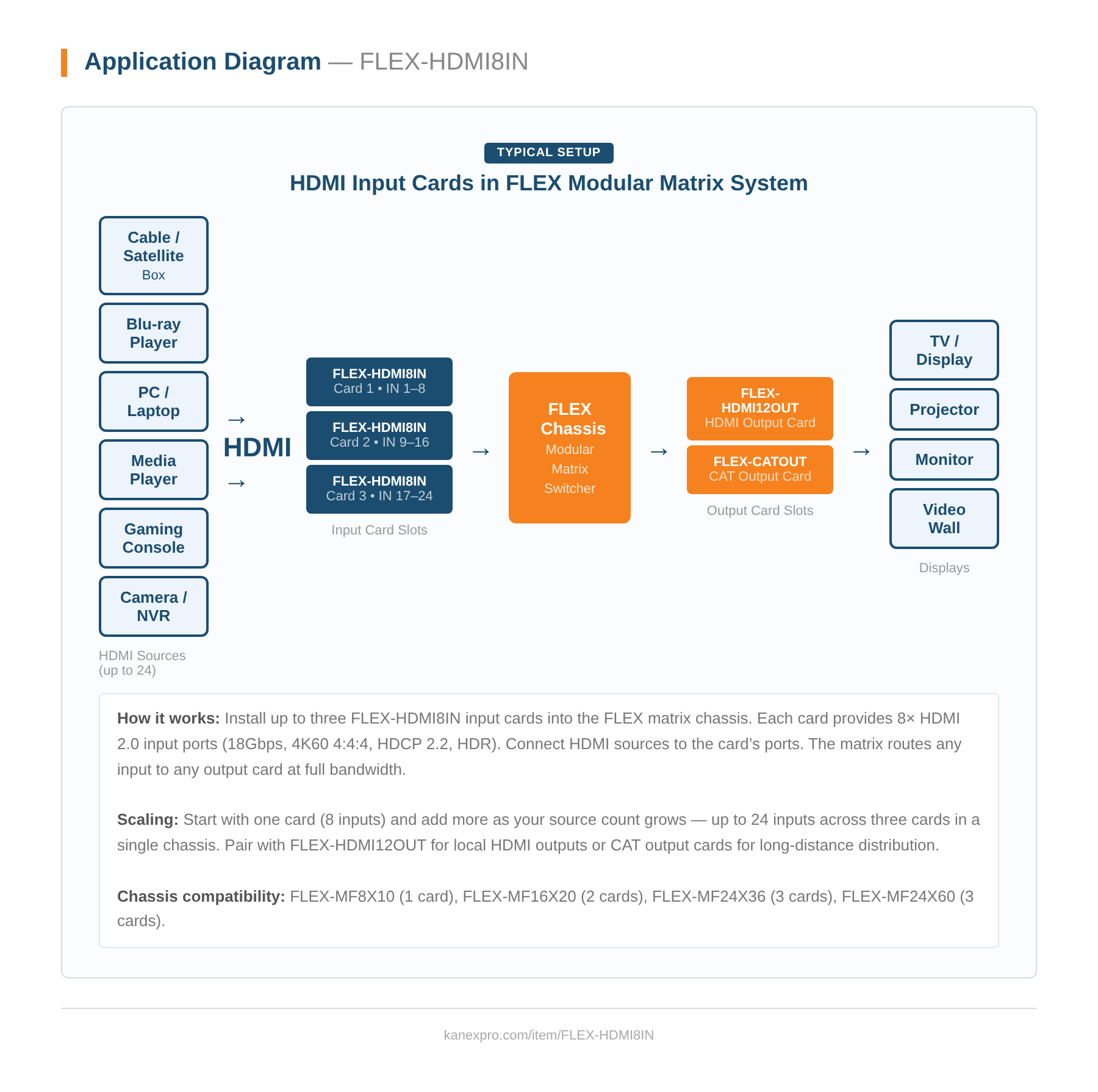

The HDMI8IN input card is typically installed into a compatible KanexPro FLEX matrix switcher chassis. Depending on the system size, you can add additional cards to support more sources or outputs.

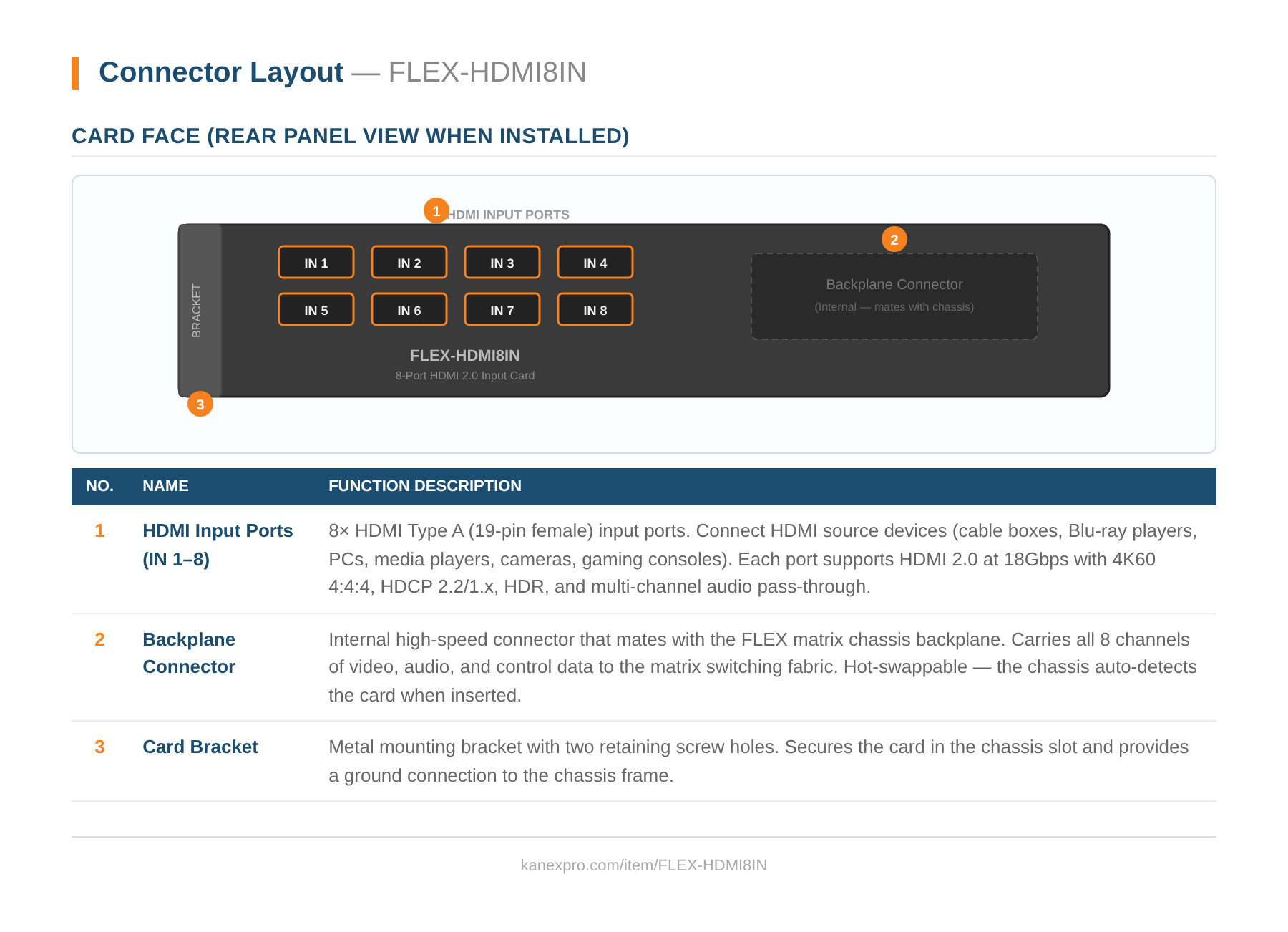

  • Input Ports: 8 x HDMI Type A (19-pin female)
  • 4K/UHD HDMI Video
  • HDMI 2.0 and HDCP 2.2 support
  • Modular & Scalable Design
  • Hot Swappable
  • HDR Supported
  • Supports Up to 18 Gbps Data rate



Technical

InputCard ports

8 x HDMI Type A (19-pin female)

HDMI:

2.0, 18Gbps, HDCP 2.2 support

Standards:

HDMI 2.0, HDCP 1.x, HDCP 2.2

HDR:

Supported

Maximum data rate:

18 Gbps

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Chroma sampling:

Up to 3840x2160 RGB and YCbCr 4:4:4, YCbCr 4:2:2:/4:2:0 4:4:4 (8bit)

Colour bit depth:

8, 10, 12 bits per colour



No diagram available.

No panel image available.
