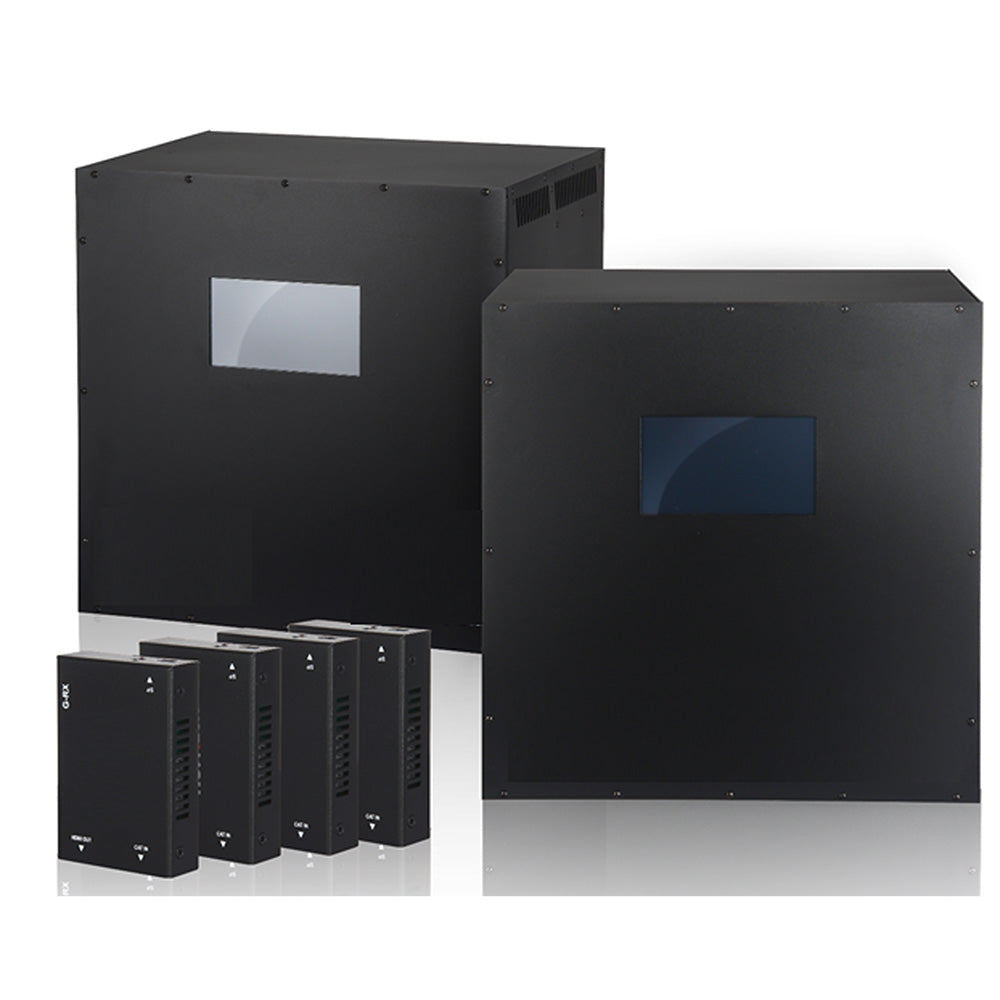

Flex Matrix Pro 128x128 4K60

Full 4K/UHD at 18Gbps, VideoWall, Quadview, Independent scaling

1 1

KanexPro

SKU: FLEX-PRO128X128

UPC: 813982023727

View full details

The KanexProFLEX-PRO128X128Matrixswitcher is the next generation of the most advanced and complete modular matrix media switching and extension solution.It allows for flexible video distribution with 4K/UHD resolution at 60Hz. This specific model supports up to 128 inputs and 128 outputs, all in 4K 60Hz, making it ideal for high-quality video distribution in a variety of environments like bars, restaurants, digital signage, and live event streaming.

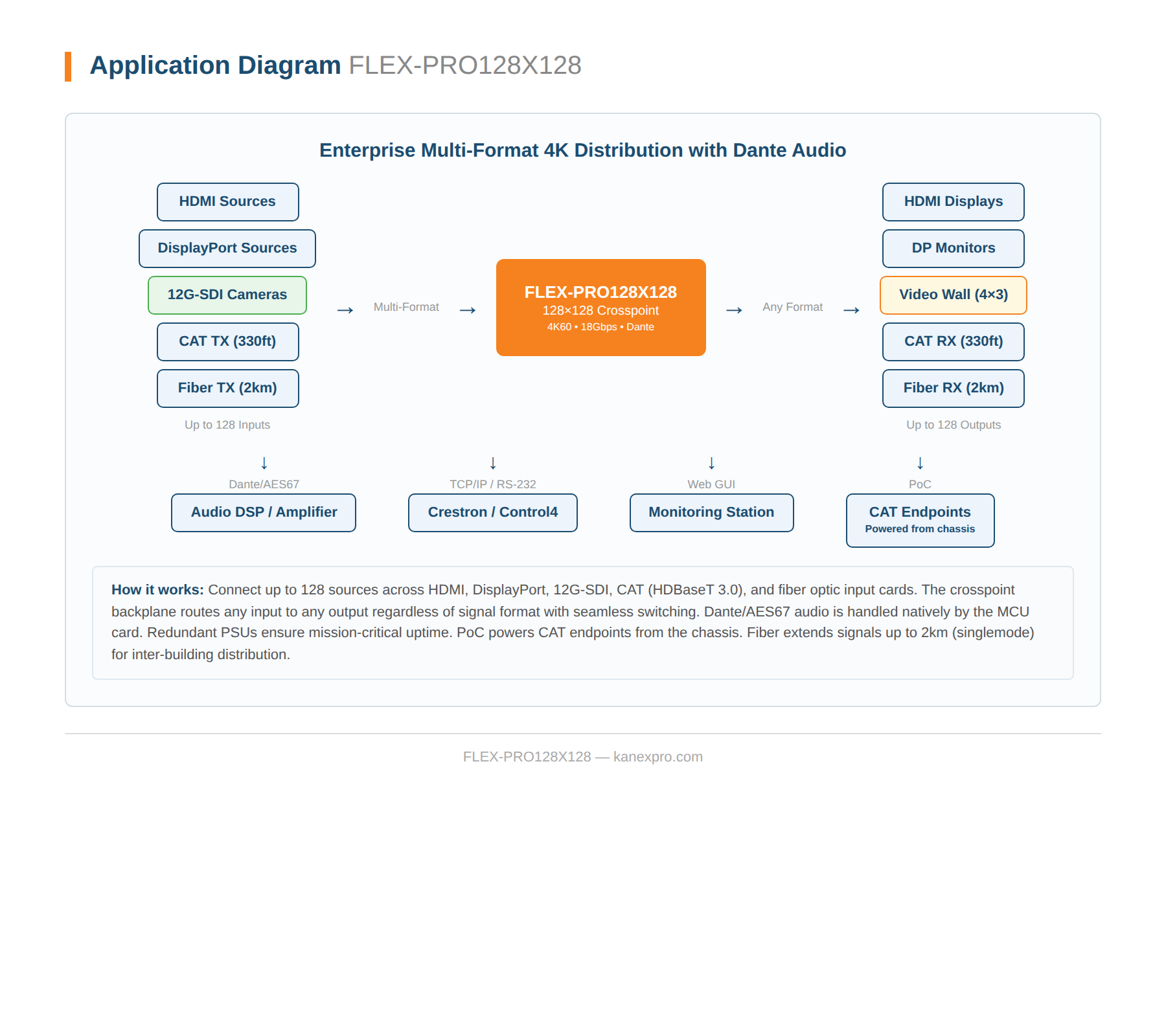

It provides comprehensive solutions for high-performance and mission critical signal routing between various local and remote sources and display devices. They feature a wide range of local, 4K twisted pair, and 4K fibre optic input and output cards, supporting multiple signal types and formats for diverse applications. It fully supports HDMI 2.0 bandwidth and HDCP 2.2, allowing for completely integrated 4K systems. It offers seamless switching speed, independent scaling output, video wall capabilities, quad view, audio extraction, and CEC display control.



Key Features:

• Up to 128 inputs

• Up to 128 outputs

• HDMI 2.0, 18Gbps Ultra HD 4K/60Hz 4:4:4 and HDCP 2.2 support

• Redundant Power Supplies

• CAT and Fiber Input/Output cards for remote location devices

• 12G-SDI Input/Output card for easy integration with SDI devices

• DisplayPort 1.2

•Dante/AES67 Network Audio support

• PoC (Power Over CAT) to power CAT Tx and Rx from the main chassis

• Selectable independent scaling on all outputs

• Input / Output and System monitoring

• EDID and HDCP management

•Videowall

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

•Hot Plug and Auto Detect

•Support for HDR – High Dynamic Range video

•Automatic cable compensation

•Automatic signal Reclocking

•Compatible with Dante Controller software

•Dante Domain Manager ready

•Dante built-in to MCU card

• 7” front panel touch control

• Seamless switching speed

•HDMI to DVI interface format correction

•Provides +5 VDC, 250mA power on HDMI ports for external peripheral devices

•Preset save and recall

• Bi-directional, RS-232 and LAN control to endpoints

• TAA compliant

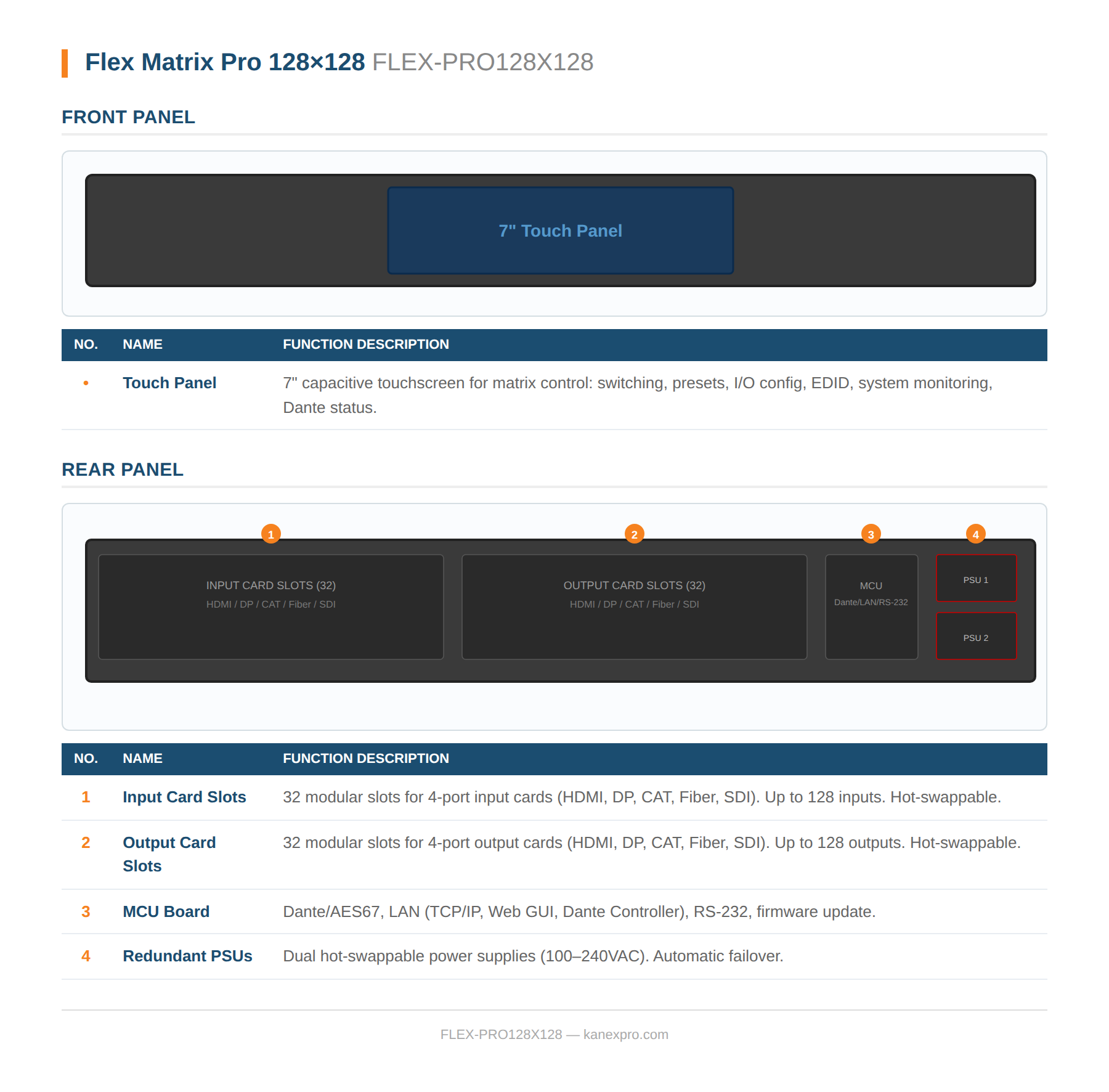

Connection

Input

32 Card Slot

Input Card

Option 1: FLEX-PROSDI-IN

Option 2: FLEX-PROHDMI-IN

Option 3: FLEX-PROFIB-IN

Option 4: FLEX-PRODP-IN

Option 5: FLEX-PROCAT-IN

Option 6: FLEX-MCU-Dante



Output

32 Card Slot

Output Card

Option 1:FLEX-PROSDI-OUT

Option 2: FLEX-PROHDMI-OUT

Option 3: FLEX-PROFIB-OUT

Option 4: FLEX-PRODP-OUT

Option 5: FLEX-PROCAT-OUT

Option 6: FLEX-MCU-Dante

Extenders

Option 1:FLEX-PROFIB-TX

Option 2: FLEX-PROFIB-RX

Option 3: FLEX-PROCATWP-TX

Option 4: FLEX-PROCAT-TX

Option 5: FLEX-PROCAT-RX

Controlports

1 x RS-232 [DB9 Connector]

1 x RJ 45

1x Service Point

Mechanical

Housing

Metal Enclosure

Dimension

483 mm (19.01 in) x 368mm (14.5 in) x 1700 mm (66.92 in)

Rack Mounting

19” Standard Rack Mounting, 39 RU

Power Supply

Input:AC100-240V50/60Hz,

MTBF

 50,000 hrs

Temperature & Humidity

0~40°C, Humidity below 80%

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2

Video Bandwidth

18Gbps

Video Resolution

Up to 3840x2160 60Hz 4:4:4 (8bit)

Color Space

RGB and YCbCr 4:4:4, YCbCr 4:2:2:/4:2:0

Color Depth

8, 10, 12 bits per Color



Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

HDR

 Supports
