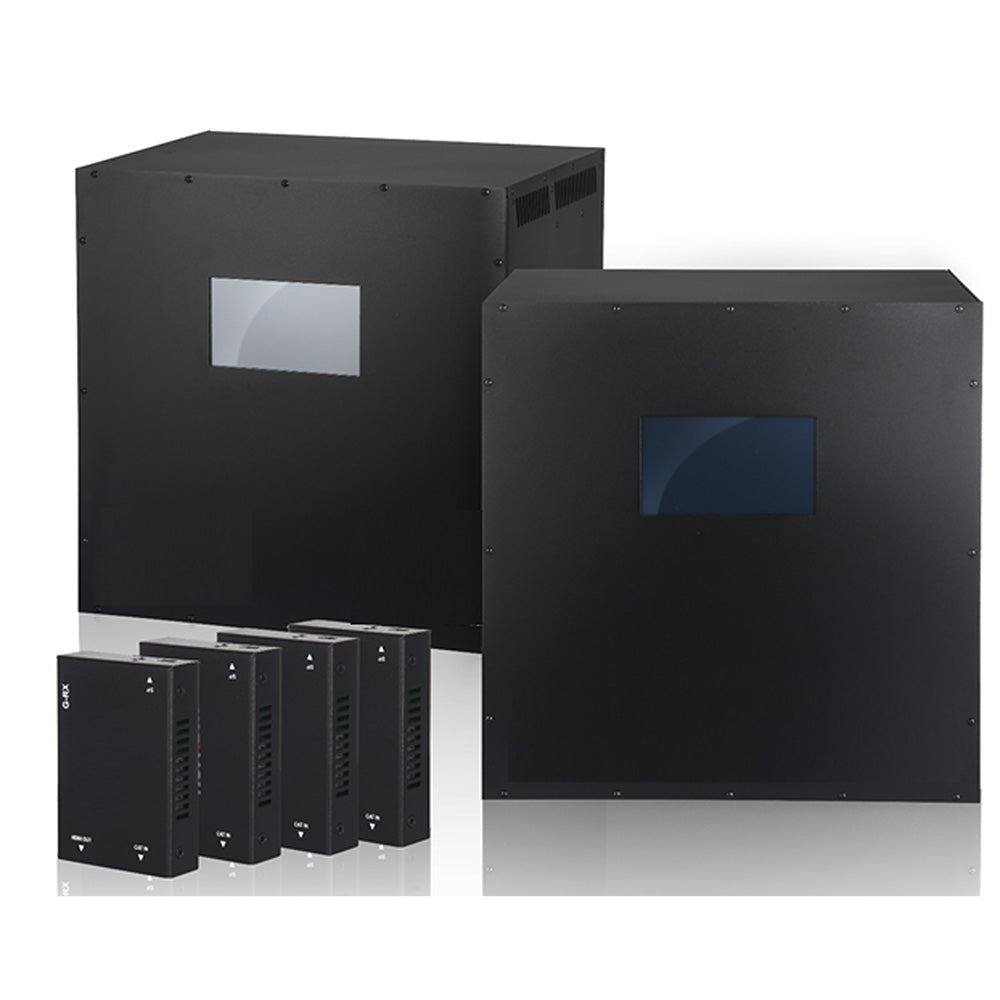

Flex Matrix Pro 16×16 4K60 Crosspoint Modular Matrix Switcher

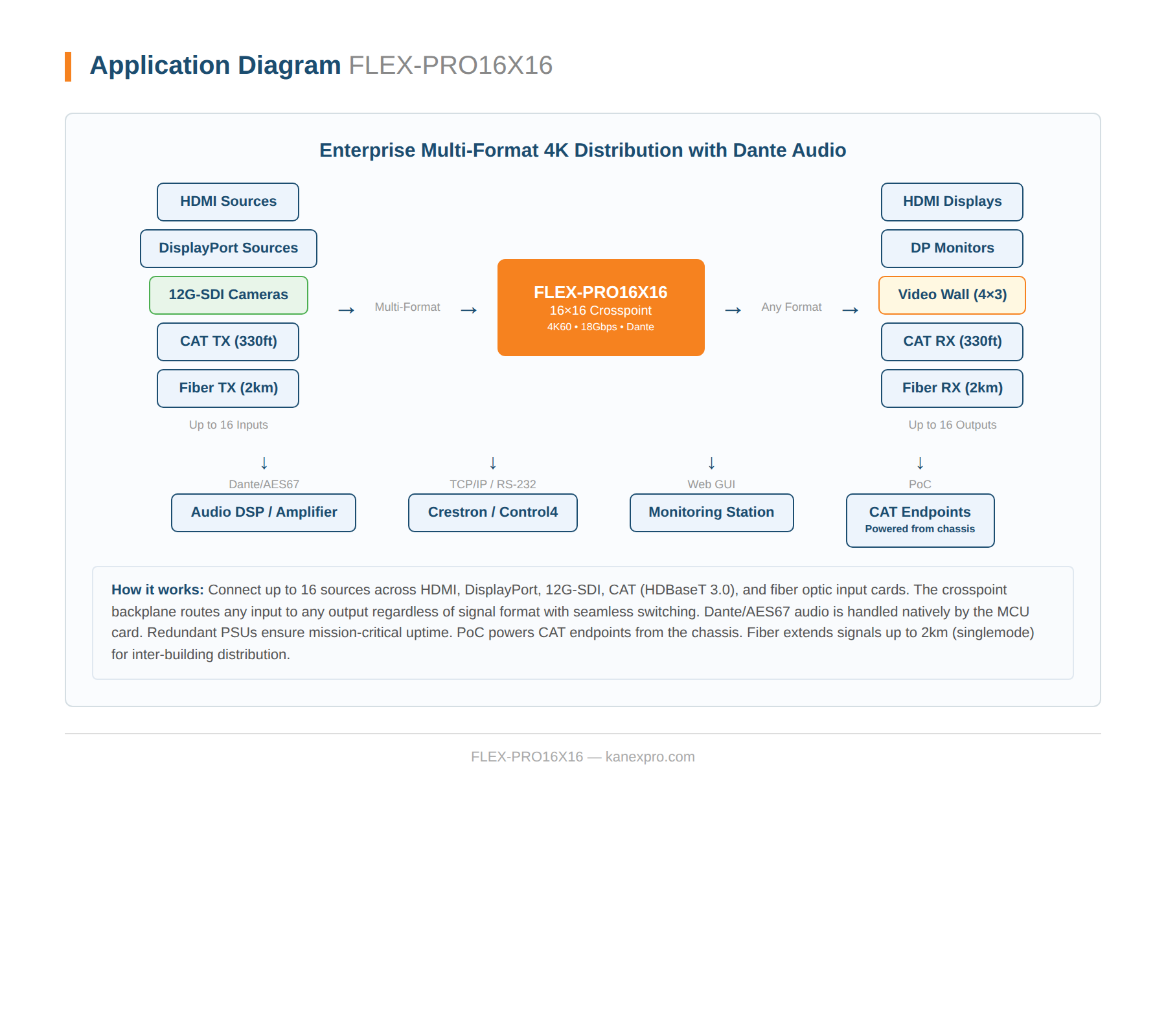

Five signal formats. One crosspoint chassis. Zero external converters. The FLEX-PRO16X16 accepts HDMI 2.0, DisplayPort, HDBaseT 3.0 (330ft/100m), fiber optic (2km singlemode), and 12G-SDI inputs on hot-swappable 4-port cards — routing any source to any of 16 outputs at 4K/UHD 60Hz 4:4:4, 18Gbps, with HDCP 2.2 and seamless switching across every crosspoint.

Dante/AES67 audio built into the MCU card. Redundant hot-swappable PSUs. PoC for CAT endpoints. Independent output scaling. Video wall and quad view. RS-232, TCP/IP, Web GUI, 7" touchscreen. TAA compliant. Expandable: same card ecosystem scales to 32×32, 64×64, and 128×128 Pro chassis.

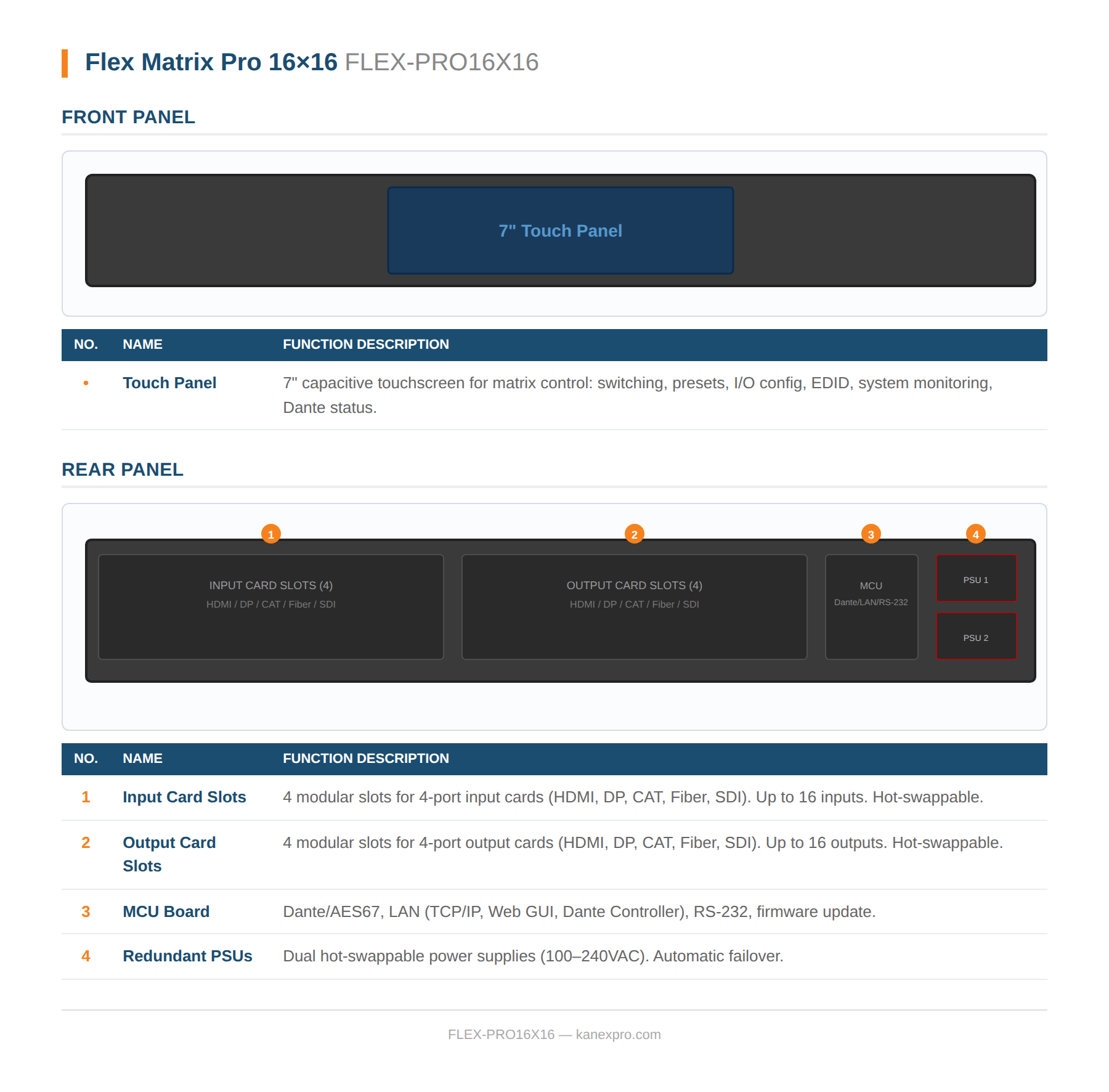

• 16×16 crosspoint: 4 input + 4 output card slots × 4 ports each — HDMI, DisplayPort, CAT, Fiber, or 12G-SDI in any combination
• 4K/UHD 60Hz 4:4:4 • 18Gbps • HDCP 2.2 • HDR • seamless switching • independent output scaling
• Dante/AES67 native via FLEX-MCU-Dante — 8ch LPCM, Dolby TrueHD, DTS-HD MA passthrough
• HDBaseT 3.0: 330ft/100m uncompressed 4K60 over CAT6A with PoC • Fiber: 984ft MM / 6,562ft SM
• 12G-SDI: 12G/6G/3G/HD-SDI at up to 11.88Gbps • SMPTE/ITU compliant • auto reclocking
• Redundant hot-swappable PSUs • bi-directional RS-232 and LAN to endpoints
• Video wall (up to 4×3) • quad view • CEC display control • EDID/HDCP management • preset save/recall
• TAA compliant • 7" touch panel • Web GUI • Dante Controller • Dante Domain Manager ready
