Flex Matrix Pro 32x32 4K60

Name: Flex Matrix Pro 32x32 4K60
Brand: KanexPro
SKU: FLEX-PRO32X32

Full 4K/UHD at 18Gbps, VideoWall, Quadview, Independent scaling

1 1

KanexPro

SKU: FLEX-PRO32X32

UPC: 813982023710

View full details

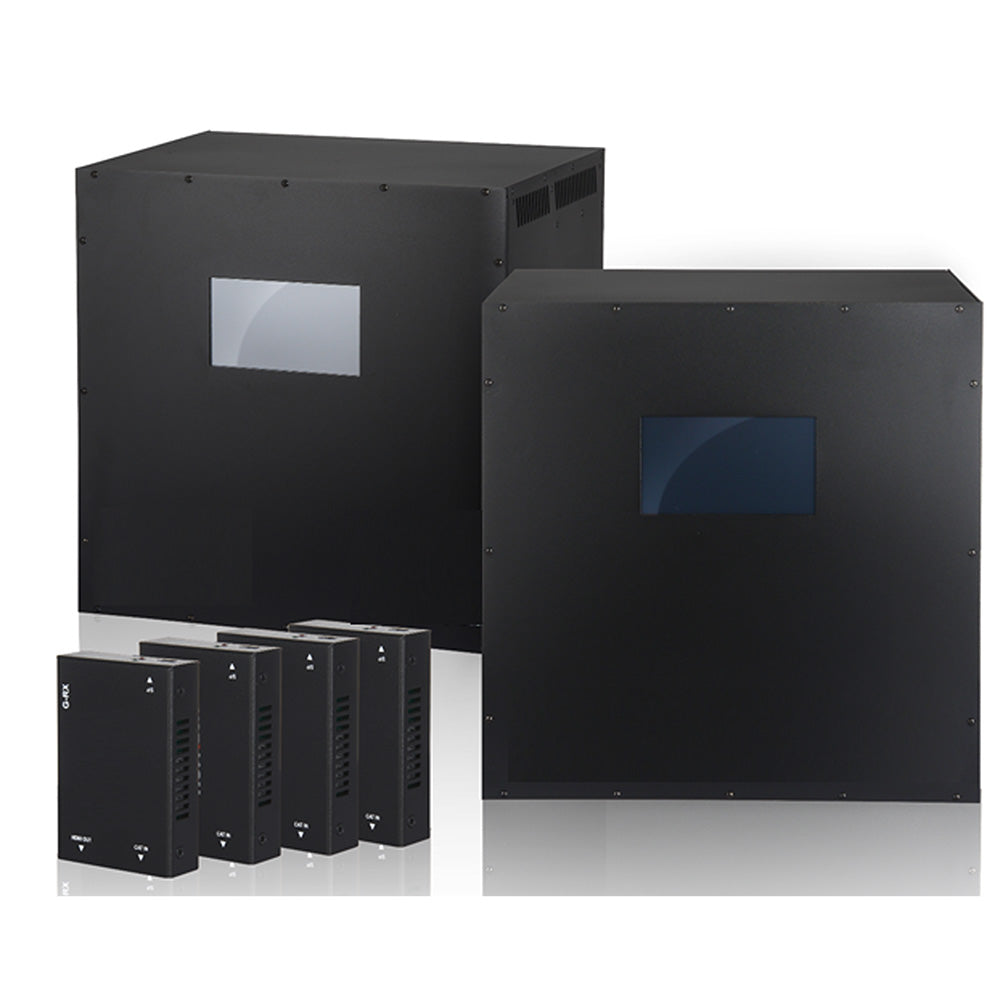

The KanexProFLEX-PRO32X32Matrixswitcher is the next generation of the most advanced and complete modular matrix media switching and extension solution.It allows for flexible video distribution with 4K/UHD resolution at 60Hz. This specific model supports up to 32 inputs and 32 outputs, all in 4K 60Hz, making it ideal for high-quality video distribution in a variety of environments like bars, restaurants, digital signage, and live event streaming.

It provides comprehensive solutions for high-performance and mission critical signal routing between various local and remote sources and display devices. They feature a wide range of local, 4K twisted pair, and 4K fibre optic input and output cards, supporting multiple signal types and formats for diverse applications. It fully supports HDMI 2.0 bandwidth and HDCP 2.2, allowing for completely integrated 4K systems. It offers seamless switching speed, independent scaling output, video wall capabilities, quad view, audio extraction, and CEC display control.

Key Features:

• Up to 32 inputs

• Up to 32 outputs

• HDMI 2.0, 18Gbps Ultra HD 4K/60Hz 4:4:4 and HDCP 2.2 support

• Redundant Power Supplies

• CAT and Fiber Input/Output cards for remote location devices

• 12G-SDI Input/Output card for easy integration with SDI devices

• DisplayPort 1.2

•Dante/AES67 Network Audio support

• PoC (Power Over CAT) to power CAT Tx and Rx from the main chassis

• Selectable independent scaling on all outputs

• Input / Output and System monitoring

• EDID and HDCP management

•Videowall

• Multi view (Quad view)

• CEC display control

• Audio extraction on all inputs

•Hot Plug and Auto Detect

•Support for HDR – High Dynamic Range video

•Automatic cable compensation

•Automatic signal Reclocking

•Compatible with Dante Controller software

•Dante Domain Manager ready

•Dante built-in to MCU card

• 7” front panel touch control

• Seamless switching speed

•HDMI to DVI interface format correction

•Provides +5 VDC, 250mA power on HDMI ports for external peripheral devices

•Preset save and recall

• Bi-directional, RS-232 and LAN control to endpoints

• TAA compliant

Connection

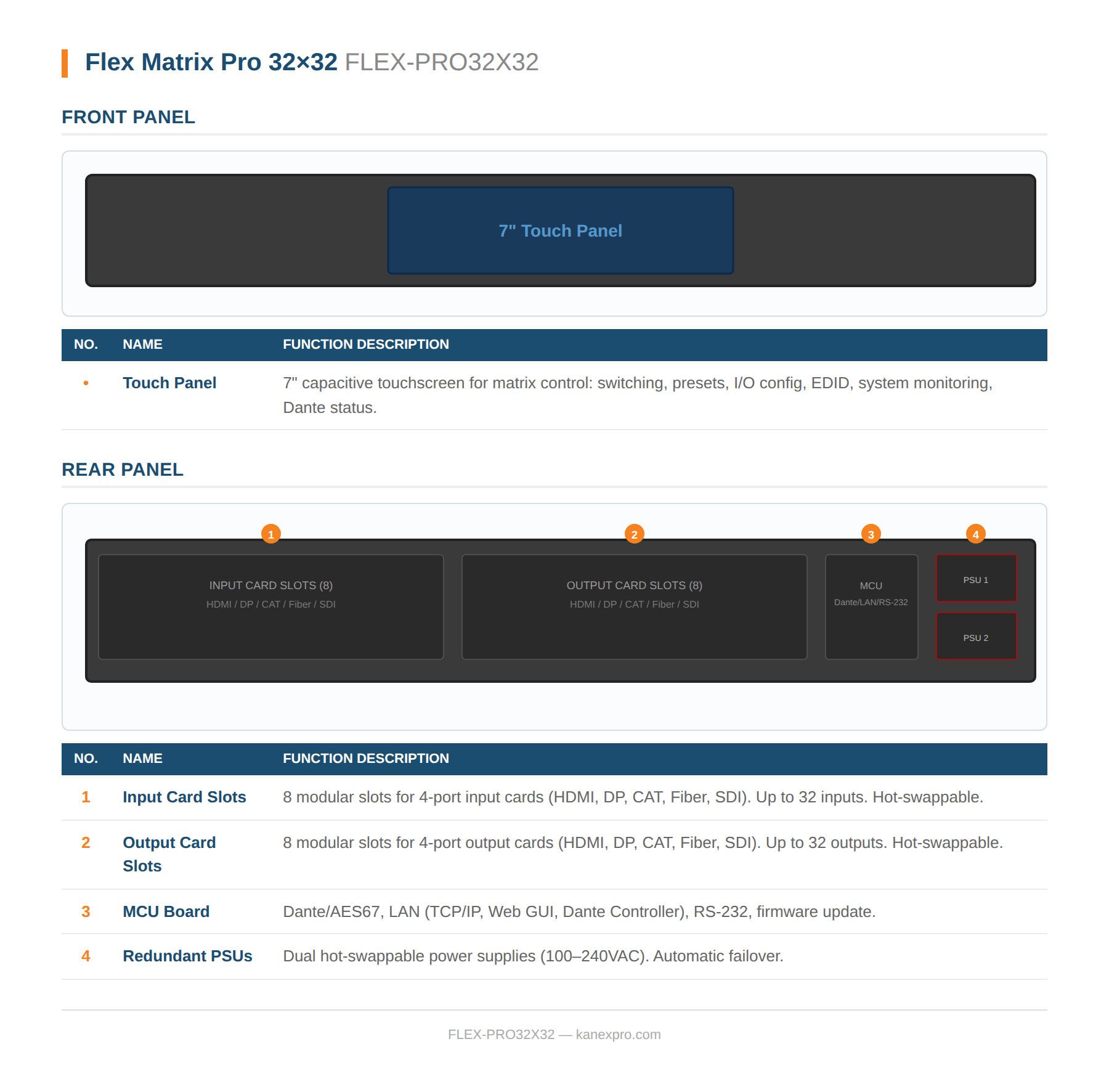

Input	8 Card Slot Input Card Option 1: FLEX-PROSDI-IN Option 2: FLEX-PROHDMI-IN Option 3: FLEX-PROFIB-IN Option 4: FLEX-PRODP-IN Option 5: FLEX-PROCAT-IN Option 6: FLEX-MCU-Dante
Output	8 Card Slot Output Card Option 1:FLEX-PROSDI-OUT Option 2: FLEX-PROHDMI-OUT Option 3: FLEX-PROFIB-OUT Option 4: FLEX-PRODP-OUT Option 5: FLEX-PROCAT-OUT Option 6: FLEX-MCU-Dante
Extenders	Option 1:FLEX-PROFIB-TX Option 2: FLEX-PROFIB-RX Option 3: FLEX-PROCATWP-TX Option 4: FLEX-PROCAT-TX Option 5: FLEX-PROCAT-RX
Controlports	1 x RS-232 [DB9 Connector] 1 x RJ 45 1x Service Point
Mechanical
Housing	Metal Enclosure
Dimension	435 mm (17.1 in) x 368mm (14.5 in) x 440 mm (17.32 in)
Rack Mounting	19” Standard Rack Mounting, 10 RU
Power Supply	Input:AC100-240V50/60Hz,
MTBF	50,000 hrs
Temperature & Humidity	0~40°C, Humidity below 80%
Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 3840x2160 60Hz 4:4:4 (8bit)
Color Space	RGB and YCbCr 4:4:4, YCbCr 4:2:2:/4:2:0
Color Depth	8, 10, 12 bits per Color
Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
HDR	Supports
