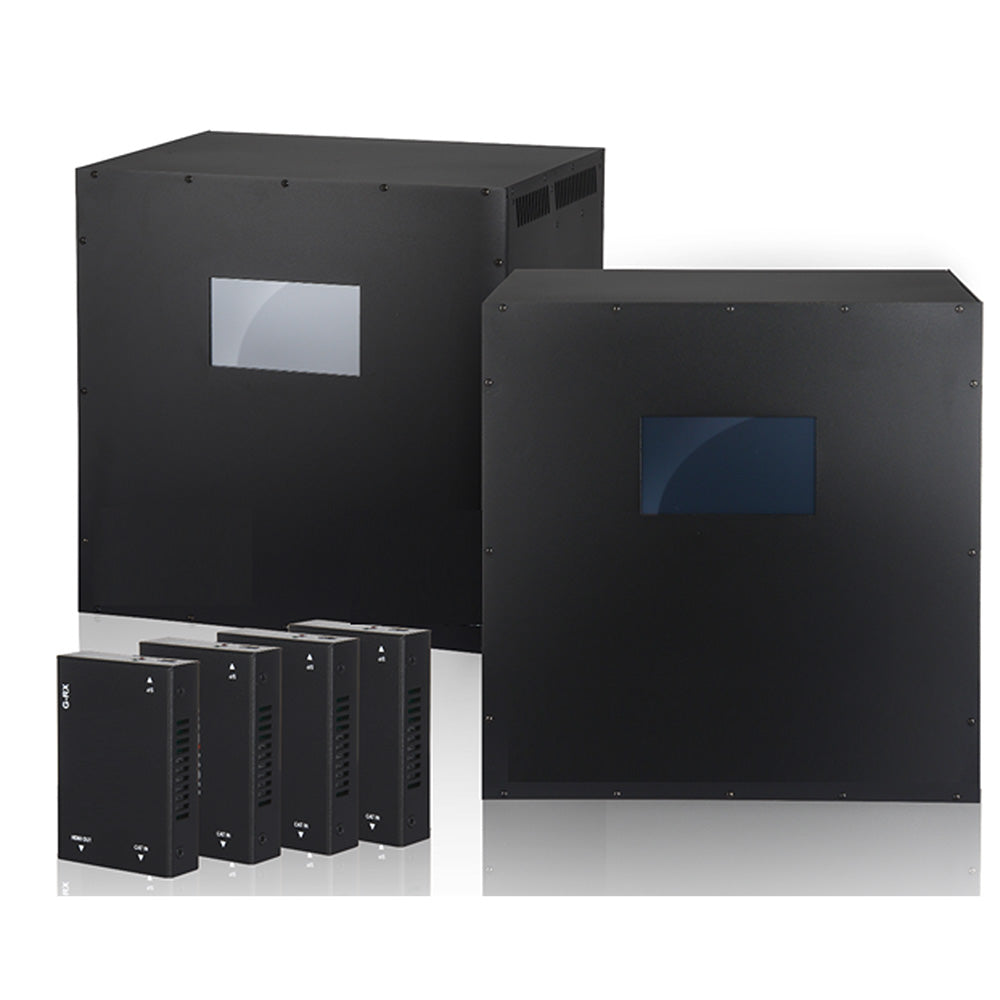

Flex Matrix Pro 64×64 4K60 Crosspoint Modular Matrix Switcher

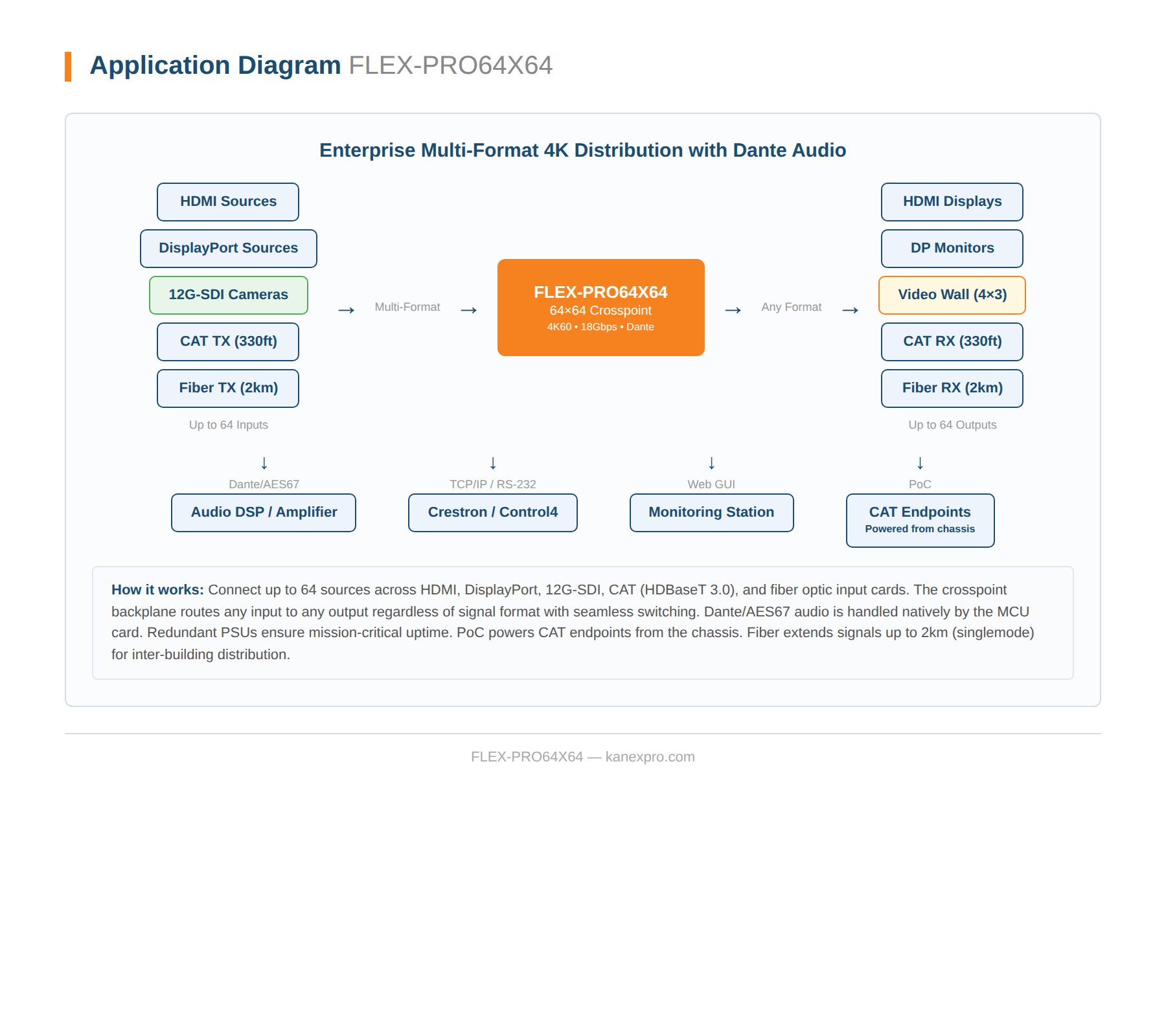

At 64×64, the Flex Matrix Pro enters territory traditionally owned by Crestron and Lightware — at roughly half their price. Sixteen input and sixteen output card slots deliver 64 fully routable crosspoints across five signal formats: HDMI, DisplayPort, HDBaseT 3.0, fiber optic, and 12G-SDI. Every path supports 4K60 4:4:4 at 18Gbps with HDCP 2.2, HDR, and seamless switching.

Native Dante/AES67 replaces external audio matrices. Fiber cards span 2km between buildings. Redundant PSUs and PoC deliver enterprise reliability. TAA compliant.

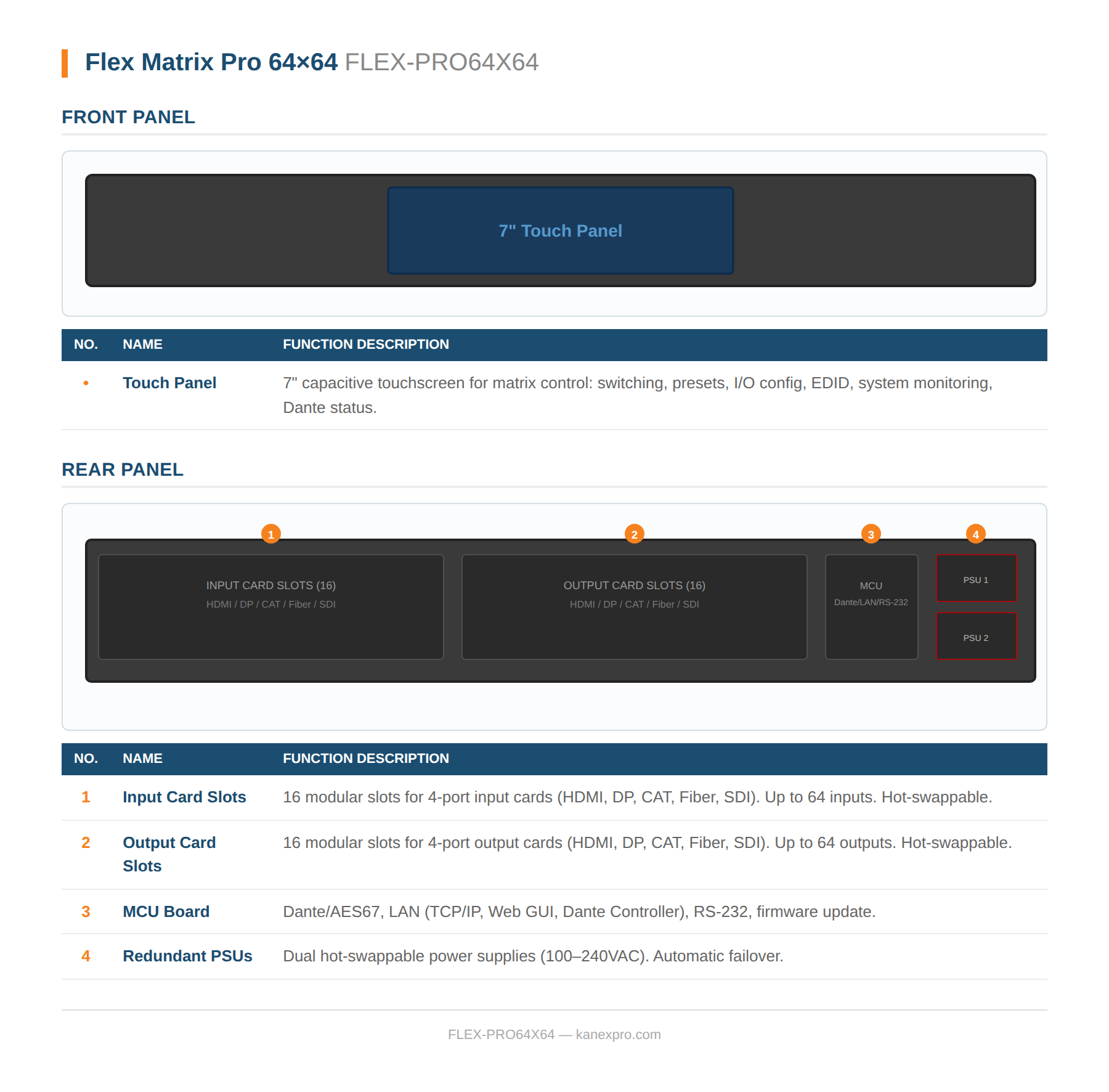

• Up to 64 inputs and 64 outputs via hot-swappable 4-port modular cards across five signal formats
• Multi-format I/O: HDMI 2.0, DisplayPort, CAT/HDBaseT 3.0 (330ft), Fiber Optic (2km singlemode), and 12G-SDI
• 4K/UHD 60Hz 4:4:4 at 18Gbps with HDCP 2.2, HDR, and seamless switching on every crosspoint
• Native Dante/AES67 audio networking via built-in MCU card
• Redundant hot-swappable power supplies for mission-critical reliability
• PoC (Power over CAT) delivers power to connected transmitters and receivers from the main chassis
• Video wall, quad view, independent scaling, CEC control, EDID/HDCP management
• TAA compliant for U.S. government procurement
