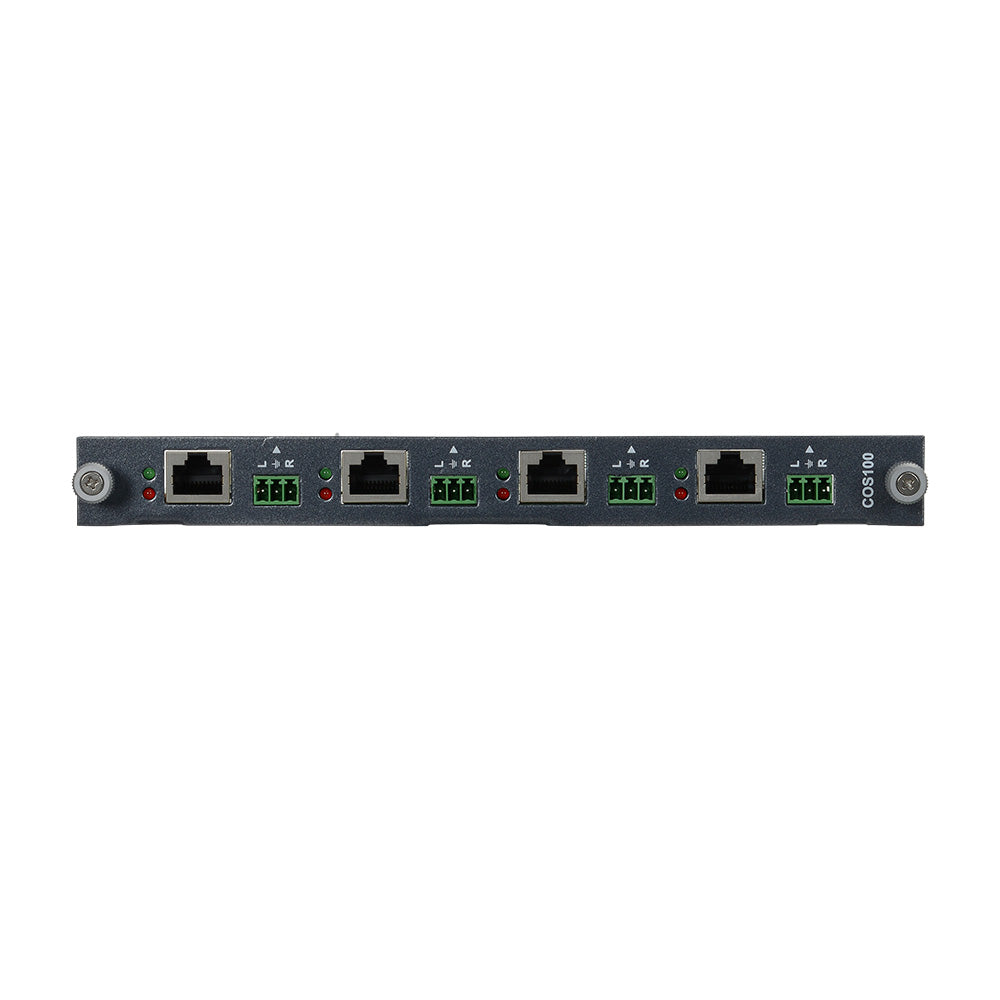

4K60 HDBaseT Output Card for Flex Matrix Pro

4-Port CAT Output — 330ft Extension, PoC, Dante/AES67 & TAA

  • 4K60 HDBaseT Output Card for Flex Matrix Pro
1 1

KanexPro

SKU: FLEX-PROCAT-OUT

UPC: 813982023741

View full details

Add four CAT (HDBaseT 3.0) outputs to any Flex Matrix Pro chassis. The FLEX-PROCAT-OUT delivers 4K60 4:4:4 at 18Gbps with HDCP 2.2, HDR, scaling, and Dante/AES67 per port.

Seamless switching. EDID/HDCP management. Hot-swappable. TAA compliant. 330ft (100m) via CAT6A. PoC supported.

  • 4× CAT (HDBaseT 3.0) outputs — hot-swappable across all Flex Pro chassis (16×16 to 128×128)
  • 4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
  • Dante/AES67 network audio • 8ch LPCM High-Res Audio
  • Independent scaling per output • seamless switching • EDID/HDCP management
  • 330ft (100m) uncompressed 4K60 via CAT6A • PoC • bi-directional RS-232
  • Hot-swappable • TAA compliant

Technical

Input Card ports

 4 X CATx Output Port

Connector Type

RJ45 (Female)

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Maximum Data Rate

18 Gbps

HDCP Version:

HDCP 2.2

Support Hot Plug Detection

Yes

Re-clocking

 Output: Automatic

Analog Audio Port

 4 X 3-pin Phoenix stereo audio for Extraction

PoE port

  Based on IEEE 802.3at, 100 watts , 4 X 2 -pin Phoenix Connector
