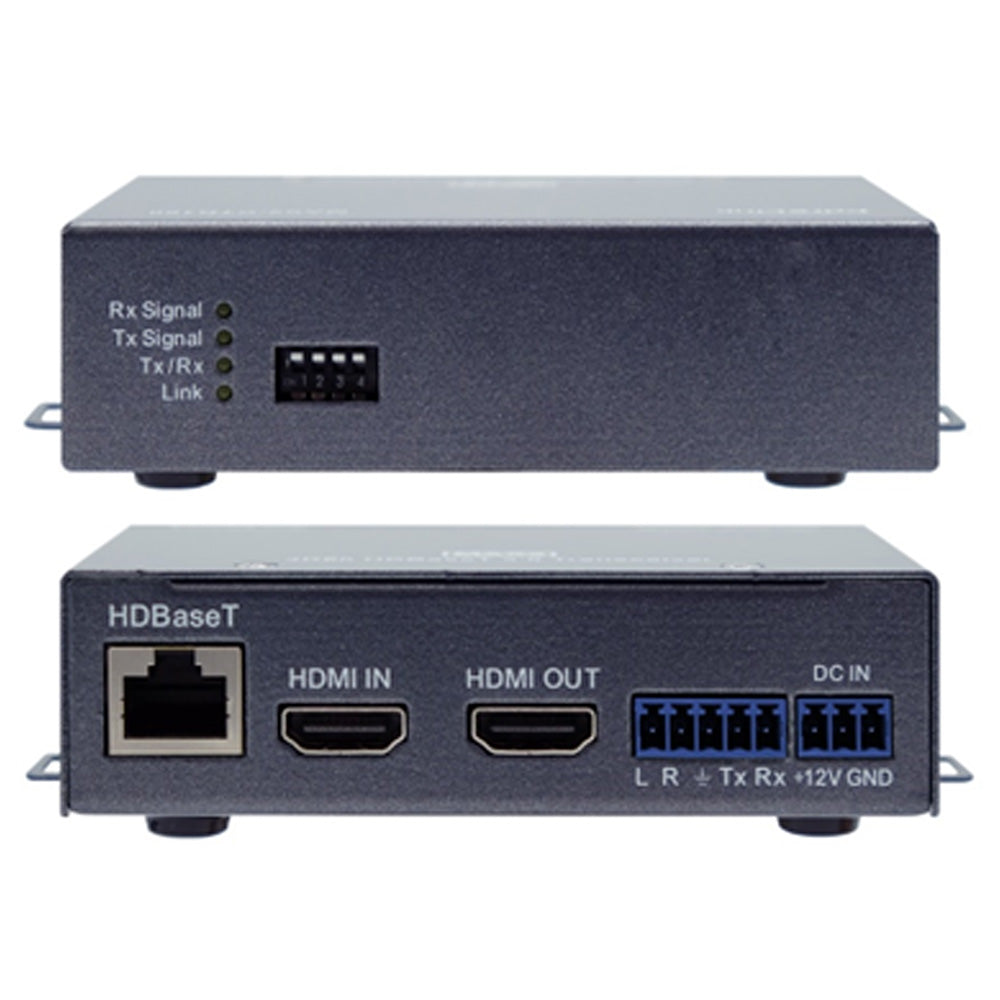

FLEX-PROCAT-TRANSCEVIER: 4K SIGNAL TRANSMITTER/ RECEIVER

4K HDMI transmitter or receiver kit

1 1

KanexPro

SKU: FLEX-PROCAT-RX

UPC: 813982023758

View full details

The Kanexpro FLEX-PROCAT-RX can be used as transmitter or receivers in association with KANEXPRO FLEX-PROCAT-IN / FLEX-PROCAT-OUT card. The capability to encode or decode 4K video signals over CATx cables for up to 330 feet (100 meters) is impressive, especially for complex AV environments. Additionally, the FLEX-PROCAT-TRANSCEIVER is fully compatible with the FLEX-PROCAT-IN/ FLEX-PROCAT-OUT, enabling seamless integration within the FLEX PRO MATRIX system. This compatibility ensures efficient signal management and distribution, making it a reliable choice for complex AV environments requiring high-resolution video and audio transmission.

The advanced features like stereo audio extraction, and RS232 control, making it ideal for professional AV setups.





  • Dual functionality: Can act as both a transmitter and a receiver, offering flexibility in various configurations.
  • 4K video support: Capable of encoding or decoding 4K video signals, ensuring excellent image quality over CATx cables.
  • Extended range: Transmit and receive signals up to 330ft (100m), making it suitable for long-distance AV distribution.
  • Compatibility: Seamlessly integrates with the FLEX-PROCAT-IN and FLEX-PROCAT-OUT cards, forming part of the FLEX PRO MATRIX system for optimal signal management.
  • Advanced audio features: Includes stereo audio extraction, allowing audio to be easily separated and processed.
  • RS232 control: Facilitates control and monitoring through RS232, enhancing integration with other AV systems.
  • Compliance: The product meets the Trade Agreements Act (TAA), which is typically a requirement for government procurement. This ensures that the product complies with regulations regarding the origin and manufacture of goods for use in U.S. government projects.

Connections



Connector

1 x HDMI IN w/Deep Color, 3D & 4K/1 x HDMI OUT w/Deep Color, 3D & 4K

Inputs/ Outputs

1 x HDBaseT 3.0 w/Deep Color, 3D & 4K

Connector Types

1 x RJ45, 2 x HDMI port, 1 x Phoenix for RS232

Performance



Supported Distance

330 ft (100m)

Supported Resolutions

Up to Ultra HD/4K (4096x2160, 4:4:4@50/60Hz)

Supported Audio Formats

Dolby Digital, Dolby Digital Ex, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels

Compliance

HDCP 2.2

Data Transfer Rate

18 Gbps

Power Consumption

DC 12V (AC/DC Adapter), PoE Injector 10 Watts Max

Power Supply

100-240 VAC 50/60Hz

Power Injection for CATx Extenders

PoE Injector

Operating Temperature

32 ~ 117 F (0 to 47 C)

Storage Temperature

- 40 ~ 158 F (-40 to 70 C)

Relative Humidity

0 ~ 90% non-condensing

Enclosure



Product Dimensions

6 x 5.4 x 1.25” (152x137x32mm)

Product Weight

2 lbs (0.91 kg)

Shipping Dimensions

15x15x4” (381x381x101mm)

Shipping Weight

3 lbs (1.36 kg)
