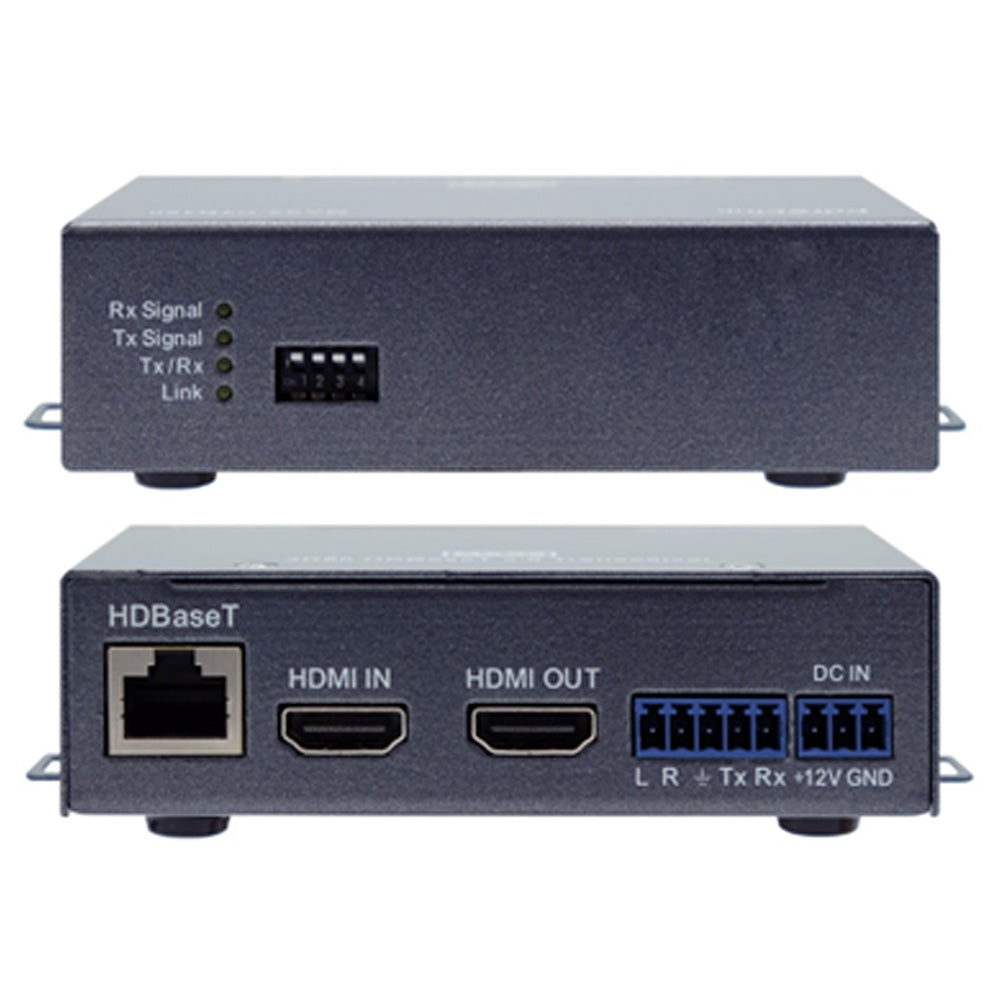

4K60 HDMI-to-CAT Transmitter for Flex Matrix Pro

Name: 4K60 HDMI-to-CAT Transmitter for Flex Matrix Pro
Brand: KanexPro
SKU: FLEX-PROCAT-TX

HDBaseT 3.0 TX — 330ft over CAT6A with PoC, RS-232 & TAA

1 1

KanexPro

SKU: FLEX-PROCAT-TX

UPC: 813982023765

View full details

Place an HDMI source up to 330ft from the chassis. The FLEX-PROCAT-TX converts HDMI to HDBaseT 3.0 over CAT6A with PoC and bi-directional RS-232. Connects to FLEX-PROCAT-IN. 4K60 4:4:4, 18Gbps, HDCP 2.2.

EDID/HDCP management. Seamless switching. TAA compliant.

4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
330ft (100m) over single CAT6A • PoC from chassis
Bi-directional RS-232 for endpoint control
EDID/HDCP management • seamless switching
TAA compliant

Connections
Connector	1 x HDMI IN w/Deep Color, 3D & 4K/1 x HDMI OUT w/Deep Color, 3D & 4K
Inputs/ Outputs	1 x HDBaseT 3.0 w/Deep Color, 3D & 4K
Connector Types	1 x RJ45, 2 x HDMI port, 1 x Phoenix for RS232
Performance
Supported Distance	330 ft (100m)
Supported Resolutions	Up to Ultra HD/4K (4096x2160, 4:4:4@50/60Hz)
Supported Audio Formats	Dolby Digital, Dolby Digital Ex, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels
Compliance	HDCP 2.2
Data Transfer Rate	18 Gbps
Power Consumption	DC 12V (AC/DC Adapter), PoE Injector 10 Watts Max
Power Supply	100-240 VAC 50/60Hz
Power Injection for CATx Extenders	PoE Injector
Operating Temperature	32 ~ 117 F (0 to 47 C)
Storage Temperature	- 40 ~ 158 F (-40 to 70 C)
Relative Humidity	0 ~ 90% non-condensing
Enclosure
Product Dimensions	6 x 5.4 x 1.25” (152x137x32mm)
Product Weight	2 lbs (0.91 kg)
Shipping Dimensions	15x15x4” (381x381x101mm)
Shipping Weight	3 lbs (1.36 kg)
