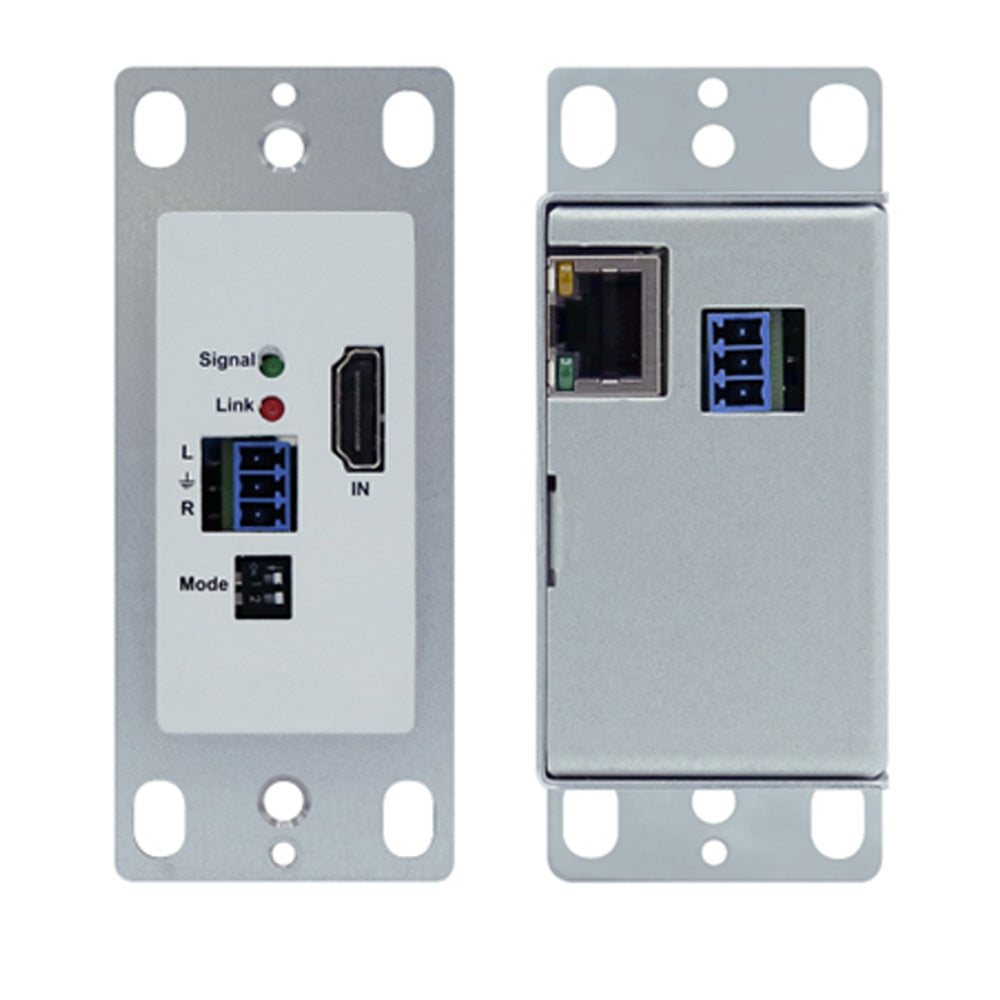

4K60 HDMI-to-CAT Wall Plate TX for Flex Matrix Pro

Name: 4K60 HDMI-to-CAT Wall Plate TX for Flex Matrix Pro
Brand: KanexPro
SKU: FLEX-PROCATWP-TX

1-Gang Decora HDBaseT 3.0 TX — 330ft, PoC, RS-232 & TAA

1 1

KanexPro

SKU: FLEX-PROCATWP-TX

UPC: 813982023772

View full details

Flush-mount HDMI source connectivity in any standard wall box. The FLEX-PROCATWP-TX converts HDMI to HDBaseT 3.0 over CAT6A at up to 330ft with PoC and RS-232. Connects to FLEX-PROCAT-IN. 4K60 4:4:4, 18Gbps, HDCP 2.2, HDR.

EDID/HDCP management. Seamless switching. TAA compliant.

4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
330ft (100m) over single CAT6A • PoC from chassis
Bi-directional RS-232 for endpoint control
EDID/HDCP management • seamless switching
1-gang Decora wall plate form factor
TAA compliant

Inputs	1 x HDMI w/Deep Color, 3D & 4K
Outputs	1 x HDBaseT 3.0 w/Deep Color, 3D & 4K
Connector Types	1 x RJ45, 1 x HDMI port, 1 x Phoenix for RS232
Performance
Supported Distance	330 ft (100m)
Supported Resolutions	Up to Ultra HD/4K (4096x2160, 4:4:4@50/60Hz)
Supported Audio Formats	Dolby Digital, Dolby Digital Ex, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels
Compliance	HDCP 2.2
Data Transfer Rate	18 Gbps
Power Consumption	DC 12V (AC/DC Adapter), PoE Injector 10 Watts Max
Power Supply	100-240 VAC 50/60Hz
Power Injection for CATx Extenders	PoE Injector
Operating Temperature	32 ~ 117 F (0 to 47 C)
Storage Temperature	- 40 ~ 158 F (-40 to 70 C)
Relative Humidity	0 ~ 90% non-condensing
Enclosure
Product Dimensions	1.94 x 3.06 x 4” (49 x 78 x 102 mm)
Product Weight	1 lbs (0.45 kg)
Shipping Dimensions	15x15x4” (381x381x101mm)
Shipping Weight	2 lbs (0.91 kg)
