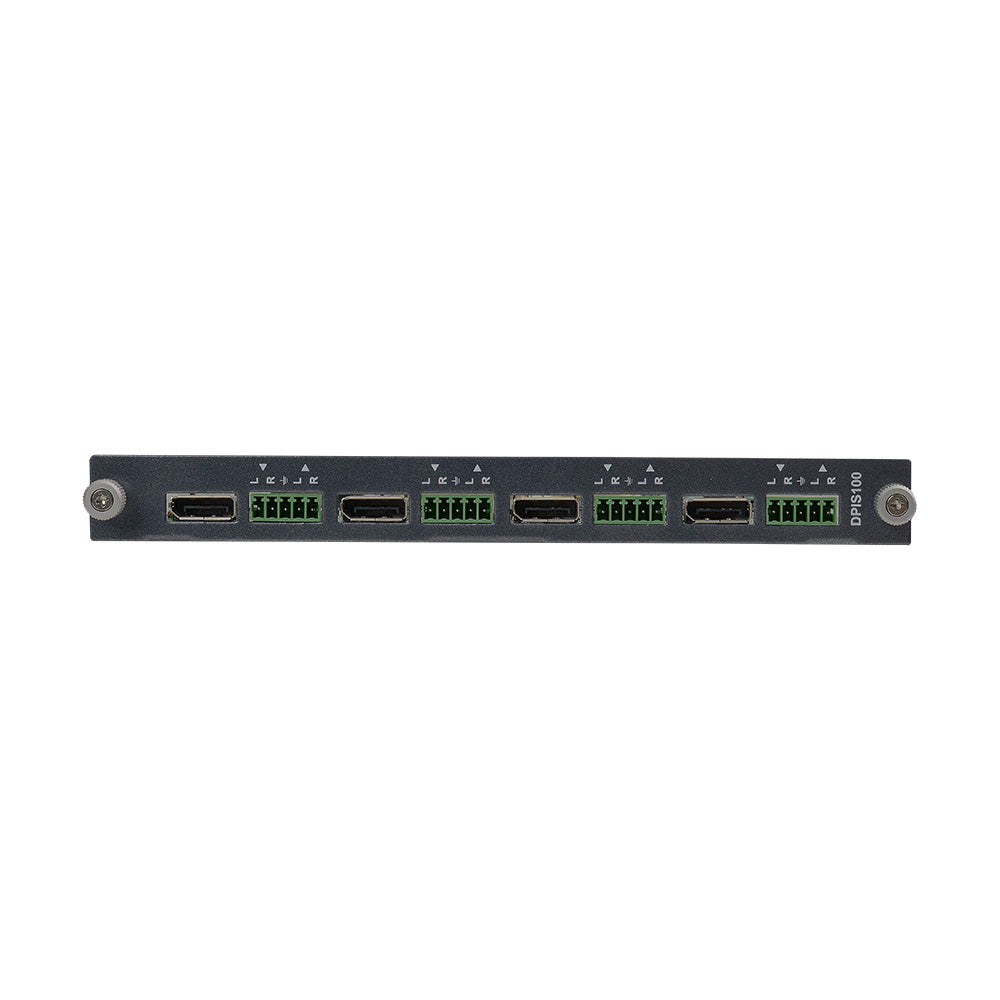

4K60 DisplayPort Input Card for Flex Matrix Pro

4-Port DP 1.2 Input with Scaling, Dante/AES67, HDCP 2.2 & TAA

  • 4K60 DisplayPort Input Card for Flex Matrix Pro
1 1

KanexPro

SKU: FLEX-PRODP-IN

UPC: 813982023789

View full details

Add four DisplayPort 1.2 inputs to any Flex Matrix Pro chassis. The FLEX-PRODP-IN delivers 4K60 4:4:4 at 18Gbps with HDCP 2.2, HDR, scaling, and Dante/AES67 per port.

Seamless switching. EDID/HDCP management. Hot-swappable. TAA compliant.

  • 4× DisplayPort 1.2 inputs — hot-swappable across all Flex Pro chassis (16×16 to 128×128)
  • 4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
  • Dante/AES67 network audio • 8ch LPCM High-Res Audio
  • Independent scaling per input • seamless switching • EDID/HDCP management
  • Auto cable compensation • auto signal reclocking
  • Hot-swappable • TAA compliant

Technical

Input Card ports

 4 X Display Port 1.2v Input Port

Connector Type

 DisplayPort  (Female)

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Maximum Data Rate

18 Gbps

HDCP Version:

HDCP 2.2

Support Hot Plug Detection

Yes

Re-clocking

 Output: Automatic

Analog Audio Port

4 X 5-pin Phoenix stereo audio for Insertion / Extraction
