4K/60 DisplayPort 1.2 Output Card

4 X 4K/60 DisplayPort 1.2 Output Card for Flex Matrix Pro.

1 1

KanexPro

SKU: FLEX-PRODP-OUT

UPC: 813982023796

View full details

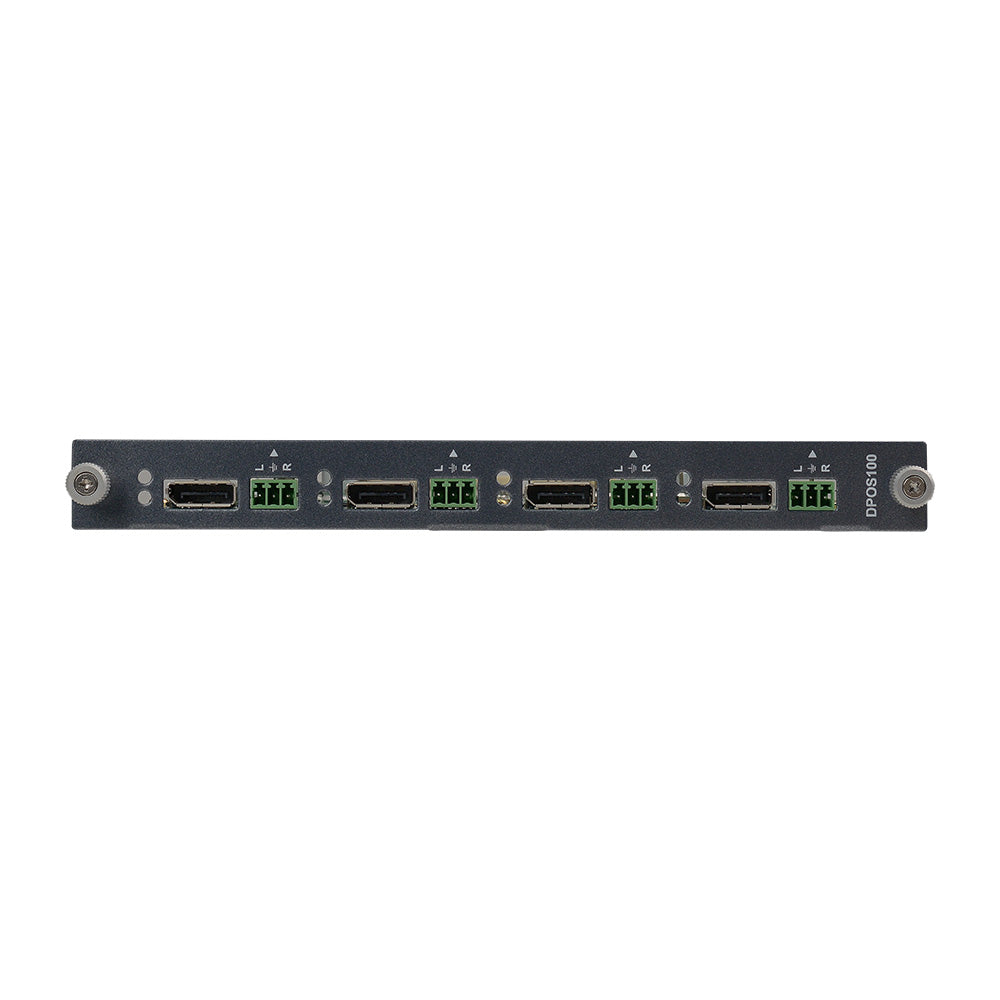

The KanexPro FLEX-PRODP-OUT is a 4-output Display Port card specifically designed to transmit and manage 4K video signals. As part of the KanexPro FLEX PRO Matrix Series, this card supports high-resolution video and audio transmission, making it a dependable solution for professional and complex AV environments.

With HDCP 2.2 compliance and hot-swappable functionality, it ensures uninterrupted operation and efficient signal management. The card also features stereo audio extraction, offering flexibility for audio routing and integration—ideal for applications in conference rooms, control centers, and broadcast environments.

  • Four Display Port Inputs with Scaling – 4 X Display Port v1.2 for Seamless Output switching with built-in video scaling for flexible display support
  • 4K/60@4:4:4 Video Support – Handles ultra-high-definition content with accurate color reproduction
  • HDCP 2.2 Compliant – Ensures compatibility with modern digital video content and devices
  • Hot Plug & Auto Detect – Simplifies connectivity with automatic input detection
  • HDR Support – Enhances video with High Dynamic Range for deeper contrast and richer color
  • Automatic Cable Compensation & Signal Reclocking – Maintains signal integrity across long cable runs
  • Seamless Switching – Fast, transition-free source changes
  • +5VDC, 250mA Power Output on HDMI Ports – Powers small external devices directly
  • Hot-Swappable Design – Enables quick replacement or upgrades with minimal downtime
  • TAA Compliant – Meets Trade Agreements Act requirements for government procurement

Technical

Input Card ports

 4 X Display Port 1.2 Output Port

Connector Type

 Display Port (Female)

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Maximum Data Rate

18 Gbps

HDCP Version:

HDCP 2.2

Support Hot Plug Detection

Yes

Re-clocking

 Output: Automatic

Analog Audio Port

4 X 3-pin Phoenix Stereo Audio Extraction
