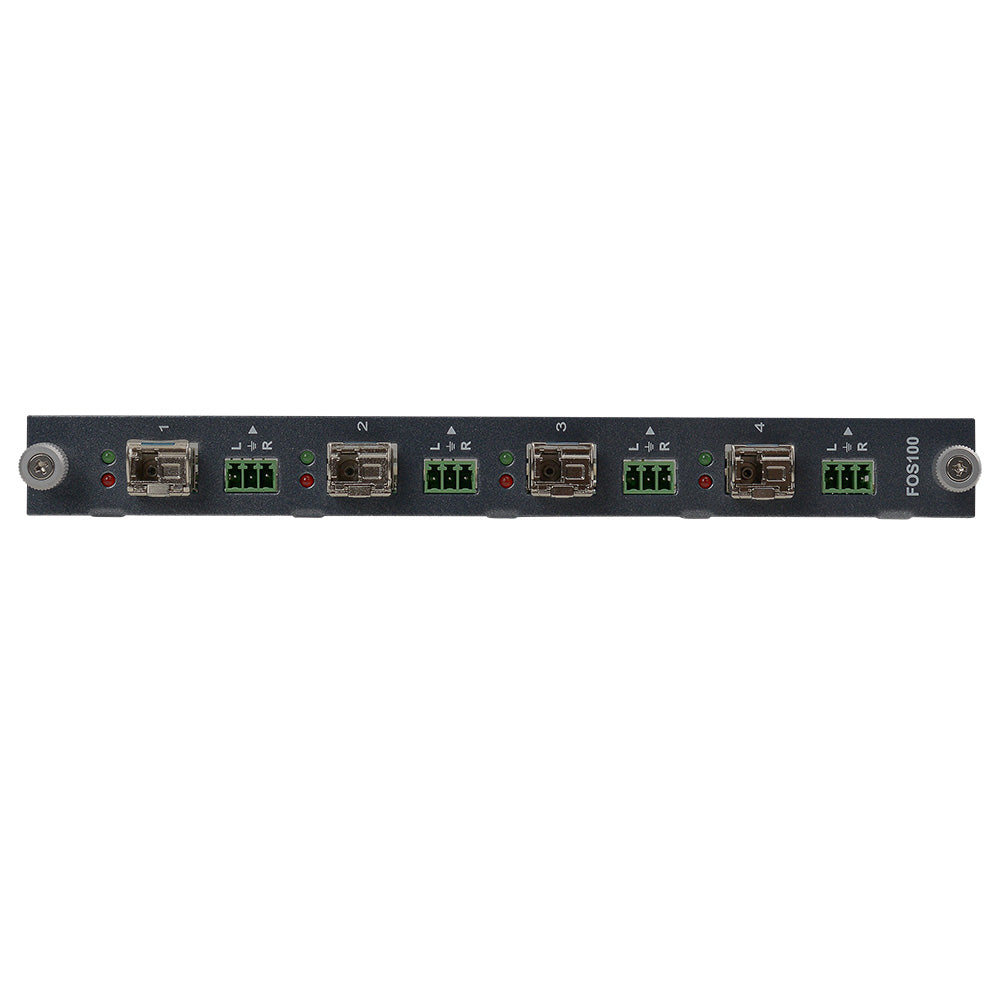

4K60 Fiber Optic Output Card for Flex Matrix Pro

4-Port Fiber Output — 2km Singlemode / 300m Multimode — Dante/AES67 & TAA

  • 4K60 Fiber Optic Output Card for Flex Matrix Pro
1 1

KanexPro

SKU: FLEX-PROFIB-OUT

UPC: 813982023819

View full details

Add four Fiber Optic (LC) outputs to any Flex Matrix Pro chassis. The FLEX-PROFIB-OUT delivers 4K60 4:4:4 at 18Gbps with HDCP 2.2, HDR, scaling, and Dante/AES67 per port.

Seamless switching. EDID/HDCP management. Hot-swappable. TAA compliant. Singlemode 2km. Multimode 300m.

  • 4× Fiber Optic (LC) outputs — hot-swappable across all Flex Pro chassis (16×16 to 128×128)
  • 4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
  • Dante/AES67 network audio • 8ch LPCM High-Res Audio
  • Independent scaling per output • seamless switching • EDID/HDCP management
  • Singlemode 6,562ft (2km) • Multimode 984ft (300m) • adaptive SM/MM
  • Hot-swappable • TAA compliant

Technical

Card ports

 4 X 1 LC Fiber Output Port

Connector Type

 LC

Signal Type

Fiber w/ Adaptive Single Mode & Multimode Processing

Optical Loss Budget:

 Single Mode 9 dB, Multimode 8 dB

Maximum Receiver Sensitivity

Single mode -15dbm, Multi-mode -16dbm

Video Resolution:

Up to 3840x2160 60Hz 4:4:4 (8bit)

Operating Distance:

Single-mode 1.24 Mile (2 KM), Multi-mode 984 mile (300 m)

Normal Peak Wavelength

1550nm, 1310nm

Analog Audio Port

4 X 3-pin Phoenix stereo audio for Extraction
