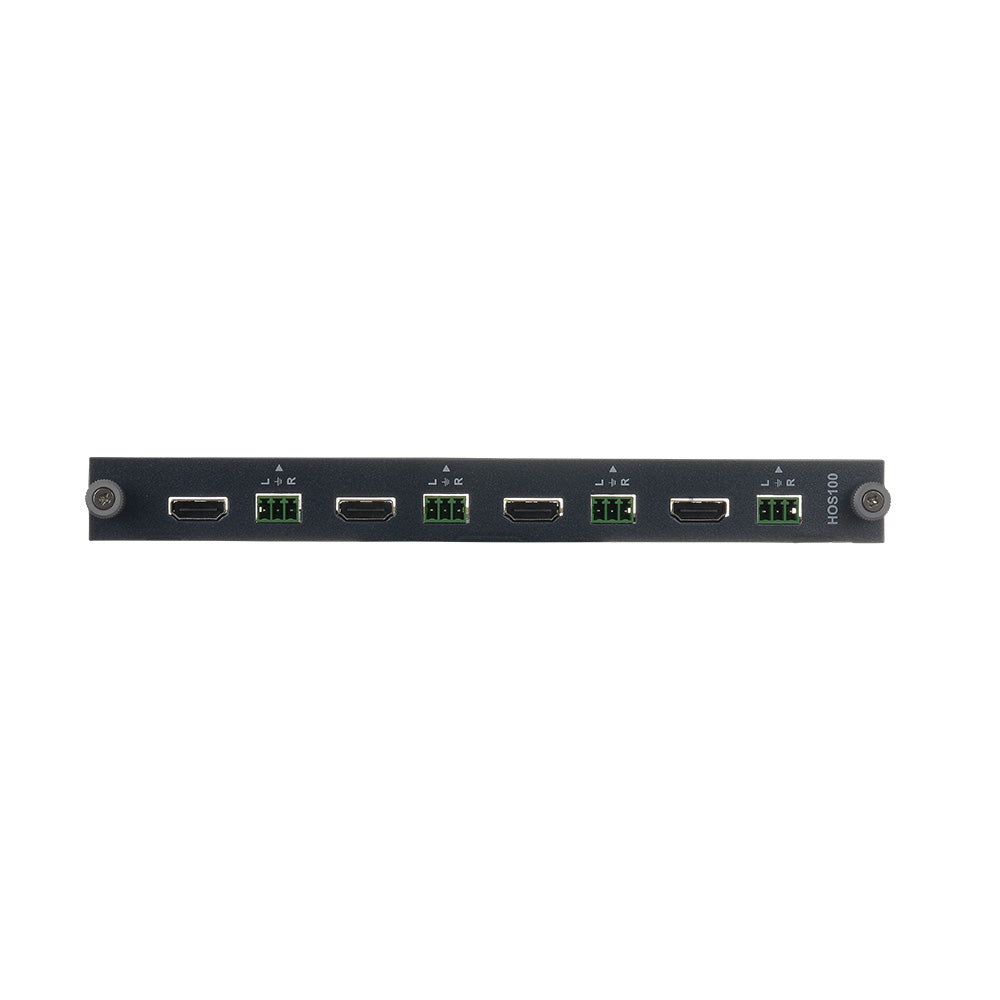

4K60 HDMI 2.0 Output Card for Flex Matrix Pro
4-Port Hot-Swappable HDMI Output with Scaling, Dante/AES67, HDCP 2.2 & TAA Compliance
Add four HDMI 2.0 display outputs to any Flex Matrix Pro chassis with a single hot-swappable card. The FLEX-PROHDMI-OUT slides into any output slot across the Pro 16×16, 32×32, 64×64, and 128×128 frames, delivering 4K/UHD 60Hz 4:4:4 at 18Gbps with HDCP 2.2, HDR, independent scaling, and Dante/AES67 audio support per port.
Auto cable compensation, signal reclocking, EDID/HDCP management, seamless switching. TAA compliant. Hot-swappable without powering down.
- 4× HDMI 2.0 Type A outputs per card — scales across all Flex Matrix Pro chassis (16×16 to 128×128)
- 4K/UHD 60Hz 4:4:4 at 18Gbps • HDCP 2.2 • HDR • 8ch LPCM High-Res Audio
- Dante/AES67 network audio support • Dante Controller • Dante Domain Manager ready
- Independent scaling per output • seamless switching • EDID and HDCP management
- Automatic cable compensation and signal reclocking for reliable long-run HDMI connections
- Hot-swappable — insert or replace without powering down the chassis
- HDMI-to-DVI format correction • +5VDC 250mA power on each port for peripheral devices
| Specification | |
|---|---|
| Ports | 4× HDMI Type A (19-pin female) outputs |
| HDMI Standard | HDMI 2.0, HDCP 2.2, HDR |
| Resolution | Up to 4K/60Hz 4:4:4 (4096×2160) |
| Bandwidth | 18Gbps per port |
| Audio | 8ch LPCM High-Res, Dante/AES67 |
| Scaling | Independent per output |
| Switching | Seamless (glitch-free) |
| Signal Processing | Auto cable compensation, auto reclocking |
| Port Power | +5VDC 250mA per HDMI port |
| Compatibility | All Flex Matrix Pro chassis (16×16 to 128×128) |
| Compliance | TAA Compliant, Hot-swappable |
