12G-SDI Input Card

4 X 12G-SDI Input Card for Flex Matrix Pro.

1 1

KanexPro

SKU: FLEX-PROSDI-IN

UPC: 813982023864

View full details

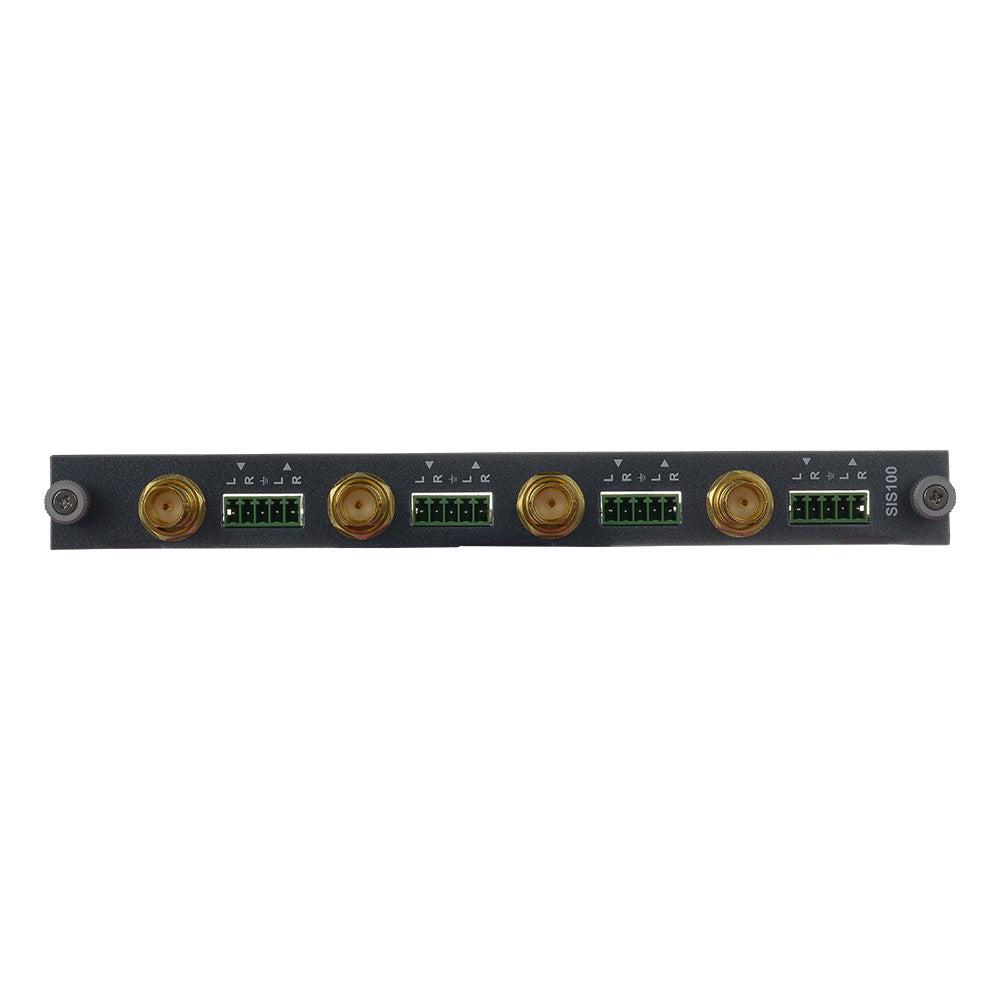

The KanexPro FLEX-PROSDI-IN is a high-performance 12G SDI input card engineered to receive uncompressed video signals at up to 4K@60Hz (4:4:4) resolution. As part of the modular KanexPro Flex Matrix Series, it ensures seamless integration and crystal-clear signal reception in demanding AV environments.

The FLEX-PROSDI-IN complements the system with advanced features like stereo audio extraction and embedding, allowing for precise audio-video synchronization without the need for external processors. Built for flexibility and performance, it’s the ideal choice for broadcast, live production, and professional AV systems.

  • Four Input 4K@60 Video: Supports 4 X 12G SDI high-resolution video signals for crystal-clear image quality. Automatically adapts to SMPTE and ITU digital video standards. Supports 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals



  • Stereo Audio de-embedding: Allows stereo audio signals to be de-embedded and transmitted alongside video.
  • hot swapping, automatic cable compensation, and signal re-clocking significantly improve the performance and reliability of AV (audio-visual) setups. these features improve the overall reliability, flexibility, and performance of AV setups, making them especially valuable in professional environments like broadcasting, live events, and large-scale installations.
  • Compliance: The product meets the Trade Agreements Act (TAA), which is typically a requirement for government procurement. This ensures that the product complies with regulations regarding the origin and manufacture of goods for use in U.S. government projects.

Connections

Outputs

4 x 12G-SDI Input with scaling

Connector Types

4 x BNC, 4 x 3pin- Phoenix for Audio Extraction

Performance

Supported Cable

75-ohm Co-axial Cable

Supported Resolutions

12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals

Digital Video Standard

Automatically adapts to SMPTE and ITU digital video standards.

Data Transfer Rate

11.88 Gbps

Compliant

TAA Compliant



No diagram available.

No panel image available.

No downloads available.
