HDMI 2-Input Port KVM Switcher 8K@60

2x Host w/ USB 3.0 to 1x HDMI Output

1 1

KanexPro

SKU: KVM-2X1HDMI8K

UPC: 813982023581

$299.95
View full details
The KVM-2X1HDMI8K is a 2x1 KVM Switcher with hotkey switching.
It supports resolutions up to 8K@60Hz 4:2:0 10bit and can also transmit USB 3.0 signal up to 5Gbps for KVM function.
The switcher features virtual interaction function, so that it can automatically wake up the connected PC that is in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.
  • HDCP 2.3 compliant
  • Supports Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
  • Supports VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1
  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Using only 1 set of keyboard, mouse and monitor to control 2 computers
  • Support video fast switching, and keyboard/mouse seamless switching
  • Each input port has an EDID emulator to provide the correct informationfor the PC
  • Supports hot plug, disconnect or connect devices to the KVM at any time
  • Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands
  • Supports auto switching
  • Advanced hardware/software design and production ensure zero latency
  • The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s
  • Compact design for easy and flexible installation

Technical

  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video resolution: Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
  • IR Level: 5Vp-p
  • IR Frequency: Fixed frequency 38KHz
  • Audio Latency: No latency
  • Video Latency: No latency
  • Color space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • Color depth: 8/10/12bit
  • HDR:  HDR10, HDR10+, Dolby Vision, HLG
  • Audio Format: HDMI IN/OUT:   LPCM,DolbyDigital/Plus/EX,DolbyTrueHD,DolbyAtmos,DTS,DSD,DTS-EX,     DTS-96/24,  DTS High Res, DTS-HD Master Audio, DTS:X, DSD

   L/ROUT: PCM 2.0CH

  • ESD protection: IEC 6100-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection

  • Inputports:  2x HDMI input[HDMI Type A , 19-pin female]

       Outputports: 1× HDMI output[HDMI Type A, 19-pin female]

                            1 x L/R audio output [3.5mm Stereo Mini-jack]

       Controlports: 1 x RS-232 [3pin-3.81mm phoenix connector]

                         1 x IR EXT [3.5mm Stereo Mini-jack]

                         2 x USB HOST [USB Type B]

                         4 x USB DEVICES [USB Type A]

Mechanical

  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 175mm (W) × 100mm (D) × 30mm (H)
  • Weight: 506g
  • Power supply: Input: AC 100-240V 50/60Hz

               Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

  • Power consumption:Typical: 7W, standby:0.7W
  • Operating temperature:  0°C ~ 40°C / 32°F ~ 104°F
  • Storage temperature:  -20°C ~ 60°C / -4°F ~ 140°F
  •  Relative humidity: 20~90% RH (non-condensing)

Recommended HDMI Cable

Resolution / Cable Length

  • HDMI IN / OUT : 8K60/8K30/4K120 6.6ft/2M (Ultra HDMI 2.1 cable) |  4K60 16ft/5M (HDMI cable)|  1080P 33ft/10M (HDMI cable)
  • The use of “Premium High Speed HDMI” cable is highly recommended.

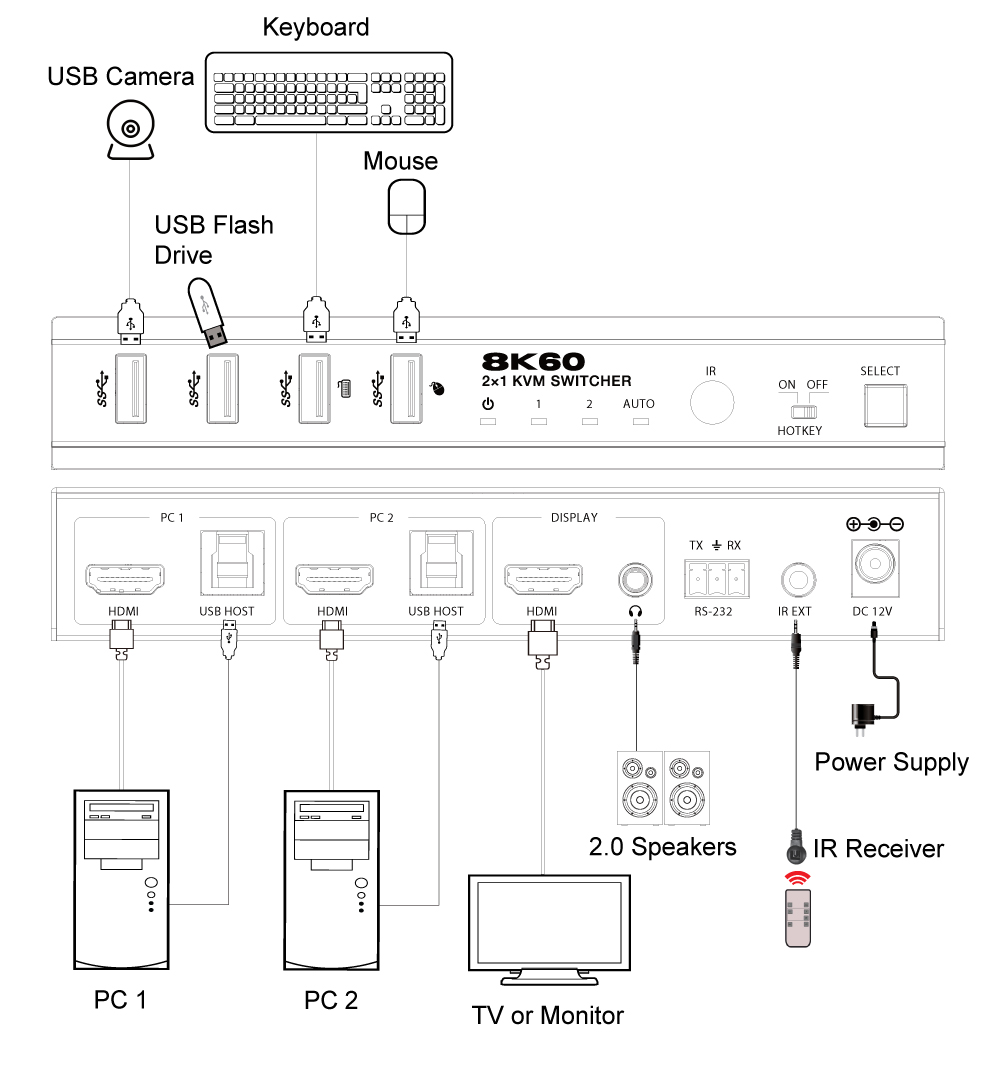

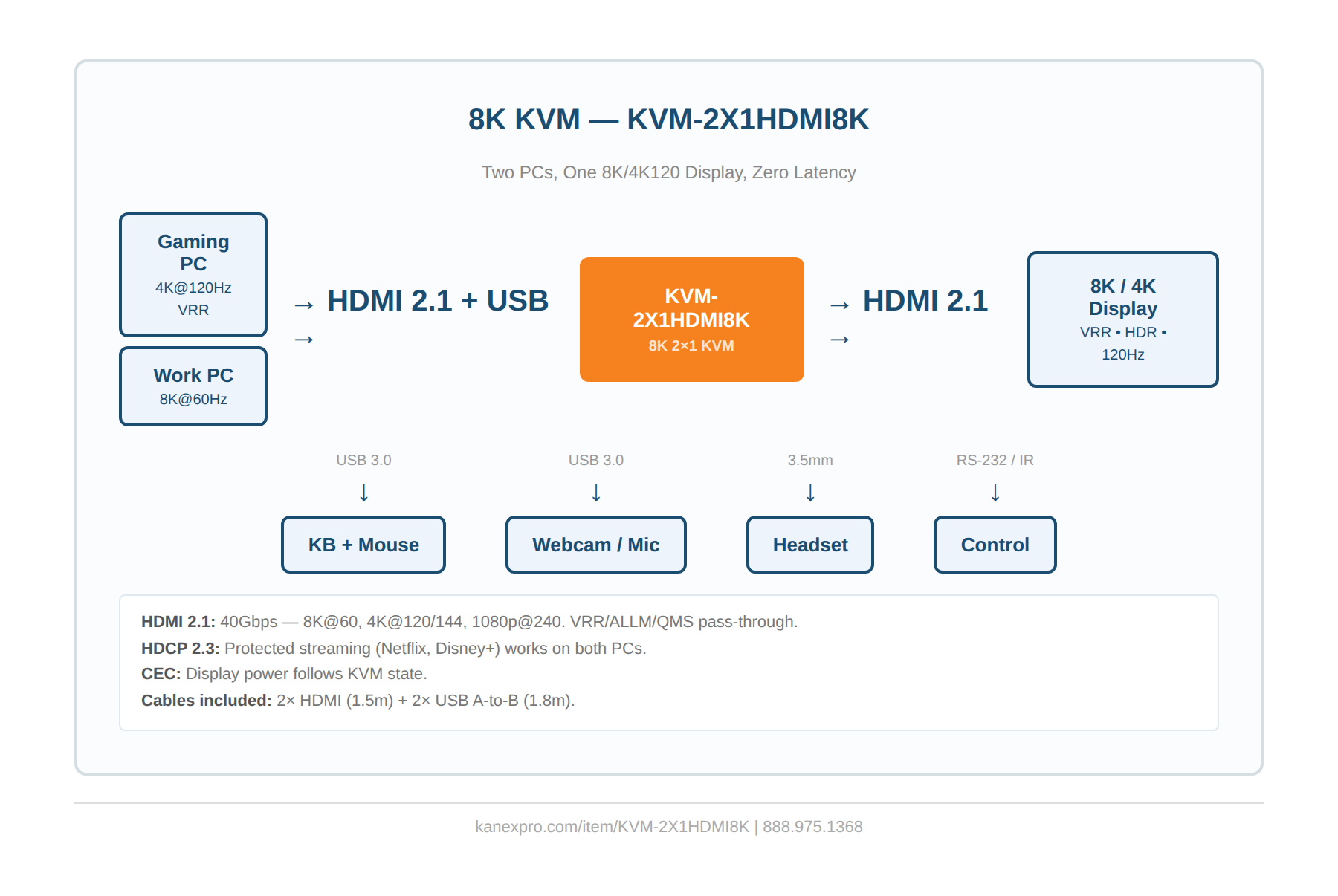

Product Diagram

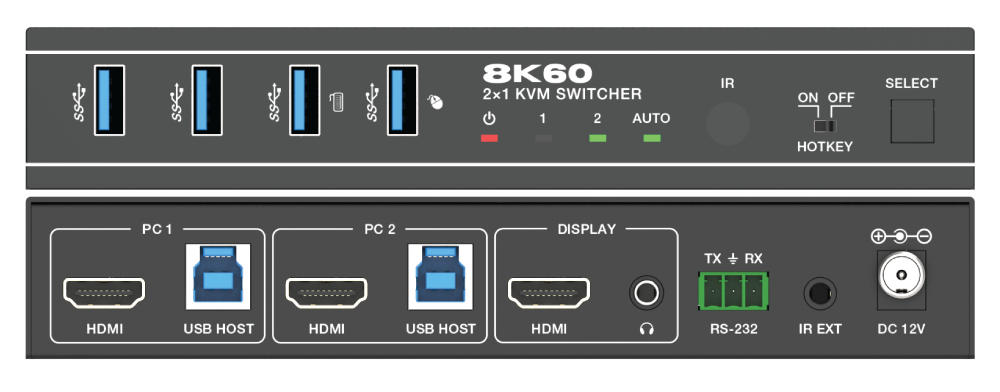

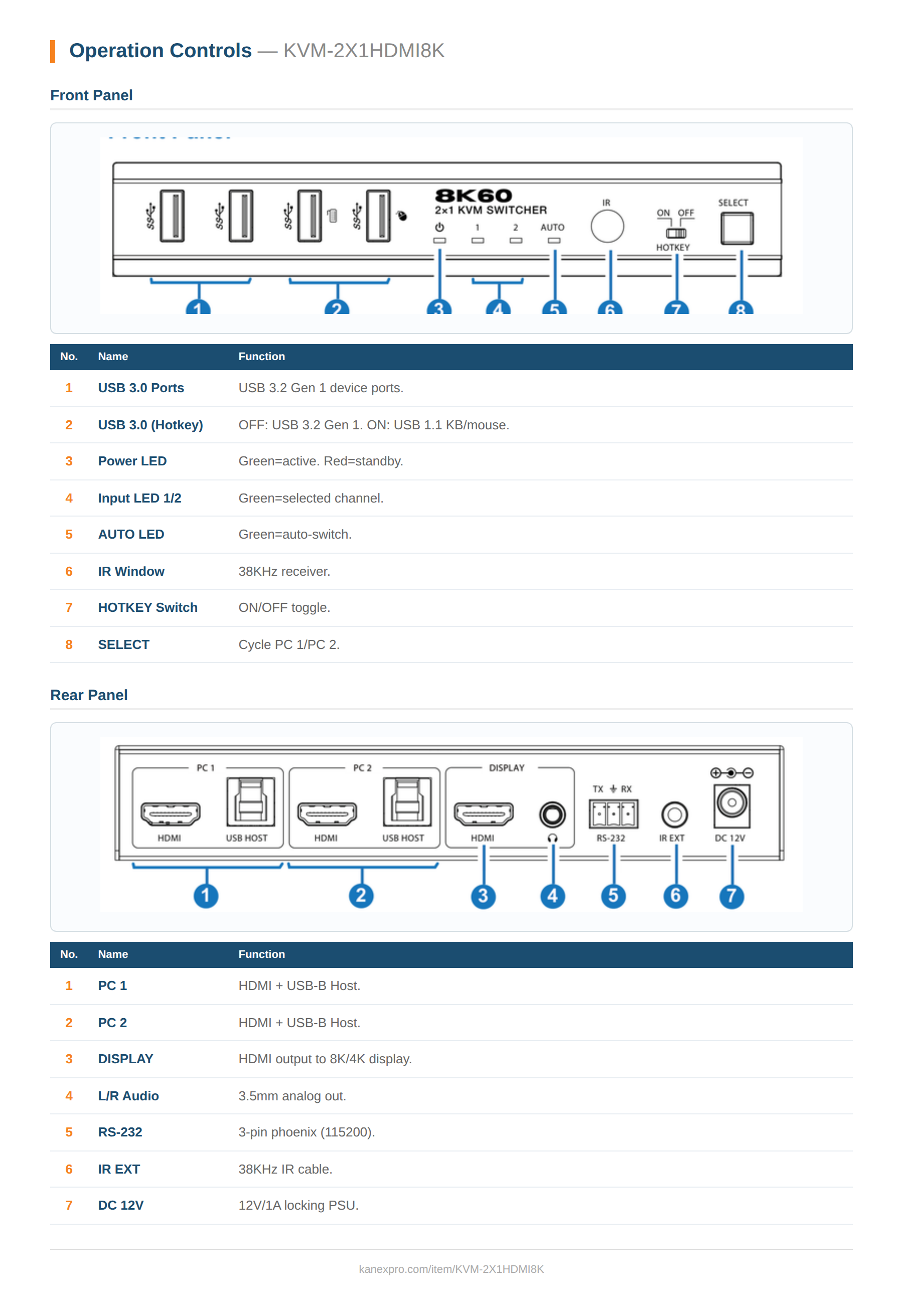

Product Panel
