HDMI 4X1 KVM Switcher w/ Multi-View Tiling 4K

Name: HDMI 4X1 KVM Switcher w/ Multi-View Tiling 4K
Brand: KanexPro
SKU: KVM-4X1MV4K

USB 3.0 Seamless Switcher

1 1

KanexPro

SKU: KVM-4X1MV4K

UPC: 813982023673

$599.95

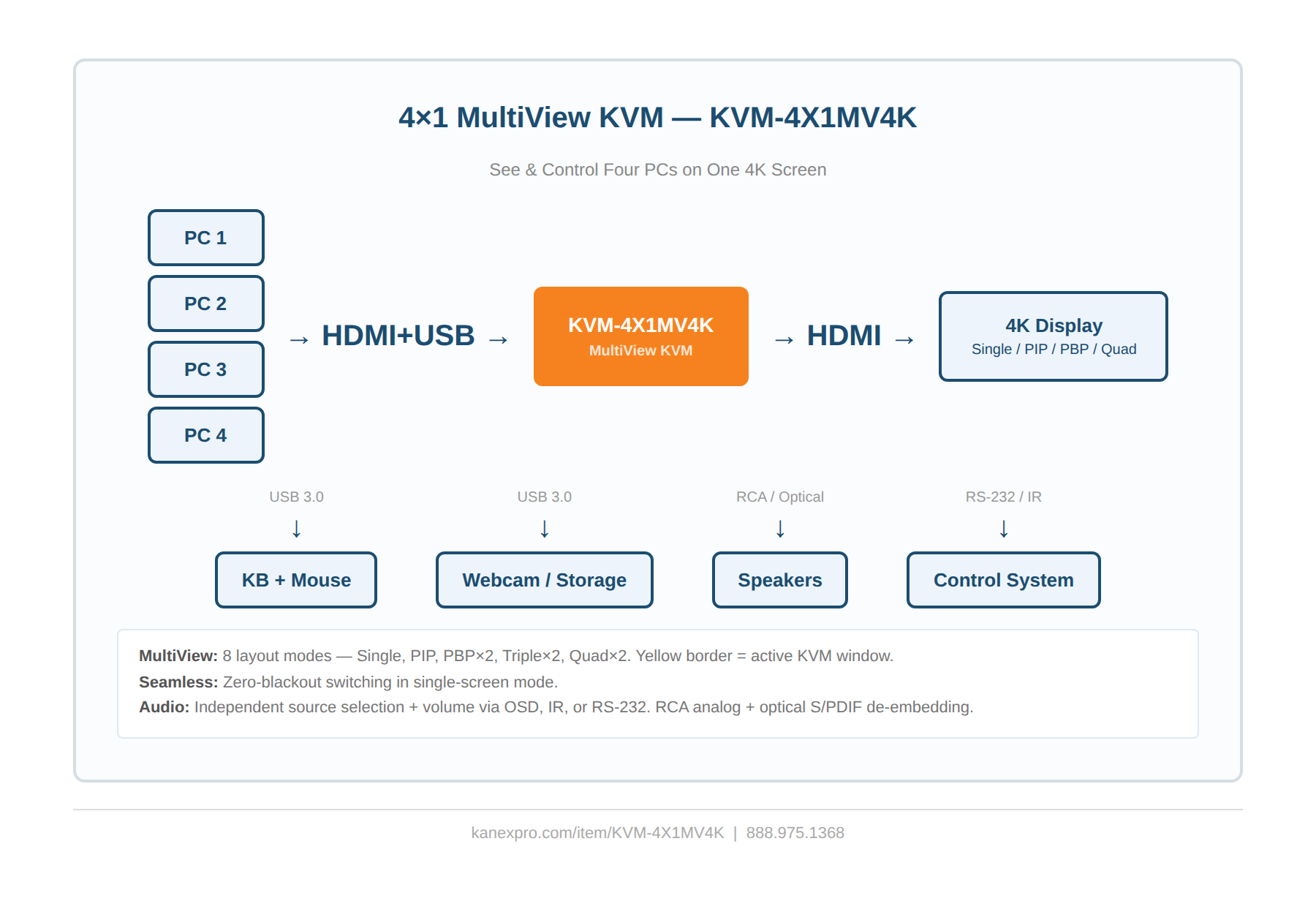

The KanexPro KVM-4X1MV4K HDMI & USB 3.0 KVM Switcher was designed

for the purpose of supporting higher output resolution (4K@60) for multiple

sources on a single screen.

It can combine up to four video signals onto a single UHD or HD displayer.

The user can manage each input, and create combinations of the four inputs

on a single display, as well as adjust the position of any input.

This product supports 8 display modes, within the mode range, users can

freely switch 4-channel HD input signals. It can realize single screen display

and multiview display on a single screen.

This device supports full range of input video resolutions up to 4K@60 (RB)

and audio RCA /Optical de-embedding supported for external audio

distribution systems.

Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM

function. It also supports direct switching through buttons on the front panel,

IR remote, and hotkey through keyboard/mouse connected to the special

USB port. It provides a wide compatibility choice for different operating

systems, such as Windows, Mac OS and Linux, no driver required and simple

plug and play.

This device can be controlled via front panel buttons, IR remote, keyboard/

mouse hotkeys, OSD menu navigation, Controller software, RS-232

commands.

HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps uncompressed video bandwidth
Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
Seamless switching between input channels and combined multiple images on single UHD monitor
Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Seamless switching in single screen display mode
Fast switching in multiview display mode

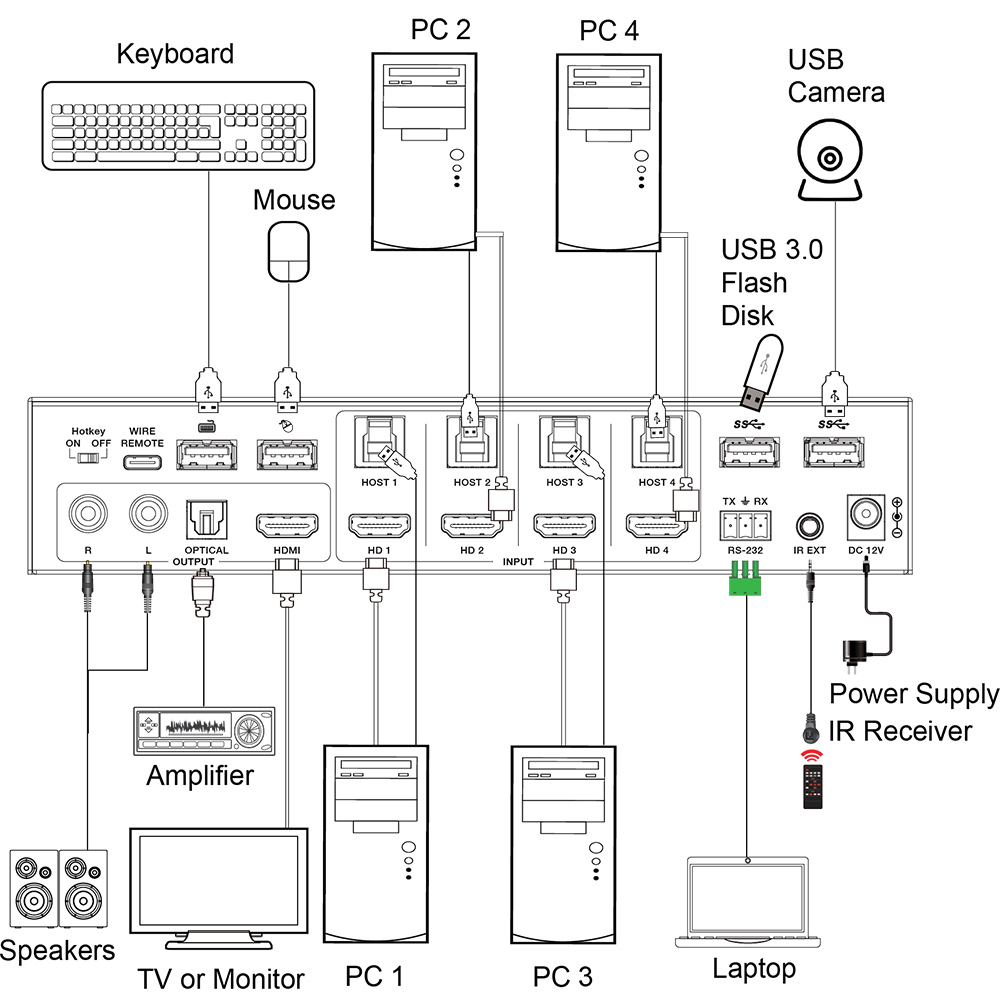

Using only 1 set of keyboard, mouse and monitor to control 4 computers
Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers
Support multimedia, wireless keyboards and mouse
Audio de-embedding via analog and optical fiber audio ports
Support volume control and independent audio selection
Support OSD navigation for advanced setting
EDID management

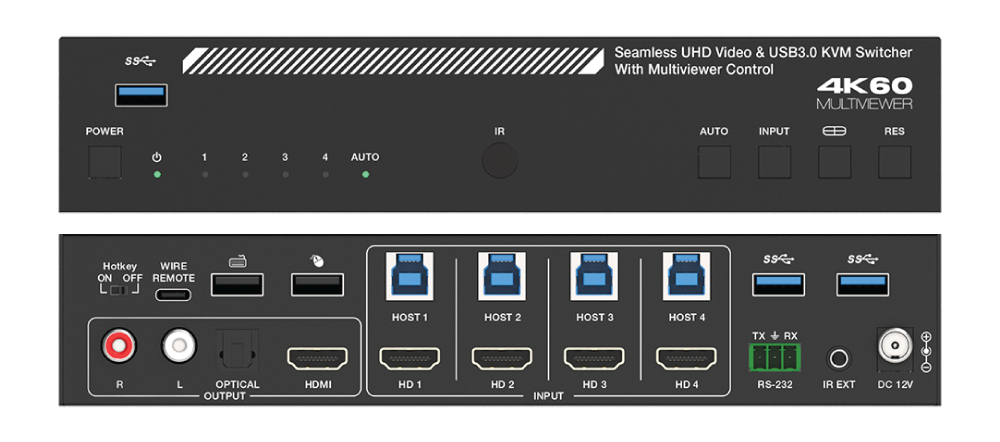

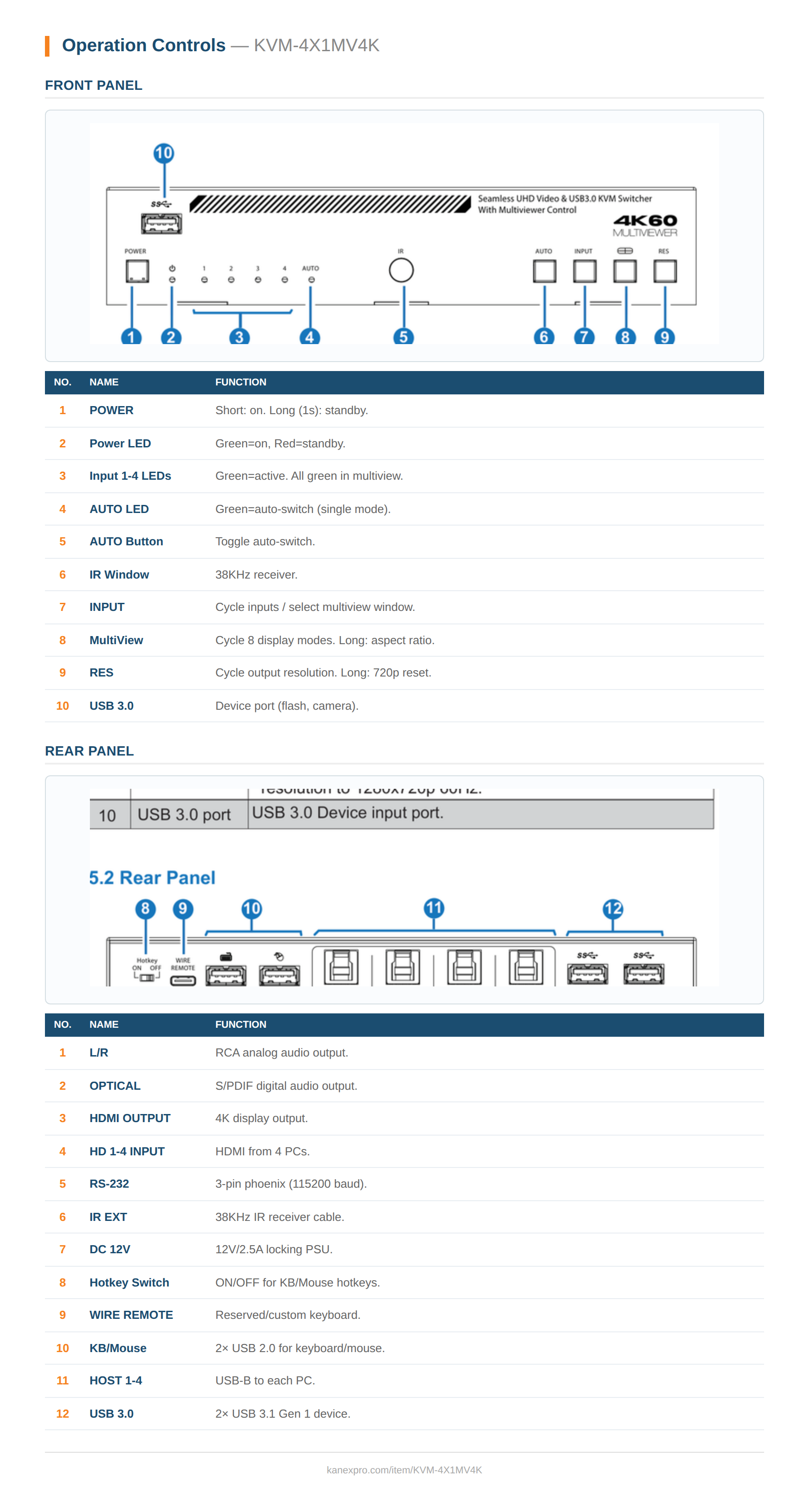

Control via front panel buttons, IR remote, keyboard/mouse hotkeys,OSD menu navigation, Controller software, RS-232 commands
Compact design for easy and flexible installation

Technical
HDMICompliance	HDMI2.0b
HDCPCompliance	HDCP2.2/1.x
VideoBandwidth	18Gbps
VideoResolution	Upto4K2K@60Hz4:4:4
IRLevel	5Vp-p
IR Frequency	Fixedfrequency38KHz
ColorSpace	RGB,YCbCr4:4:4,YCbCr4:2:2,YCbCr4:2:0
ColorDepth	8/10/12bit
AudioFormats	HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, DTS,DTS-96/24,DTS High Res, DSD Analog audio[3.5mmL/R]:PCM2.0 SPDIF (OPTICAL): DolbyDigital/Plus, DTS 5.1,PCM2.0 Note:It does not support HBRaudio.
ESD Protection	IEC61000-4-2: ±8kV(Air-gapdischarge)&±4kV(Contactdischarge)
Connection
Inputports	4xHDMIIN[TypeA,19-pinfemale]
Outputports	1xHDMIOUT[TypeA,19-pinfemale]1x L/ROUTPUT[RCA] 1x OPTICALOUTPUT[S/PDIF]
Controlports	1 x RS-232 [3pin-3.81mm phoenix connector]1x IR EXT[3.5mm Stereo Mini-jack] 4xUSB3.0HOST[USBTypeB] xUSB2.0DEVICE[USBTypeA] xUSB3.0DEVICE[USBTypeA]

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	220mm[W]x100mm[D]x44mm[H]
Weight	443g
Power Supply	Input:AC100-240V50/60Hz Output:DC12V/2.5A(US/EUstandard,CE/FCC/ULcertified)
PowerConsumption	18.48W(Max)
Operating Temperature	32-104°F/0-40°C
StorageTemperature	-4-140°F/-20-60°C
RelativeHumidity	20-90%RH(no-condensing)
