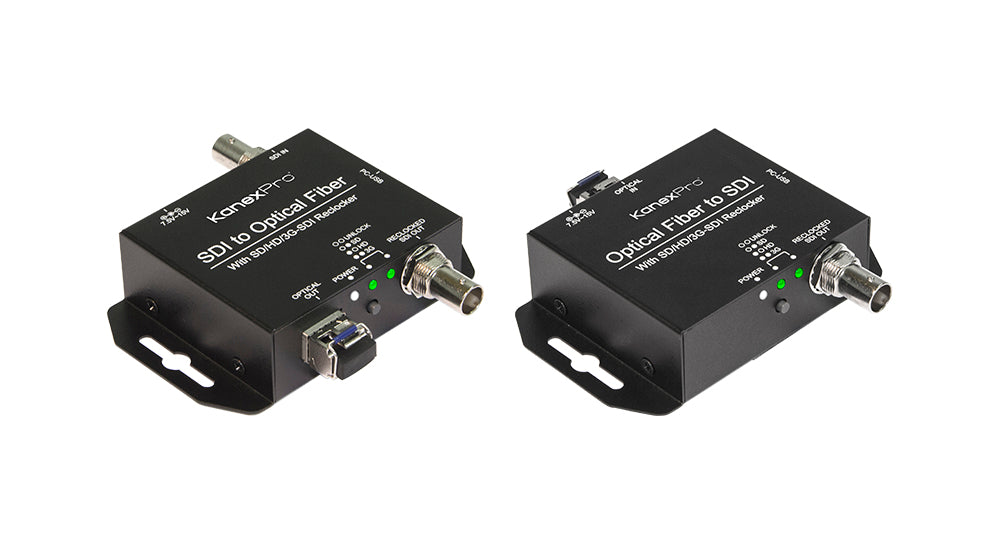

Fiber Optic SDI Extender Set - Up to 6.2 miles (10Km)
Extend 3G/HD-SDI Signals on a Single Mode Optical Extender
Resellers, installers, schools and businesses. Approval is usually the same working day.

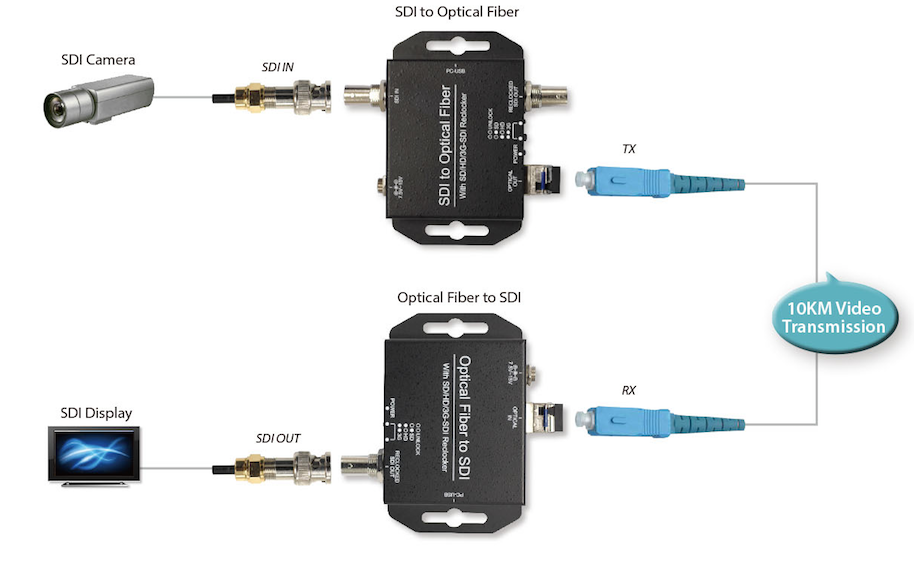

The KanexPro Fiber Optic SDI Extender is a simple extender designed for extending 3G-SDI & HD-SDI signals over fiber up to a distance of 6.2 miles (10 Kilometers). Supporting resolutions up to HD 1080p/60. The fiber extender uses pluggable and interchangeable fiber SFP design with LC connector.
Applications:
Ideally, fiber based transmissions are the most reliable and secure method of delivering digital HD video, audio, data over long-haul fiber optic cables mainly deployed in government, command and control systems and digital signage applications where security and high-resolution imagery is critical for day to operations without any signal downtime or degradation.
- Convert and Extend SDI signals over Fiber LC
- Ideal for long haul transmissions
- Built-in signal equalizer & re-clock function
- Auto-sensing for 3G/HD/SD-SDI signals
- SDI Supported HD formats:
- 720p/50 & 60
- 1080i/50 & 60
- 1080p/24, 25, 30, 50 & 60
- SDI video formats: 525i & 625i SD D1
- Audio format support up to 8-channel@24 bit, 48KHz
- Mini –USB port for firmware update
- Compact & rugged housing
- Locking power supply & mounting ears
| DESCRIPTION | Fiber Optic SDI Extender |
| SDI Format | SD-SDI, HD-SDI & 3G-SDI |
| SDI Transition Rate | 2.970Gb/s, 1.485Gb/s and 270Mb/s |
| Coaxial Cable Type | RG6/RG59 (75Ω) |
| Cable Equalization | 3G: 120m of RG6/ 100m of RG59 HD: 200m of RG6/ 140m of RG59 SD: 400m of RG6/ 280m of RG59 *1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable *2 Cable Length Performance: Depending on SDI Signal and Cable Quality |
| Firmware Updates | Via Mini-USB |
| Input | 1 x Fiber LC type connector for single mode optical fiber |
| Output | 1 x BNC [SDI] |
| BNC Connector | 3G 75 Ω inter-locked socket |
| LC Connector | Single mode optical fiber connection |
| USB Connector | Mini-USB |
| Bottom | Input Source |
| Housing | SECC |
| Dimension | L: 104mm x W: 63.3mm x H: 26mm |
| Power Source | Power Adapter: AC 100 ~ 240 V/DC (+6 ~ 15 V) |
| Operation Temperature | 0~50°C [32~114°F] |
| Storage Temperature | -20~+60°C |
