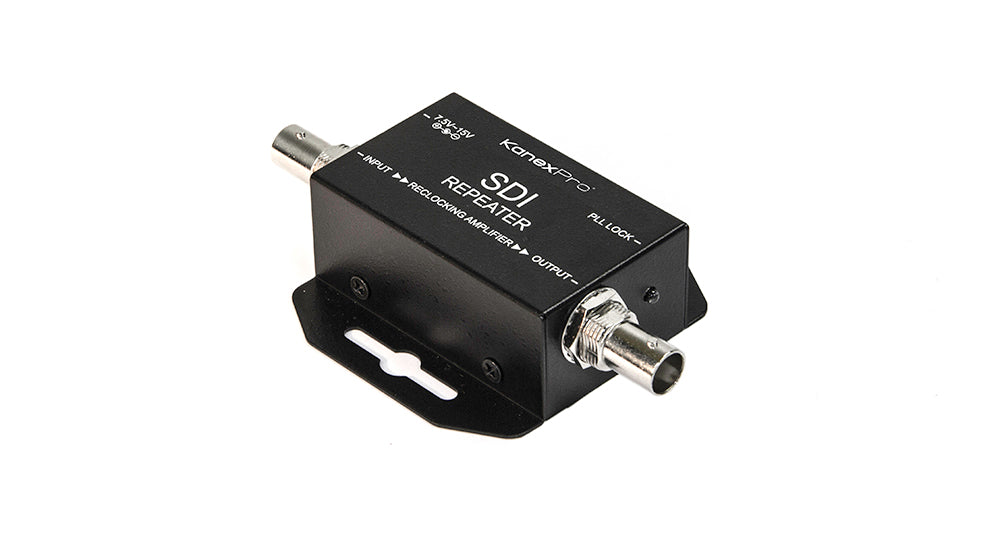

HD-SDI Repeater with Signal Equalization & Re-clocking

Extend, daisy-chain, and safeguard your SDI workflows with the HD-SDI Repeater featuring built-in signal equalization and re-clocking. Designed for real-world broadcast environments, this compact, rugged unit preserves signal integrity across long runs and diverse SDI formats, so your live feeds stay clean, synchronized, and ready for production.

Why this repeater stands out

• Auto-input detection accelerates setup by automatically recognizing 3G-SDI, HD-SDI, or SD-SDI signals, ensuring the right processing path every time.
• Built-in equalizer and re-clocking compensates for cable loss and timing drift, delivering stable, artifact-free video up to the specified distances.
• Long-reach capability extend SDI signals up to 300 meters with RG-59 (75 ohms) cables for standard SDI resolutions, or up to 200 meters for HD/3G signals when using RG-6 cable. In HD/3G modes, reach 130 m (3G), 170 m (HD), or 300 m (SD) depending on the cable type.
• Support for full HD and multi-channel audio compatible with 1080p60/59.94/50, 1080p30/29.97/25, 1080i60/59.94/50, and 720p formats, with audio up to 16 channels at 24-bit/48 kHz for immersive broadcast quality.

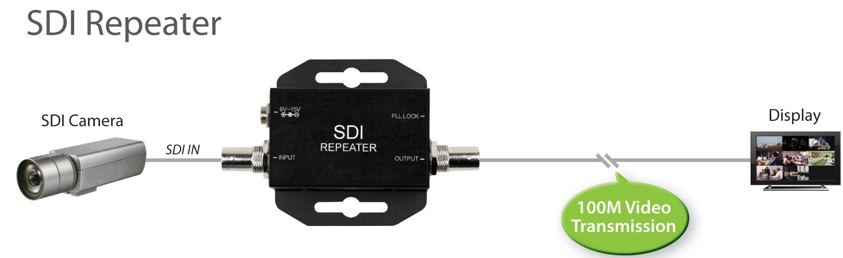

• Daisy-chain ready Extend SDI runs beyond a single repeater by chaining multiple units, creating longer interconnects without sacrificing signal quality.

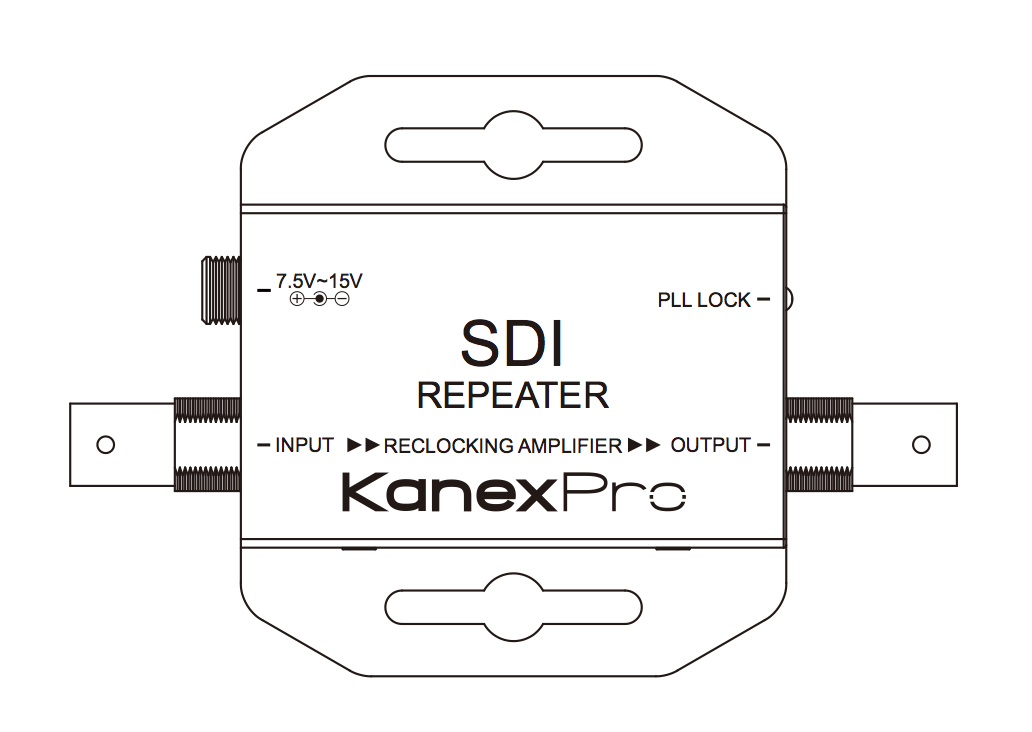

• Reliable construction compact, rugged housing with a locking power supply and mounting ears for secure, field-friendly installation.
• Firmware upgradable Micro-USB port allows firmware updates to keep the system current and compatible with evolving SDI standards.
• Industry-approved safety compliant with FCC, CE, and UL standards, backed by a 3-year warranty on parts and labor.

Input/Output and capabilities at a glance

• Input: 1 x SDI
• Output: 1 x SDI
• Supported Video Resolutions:
  • 3G: 1080p60 / 59.94 / 50
  • HD: 1080p30 / 29.97 / 25; 1080i60 / 59.94 / 50; 720p60 / 59.94 / 50
  • SD: 625i (PAL) / 525i (NTSC)
• SDI Formats: 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
• Cable Equalization:
  • HD: 200 m on RG6
  • 140 m on RG59
  • 3G: 140 m on RG6 and 100 m on RG59
• Supported Audio: Up to 16 channels, 24-bit @ 48 kHz
• Power DC input 7.5–15 V; locking power supply for secure operation
• Regulatory: FCC, CE, UL
• Warranty: 3 years (parts and labor)
• Firmware/Diagnostics: Micro-USB port for firmware updates and field diagnostics

Ideal use cases

• OB and on-location productions where camera feeds must traverse long distances without degradation.
• Studio interconnects and multi-room setups requiring reliable signal replication and timing restoration.
• Rigs that demand quick reconfiguration—add another repeater to extend runs without re-wiring.
• Field deployments where cable types vary; the device adapts to RG-59 for SD or RG-6 for HD/3G with maintained performance.

Practical tips for best results

• Plan runs with the correct cable: for SD over RG-59 you can reach up to 300 m; for HD/3G over RG-6 keep distances within 200 m to preserve signal quality.
• Use the Micro-USB port to update to the latest firmware and keep the equalizer and re-clocking optimized for your cabling and resolutions.
• Pair multiple repeaters in a daisy-chain configuration to tackle longer installations, then verify end-to-end latency and audio integrity after setup.
• Mind power reliability in field setups; use the locking DC supply to prevent accidental disconnections during shoots.

Whether you’re building a compact studio, rigging a live event, or extending a complex SDI backbone, the HD-SDI Repeater with Signal Equalization & Re-clocking delivers robust performance, precise timing, and flexible scalability that professionals rely on. Transform how you interconnect cameras, recorders, and monitors—with confidence in every signal path.

All specifications are subject to change without notice.
