8K 1×2 HDMI 2.1 Splitter with Audio De-Embedding

Split one 8K HDMI 2.1 source to two displays with built-in audio de-embedding for external audio systems. The KanexPro SP-1X2A8K is a 40Gbps 1×2 HDMI splitter that delivers up to 8K@60Hz 4:2:0 10-bit and 4K@120Hz 4:4:4 10-bit. Its audio extraction output allows connection to external amplifiers, soundbars, or speaker systems independent of the display's built-in audio.

HDMI 2.1 and HDCP 2.3 compliant. Supports VRR, FVA, and ALLM for gaming. Full HDR pass-through (HDR10, HDR10+, Dolby Vision, HLG). Audio pass-through includes LPCM, Dolby TrueHD, DTS-HD Master Audio, and DSD. Built-in equalizer, retiming, and driver ensure signal integrity. Advanced EDID management for reliable source/display negotiation.

• HDMI 2.1 and HDCP 2.3 compliant
• Supports 40Gbps video bandwidth
• Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
• VRR, FVA, ALLM supported
• Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
• Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-HD Master Audio, DSD

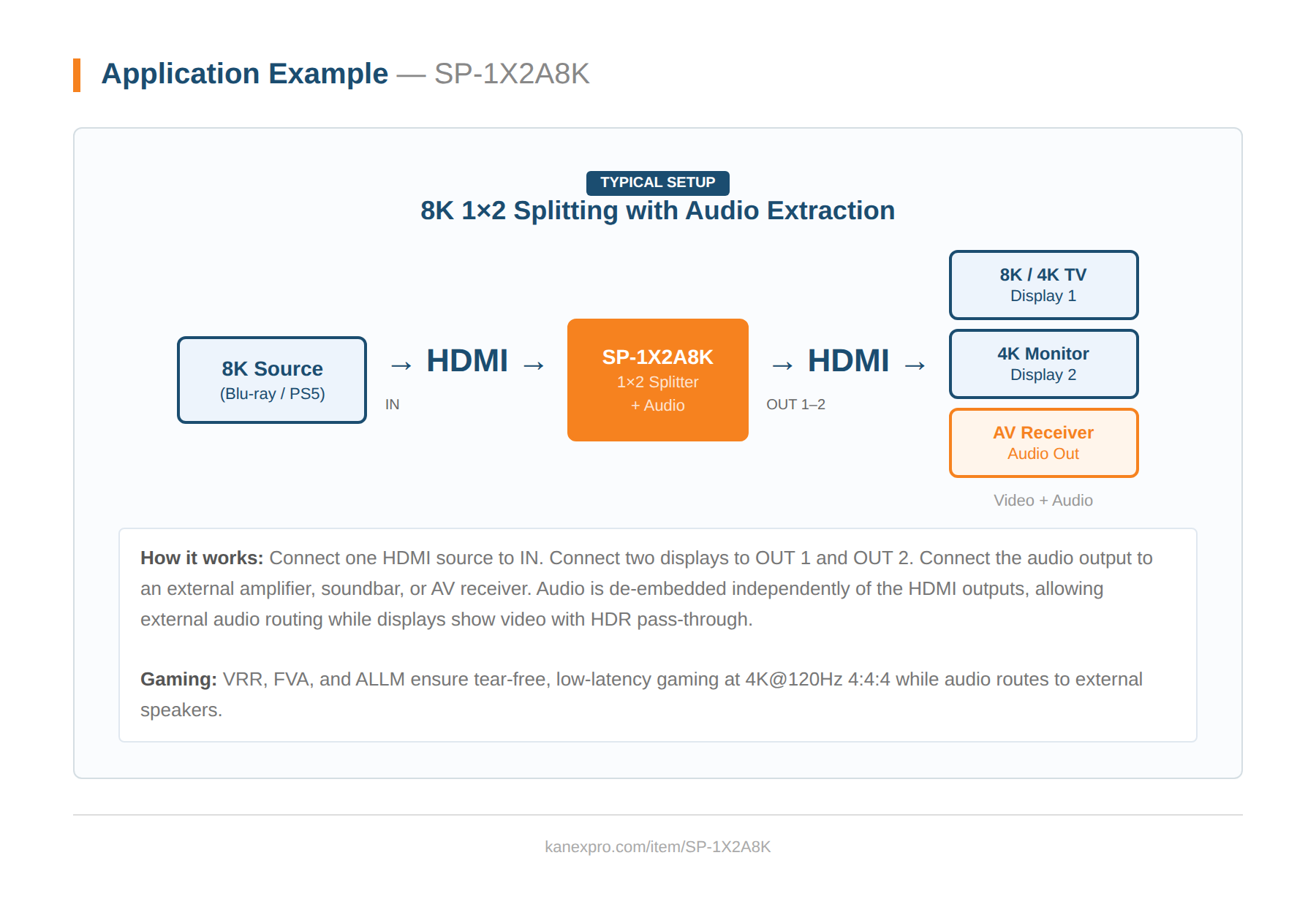

• Audio de-embedding output for external audio systems
• Built-in Equalizer, Retiming, and Driver
• Advanced EDID management
