48Gbps 8K 2×4 HDMI Matrix Splitter with Independent Downscaling & Audio De-embedding New

Name: 48Gbps 8K 2×4 HDMI Matrix Splitter with Independent Downscaling & Audio De-embedding
Brand: KanexPro
SKU: SP-HDMI2X4-8K

Switch 2 HDMI Inputs to 4 Screens with Auto-Scaling Video & Balanced/Digital Audio Breakout

1 1

KanexPro

SKU: SP-HDMI2X4-8K

UPC: 813982024113

$159.96 $199.95 Save 20%

View full details

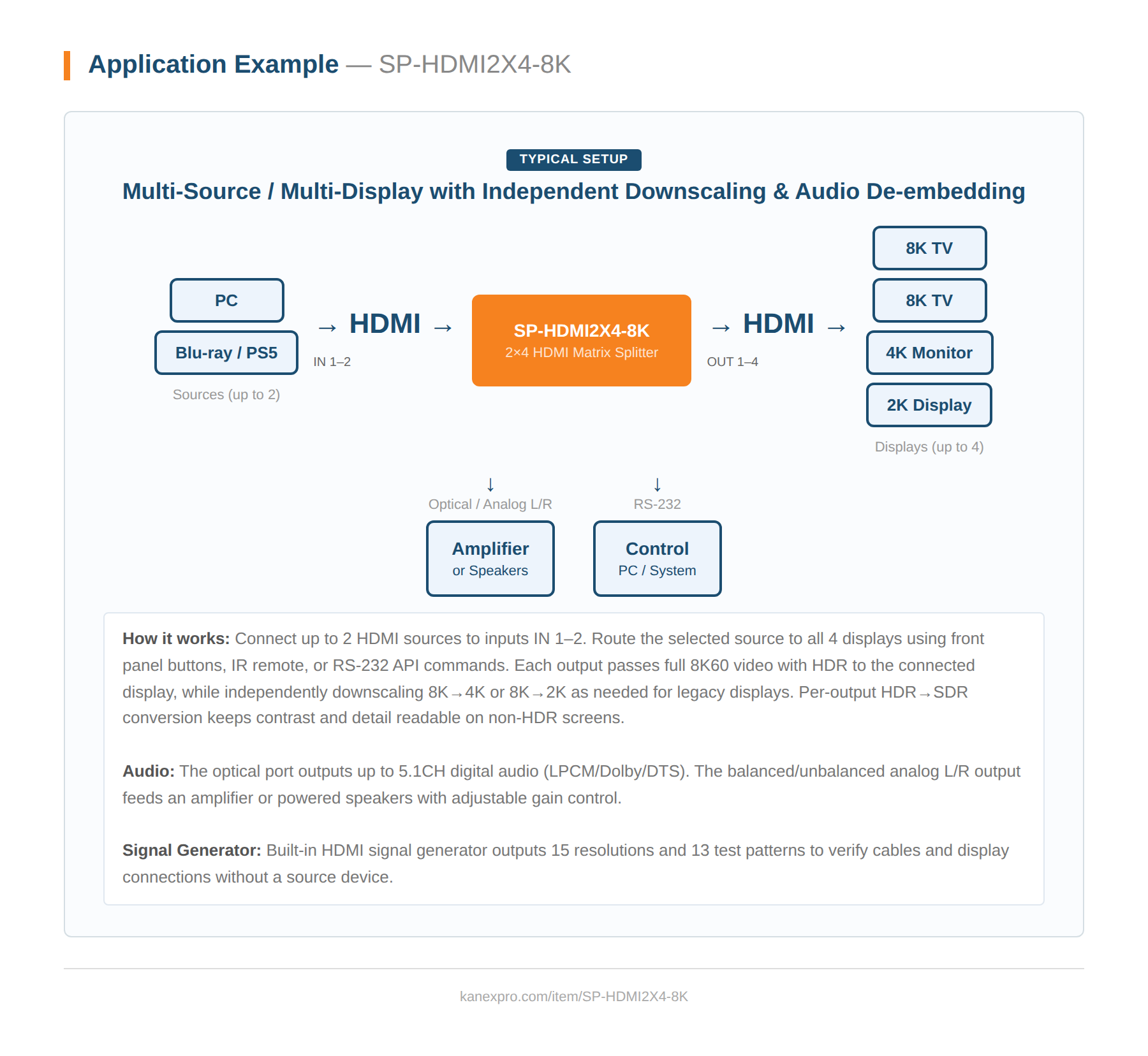

Switch two HDMI 2.1 sources to four displays at up to 8K@60Hz with independent downscaling and audio de-embedding on every output. The KanexPro SP-HDMI2X4-8K is a 48Gbps 2×4 HDMI matrix splitter that routes two sources to four screens — eliminating the need for a separate switcher, downscaler, or audio extractor in the rack.

Compliant with HDMI 2.1 and HDCP 2.3, the matrix splitter supports 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, and 4K@120Hz 4:4:4 12-bit with HDR10, HDR10+, Dolby Vision, HLG, and ALLM/VRR pass-through. Each output independently downscales 8K to 4K or 2K and converts HDR to SDR for mixed-resolution display environments. Audio de-embedding delivers digital optical (up to 5.1CH) and balanced/unbalanced analog stereo with adjustable gain. A built-in HDMI signal generator aids diagnostics. Control via front panel, IR remote, RS-232, or API commands.

Routes 2 HDMI 2.1 sources to 4 displays at up to 8K@60Hz 4:2:0 12-bit with 48Gbps bandwidth — auto or manual input switching
HDCP 2.3 compliant with HDMI 2.1 — supports protected content across all input and output channels
HDR10, HDR10+, Dolby Vision, HLG pass-through with ALLM and VRR for low-latency gaming and cinematic playback
Independent 8K→4K/2K downscaling on each output — feed mixed-resolution displays from a single source without manual reconfiguration
Per-output HDR→SDR conversion preserves contrast and detail on non-HDR legacy displays
Audio de-embedding via digital optical (up to 5.1CH Dolby/DTS) and balanced/unbalanced analog stereo (L/R) with adjustable gain control
Built-in HDMI signal generator with 15 resolutions and 13 test patterns for on-site diagnostics and cable verification
Control via front panel buttons, IR remote, RS-232, and API commands — advanced EDID management with 16 presets, 2 user-defined, and pass-through mode

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48 Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR Formats	HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio (Pass-through)	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio De-embedding (Optical)	Up to LPCM/Dolby/DTS 5.1CH
Audio De-embedding (L/R)	LPCM 2CH
Analog Output Impedance	300 Ohm
Analog Output Level (Max)	8.2 dBu (2Vrms) balanced • 2.2 dBu (1Vrms) unbalanced
Frequency Response	20 Hz – 20 KHz (+0.5 dB, −1 dB)
Audio Output Sync Delay	0 to 2.2 ms
Audio S/N Ratio	99 dB @ 2Vrms, 1 kHz, A-weighted
Audio THD+N	<0.2% @ 0 dBV, 1 kHz
IR Level	12Vp-p
IR Frequency	Wideband 20K – 60 KHz
Transmission Distance	3 m / 9.8 ft over HDMI cable
ESD Protection	IEC 61000-4-2: ±8 kV (air-gap) & ±4 kV (contact)

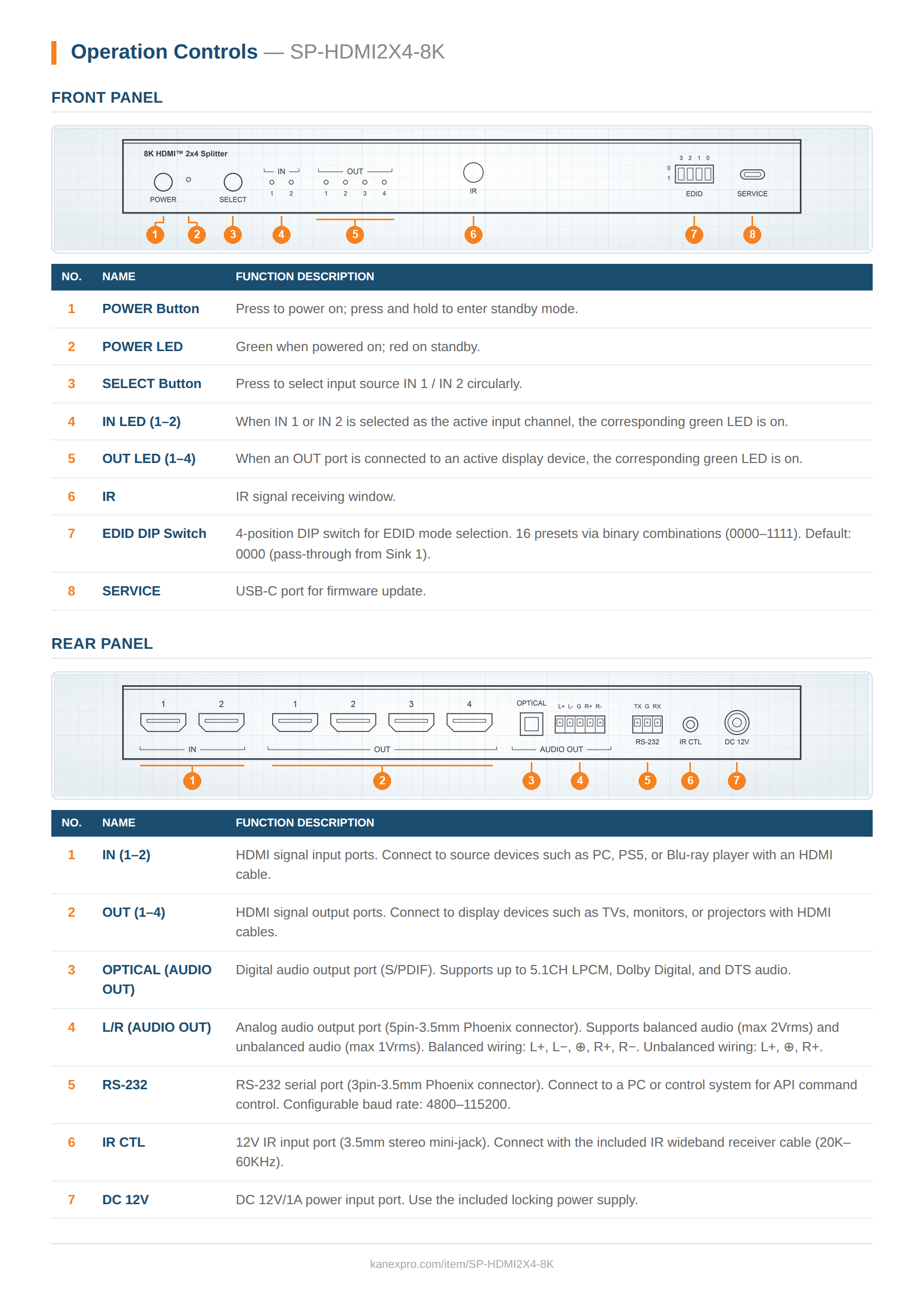

Input	2× HDMI Type A [19-pin female]
Output (Video)	4× HDMI Type A [19-pin female]
Output (Audio)	1× Optical [S/PDIF] • 1× L/R [5pin-3.5mm Phoenix connector]
Control	1× RS-232 [3pin-3.5mm Phoenix] • 1× IR CTL [3.5mm stereo mini-jack] • 1× SERVICE [USB Type C]
Housing	Metal Enclosure, Black
Dimensions	220 mm (W) × 110 mm (D) × 21.5 mm (H)
Weight	620 g
Power Supply	DC 12V/1A
Power Consumption	6.24 W (Max)
Operating Temperature	0°C – 40°C / 32°F – 104°F
Storage Temperature	−20°C – 60°C / −4°F – 140°F
Operating Humidity	20% – 80% RH, non-condensing
Storage Humidity	10% – 90% RH, non-condensing
