HDMI/USB-C 4x1 Switcher 8K@60 48Gbps

Name: HDMI/USB-C 4x1 Switcher 8K@60 48Gbps
Brand: KanexPro
SKU: SW-4X1HDUSBC

Ultra Thin Design

1 1

KanexPro

SKU: SW-4X1HDUSBC

UPC: 813982023987

$159.96 $199.95 Save 20%

View full details

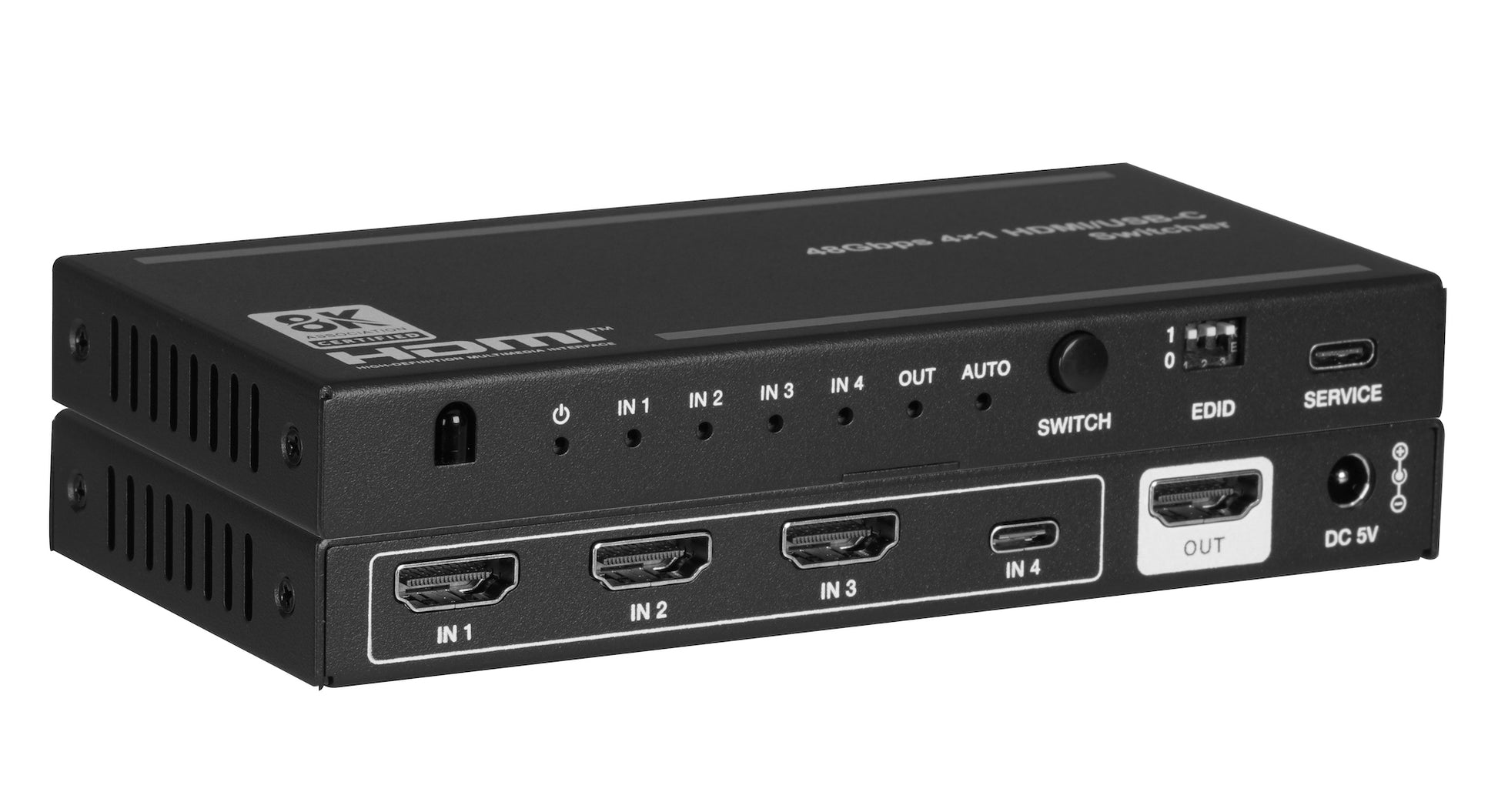

The KanexPro SW-4X1HDUSBC 48Gbps 4×1 Switcher is an ultrathin auto switcher, with three HDMI video

inputs, one USB-C input and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz 4:2:2 10-bit (USB-C).

It supports HDR10, HDR10+, Dolby Vision and multichannel audio format.

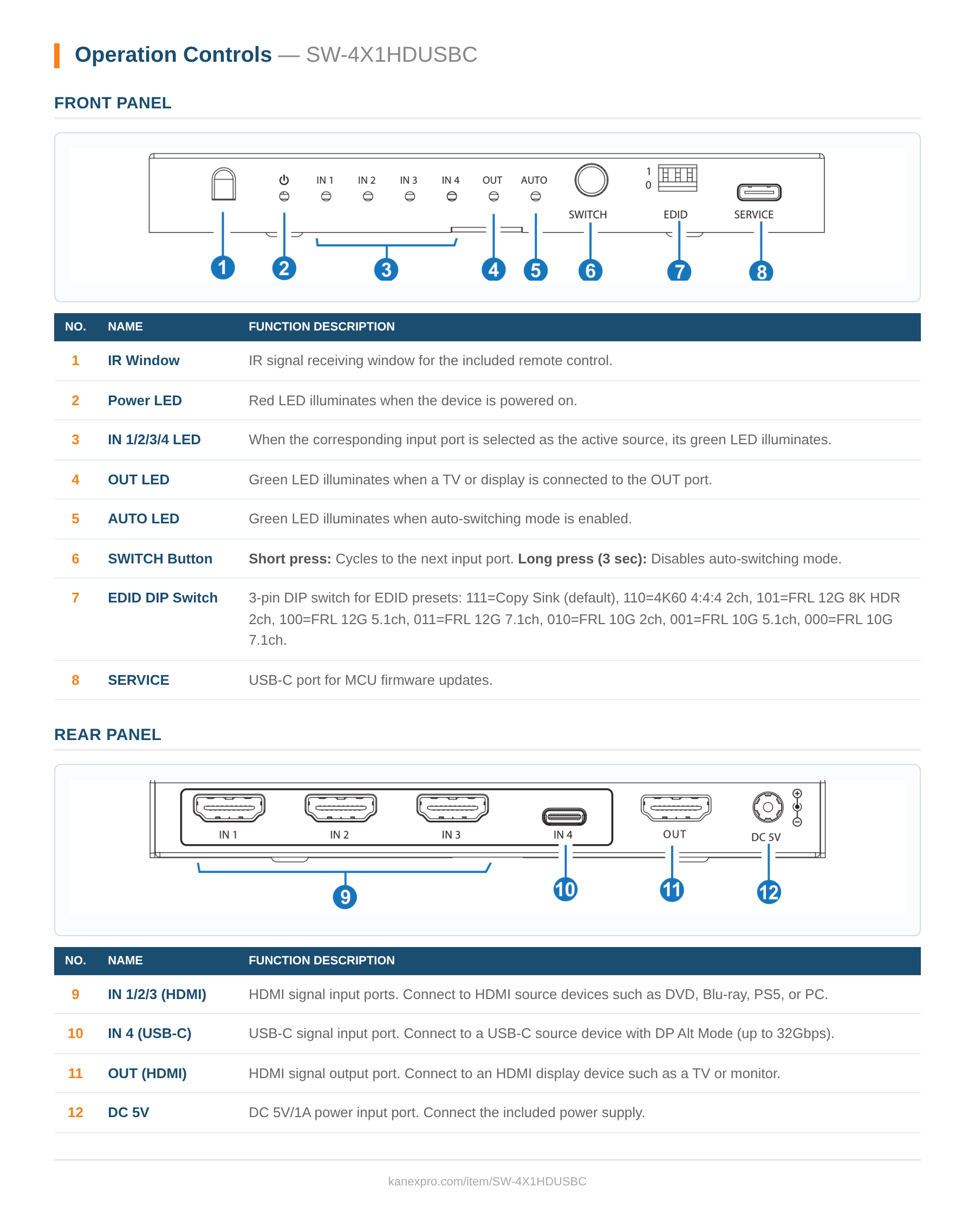

Built-in EDID can be set via 3-pin DIP switch on the front panel, and EDID info is shown on the displayer. Furthermore, the firmware update at service port is supported.

DP 1.4 and HDCP 2.3 compliant
Supports HDMI video bandwidth up to 48Gbps FRL and 18Gbps TMDS
Supports HDMI video resolution up to 8K@60Hz 4:2:0 12-bit, 8K@30 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit, as specified in HDMI 2.1
Supports USB-C video bandwidth up to 32Gbps
Supports USB-C video resolution up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

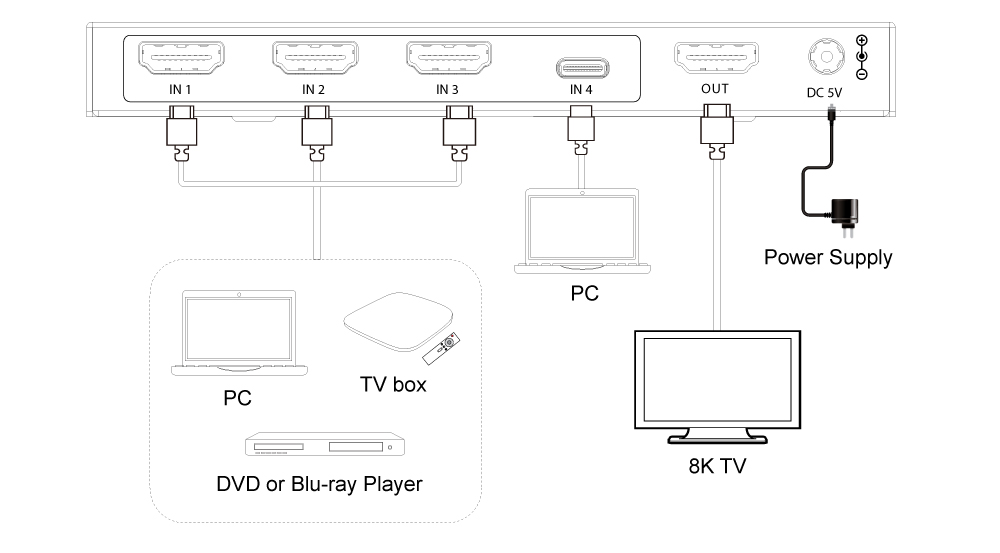

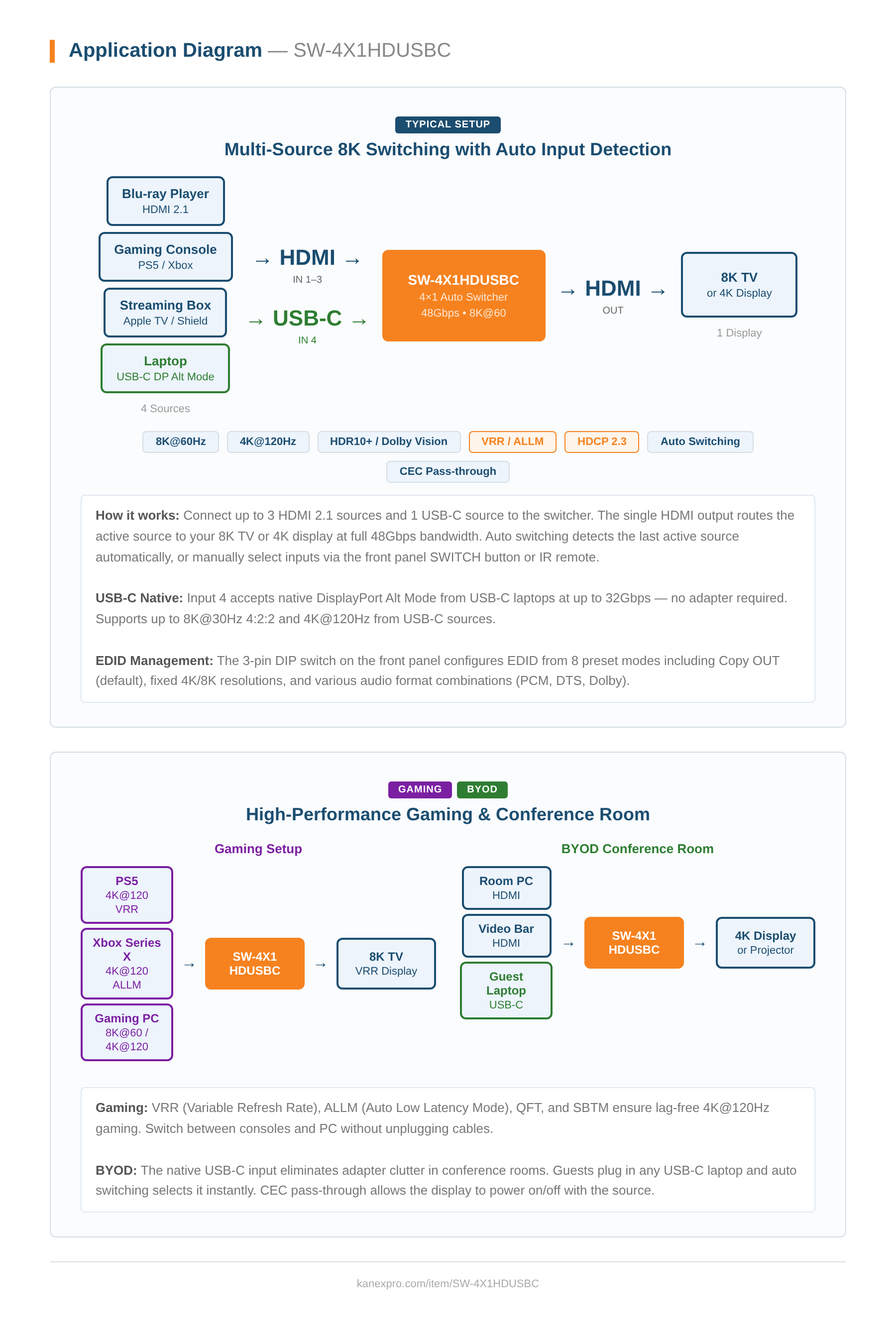

3× HDMI and 1× USB-C inputs routed to 1× HDMI output

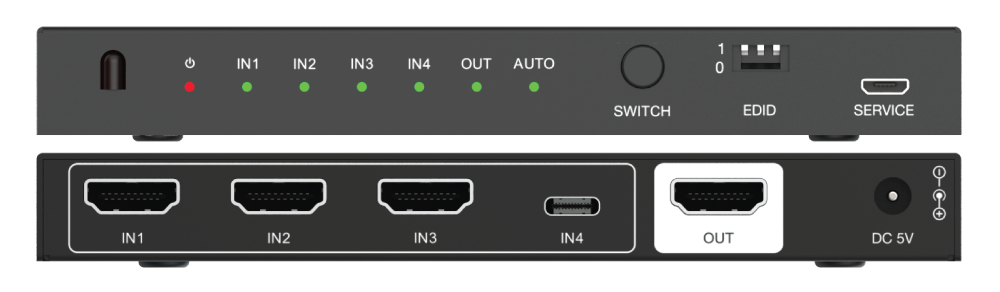

Control via front panel button and IR remote
Supports auto input switching and manual input switching
CEC control from TV at output to source at input
Advanced EDID management

Technical
HDMICompliance	HDMI2.1
HDCPCompliance	HDCP2.3
DPCompliance	DP1.4
VideoBandwidth	HDMI:Upto48GbpsFRLand18GbpsTMDSUSB-C: Up to 32Gbps
VideoResolution	HDMI:Upto8K@60Hz4:2:012-bit,4K@120Hz4:4:412-bitUSB-C:Upto8K@30Hz4:2:210-bit,4K@120Hz4:2:210-bit
ColorDepth	8-bit,10-bit,12-bit
ColorSpace	RGB_4:4:4,YCbCr_4:4:4,YCbCr_4:2:2,YCbCr_4:2:0
HDMIAudioFormats	LPCM,DolbyDigital/Plus/EX,DolbyTrueHD,DolbyAtmos,DTS,DTS-EX, DTS-96/24, DTS High Res, DTS-HD MasterAudio, DSD
ESD Protection	IEC61000-4-2: ±8kV(Air-gapdischarge)&±4kV(Contactdischarge)
Connection
Input	3×IN[HDMITypeA,19-pinfemale]1 × IN [USB Type C, 24-pin female]
Output	1×OUT[HDMITypeA,19-pinfemale]
Control	1×SERVICE[USBTypeC,updateport]1 × IR Receive Window

Mechanical
Housing	Metal
Color	Black
Dimensions	145mm[W]×68mm[D]×18mm[H]
Weight	258g
Power Supply	Input:AC100~240V50/60Hz,Output:DC5V/1A(US/EU standards, CE/FCC/UL certified)
PowerConsumption	2.25W(Max)
Operation Temperature	0°C~40°C/32°F~104°F
StorageTemperature	-20°C~ 60°C/ -4°F~ 140°F
RelativeHumidity	20~90%RH(non-condensing)
RecommendedHDMICable
VideoResolution	8K	4K60	4K24	1080P
HDMICable Length (HDMI IN / OUT)	2m/6.6ft (UltraHDMI 2.1)	8m/26ft	12m/39ft	15m/49ft
The use of “Premium HighSpeed HDMI”cable is highly recommended.
