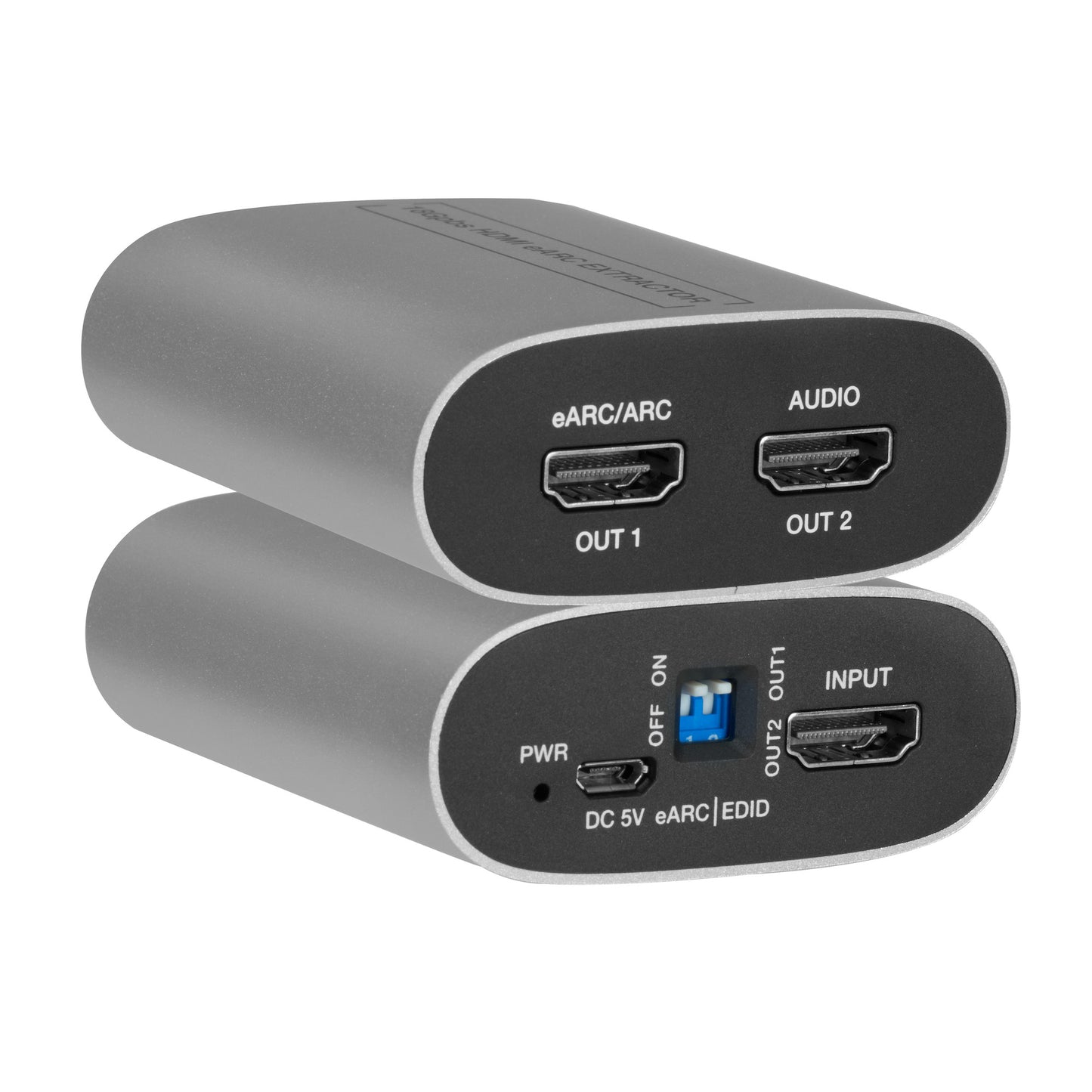

4K HDMI eARC/ARC Audio Extractor

Extract High-Quality eARC/ARC Audio from Any TV — Full 4K60 HDR Video Pass-Through

  • 4K HDMI eARC/ARC Audio Extractor
1 1

KanexPro

SKU: AUD-DEBEDEARC-4K

UPC: 813982023932

$49.95
查看完整详细信息

The KanexPro AUD-DEBEDEARC-4K extracts eARC and ARC audio from any compatible TV and routes high-quality Dolby Atmos, DTS:X, TrueHD, and up to 7.1-channel surround to your amplifier or AV receiver via a dedicated HDMI audio output — no need to upgrade your existing audio equipment. Video passes through at full 4K60 4:4:4 with HDR, HDR10, HDR10+, and Dolby Vision completely intact. Built-in signal equalization, retiming, and advanced EDID management ensure rock-solid performance, while CEC pass-through lets a single TV remote control the entire chain. USB-powered and compact, it installs in seconds behind any screen.

  • Extracts eARC/ARC audio from TV and outputs via dedicated HDMI audio port (720p black screen) to any AVR
  • Supports Dolby Atmos, TrueHD, DD+, DTS:X, DTS-HD Master, DTS ES 6.1, LPCM 7.1, and PCM 2.0
  • Transparent 4K60 4:4:4 video pass-through at 18 Gbps — zero signal degradation to your display
  • Full HDR pass-through: HDR, HDR10, HDR10+, and Dolby Vision preserved end-to-end
  • Built-in equalizer, retiming, and driver for stable, reliable HDMI signal delivery
  • Advanced EDID management & CEC pass-through — one remote controls the entire system
  • VESA support up to QSXGA @ 60 Hz — compact aluminium enclosure, USB-powered
HDMI / HDCP HDMI 2.0b • HDCP 2.3 / 1.x
Video Resolution Up to 4K2K @ 60 Hz 4:4:4 • VESA up to QSXGA @ 60 Hz
Color Depth 8/10/12-bit (1080p60) • 8-bit (4K60 4:4:4) • 8/10/12-bit (4K60 4:2:2/4:2:0)
HDR Formats HDR • HDR10 • HDR10+ • Dolby Vision
Audio Formats PCM 2.0, LPCM 5.1/7.1, DD, DD+, TrueHD, Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS-HD MA, DTS:X
HDMI Ports 1× HDMI In • 1× HDMI eARC/ARC Out • 1× HDMI Audio Out
ESD Protection ±8 kV air-gap • ±4 kV contact (Human Body Model)
Enclosure Aluminium • Silver • 65 × 70 × 27 mm • 83 g
Power USB 5 V / 500 mA • 1.75 W max
Environment 32–104 °F (0–40 °C) • 20–90% RH (no condensation)

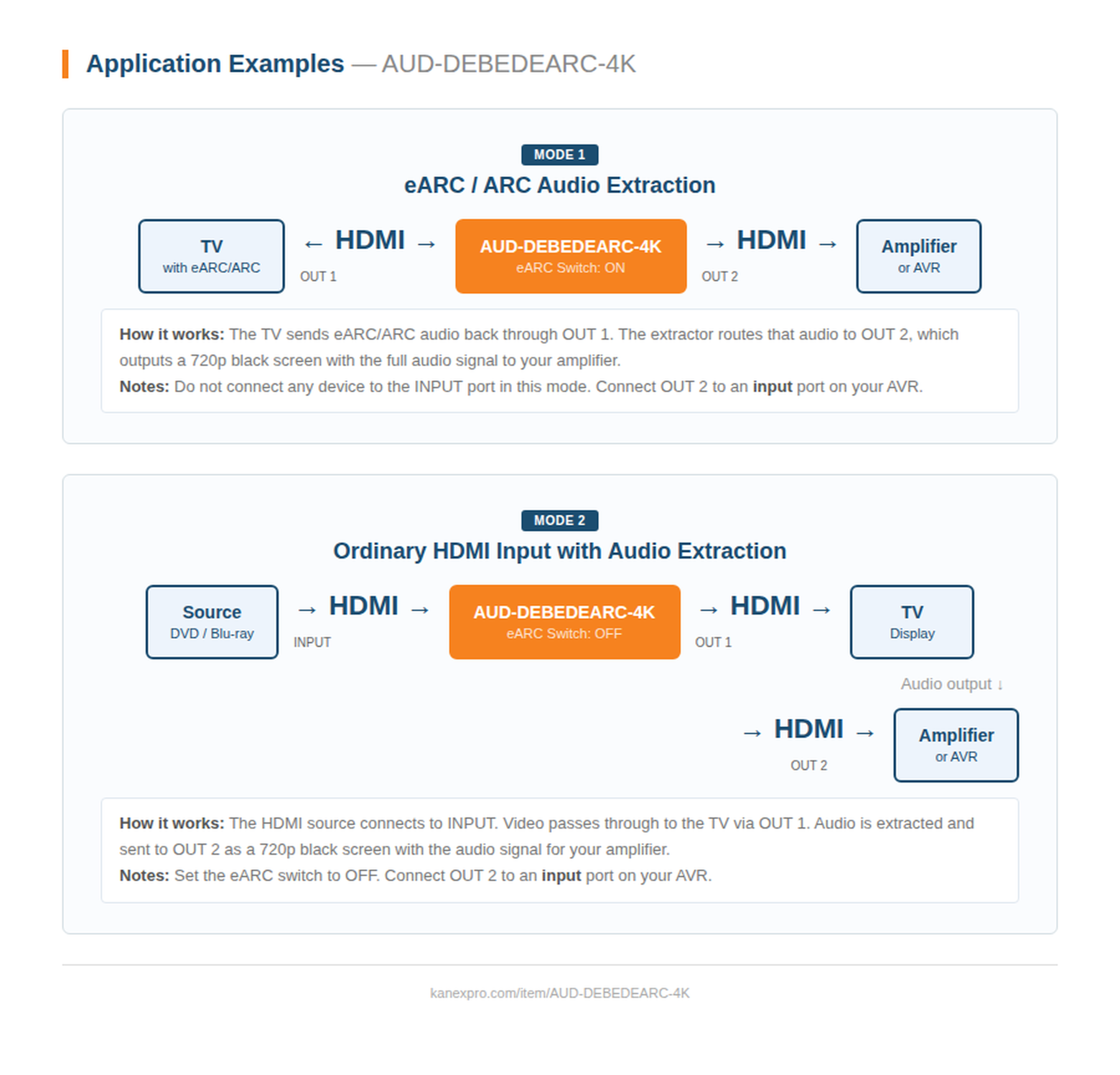

Product Diagram

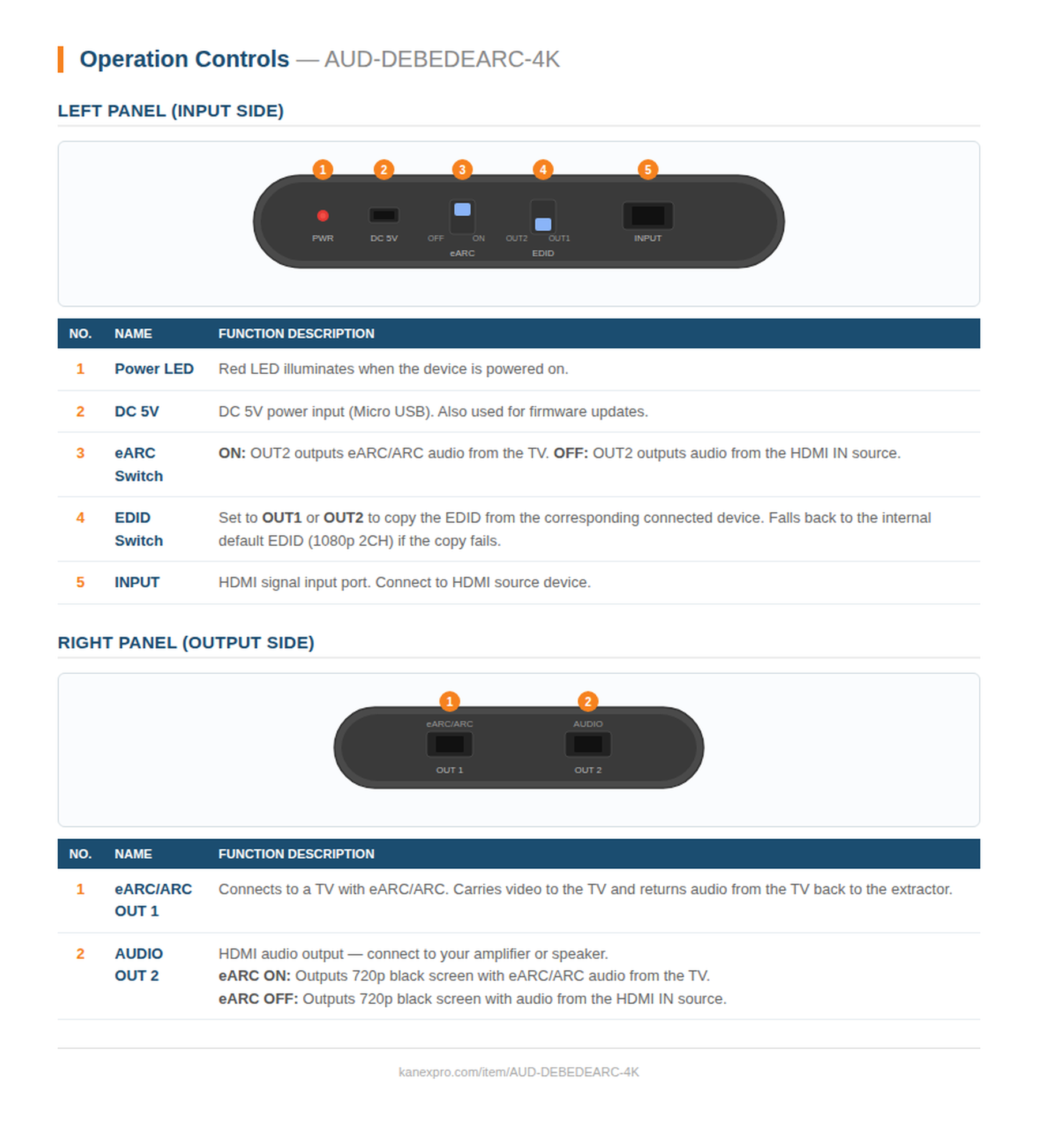

Product Panel
