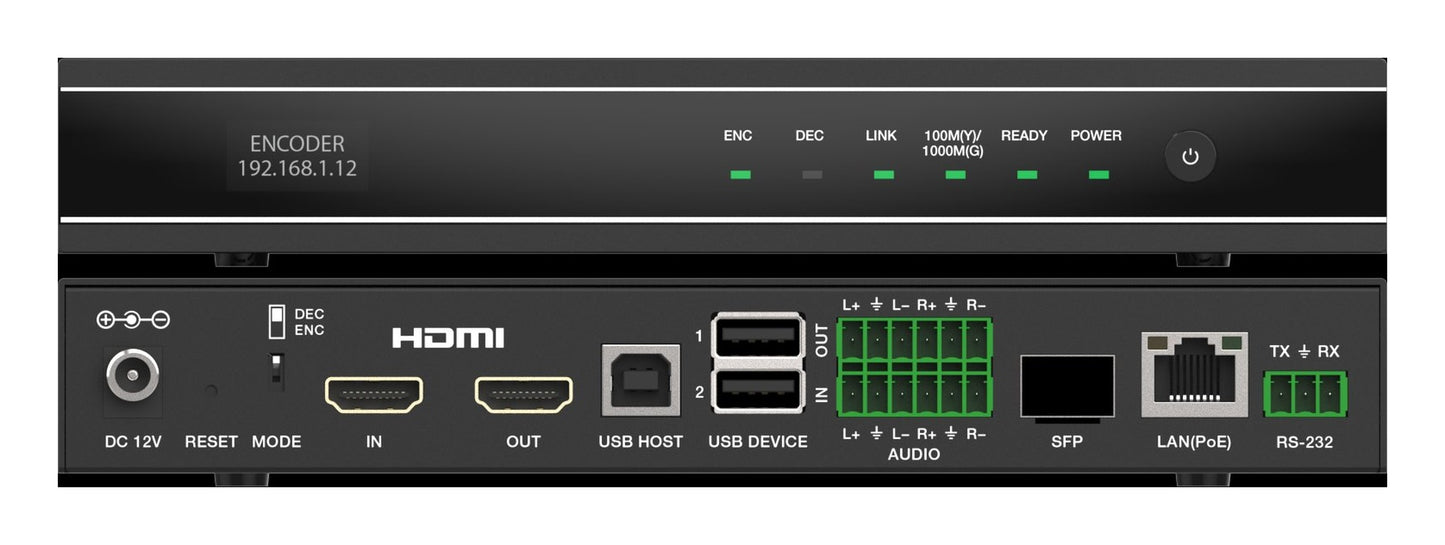

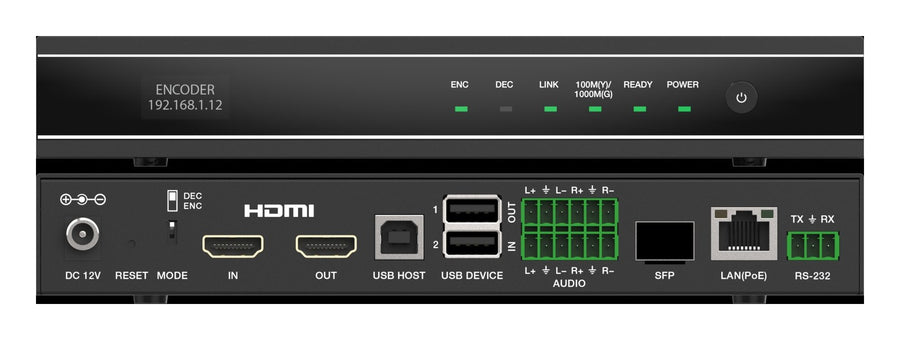

4K60 H.265/H.264 AV over IP Transceiver — Switchable ENC/DEC New

A single unit that functions as either a 4K60 encoder or decoder — set by a rear-panel MODE switch — the AVO-IP265-4K simplifies inventory, installation, and long-term maintenance for integrators deploying H.265/H.264 AV over IP at scale. Copper and fiber SFP ports are both active with automatic selection, providing full flexibility for structured cabling and long-distance fiber runs in the same system.

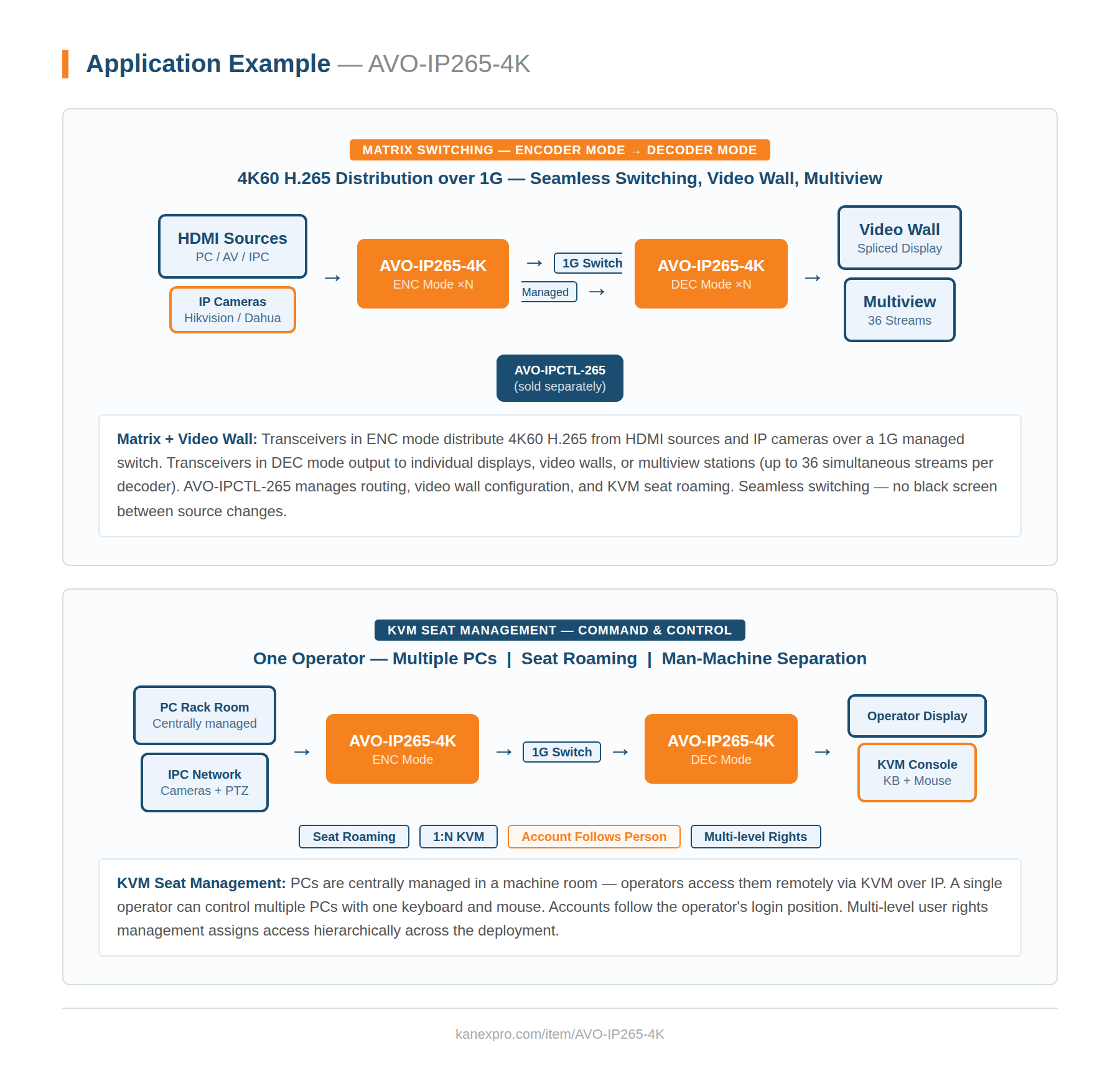

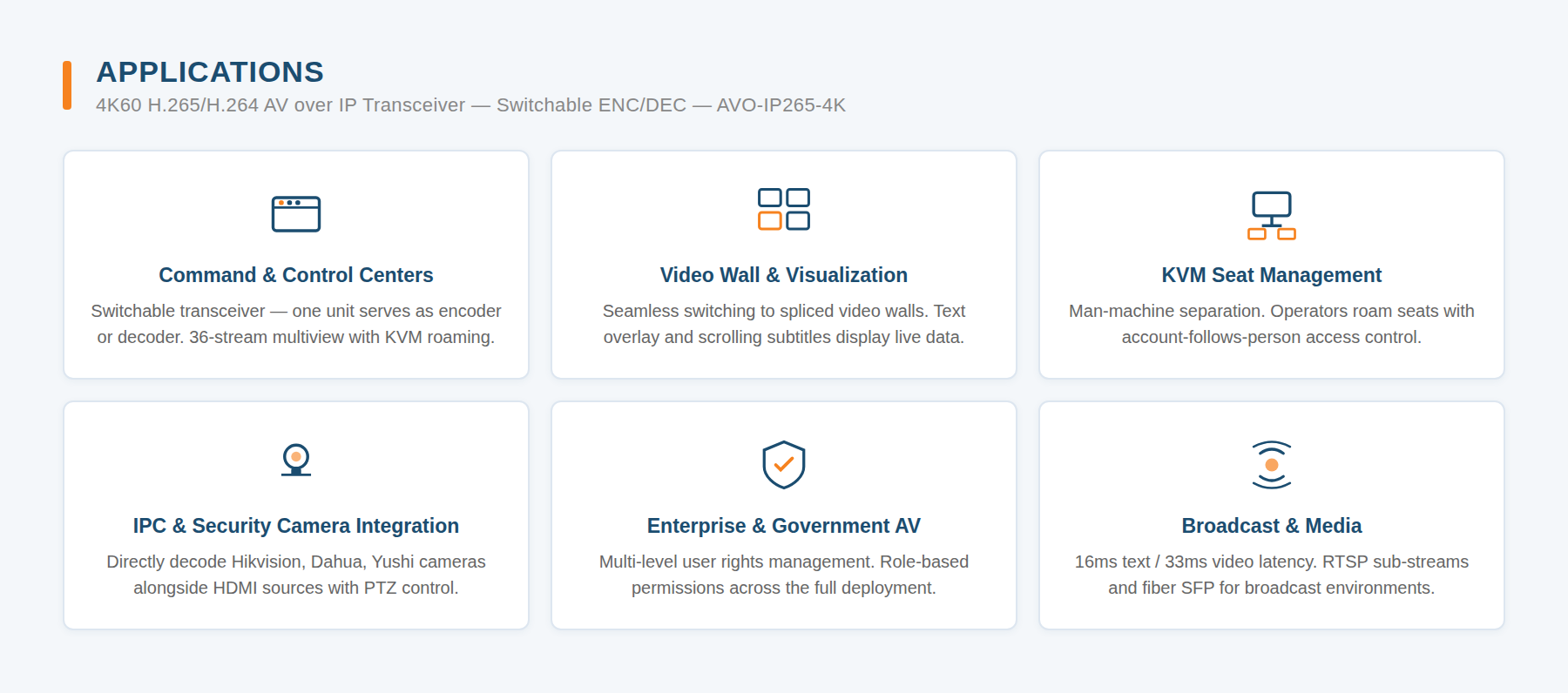

In decoder mode, a single AVO-IP265-4K can process and display up to 36 simultaneous streams — with arbitrary windowing, roaming, overlaying, and splicing — making it equally suited to video wall, multiview operator displays, and KVM seat management environments. Text overlay, scrolling subtitles, logo insertion, and IPC camera integration (Hikvision, Dahua, Yushi) extend the platform beyond standard AV distribution into command and control, broadcast, and unified visualization deployments. Managed by the AVO-IPCTL-265 controller.

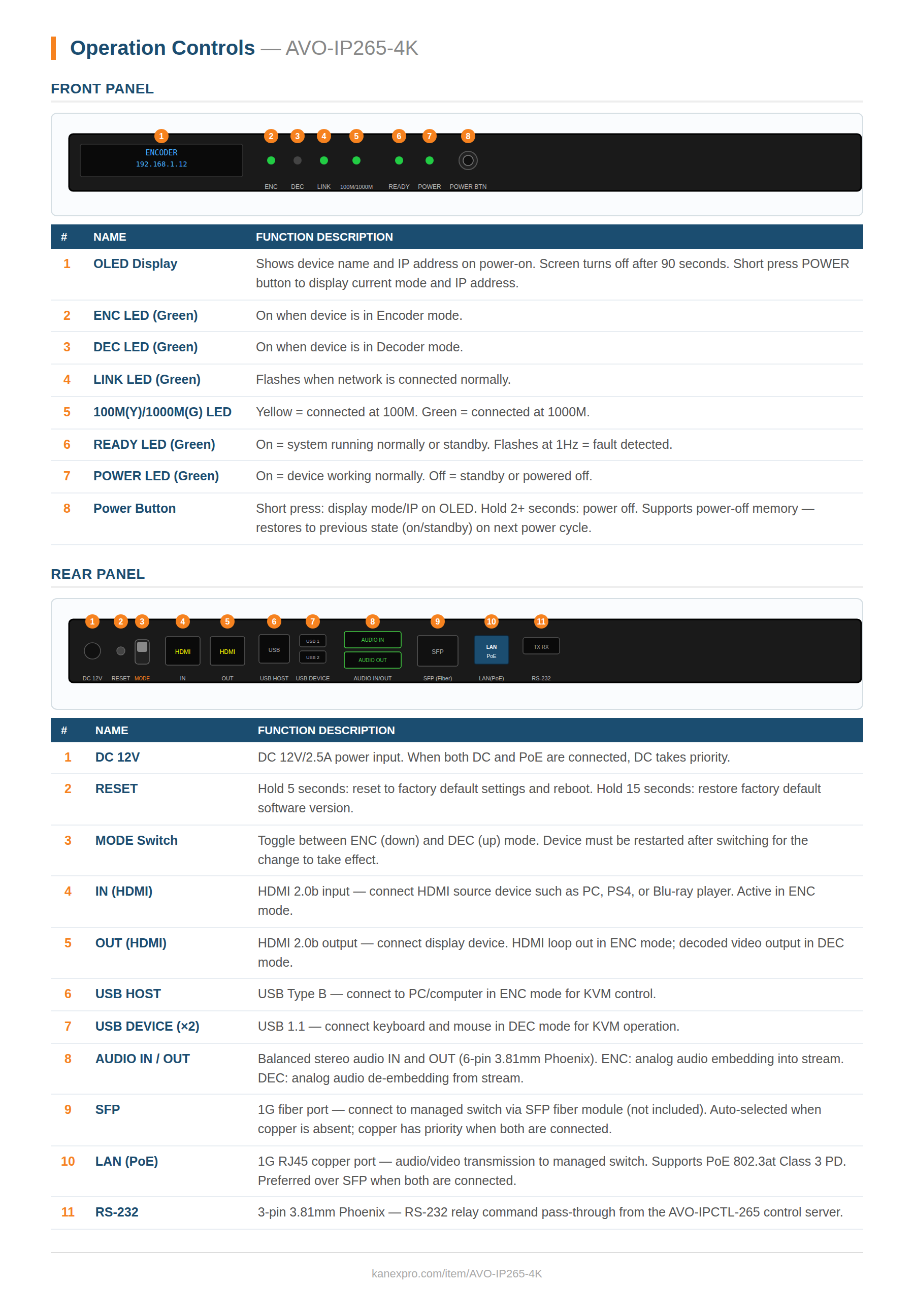

• Switchable encoder/decoder — single unit configured via rear-panel MODE switch; simplifies stock management and installation
• H.265/H.264 codec — 4K@60Hz 4:4:4, HDMI 2.0b, HDCP 2.2, 18Gbps bandwidth
• Copper (RJ45/PoE) and Fiber SFP ports — both active, copper priority with automatic selection
• Up to 36 simultaneous streams on decoder — arbitrary windowing, roaming, overlaying, and splicing
• Seamless switching — no black screen, flash, jitter, or tearing
• KVM seat management — one-to-many, one person multiple PCs, seat roaming, man-machine separation
• Text overlay, scrolling subtitles, banner, and logo display — freely configurable font, color, size, position
• IPC camera integration — direct decode of Hikvision, Dahua, Yushi and other H.264/H.265 IP cameras with PTZ control
• Multi-level user rights management — hierarchical access control, account follows login position
• HDMI loop out (encoder mode) — local monitoring without splitting
• Balanced stereo audio IN/OUT (6-pin 3.81mm Phoenix) — embedding and de-embedding
• RS-232 relay, USB KVM (HOST + DEVICE), two-way IR
• RTSP sub-streams: MainStream 1080P30 / SubStream 720P30 via VLC or third-party apps
• Low latency: 16ms text mode / 33ms video mode
• PoE 802.3at Class 3 or DC 12V/2.5A
• Works with AVO-IPCTL-265 (CTL500H) controller
