1G H.265 AV over IP System Controller New
Matrix Switching, Video Wall with Window Roaming, Mouse Collaboration & Seamless Switching — IP Camera Import, Dual 1G Network Isolation & Web GUI
Delivers centralized management of H.264/H.265 AV over IP systems over a standard 1G network — with drag-and-drop matrix switching, video wall with window roaming, seamless switching, and mouse collaboration from a single web interface. Powered by an ARM Cortex-A55 2GHz processor, the AVO-IPCTL-265 connects to the same 1G managed switch as H.265 encoders and decoders, auto-discovers all endpoints, and provides full system control of video routing, audio, RS-232, KVM, GPIO, and IR automation.
Where the entry-level AVO-IPCTL-265HD provides basic 100M matrix management, the AVO-IPCTL-265 adds 1G bandwidth, window roaming, marquee display, seamless switching, mouse collaboration across multiple PCs, IP camera import, HD background image, and multi-screen splicing — making it the right choice for any deployment requiring advanced video wall capabilities or collaborative operator workflows. Dual 1G network ports isolate AV multicast traffic from the IT control network, with HTTPS and SSH security for enterprise and institutional deployments. Compatible with AVO-IP265-4K, AVO-IP265-HD, and AVO-IP265-HDK H.265 AV over IP encoders and decoders.
- ARM Cortex-A55 2GHz processor for fast, reliable system management
- Centralized web GUI control of all H.264/H.265 AV over IP encoders and decoders
- Matrix switching — drag-and-drop source routing without physical recabling
- Video wall with window roaming and marquee display support
- Seamless switching for zero-interruption source transitions
- Mouse roaming/collaboration — one operator manages multiple PCs across zones
- IP camera import as a video source alongside HDMI encoders
- High-definition background image and multi-screen splicing display
- Dual 1G network ports — VIDEO LAN (PoE) for AV endpoints, CONTROL LAN for IT network isolation
- Two RS-232 ports + 4-channel GPIO + IR IN/OUT for third-party device control
- HTTPS and SSH security with role-based user management (8-digit password)
- PoE 802.3af PD via VIDEO LAN port — DC 12V/2.5A adapter also included
- Works with AVO-IP265-4K, AVO-IP265-HD, AVO-IP265-HDK H.265 AV over IP encoders and decoders
| Specification | |
|---|---|
| Technical | |
| CPU | ARM Cortex-A55 2GHz |
| Network Bandwidth | 1G |
| Transmission Distance | Up to 100m via CAT5E/6/6A/7 |
| Control Methods | Web GUI, TCP/IP, RS-232, IR, SSH, HTTPS |
| Supported Systems | H.264/H.265 AV over IP encoders and decoders |
| IP Modes (Video LAN) | Auto (controller-managed), Static |
| Default Control LAN IP | 192.168.6.100 (DHCP fallback) • http://controller.local |
| Default Video LAN IP | 169.254.8.100 (static default, auto-managed) |
| Connection | |

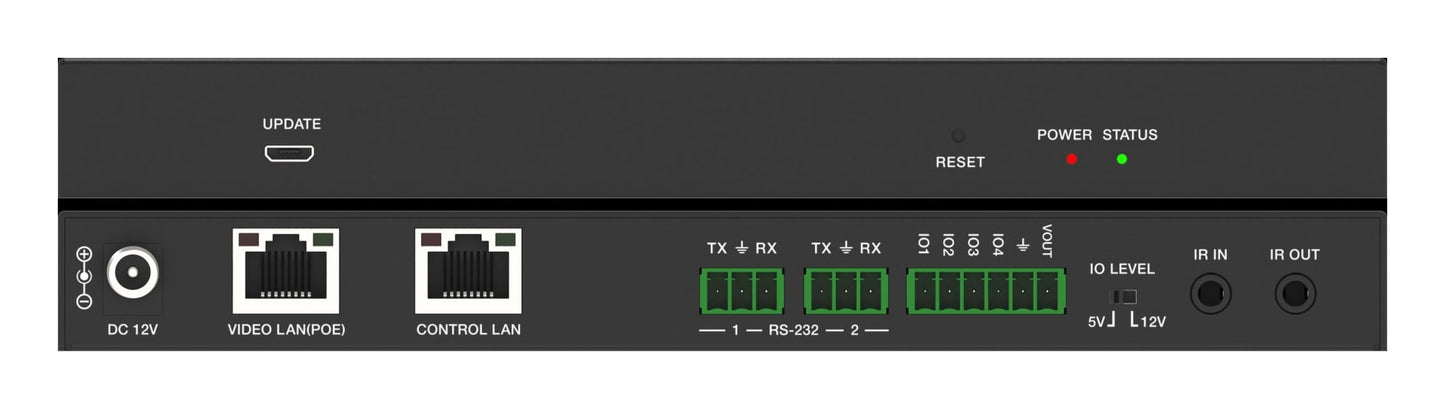

| LAN Ports | 2× 1G RJ45 — VIDEO LAN (PoE PD) + CONTROL LAN |
| RS-232 | 2× 3-pin 3.81mm Phoenix — default 57600 baud / 8-bit / 1 stop / no parity |
| Digital I/O | 1× 6-pin 3.81mm Phoenix — 4-ch GPIO, GND, VOUT 5V or 12V/0.5A (DIP switch) |
| IR IN | 1× 3.5mm jack (12V level, 20kHz–60kHz wideband) |
| IR OUT | 1× 3.5mm jack (5V level) |
| Firmware Update | 1× Micro USB (UPDATE port) — disconnect during normal operation |
| Physical | |
| Housing | Metal enclosure, Black |
| Dimensions (W×D×H) | 8.03″ × 4.63″ × 0.85″ (204 × 117.5 × 21.5mm) |
| Net Weight | 1.32 lbs (597g) |
| Power Supply | DC 12V/2.5A (locking adapter) or PoE via VIDEO LAN port |
| Power Consumption | 6.84W max |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | −4–140°F (−20–60°C) |
| Humidity | 20–80% RH operating / 10–90% RH storage (non-condensing) |
| Package Contents | |
| 1× | AVO-IPCTL-265 Controller |
| 1× | IR Receiver Cable 20kHz–60kHz 12V 1.5m |
| 1× | IR Blaster Cable 1.5m |
| 2× | 3-pin 3.81mm Phoenix Connector (male) |
| 1× | 6-pin 3.81mm Phoenix Connector (male) |
| 2× | Mounting ears |
| 4× | Machine screws KM3×6 |
| 1× | DC 12V/2.5A locking power adapter |
| 1× | User manual |
| Compatible Endpoints | |
| Works With | AVO-IP265-4K — H.265 4K Encoder/Decoder AVO-IP265-HD — H.265 HD Encoder/Decoder AVO-IP265-HDK — H.265 HD Encoder/Decoder Kit |
