1080P60 H.265/H.264 AV over IP Encoder/Decoder — KVM & IR New

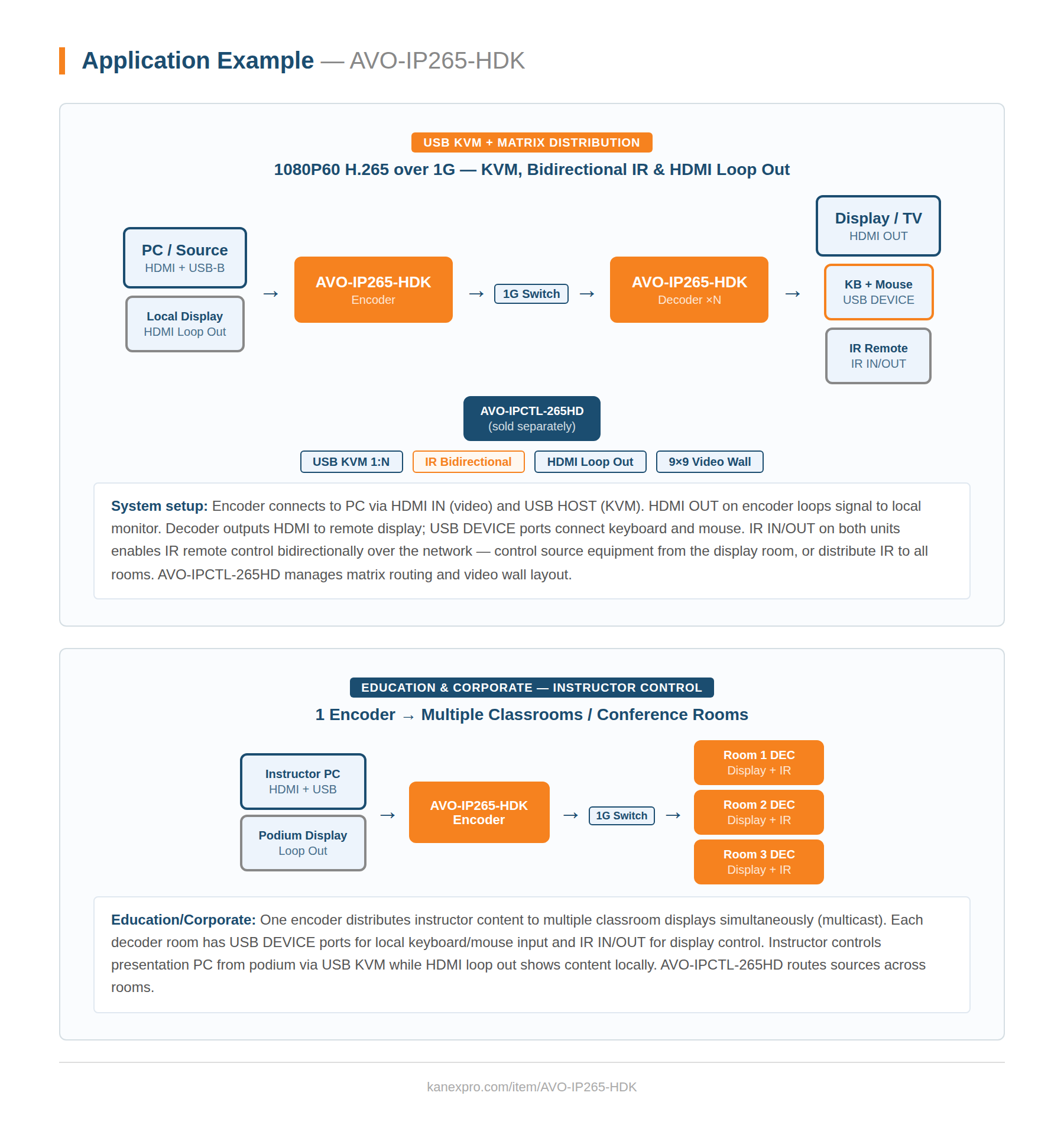

The AVO-IP265-HDK adds USB KVM control and bidirectional IR to the H.265/H.264 AV over IP platform — delivering 1080P60 video distribution with full keyboard, mouse, and IR remote control over the same 1G managed network. The encoder includes a dedicated HDMI loop output for local display monitoring, and both encoder and decoder carry IR IN/OUT ports for bidirectional IR distribution to and from any room in the system.

Distributes 1080P60 4:4:4 H.265/H.264 video to any number of displays with matrix switching, video wall up to 9×9, unicast and multicast modes, analog audio embedding and extracting, RS-232 pass-through, and web GUI configuration. Managed by the AVO-IPCTL-265HD controller. Encoder and decoder sold separately.

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4, 4.95Gbps
• USB KVM — USB HOST (Type B, encoder) + 2× USB DEVICE (Type A, encoder & decoder) for keyboard/mouse control
• Bidirectional IR — IR IN + IR OUT (3.5mm, 12Vp-p, 20K–60KHz wideband) on both encoder and decoder

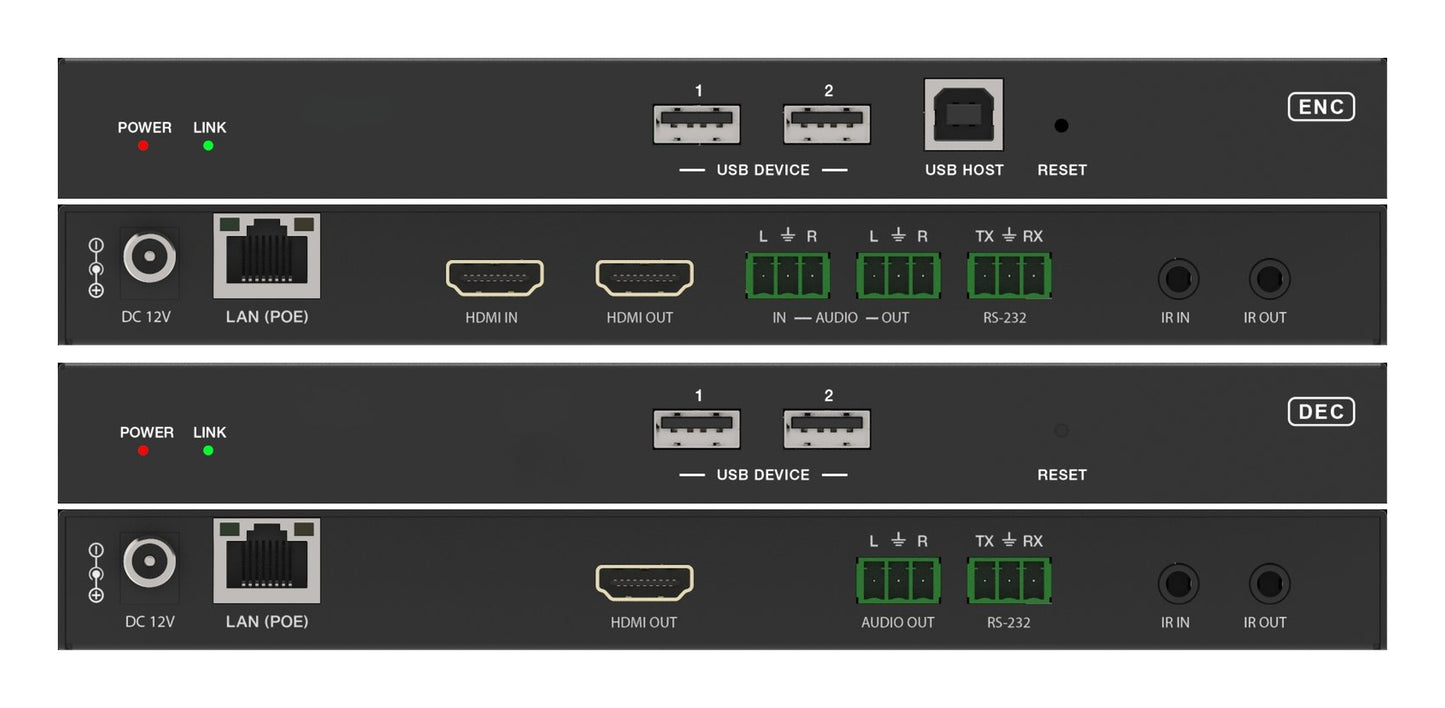

• HDMI loop out on encoder — local signal monitoring without splitting
• Matrix switching, video wall up to 9×9, unicast and multicast distribution over 1G
• Seamless switching — no black screen, jitter, or tearing
• Analog audio embedding (encoder) and extracting (decoder) — LPCM 2.0CH (32/44.1/48kHz)
• RS-232 pass-through and guest mode control
• Web GUI configuration — stream parameters, EDID management, picture settings, firmware
• RTSP main stream and sub stream for VLC and third-party preview
• PoE 802.3af Class 3 PD or DC 12V/1A — Encoder 3.48W / Decoder 2.77W
• 6U rack mounting (up to 10 units) or 1U rack mounting (up to 4 units)
• Works with AVO-IPCTL-265HD (CTL100H) controller
