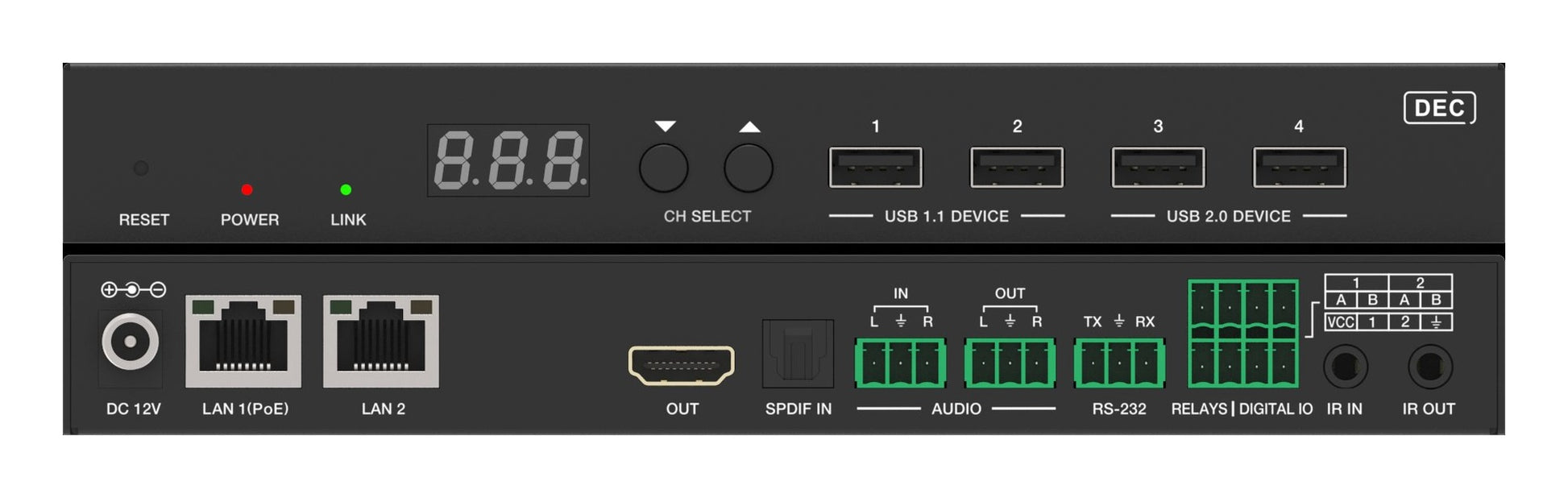

4K60 JPEG2000 AV over IP Encoder/Decoder — Dante Dual LAN New

Delivers visually lossless 4K60 4:4:4 JPEG2000 video distribution over standard 1G managed networks — with a dedicated second copper LAN port that keeps Dante AV-A audio traffic fully isolated from video. The AVO-IPJP2KD is designed for integrators who require clean audio network separation without introducing fiber infrastructure, giving Dante-based installations a direct path for professional audio routing alongside broadcast-quality IP video.

Where all-in-one JPEG2000 platforms combine video and Dante on a single network port, the AVO-IPJP2KD's dual copper architecture lets video and audio run on independent switch segments — eliminating cross-traffic that can compromise Dante latency or QoS. Dolby Atmos and DTS:X audio passthrough, ARC/eARC/S/PDIF audio return, USB 2.0 KVM, digital I/O and relay controls, and 9×9 video wall support complete a platform that ships as a matched encoder/decoder pair.

• JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks — no 10G infrastructure required
• Dual copper LAN — dedicated LAN 2 port for Dante AV-A audio stream, fully isolated from JPEG2000 video on LAN 1
• Optional Dante AV-A integration (license activated) — routes professional audio alongside video using existing DSP infrastructure
• ARC, eARC, S/PDIF, and analog audio return — C2C or A2A mode switchable per encoder/decoder
• LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
• USB 2.0 KVM with two-way IR and RS-232 — centralized control of remote sources
• HDMI 2.0b with HDCP 2.2, HDR10 input and output
• Unicast, multicast, matrix switching, and video wall up to 9×9 (81 displays) with bezel compensation
• Dual copper LAN with PoE (802.3af PD) — single-cable deployment, no fiber required
• MJPEG sub-stream preview — view encoder feeds in real time via web browser or VLC
• Web GUI, Telnet, SSH, RS-232, TCP/IP, CEC, IR control
• 24 EDID modes, 14 output scaling presets
• Digital I/O and relay controls with configurable VCC output (5V/12V) for environmental automation
• 6U V2 or 1U V2 rack mountable (accessories required)
• Works with AVO-IPCTL-JP2K IP Controller (sold separately) for matrix switching, video wall configuration, and KVM roaming
