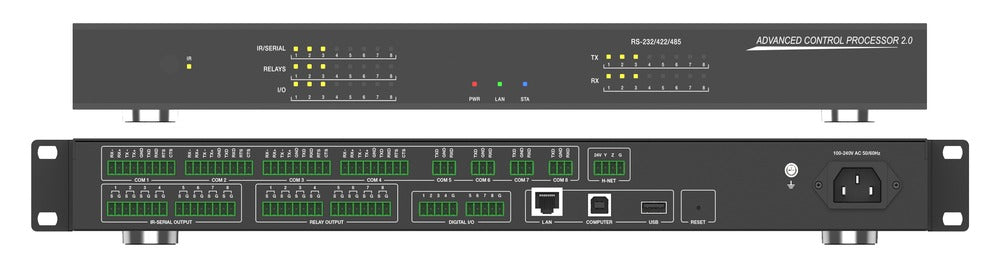

1U AV Control System with 8 Serial, 8 Relay, 8 IR/Serial & 8 Digital I/O New

When a single room runs a dozen devices — matrices, projectors, DSPs, motorized screens, lighting rigs, and stage equipment — integrators need a control processor with the I/O density to handle it all from one rack unit. The KanexPro CR-HOST8R delivers eight serial ports, eight configurable IR/serial outputs, eight relay channels, and eight digital inputs in a standard 1U chassis. The first four COM ports support RS-232, RS-485, and RS-422 with hardware flow control, and every IR output can be reconfigured as a unidirectional RS-232 port — giving integrators up to 16 serial connections from a single device without expansion modules.

Purpose-built for auditoriums, large boardrooms, houses of worship, and campus-wide deployments, the CR-HOST8R runs on an Android 9.0 platform with a quad-core ARM Cortex-A53 processor. Gigabit Ethernet with TCP/UDP/HTTPS/WebSocket provides IP-based control and monitoring, while onboard IR learning captures remote codes from 20KHz to 60KHz. No proprietary programming tools or annual software licenses are required — configuration runs through open protocols and standard interfaces. Powered by AC 110–220V, the CR-HOST8R mounts in any standard 19-inch rack. Where the compact CR-HOST6S serves single rooms, the CR-HOST8R scales to venues where one controller needs to drive everything on stage and in the house.

• ARM Cortex-A53, Quad-core 1.8GHz, 2GB DDR4 RAM, 8GB eMMC, Android 9
• 8× bidirectional serial — COM 1–4: RS-232/RS-422/RS-485 + HW flow; COM 5–8: RS-232
• 8× IR outputs configurable as one-way RS-232 — up to 16 serial connections total
• 8× isolated relay outputs (30VDC 2A / 125VAC 1A)
• 8× digital I/O inputs for sensors
• Gigabit Ethernet (10/100/1000M) with TCP/UDP/HTTP/WebSocket
• AC 110–220V 50/60Hz power supply (220V/10A AC cord included)
• IR learning (20KHz–60KHz), web server, password protection
• Built-in sync clock, factory reset
• Standard 1U rack mount: 440mm × 200mm × 44mm, 2.1kg
