The KanexPro CR-KEY10R is a standalone programmable wall keypad designed to replace expensive proprietary control processors in conference rooms, classrooms, training centers, and exhibition spaces. Built on a Linux-based ARM Cortex-A7 platform with 256MB RAM, it delivers multi-protocol room automation — RS232, RS485, IR, relay, and TCP/IP — from a single flush-mount US 2-Gang wall panel, eliminating the need for a separate control processor or proprietary software.

Featuring 10 programmable buttons and a precision knob with LED feedback for real-time volume or level control, the CR-KEY10R integrates 4× RS232, 1× RS485, 2× IR output, 2× relay, and 2× configurable I/O ports. Powered via PoE or DC 5V, it supports TCP/IP, UDP, HTTP, and WebSocket protocols over its 100Mbps Ethernet port. The magnetic aluminum front panel is field-swappable in black or white, and button labels are customizable for any room configuration. Programming is handled through EASYAccomplish software with web GUI access for network configuration.

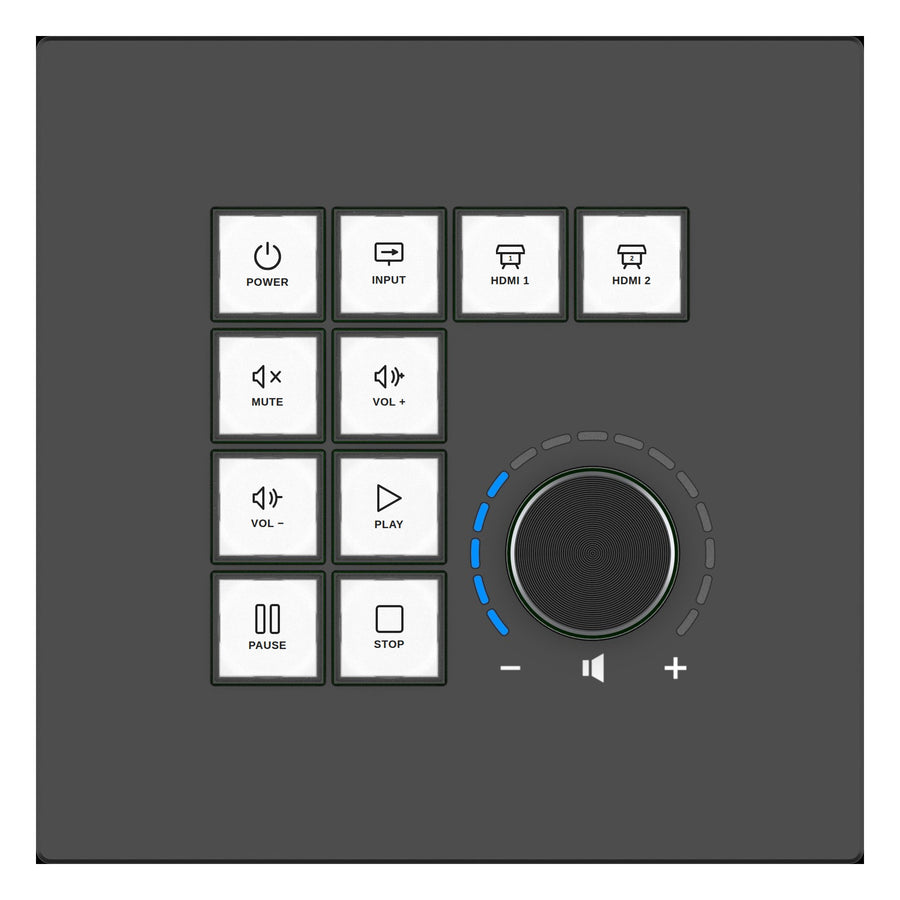

  • 10 programmable buttons with light status feedback and 1 programmable knob with blue LED progress ring
  • 4-channel RS232 and 1-channel RS485 bidirectional serial ports with configurable baud rates (2400–115200 bps)
  • 2-channel IR output ports supporting 20KHz–60KHz wideband infrared control
  • 2-channel isolated low-voltage relay ports (2A 30VDC / 0.3A 125VAC) for lighting, screens, and curtain control
  • 2-channel configurable I/O ports for digital signal input or 5V output (50mA max)
  • 100Mbps Ethernet with PoE support — TCP/IP, UDP, HTTP, and WebSocket protocols for network-based device control
  • Linux OS on ARM Cortex-A7 (1.2GHz, 256MB RAM/ROM) — standalone operation with no external processor required
  • Magnetic aluminum front panel (black or white) with customizable button labels — field-swappable without rewiring
  • Programmable via EASYAccomplish software with web GUI for network settings — US 2-Gang / CN 120 wall box installation
Specification
Technical
CPUARM Cortex-A7, 1.2GHz
Operating SystemLinux
RAM256MB
Flash Memory256MB
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap) / ±4kV (contact)
Control
Programmable Buttons10 buttons with light status feedback
Programmable Knob1 knob with blue LED progress indicator
Programming SoftwareEASYAccomplish (downloadable)
Connection

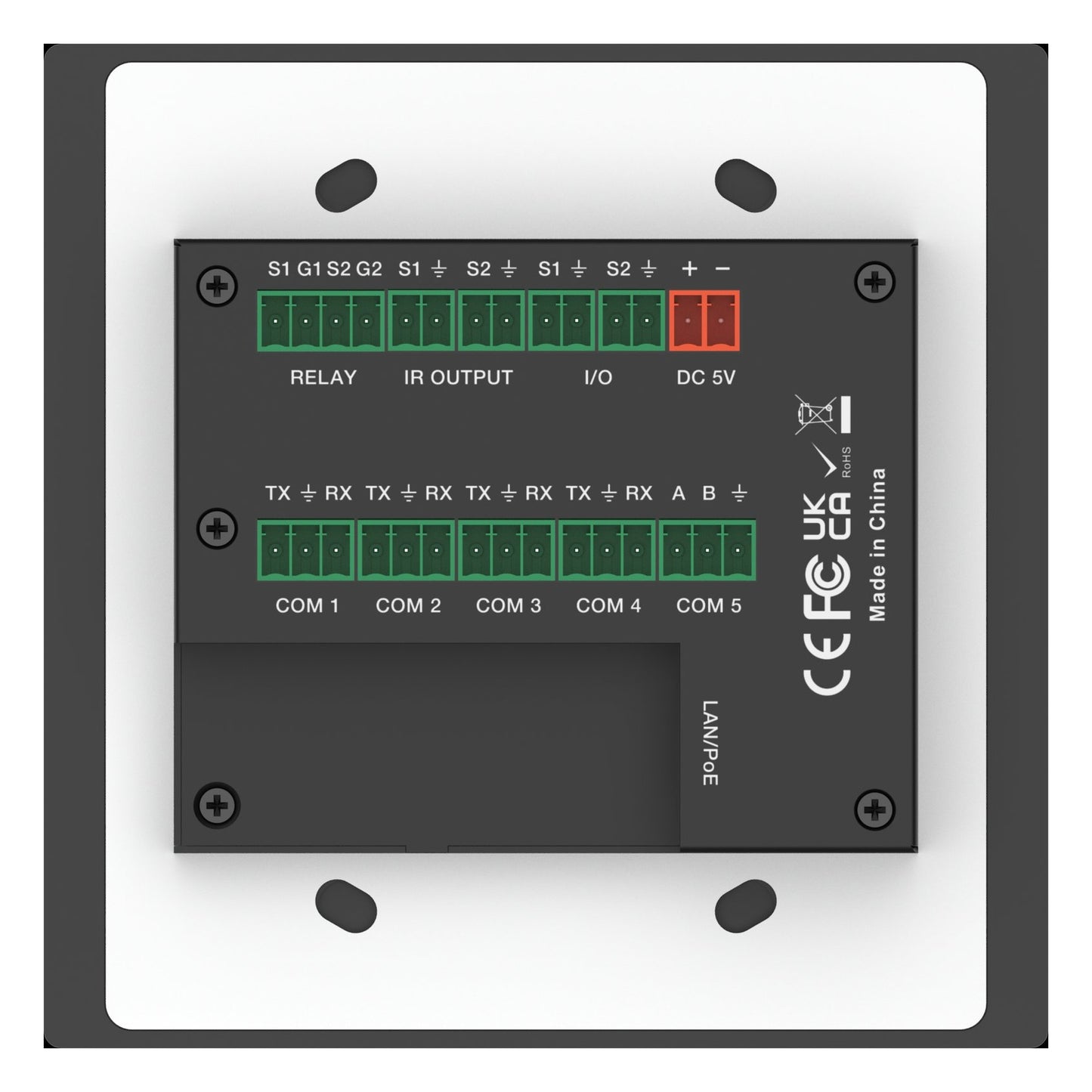

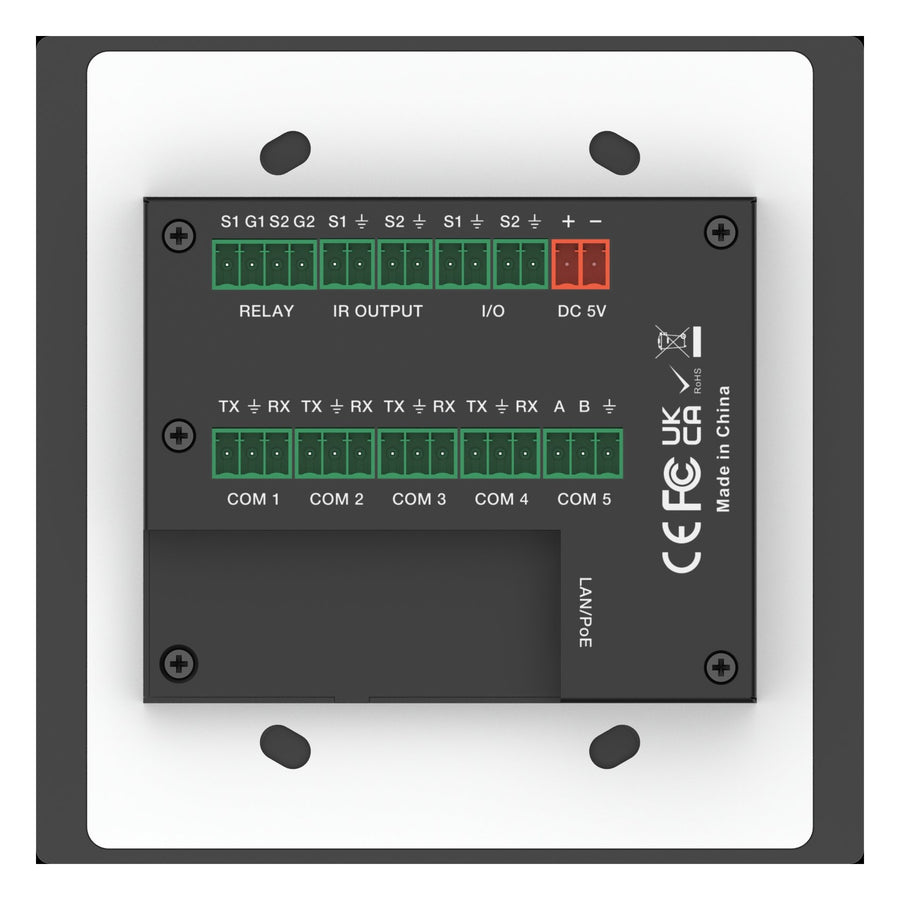

COM 1/2/3/4 (RS232)4× 3-pin phoenix connector, bidirectional, 2400–115200 bps
COM 5 (RS485)1× 3-pin phoenix connector, bidirectional, 2400–115200 bps
IR Output2× 2-pin phoenix connector, 20KHz–60KHz carrier
Relay2× 2-pin phoenix connector, normally open, 2A 30VDC / 0.3A 125VAC
I/O2× 2-pin phoenix connector, configurable input (24V) / output (5V 50mA)
LAN/PoE1× 10/100M Ethernet RJ45, PoE supported
DC 5V1× 2-pin phoenix connector
USB1× USB Type-C (system debug)
Mechanical
Dimensions4.57″ × 4.57″ × 1.42″ (116 × 116 × 36mm)
Weight0.86 lbs (391g)
HousingFront: Aluminum alloy; Rear: Metal enclosure
ColorFront: Black/White (optional); Rear: Black
InstallationUS 2-Gang / CN 120 standard cassette box
Front PanelMagnetic aluminum, field-swappable
Power
Power SupplyDC 5V/1A or PoE
Power Consumption<5W
Environmental
Operating Temperature32°F–104°F (0°C–40°C)
Operating Humidity20%–80% RH, non-condensing
Storage Temperature-4°F–140°F (-20°C–60°C)
Storage Humidity10%–90% RH, non-condensing
CertificationsCE, FCC, UKCA
Package Contents
1×Programmable Control Keypad
5×3-pin 3.5mm Phoenix Connector (male)
1×4-pin 3.5mm Phoenix Connector (male)
4×2-pin 3.5mm Phoenix Connector (male)
1×2-pin 3.81mm Phoenix Connector (male)
4×Wall Mounting Screws
1×User Manual
