8-Button Programmable Wall Keypad with RS232, IR, Relay & PoE New

The KanexPro CR-KEY8U is a standalone 8-button programmable wall keypad designed to deliver multi-protocol AV room control from a compact US 1-Gang wall plate. Built on a Linux-based ARM Cortex-A7 platform with 256MB RAM, it provides RS232, RS485, IR, relay, and TCP/IP control without requiring a separate control processor or proprietary software — ideal for conference rooms, classrooms, and huddle spaces where single-gang mounting is preferred.

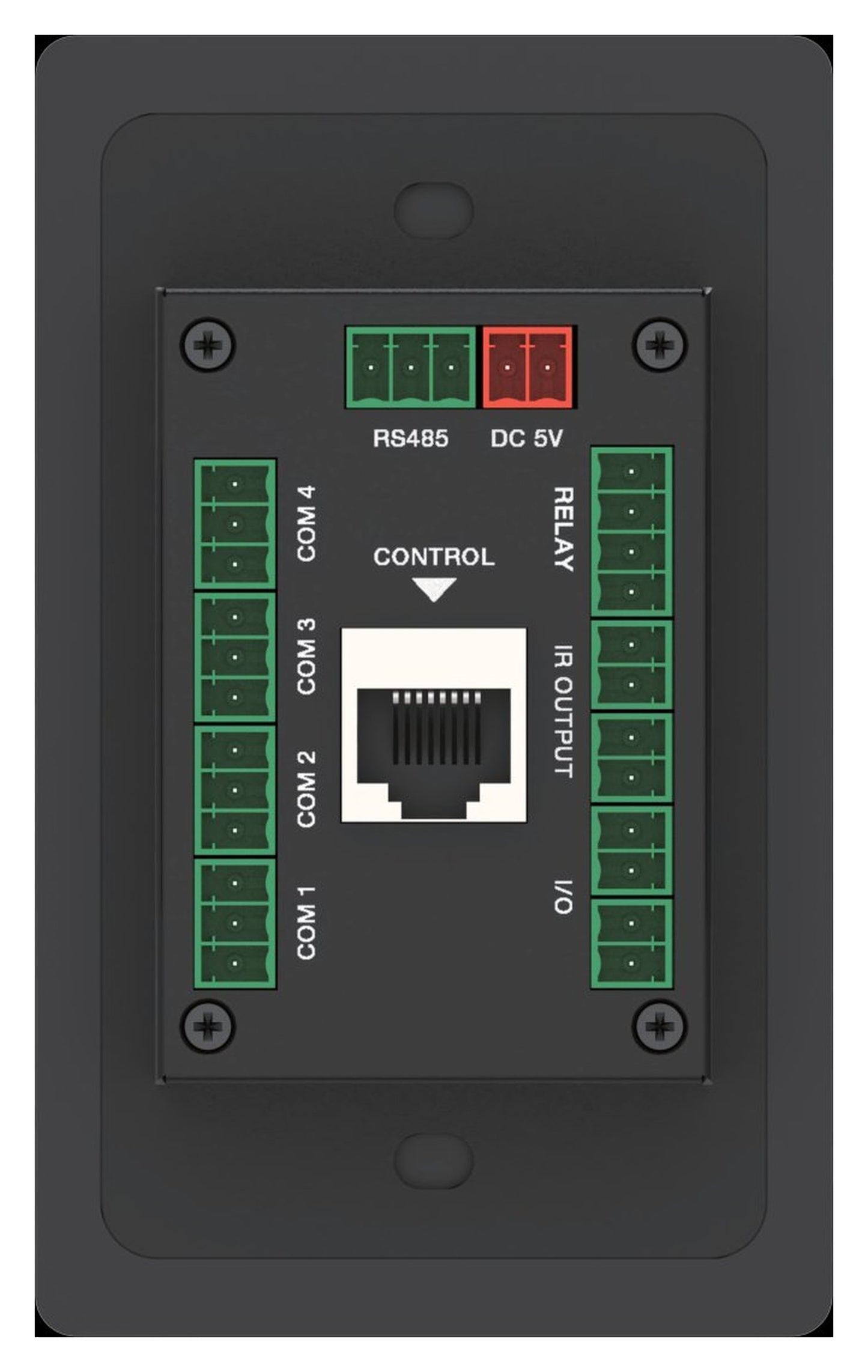

Featuring 8 programmable buttons with LED status feedback, the CR-KEY8U integrates 4× RS232, 1× RS485, 2× IR output, 2× relay, and 2× configurable I/O ports. Powered via PoE or DC 5V with just 1.1W consumption, it supports TCP/IP, UDP, HTTP, and WebSocket protocols. The magnetic aluminum front panel is field-swappable in black or white. Programming is handled through EASYAccomplish software available for Windows, Mac, and iOS, with web GUI access for network configuration.

• 8 programmable buttons with LED light status feedback and customizable film labels
• 4-channel RS232 and 1-channel RS485 bidirectional serial ports with configurable baud rates (2400–115200 bps)
• 2-channel IR output ports supporting 20KHz–60KHz wideband infrared control
• 2-channel isolated low-voltage relay ports (2A 30VDC / 0.3A 125VAC) for lighting, screens, and curtain control
• 2-channel configurable I/O ports for digital signal input or 5V output (50mA max)
• 100Mbps Ethernet with PoE support — TCP/IP, UDP, HTTP, and WebSocket protocols
• Linux OS on ARM Cortex-A7 (1.2GHz, 256MB RAM/ROM) — standalone operation with no external processor required
• Magnetic aluminum front panel (black or white) — field-swappable; US 1-Gang wall box install
• Programmable via EASYAccomplish (Windows, Mac, iOS) with web GUI for network settings
