4K60 HDMI over Fiber Extender Kit (10km/6.2mi)
Send Full 18Gbps 4K60 4:4:4 HDMI up to 10km, with HDR and Lossless Audio Pass-Through over LC Fiber

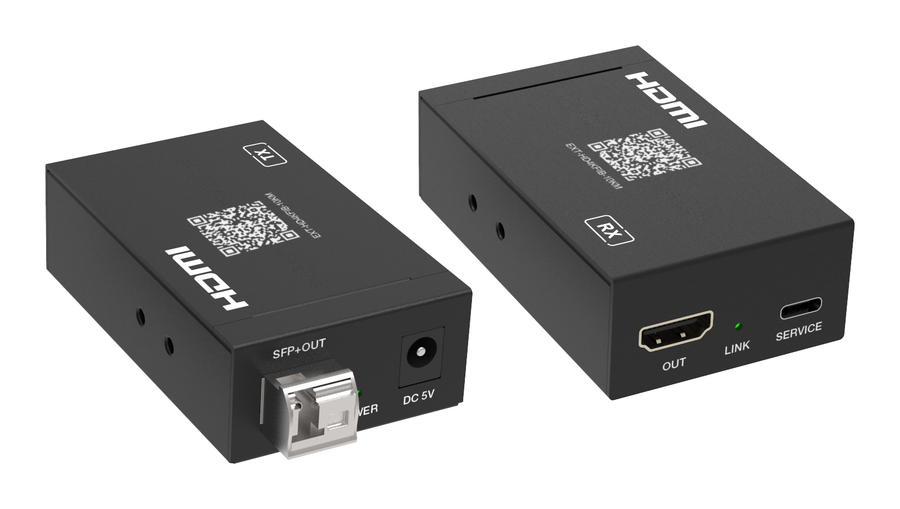

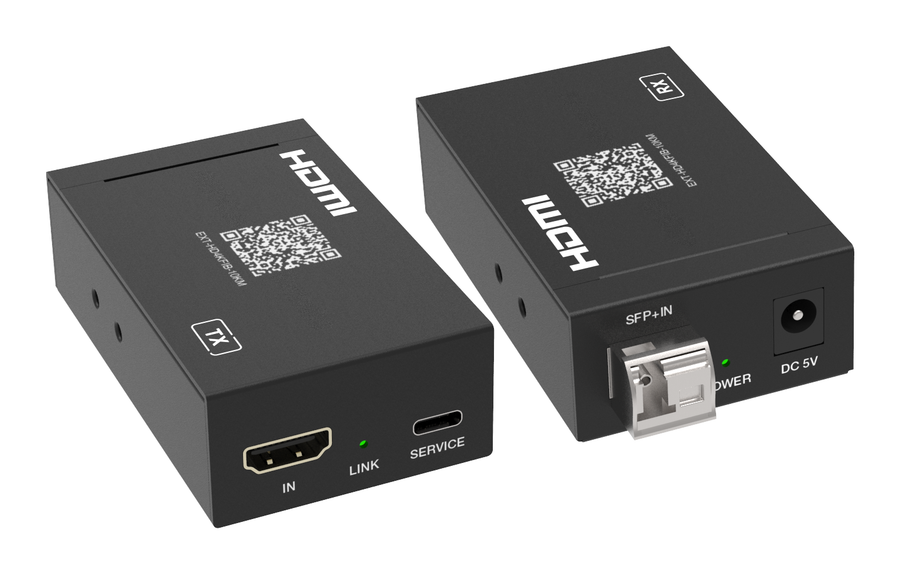

Carries 4K60 4:4:4 HDMI, with HDR and lossless multichannel audio, up to 10km (6.2mi) over a single-mode fiber run, far beyond the reach of copper extenders. The kit pairs a compact metal transmitter and receiver, each with a 10G SFP+ fiber port and a USB-C service port, and includes two 5V/1A power supplies. It is the right choice for campuses, venues and control rooms where distance and signal integrity matter more than KVM or control pass-through.
The transmitter takes one HDMI 2.0b source at up to 18Gbps with HDCP 2.2, any VESA resolution, and HDR10, HDR10+, Dolby Vision and HLG pass-through. Audio passes as LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X, and the receiver outputs the same signal to one display. Over multi-mode OM4 fiber, through SFP modules, the same kit reaches up to 300m. Its differentiator is a dedicated point-to-point link: two units and a fiber run, with no network switch in the signal path. Fiber cable is not included.
- HDCP 2.2 compliant
- 18Gbps video bandwidth
- Video resolution up to 4K2K@50/60Hz 4:4:4, as specified in HDMI 2.0b
- Any VESA resolution supported
- HDR10, HDR10+, Dolby Vision and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio support
- Transmission distance up to 10km over single-mode fiber; with multi-mode SFP modules, up to 300m over OM4 multi-mode fiber
- Compact design for flexible installation
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input & Output Video Resolution | 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60; any VESA resolution is supported |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Audio | |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| Connection | |
| Transmitter Input | 1x IN [HDMI Type A, 19-pin female]; 1x SERVICE [USB-C, update port] |
| Transmitter Output | 1x SFP+ OUT [LC female] |
| Receiver Input | 1x SFP+ IN [LC female]; 1x SERVICE [USB-C, update port] |
| Receiver Output | 1x OUT [HDMI Type A, 19-pin female] |
| Fiber | |
| Fiber Optic Module | 10G SFP+ module |
| Transmission Distance | Up to 10km (6.2mi) over single-mode LC fiber cable; up to 300m (984ft) over multi-mode OM4 LC fiber cable (with multi-mode SFP modules) |
| Protection | |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Power | |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Transmitter: 3.05W (max); Receiver: 2.25W (max) |
| Environmental | |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20%~80% RH, non-condensing |
| Storage Humidity | 10%~90% RH, non-condensing |
| Mechanical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (each unit) | 3.19 in W × 1.93 in D × 0.98 in H (81 × 49 × 25mm) |
| Weight (each unit) | 0.30 lbs (138g) |
| Package Contents | |
| Transmitter | 1x 4K60 HDMI over Fiber Extender (Transmitter) |
| Receiver | 1x 4K60 HDMI over Fiber Extender (Receiver) |
| Power Supplies | 2x 5V/1A power supply |
