Flex Matrix HDMI 输出卡 12 端口

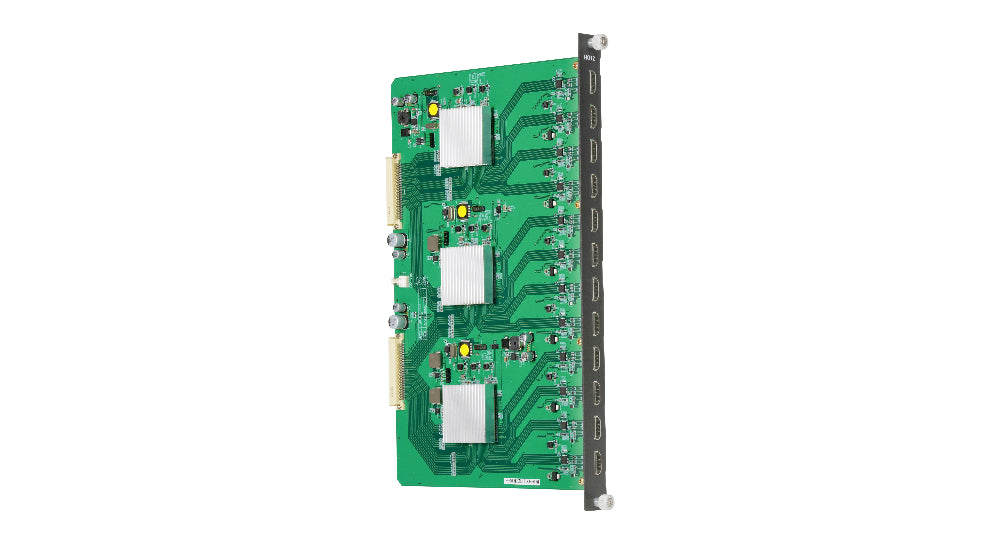

Drive up to 12 HDMI displays from a single card slot in any KanexPro FLEX modular matrix chassis. The FLEX-HDMI12OUT is a hot-swappable HDMI output card that delivers 3× to 6× the port density of competing output cards, reducing chassis slots, rack space, and total system cost for large-display installations. Each of the 12 outputs supports 18Gbps bandwidth at up to 4K 3840×2160 @60Hz 4:4:4 with HDCP 2.2 content protection and full HDR pass-through.

Designed for hospitality, corporate campuses, education facilities, broadcast studios, and commercial AV environments, the card handles the full range of HDMI 2.0 formats including deep color (8/10/12-bit) and wide chroma sampling (RGB, YCbCr 4:4:4/4:2:2/4:2:0). Install multiple output cards across the FLEX-MF8X10, FLEX-MF16X20, FLEX-MF24X36, and FLEX-MF24X60 chassis platforms to scale display capacity as installations grow.

• 输出端口：12 个 HDMI A 型（19 针母口）
• 4K/UHD HDMI视频
• 支持 HDMI 2.0 和 HDCP 2.2
• 模块化和可扩展设计
• 可热插拔
• 支持HDR
• 支持高达 18 Gbps 的数据速率
