4K60 1×2 HDMI Splitter with Auto Downscaling & EDID Control

No Blank Second Screen on Mixed-Resolution Displays - 18Gbps, HDCP 2.3, HDR10+/Dolby Vision Pass-Through

SP-HDMI1X2-18G

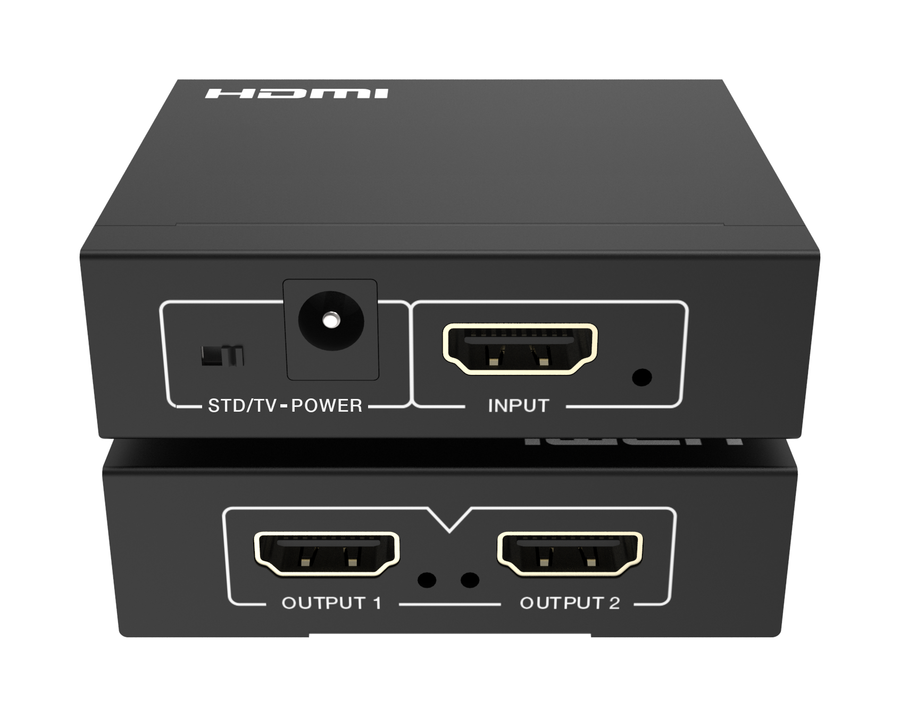

4K60 1×2 HDMI Splitter with Auto Downscaling & EDID Control – KanexPro SP-HDMI1X2-18G
Currently out of stock
We are restocking this part. Ask us when it will be back.
Overview

Sends one 4K60 HDR source to two displays at once and keeps the lower-resolution screen live instead of blanking it. The SP-HDMI1X2-18G is a passive 1×2 HDMI splitter in a black metal enclosure, powered by a single 5V/1A multinational supply and drawing 1.41W, sized to stack behind a display or tuck into a small credenza rack. It is the right choice for media rooms and huddle spaces where reliable HDCP, HDR pass-through and a second screen that never goes dark matter more than audio de-embedding or 8K headroom.

Full 18Gbps HDMI 2.0b bandwidth carries 4K60 4:4:4 with HDR, HDR10, HDR10+, Dolby Vision and HLG intact, while HDCP 2.3 and 1.4 compliance clears protected sources to both outputs. Per-output auto downscaling matches each display's capability independently, so a 4K panel and a 1080p projector run from the same source without a separate scaler, and front-panel EDID control adds STD (forced 1080p) and TV (copy OUT1) modes for stubborn sinks. The differentiator is the combination — full-bandwidth HDR pass-through with automatic per-output downscaling in a supported metal-body unit, not the feature-max audio-breakout tier.

Key features
  • HDCP 2.3/1.4 and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth, as specified in HDMI 2.0b
  • Supports video resolution up to 4K2K@60Hz 4:4:4 and the HDMI 3D audio format
  • Supports PCM, Dolby TrueHD and DTS-HD Master Audio up to 7.1CH
  • Supports auto downscaling
  • Supports CEC by-pass from IN to OUT1
  • Supports HDR, HDR10, HDR10+, Dolby Vision and HLG
  • Supports EDID control, including STD (1080p) mode and TV (copy OUT1) mode
Video
Video Bandwidth18Gbps
Video ResolutionUp to 4K2K@60Hz 4:4:4
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3 / 1.4
DVI ComplianceDVI 1.0
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth8 / 10 / 12-bit
Audio
Audio FormatsLPCM 2.0 / 5.1 / 7.1CH, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD Master
Sample Rate44.1, 48, 88.2, 96, 176.4, 192 KHz
Connections
Input1 × HDMI [Type A, 19-pin female]
Output2 × HDMI [Type A, 19-pin female]
Recommended HDMI Cable Length (IN / OUT)
4K605 m / 16 ft
4K3010 m / 33 ft
1080p15 m / 49 ft
Power
Power Supply5V/1A (multinational power supply)
Power Consumption1.41W (max.)
Protection
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge)
Environmental
Operating Temperature32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature-4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity20 ~ 90% RH (non-condensing)
Physical
HousingMetal enclosure, black
Dimensions (unit)2.76 × 2.36 × 0.81 in (70 × 60 × 20.5 mm)
Weight (unit, net)0.26 lbs (118 g)
Package Dimensions4.61 × 4.13 × 2.56 in (117 × 105 × 65 mm)
CertificationsCE, FCC, RoHS
Package Contents
1 ×18Gbps HDMI 1×2 Splitter
1 ×5V/1A multinational power supply

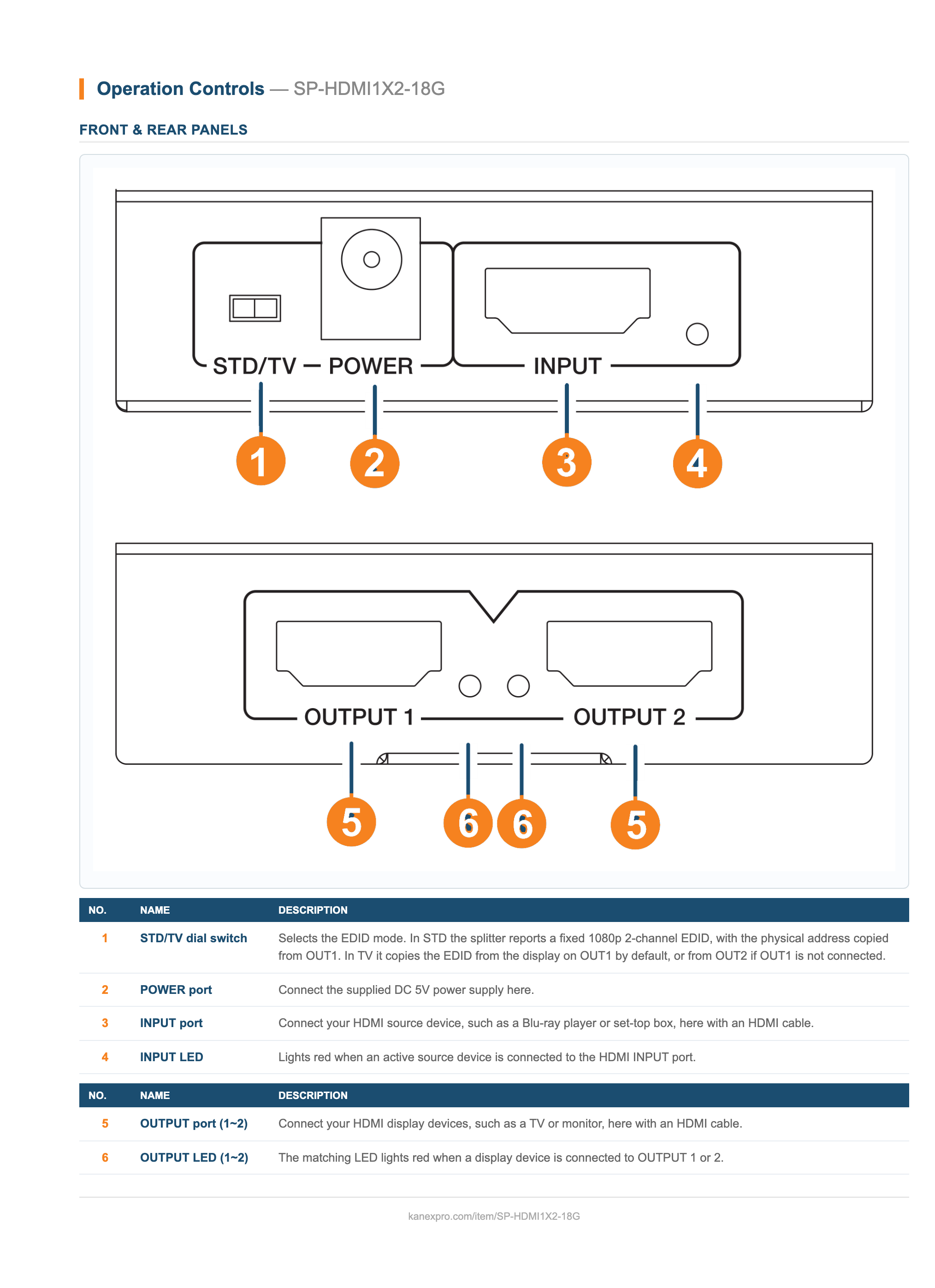

4K60 1×2 HDMI Splitter with Auto Downscaling & EDID Control panel drawing

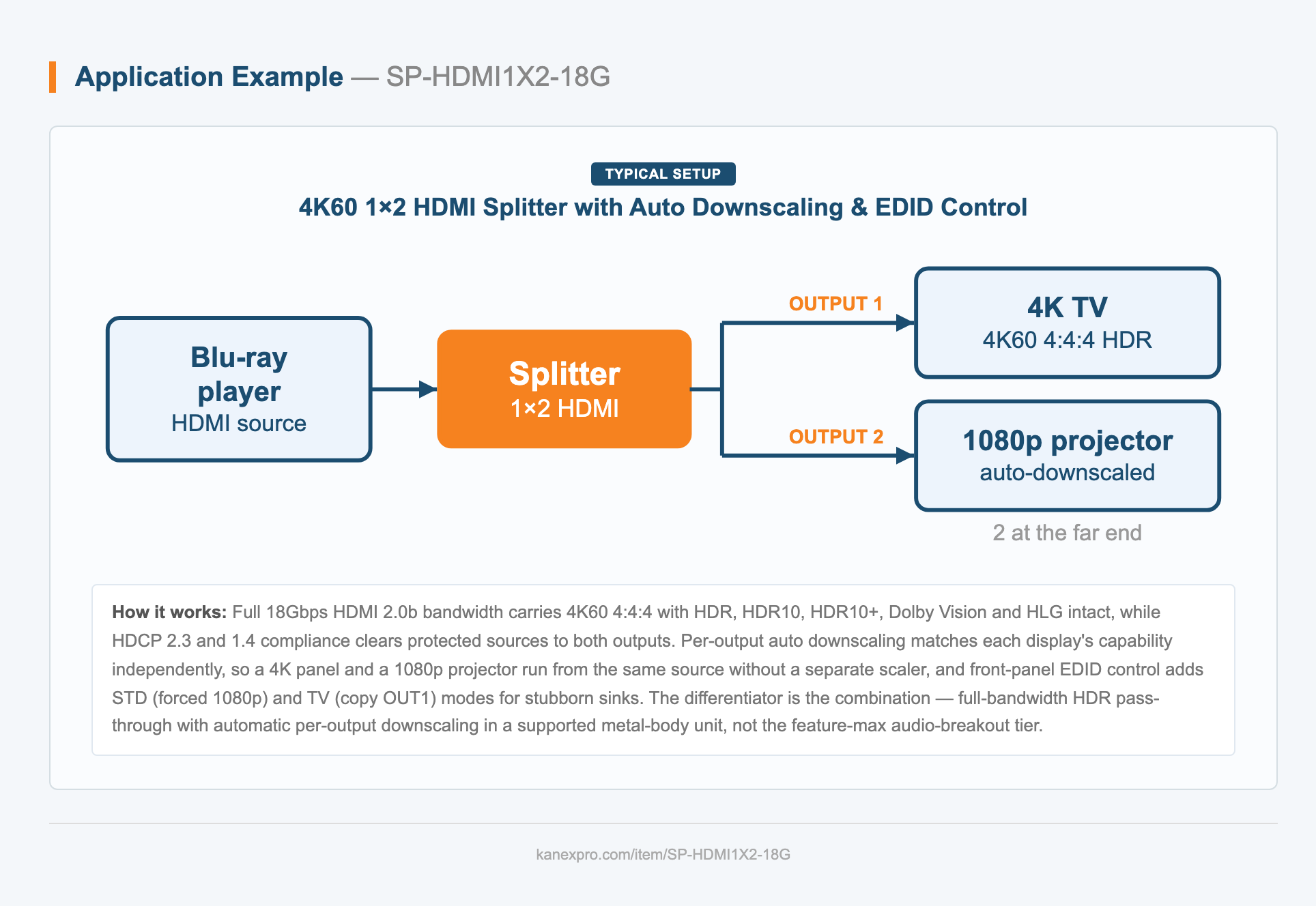

4K60 1×2 HDMI Splitter with Auto Downscaling & EDID Control system diagram
4K60 1×2 HDMI Splitter with Auto Downscaling & EDID Control applications
