4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management

Distribute One HDMI Source to Four Identical Displays - HDCP 2.3, HDR10+/Dolby Vision, STD/TV EDID

SP-HDMI1X4-18GUPC 813982023000
4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management
Currently out of stock
We are restocking this part. Ask us when it will be back.
Overview

Distributes one 4K60 HDMI source to four identical displays at the full 18Gbps — 4K60 4:4:4 with HDR intact on every screen. Housed in a compact black metal enclosure and driven from a single 5V/1A supply, this 1×4 distribution amplifier carries the full 18Gbps signal to all four outputs at once, mirroring one source across a group of panels. It is the right choice for digital signage, conference rooms and multi-display zones where a predictable handshake and full-color 4K integrity matter more than the scaling and audio-breakout carried by premium matrix hardware.

The unit passes 4K60 4:4:4 at 8, 10 or 12-bit color with HDR10, HDR10+, Dolby Vision and HLG to every output, and carries audio up to 7.1CH including LPCM, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio. HDCP 2.3, 2.2 and 1.4 compliance clears protected content from streaming and disc sources to compliant displays, while a front-panel EDID dial sets the whole group in one move — TV copies the EDID of the OUT 1 display to all four outputs, and STD holds a safe 1080p60 two-channel default when the displays differ. A USB Type-C service port keeps firmware current. Purpose-built as a mirror rather than a scaler, it delivers top-tier HDCP 2.3 distribution without the premium of features a mirror job never uses.

Key features
  • Distributes one HDMI input to four HDMI outputs simultaneously, mirroring a single source to four displays
  • HDMI 2.0b with 18Gbps bandwidth for full 4K2K@60Hz YCbCr 4:4:4 to every output
  • HDCP 2.3, 2.2 and 1.4 compliant, plus DVI 1.0
  • Supports 8-bit, 10-bit and 12-bit color depth across RGB, YCbCr 4:4:4, 4:2:2 and 4:2:0
  • HDR passthrough: HDR10, HDR10+, Dolby Vision and HLG
  • Audio passthrough up to 7.1CH, including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio and DSD
  • EDID management via a front-panel STD/TV slide switch: STD sets all outputs to a safe 1080p60 two-channel default; TV copies the OUT 1 display's EDID to all four outputs, falling back to 1080p60 if none is detected
  • USB Type-C service port for firmware updates
  • Front-panel LEDs for power, source connection and each of the four output connections
  • Engineered to industry standards to prevent cross-talk and minimize signal attenuation across outputs
  • Compact black metal enclosure for flexible installation on a shelf, in a rack or behind millwork
HDMI & Video
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3 / 2.2 / 1.4
DVI ComplianceDVI 1.0
Video Bandwidth18Gbps
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8-bit, 10-bit, 12-bit
HDRHDR10, HDR10+, Dolby Vision, HLG
Max Resolution4096×2160p60; 3840×2160p (23.98–30Hz); 1080p (23.98–60Hz); 1080i; 720p; VESA 640×480 to 1600×1200p60
Audio
ChannelsUp to 7.1CH
FormatsLPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
3D AudioSupported
Connections
Input1× HDMI IN (Type A, 19-pin female)
Output4× HDMI OUT (Type A, 19-pin female)
Control1× Service port (USB Type-C, firmware update)
EDID Management
ControlFront-panel EDID slide switch
STD ModeAll outputs run 1080p60, 2-channel audio
TV ModeCopies OUT 1 display EDID to all outputs; falls back to 1080p60 if none detected
Recommended HDMI Cable Length
4K6026 ft (8 m)
1080p49 ft (15 m)
Power
Power SupplyDC 5V / 1A
Power Consumption3W (max)
Physical
HousingMetal enclosure, black
Dimensions (W × D × H)6.42" × 2.48" × 0.63" (163 × 63 × 16 mm)
Weight (net)0.58 lbs (264 g)
Environmental
ESD ProtectionIEC 61000-4-2: ±8kV air discharge, ±4kV contact discharge
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Operating Humidity20% to 80% RH, non-condensing
Storage Humidity10% to 90% RH, non-condensing
Certifications
ComplianceCE, FCC, RoHS
Package Contents
Included1× 4K60 1×4 HDMI Splitter
Included1× 5V/1A power supply

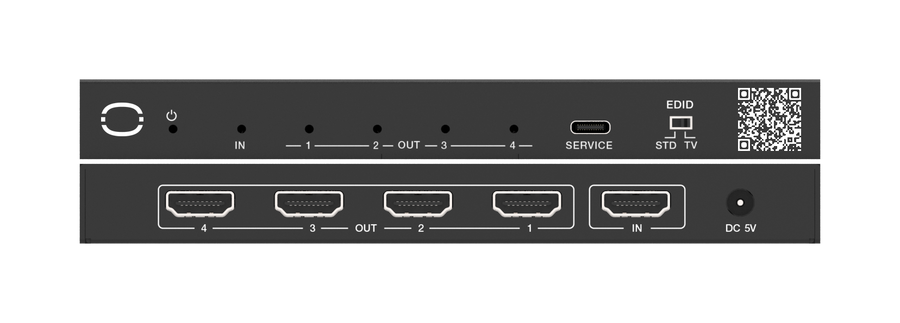

4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management panel drawing
4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management system diagram
4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management applications
