4K60 4:4:4 Multiview Switcher with USB-C 60W PD, USB 3.2 KVM, Dante® Audio & HDBaseT 3.0

  • 4×2 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out
1 1

KanexPro

SKU: SW-4X2PS-70M

UPC: 813982024007

  • Routes 2× USB-C and 2× HDMI sources to 2 HDMI outputs at up to 4K@60Hz 4:4:4 with HDCP 2.3 and 18 Gbps bandwidth
  • Multiview display modes: Auto, Single, PIP, PBP, Triple, Quad, and 5 Custom layouts with seamless switching
  • USB-C inputs support DP Alt Mode A/V, USB 3.2 Gen 1 (5 Gbps), 1G LAN passthrough, and 60W PD charging per port
  • HDBaseT 3.0 output (mirrored with HDMI OUT 2) extends uncompressed 4K60 4:4:4 up to 40m or 1080p/4K30 up to 70m via CAT6A
  • USB 3.2 KVM switching with keyboard and mouse hotkey support; USB 2.0 extension to receiver over HDBaseT
  • Built-in audio DSP with mixing, matrixing, 31-band GEQ, volume, delay, and Dante® 2×2 audio I/O
  • CEC and RS-232 display power control; advanced EDID management (17 modes); 8 preset scenes
  • Control via front panel buttons, IR remote, RS-232, TCP/IP (Web GUI) — included HDBaseT receiver with PoE
-->
查看完整详细信息

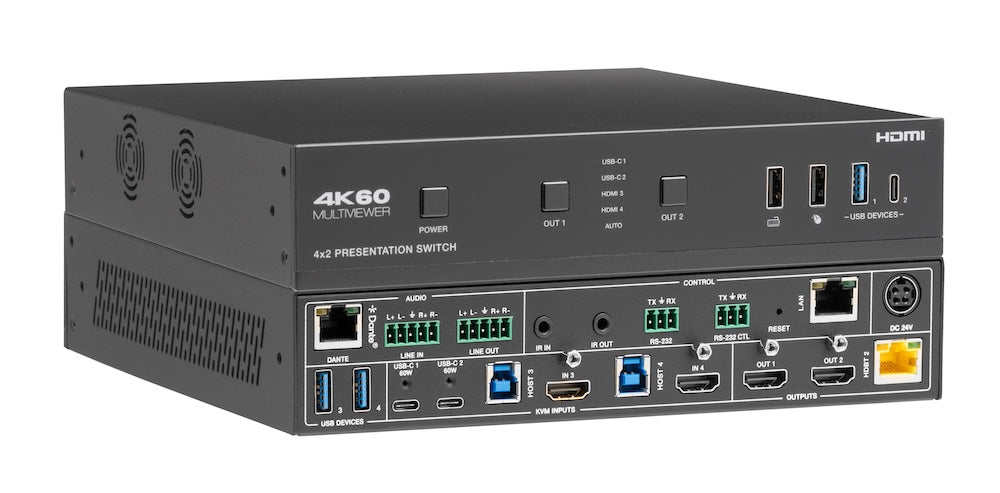

Seamless 4K60 presentation switching with multiview, USB-C connectivity, KVM control, and HDBaseT 3.0 extension — in a single half-rack unit. The KanexPro SW-4X2PS-70M is a 4×2 seamless presentation switch that routes four video sources (2× USB-C, 2× HDMI) to two HDMI outputs plus one HDBaseT 3.0 output at resolutions up to 4K@60Hz 4:4:4 with HDCP 2.3 compliance.

Multiple multiview display modes (PIP, PBP, Triple, Quad, Custom) allow simultaneous viewing of up to four sources on a single screen. USB-C inputs deliver DisplayPort Alt Mode A/V, USB 3.2 Gen 1 data, and 60W power delivery. Built-in audio DSP with Dante® 2×2 I/O, USB 3.2 KVM switching with keyboard/mouse hotkeys, and HDBaseT 3.0 extension up to 70m complete an integrated conferencing and presentation solution. Control via front panel, IR remote, RS-232, TCP/IP, or Web GUI.

  • Routes 2× USB-C and 2× HDMI sources to 2 HDMI outputs at up to 4K@60Hz 4:4:4 with HDCP 2.3 and 18 Gbps bandwidth
  • Multiview display modes: Auto, Single, PIP, PBP, Triple, Quad, and 5 Custom layouts with seamless switching
  • USB-C inputs support DP Alt Mode A/V, USB 3.2 Gen 1 (5 Gbps), 1G LAN passthrough, and 60W PD charging per port
  • HDBaseT 3.0 output (mirrored with HDMI OUT 2) extends uncompressed 4K60 4:4:4 up to 40m or 1080p/4K30 up to 70m via CAT6A
  • USB 3.2 KVM switching with keyboard and mouse hotkey support; USB 2.0 extension to receiver over HDBaseT
  • Built-in audio DSP with mixing, matrixing, 31-band GEQ, volume, delay, and Dante® 2×2 audio I/O
  • CEC and RS-232 display power control; advanced EDID management (17 modes); 8 preset scenes
  • Control via front panel buttons, IR remote, RS-232, TCP/IP (Web GUI) — included HDBaseT receiver with PoE
Specification
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.3
DP Version DP 1.4
Video Bandwidth 18 Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Depth 8/10/12-bit
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats USB-C/HDMI/HDBT: Digital audio, 32–192 kHz/24-bit, LPCM 2CH; LINE IN/OUT: Analog balanced/unbalanced 2CH; Dante®: LPCM 2CH, 44.1–96 kHz, 16/24-bit
USB Bandwidth USB 3.2 Gen 1 up to 5 Gbps
Network Bandwidth LAN and USB-C: 1 Gbps; Dante®: 100 Mbps
ESD Protection IEC 61000-4-2: ±8 kV (air-gap), ±4 kV (contact)
IR Level / Frequency 12 Vp-p • Wideband 20K–60 KHz
Analog Audio
TX Line Input Level (Max) 8.2 dBu (2 Vrms) • Input Impedance: 10KΩ
TX Line Output Level (Max) Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω
RX Line Output Level (Max) Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω
Audio S/N Ratio 93 dB @ 2 Vrms, 1 kHz A-weighted
Audio THD+N <0.1% @ 0 dBV, 1 kHz
Frequency Response +0.5 dB, −1 dB, 20 Hz to 20 kHz
Audio Delay TX: 2/3/4/5/10 ms • RX: <1 ms • Sync: 0–50 ms
Connection — Transmitter
Input 2× HDMI IN [Type A, 19-pin] • 2× USB-C IN [Type C, 24-pin] • 1× LINE IN [5-pin phoenix] • 1× DANTE IN [RJ45]
Output 2× HDMI OUT [Type A, 19-pin] • 1× HDBT OUT [RJ45, 48V PoE/PSE] • 1× LINE OUT [5-pin phoenix]
Control 1× RS-232 [3-pin phoenix] • 1× RS-232 CTL [3-pin phoenix] • 1× LAN [RJ45] • 1× IR IN • 1× IR OUT [3.5mm]
USB 2× USB 3.2 HOST [Type B] • 3× USB 3.2 DEVICES [Type A] • 2× USB 1.1 KVM [Type A] • 1× USB-C DEVICE
Connection — Receiver
Input 1× HDMI IN [Type A, 19-pin] • 1× HDBaseT IN [RJ45, 48V PoE/PD]
Output 1× HDMI OUT [Type A, 19-pin] • 1× LINE OUT [5-pin phoenix]
Control 1× RS-232 [3-pin phoenix] • 1× IR IN • 1× IR OUT [3.5mm]
USB 1× USB HOST [Type B] • 2× USB DEVICES [Type A] • 1× SERVICE [Micro USB]
Mechanical
Housing Front panel: Aluminum; Rear case: Metal Enclosure
Color Black
Dimensions (TX) 220 mm (W) × 220 mm (D) × 44.5 mm (H)
Dimensions (RX) 140 mm (W) × 105 mm (D) × 21.5 mm (H)
Weight Transmitter: 1.78 kg; Receiver: 424 g
Power Supply AC 100–240V 50/60 Hz → DC 24V/8A
Power Consumption 170W (Max)
Operating Temperature 32–104°F / 0–40°C
Storage Temperature −40–140°F / −40–60°C
Operating Humidity 20–80% RH (non-condensing)
Storage Humidity 10–90% RH (non-condensing)
Transmission Distance
HDBT 4K60 4:4:4 Up to 132 ft / 40m (CAT6A F/FTP)
HDBT 1080p / 4K30 Up to 230 ft / 70m (CAT6A F/FTP)
HDMI Up to 9.8 ft / 3m
USB-C Up to 9.8 ft / 3m
Package Contents
1× 4×2 Seamless Presentation Switch (Transmitter)
1× HDBaseT Receiver
1× IR Blaster Cable (1.5m)
1× IR Wideband Receiver Cable (1.5m)
3× 3-pin 3.5mm Phoenix Connector
3× 5-pin 3.5mm Phoenix Connector
4× Mounting Ears
8× Machine Screws
1× 24V/8A Desktop Power Supply with AC Power Cord (1.5m)
1× IR Remote
1× Product Manual



Product Diagram
Product Panel
