1080P60 H.265 AV over IP Encoder New

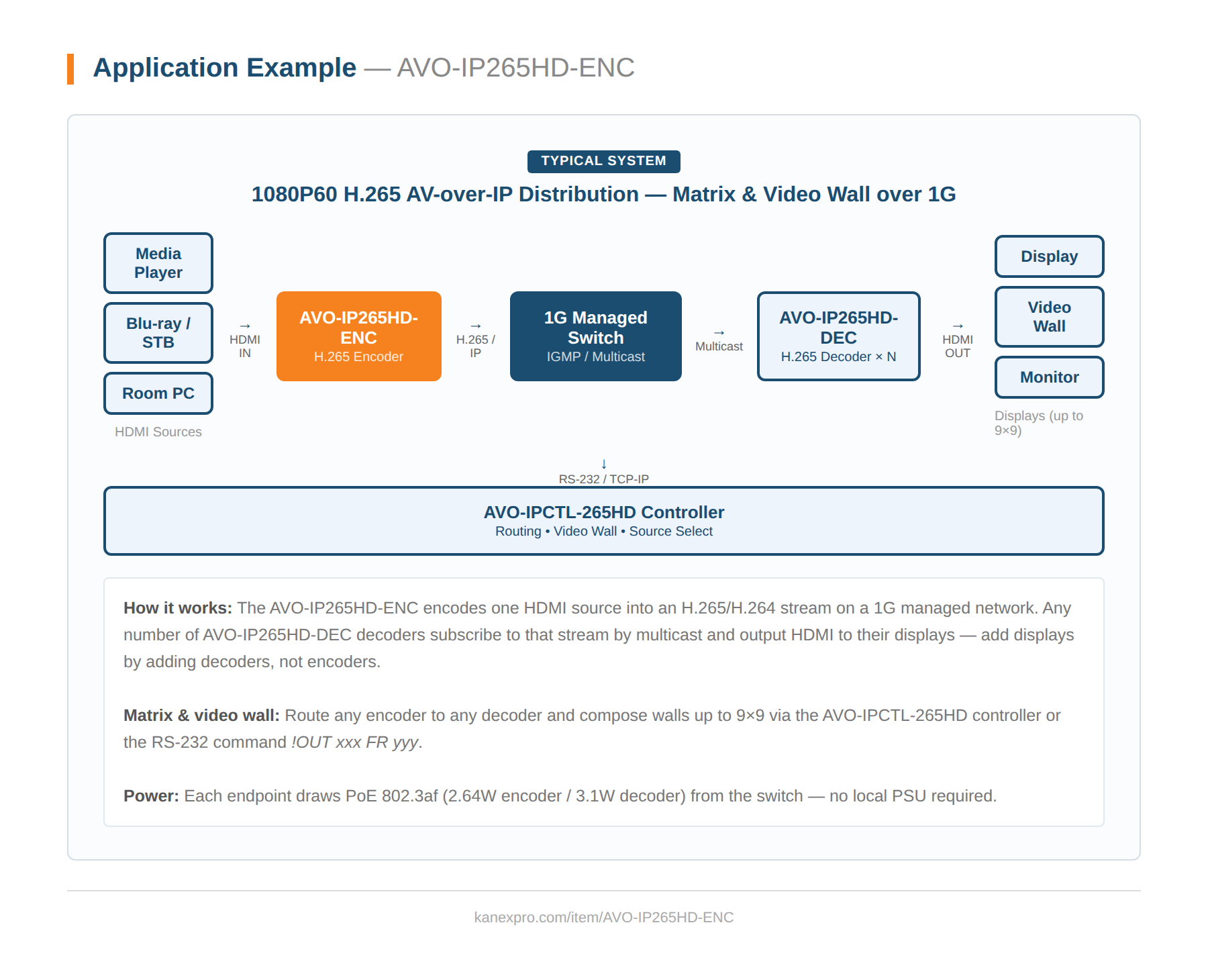

Encodes one HDMI source into a compact H.265/H.264 IP stream that any number of AVO-IP265HD decoders can display over a standard 1G managed network. At 120×95×21.5mm and just 2.64 watts, the AVO-IP265HD-ENC rack-mounts up to 12 units in 4U or 8 in 1U — built for digital signage, education, retail, and corporate AV distribution where one source must reach many screens without a per-display encoder.

Supports matrix switching, video wall up to 9×9, unicast and multicast distribution, analog audio embedding, and RS-232 pass-through, all configurable via web GUI. RTSP sub-streams allow VLC and third-party preview. Managed by the AVO-IPCTL-265HD controller. Decoders (AVO-IP265HD-DEC) sold separately.

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4
• Compact form factor: 4.72″ × 3.74″ × 0.85″ (120 × 95 × 21.5mm), 0.65 lbs per unit
• Rack-dense: 4U rack (up to 12 units) or 1U rack (up to 8 units)
• Encodes one HDMI input into a low-latency H.265/H.264 IP stream for unlimited decoders
• Matrix switching, video wall up to 9×9, unicast and multicast distribution over 1G
• Analog audio embedding — LPCM 2.0CH inserted into the stream
• Configurable main stream (8Mb/s default) and sub stream (640×360, 1Mb/s default)
• RTSP sub-stream for VLC and third-party application preview

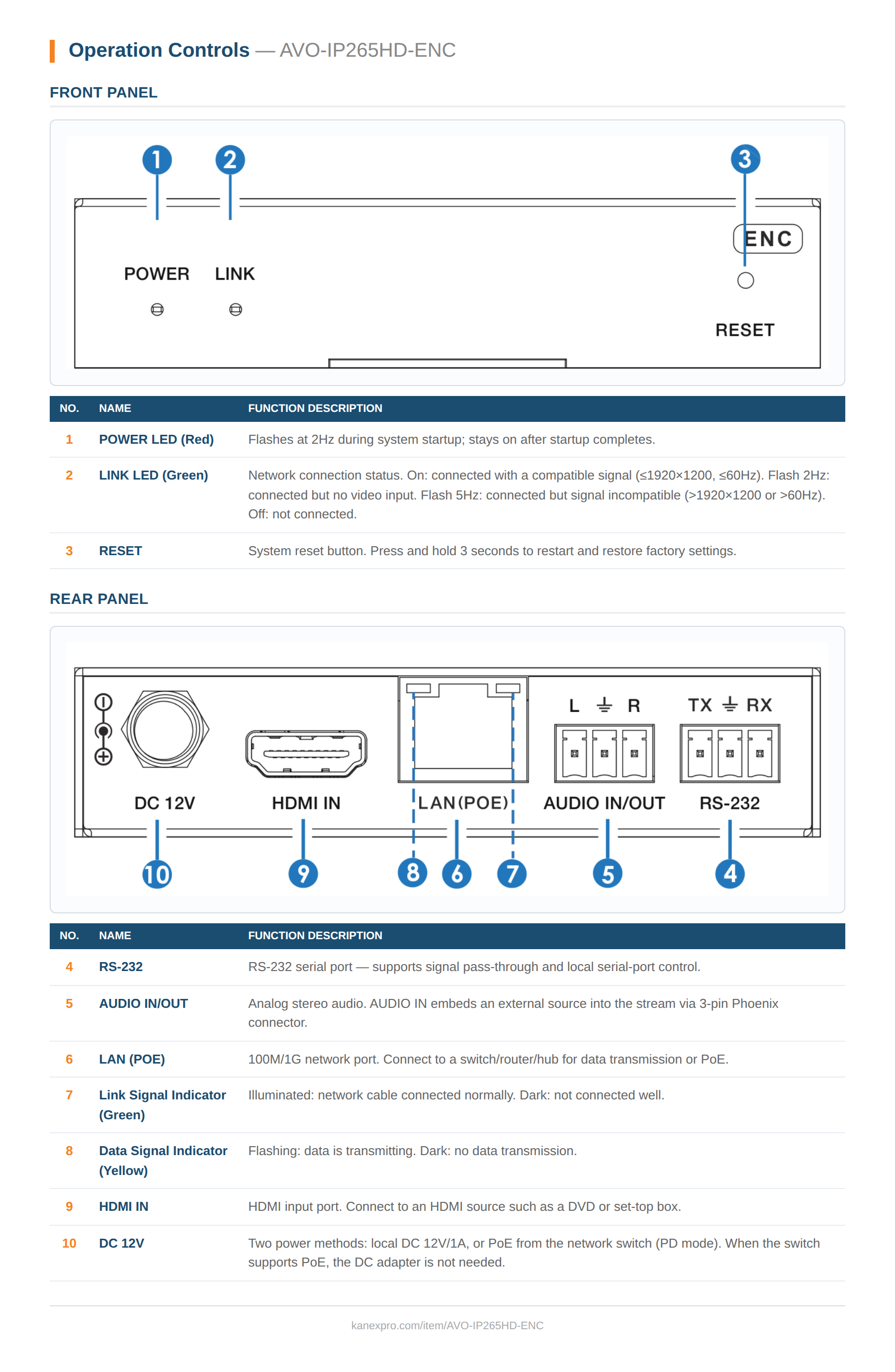

• Web GUI for video configuration, EDID management, picture settings, firmware updates
• PoE 802.3af Class 3 PD or DC 12V/1A — ultra-low power: 2.64W
• Works with AVO-IPCTL-265HD (CTL100H) controller
