1080P60 H.265 AV over IP KVM Decoder

Add Controllable Displays Without Adding Encoders — USB-KVM & Bidirectional IR, Matrix & Video Wall up to 9x9 over 1G

AVO-IP265HDK-DECUPC 813982021426
1080P60 H.265 AV over IP KVM Decoder
Available through our B2B portal
This part is sold to approved trade accounts.

Resellers, installers, schools and businesses. Approval is usually the same working day.

Overview

Adds a controllable display to an existing H.265 AV-over-IP system without adding another encoder. The AVO-IP265HDK-DEC is a 1080p60 KVM decoder in a black metal enclosure that drives one HDMI display from any source on a standard 1G managed network, powered by PoE (802.3af Class 3) from the same switch port that carries video or by a local 12V/1A supply. It distributes point-to-point, one-to-many, in a distributed matrix, and across a video wall up to 9×9, extending signals up to 328 ft (100 m) over CAT5E/6/6A/7. It is the right choice for control rooms, dispatch floors, sports bars, houses of worship, and classrooms where screen count, USB/KVM control, and per-endpoint cost matter more than 4K.

Every display added on the network can re-route any encoder's source through the Web GUI, IR, RS-232, TCP/IP, or a Controller Box, with H.265/H.264 compression at up to 1920×1200@60Hz 4:4:4 and main-stream/sub-stream encoding to manage bandwidth. Beyond video, it keeps the control plane intact: USB/KVM host control one-to-one and one-to-many, bidirectional IR and RS-232 (pass-through and Guest mode), and analog audio de-embedding to a 3-pin phoenix output. As the decode half of a split architecture, it lets integrators order only the direction each job needs and turn display expansion into a simple per-screen add-on, pairing with the AVO-IP265HDK-ENC encoder, sold separately.

Key features
  • Supports USB/KVM function (one-to-one and one-to-many) and bidirectional IR/RS-232 control (pass-through and Guest mode).
  • Video resolution up to 1920×1200@60Hz 4:4:4, per HDMI 1.3.
  • Supports signal distribution, multicast mode, distributed matrix, and video wall up to 9×9 over a 1G network switch.
  • Supports PoE (802.3af Class 3, PD mode).
  • Signal transmission up to 328 ft / 100 m over CAT5E/6/6A/7 cable.
  • Controlled via IR, RS-232, TCP/IP, Web GUI, and Controller Box.
  • Intelligent video wall management for flexible wall layout configurations.
  • Stream parameters configurable via Web GUI or Controller Box.
  • Supports audio embedding and extracting.
  • HDCP 1.4 compliant.
  • Supports 4.95 Gbps HDMI bandwidth; streams default to 8 Mb/s (adjustable).
  • Supports point-to-point signal extension.
  • Supports LPCM 2.0CH (32/44.1/48 kHz) audio format.
  • Supports main-stream and sub-stream encoding modes.
  • Smart networking design for easy and flexible installation.
Video & Signal
HDMI ComplianceHDMI 1.3
HDCP ComplianceHDCP 1.4
Video CompressionH.265 / H.264
HDMI Bandwidth4.95 Gbps
Stream BitrateMain stream 8 Mb/s by default (adjustable); sub stream 1 Mb/s at 640×360
Video ResolutionUp to 1920×1200@60Hz 4:4:4
Color SpaceRGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color DepthInput: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit
Audio FormatLPCM 2.0CH (32 / 44.1 / 48 kHz)
Transmission & Control
Transmission Distance100 m / 328 ft (CAT5E/6/6A/7)
Network100M/1G switch; UDP unicast and multicast; IGMP snooping
Distribution ModesPoint-to-point, multicast, distributed matrix, video wall up to 9×9
USB / KVMOne-to-one and one-to-many
ControlIR, RS-232, TCP/IP, Web GUI, Controller Box
IR Level12 Vp-p
IR FrequencyWideband 20–60 kHz
Connectors (Decoder)
HDMI OUT1× Type A, 19-pin female
LAN1× RJ45, PoE
Audio OUT1× 3-pin phoenix connector
RS-2321× 3-pin phoenix connector
IR IN1× 3.5 mm audio jack, 12V IR
IR OUT1× 3.5 mm audio jack, 12V IR
USB Devices2× Type A, 4-pin female
Power
Power SupplyInput: AC 100–240V 50/60Hz; Output: DC 12V / 1A
Power Consumption2.77 W
PoE802.3af Class 3, PD mode
Physical
HousingMetal enclosure, black
Dimensions8.03" × 3.74" × 0.85" (204 × 95 × 21.5 mm) [W × D × H]
Weight1.03 lbs (0.467 kg)
Environmental & Protection
Operating Temperature14°F – 113°F (-10°C – 45°C)
Storage Temperature-4°F – 140°F (-20°C – 60°C)
Relative Humidity20% – 90% RH, non-condensing
ESD ProtectionIEC 61000-4-2: ±8 kV (air-gap), ±4 kV (contact)

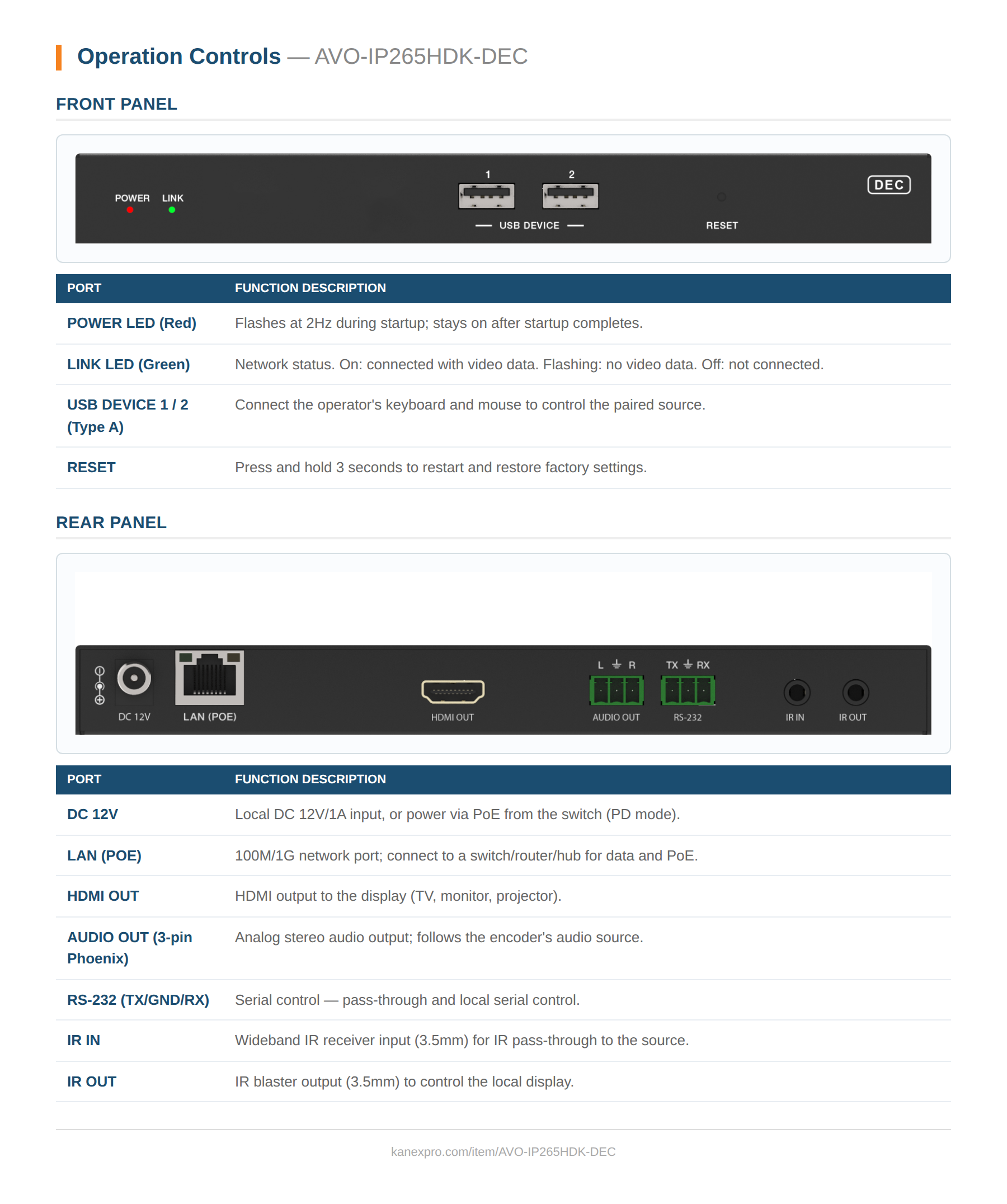

1080P60 H.265 AV over IP KVM Decoder panel drawing

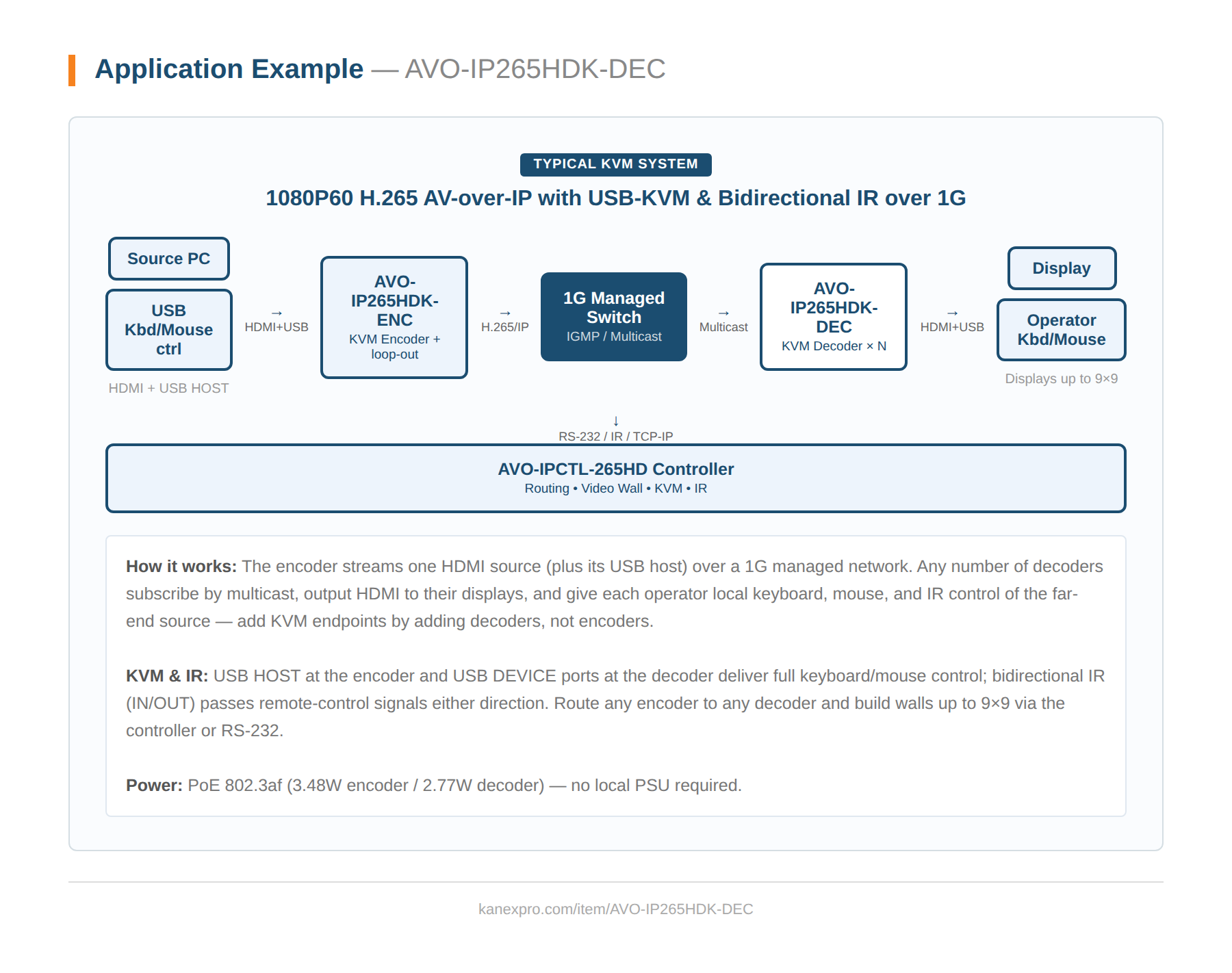

1080P60 H.265 AV over IP KVM Decoder system diagram
1080P60 H.265 AV over IP KVM Decoder applications
