1080P60 H.265 AV over IP KVM Encoder
Distribute One HDMI Source to Unlimited Displays — USB-KVM & Bidirectional IR, HDMI Loop Out, Matrix & Video Wall up to 9x9 over 1G
Resellers, installers, schools and businesses. Approval is usually the same working day.
Distributes one HDMI source to an unlimited number of displays over the standard 1G network you already have. The AVO-IP265HDK-ENC encodes 1080p60 video with efficient H.265/H.264 compression and rides a standard managed Gigabit switch, so display count is set by the network rather than by fixed matrix port count. Housed in a compact 8.03 x 3.74 x 0.85 in (204 x 95 x 21.5 mm) metal enclosure and powered over PoE (802.3af Class 3, approximately 3.48 W) straight from the switch, it rack-mounts up to ten units in a 6U frame or four across a 1U panel for high-density headends. It is the right choice for distribution, KVM and signage jobs where reach, per-seat cost and density matter more than 4K.

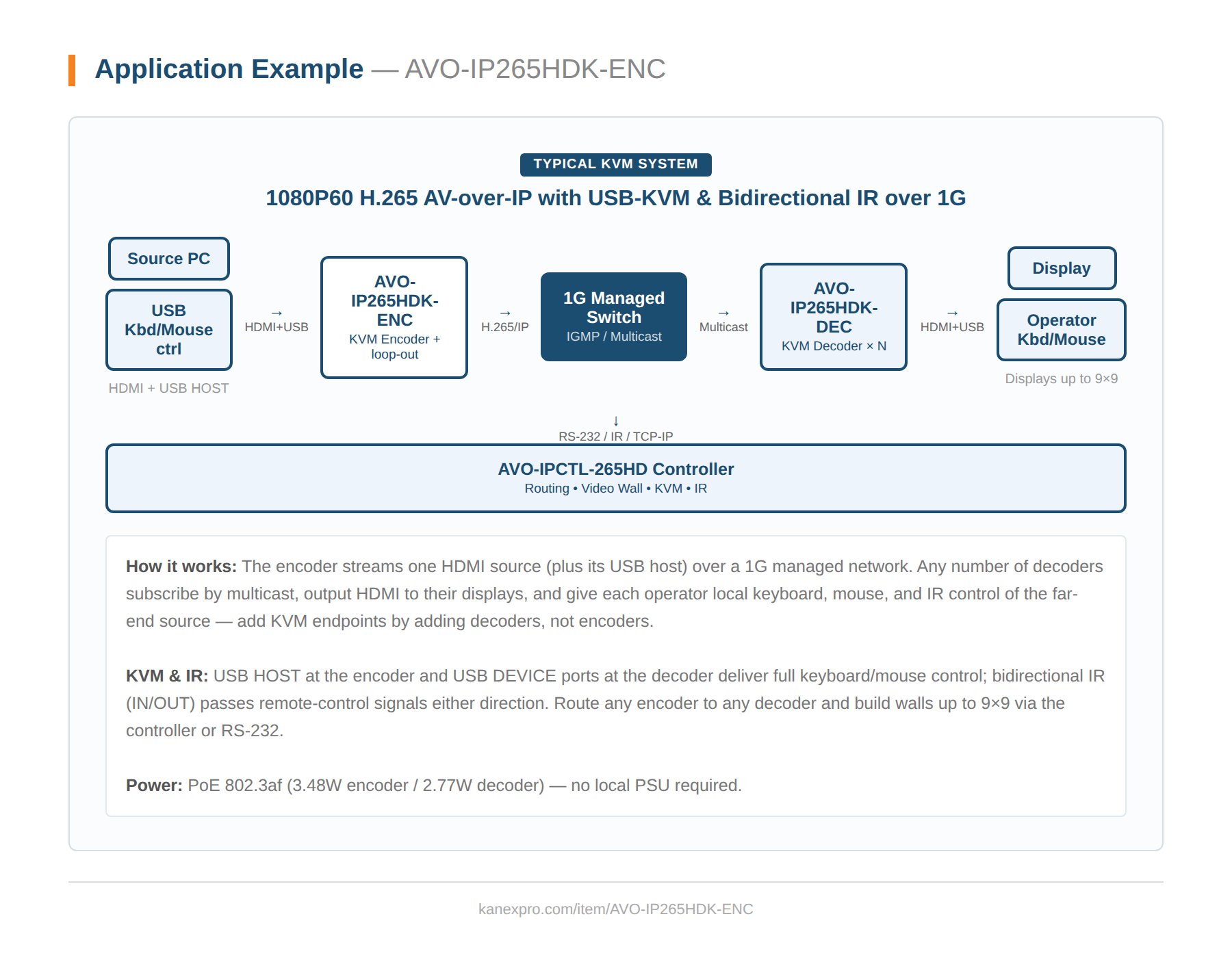

On that same 1G fabric it supports point-to-point extension, multicast distribution, distributed matrix switching and video walls up to 9x9, with intelligent wall-layout management and main-stream/sub-stream encoding for low-bandwidth preview or capture. A USB host port and two USB device ports deliver one-to-one and one-to-many USB/KVM, while bidirectional IR and RS-232 (pass-through and Guest mode) carry control to attached equipment, and an HDMI local loop-out feeds a confidence monitor without consuming a decoder. Streams are configured from the built-in Web GUI or a KanexPro Controller Box, and control runs over IR, RS-232, TCP/IP, Web GUI or controller. As the transmit half of a split encoder/decoder architecture, it lets integrators order the exact encoder-to-decoder ratio each job needs; its matched receiver, the AVO-IP265HDK-DEC KVM decoder, is sold separately.
- HDCP 1.4 compliant.
- Video resolution up to 1920x1200@60Hz 4:4:4, as specified in HDMI 1.3.
- Supports 4.95 Gbps video bandwidth.
- Signal transmission distance can be extended up to 328 ft / 100 m via CAT5E/6/6A/7 cable.
- Supports point-to-point signal extension.
- Supports signal distribution, multicast mode, distributed matrix and video wall (up to 9x9) functions over a 1G network switch.
- Intelligent video wall management makes novel wall-configuration layouts achievable.
- Supports LPCM 2.0CH (32/44.1/48 kHz) audio format.
- Encoder supports HDMI local loop output.
- Supports audio embedding and extracting.
- Supports USB/KVM function (one-to-one and one-to-many), and bidirectional IR/RS-232 control (pass-through and Guest mode).
- Supports main-stream and sub-stream encoding modes.
- Stream parameters can be configured via Web GUI or Controller Box.
- Controlled via IR, RS-232, TCP/IP, Web GUI and Controller Box.
- Supports PoE (802.3af Class 3, PD mode).
- Smart networking design for easy and flexible installation.
| Video & HDMI | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Resolution | Up to 1920x1200@60Hz 4:4:4 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Video Bandwidth | 4.95 Gbps |
| Video Compression | H.265 / H.264 |
| Audio | |
| Audio Format | LPCM 2.0CH (32/44.1/48 kHz) |
| Audio Support | Embedding and extraction |
| Network & Transmission | |
| Network Port | 100M/1G LAN (RJ45), PoE |
| Transmission Distance | 328 ft / 100 m (CAT5E/6/6A/7) |
| Topologies | Point-to-point, multicast, distributed matrix, video wall up to 9x9 |
| Encoding Modes | Main-stream and sub-stream |
| Control | |
| Control Methods | IR, RS-232, TCP/IP, Web GUI, Controller Box |
| USB / KVM | USB host + 2x USB device; one-to-one and one-to-many |
| IR Level | 12 Vp-p |
| IR Frequency | Wideband 20 kHz - 60 kHz |

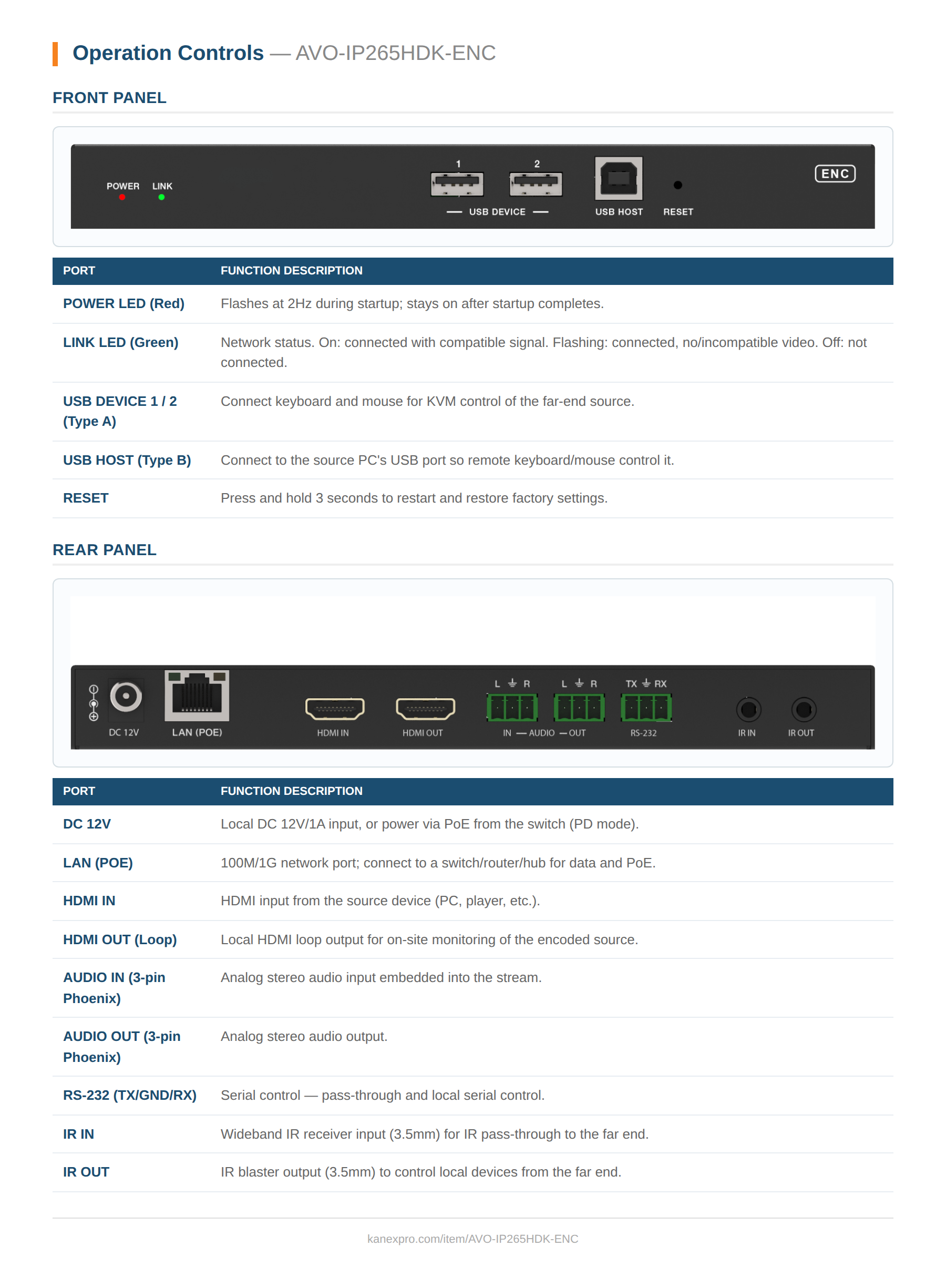

| Connectors (Encoder) | |
| HDMI IN | 1x [Type A, 19-pin female] |
| HDMI OUT (loop) | 1x [Type A, 19-pin female] |
| Audio IN / OUT | 2x [3-pin phoenix connector] |
| RS-232 | 1x [3-pin phoenix connector] |
| LAN | 1x [RJ45 connector, PoE] |
| IR IN / OUT | 2x [3.5 mm audio jack, 12V IR] |
| USB Host | 1x [Type B, 4-pin female] |
| USB Devices | 2x [Type A, 4-pin female] |
| Protection | |
| ESD Protection | IEC 61000-4-2: +/-8 kV (air-gap discharge), +/-4 kV (contact discharge) |
| Power | |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 12V/1A |
| Power Consumption | 3.48 W |
| PoE | 802.3af Class 3, PD mode |
| Physical | |
| Dimensions | 8.03" x 3.74" x 0.85" (204 x 95 x 21.5 mm) |
| Weight | 1.04 lbs (0.47 kg) |
| Housing | Metal enclosure |
| Color | Black |
| Rack Mounting | 6U (up to 10 units) or 1U (up to 4 units) |
| Environmental | |
| Operating Temperature | 14°F - 113°F (-10°C - 45°C) |
| Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
| Relative Humidity | 20% - 90% RH (non-condensing) |
| Package Contents | |
| 1x | 1080p60 H.265 AV over IP KVM Encoder |
| 1x | 12V/1A Locking Power Adapter |
| 3x | 3-pin Phoenix Connector (3.81 mm, male) |
| 4x | Machine Screw (KM3, 4 mm) |
| 2x | Mounting Ear |
| 1x | IR Blaster Cable (1.5 m) |
| 1x | IR Receiver Cable (1.5 m) |
| 1x | User Manual |
